ACV 42XAD002 Audi A1, A3, A4, A6, Q3, TT Steering Stalk Control Adaptor Phone Button Support
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:ACV
- Product Code:42XAD002

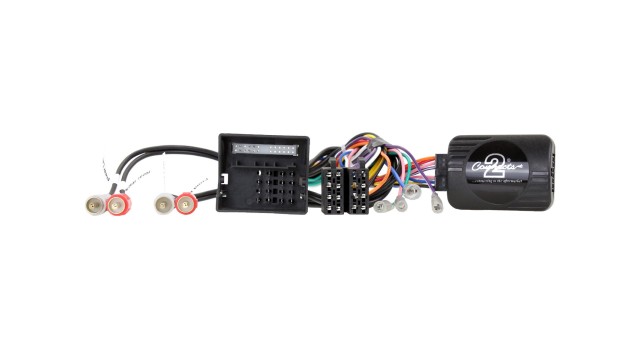

- Other Part #:CTSAD002.2
- EAN / UPC:7427307018454
- Warranty:1 Year Warranty
Steering Wheel Control Interface Adaptor. Connecting to the original radio connector and plugging in to the back of the new head unit is simple to fit.
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
The 42XAD002-0 allows for the retention of the steering wheel controls as well as other vital features when installing an aftermarket unit into the vehicle.
This interface features selectable dip switches for dedicated applications, simply refer to the provided table for the correct configuration ensuring seamless integration.
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | A1 | 2010 - 2018 | (8X) |
| Audi | A3 | 2003 - 2013 | (8P) |
| Audi | A4 | 2000 - 2009 | (8E - B6/B7) |
| Audi | A6 | 2001 - 2006 | (C5/B4) |
| Audi | Q3 | 2011 - 2018 | (8U) |
| Audi | TT | 2006 - 2014 | (8j) Analogue amplifier only |
for vehicles with Concert, Chorus, Symphony
Head Unit and Quadlock (40 Way Fakra)
Vehicles without a digital amplifier.Note: Aftermarket radio must have RCA audio output connectors.
Key Features
- Retain Steering Wheel Control Functionality
- Replace Factory Radio
- Outputs For Speed Pulse, Park Brake, Reverse & Amp Remote
- Retains Bose/half Amplified Systems (if Equipped)
- Can Bus Interface
- Software Updateable
- Remappable Buttons

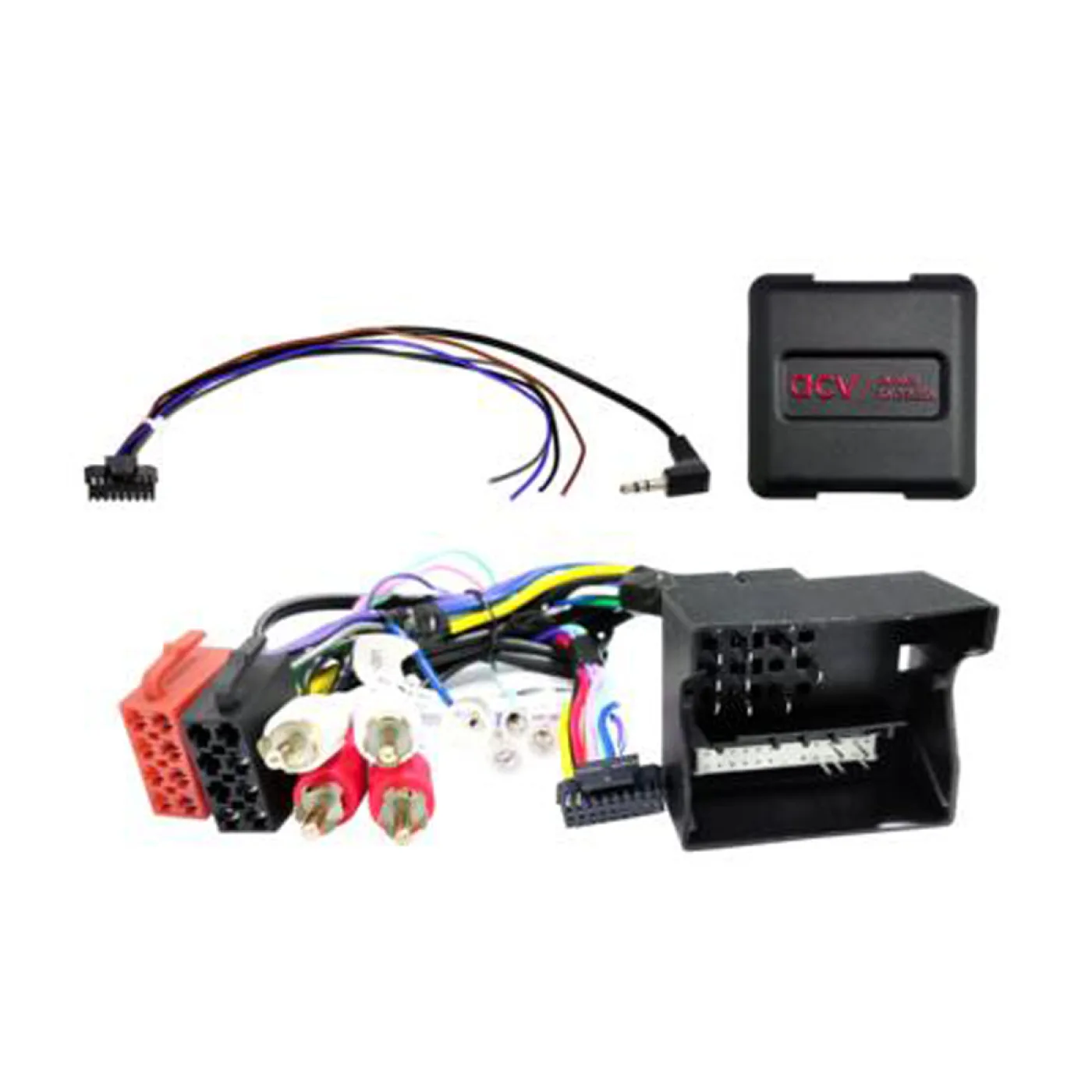

What's Included
- 42XAD002 Steering Control Adaptor
- FREE Stereo Patch Lead

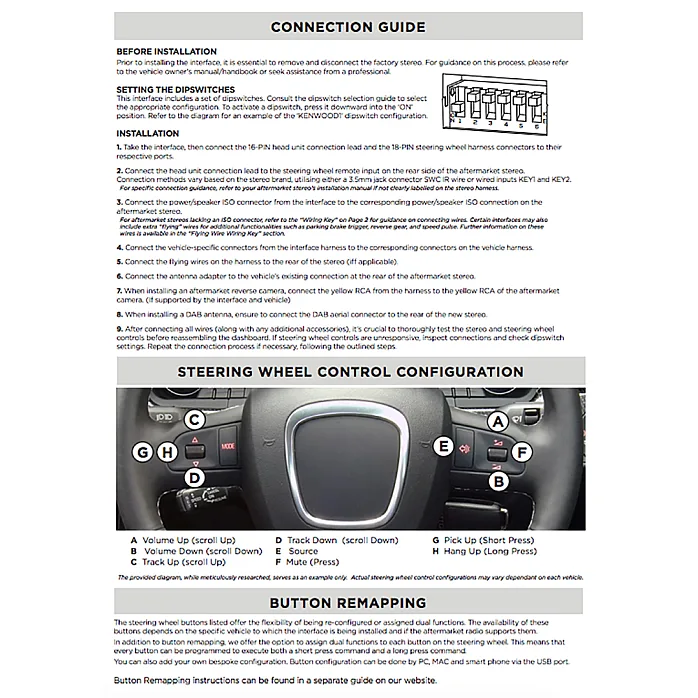

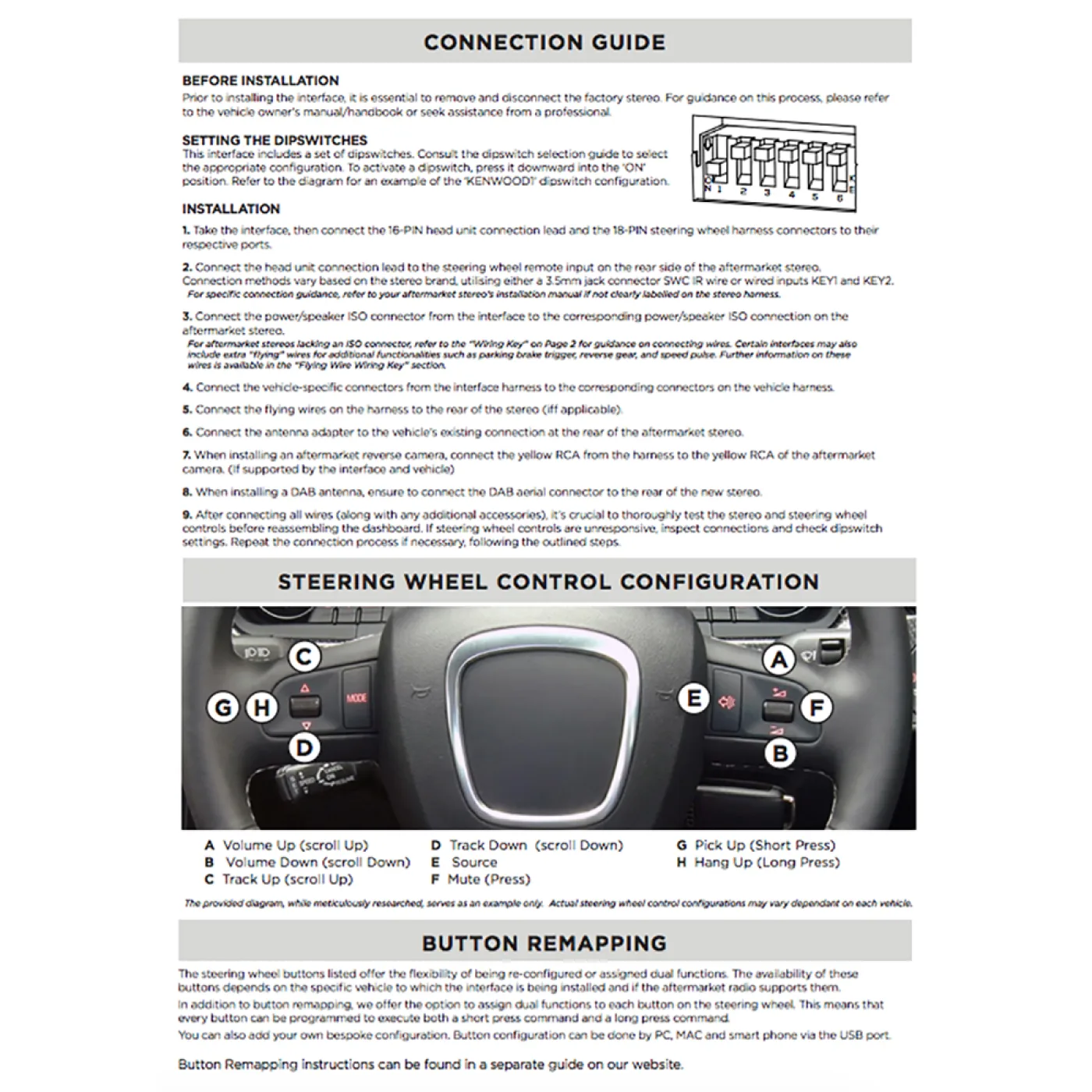

Connection Guide
Before Installation
Prior to installing the interface, it is essential to remove and disconnect the factory stereo. For guidance on this process, please refer to the vehicle owner’s manual/handbook or seek assistance from a professional.
Setting the Dip Switches
This interface includes a set of dipswitches. Consult the dipswitch selection guide to select the appropriate configuration. To activate a dipswitch, press it downward into the ‘ON’ position. Refer to the diagram for an example of the ‘KENWOOD1’ dipswitch configuration.
Installation
1. Take the interface, then connect the 16-PIN head unit connection lead and the 18-PIN steering wheel harness connectors to their respective ports.
2. Connect the head unit connection lead to the steering wheel remote input on the rear side of the aftermarket stereo. Connection methods vary based on the stereo brand, utilising either a 3.5mm jack connector SWC IR wire or wired inputs KEY1 and KEY2. For specific connection guidance, refer to your aftermarket stereo’s installation manual if not clearly labelled on the stereo harness.
3. Connect the power/speaker ISO connector from the interface to the corresponding power/speaker ISO connection on the
aftermarket stereo. For aftermarket stereos lacking an ISO connector, refer to the “Wiring Key” on Page 2 for guidance on connecting wires. Certain interfaces may also include extra “flying” wires for additional functionalities such as parking brake trigger, reverse gear, and speed pulse. Further information on these wires is available in the “Flying Wire Wiring Key” section.
4. Connect the vehicle-specific connectors from the interface harness to the corresponding connectors on the vehicle harness.
5. Connect the flying wires on the harness to the rear of the stereo (iff applicable).
6. Connect the antenna adapter to the vehicle’s existing connection at the rear of the aftermarket stereo.
7. When installing an aftermarket reverse camera, connect the yellow RCA from the harness to the yellow RCA of the aftermarket camera. (If supported by the interface and vehicle)
8. When installing a DAB antenna, ensure to connect the DAB aerial connector to the rear of the new stereo.
9. After connecting all wires (along with any additional accessories), it’s crucial to thoroughly test the stereo and steering wheel controls before reassembling the dashboard. If steering wheel controls are unresponsive, inspect connections and check dipswitch settings. Repeat the connection process if necessary, following the outlined steps
