Alpine BBX Power Class A/B 2 Channel Car Amplifier With Alpine 12“ (30cm) Bass Reflex Subwoofer Tube and Wiring Kit
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:BBX-T600 + SWT-12S4 + SSK8
- EAN / UPC:7427288137045
- Warranty:1 Year Warranty

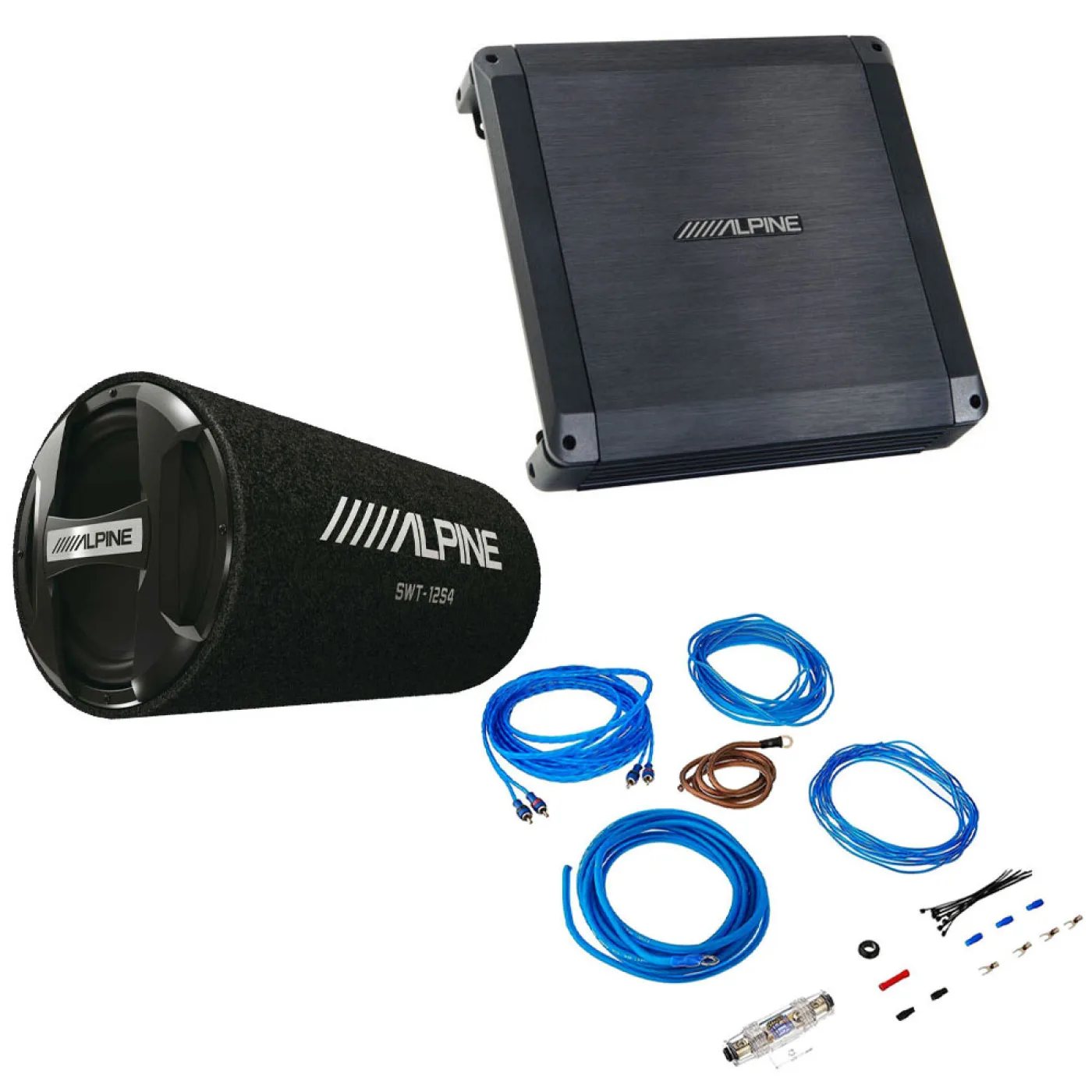

Package Includes
- Alpine BBX-T600 BBX Power Class A/B Amp 2 Channel Car Amplifier 300W
- Alpine SWT-12S4 12“ (30cm) Bass Reflex Subwoofer Tube
- Stinger SSK8 8GA 600W Amplifier Wiring Kit
Designed for Europe
This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.
High Power, Great Value
This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters
These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Bass EQ for Best Bass
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.
Alpine BBX-T600 Features
Specifications
Install
- Terminal Layout
- Two-Sided
- Screw Mount / Wire Cover
- Integrated Wire and Mounting Screw Terminals
General
- Amplifier Type
- Class-A/B
- Channel Design
- 2/1 Channel
- Thermal Control
- Thermal Management Control
- Power Supply
- DC-DC PWM Power Supply
- Power Supply Design
- MOSFET Power
- Current Protection
- Over-Current, Over-Voltage and Thermal Protection
- Crossover
- Variable Low-Pass / High-Pass
- Green/red Status LED
- 1 pair RCA pre-inputs
- 1 pair RCA pre-outputs
Specifications
Max Power Output Ratings
- Total Max Power
- 300W
RMS Power Ratings
- Per Channel into 4ohms (≤1%THD+N)
- 2 x 50W
- Per Channel into 2ohms (≤1%THD+N)
- 2 x 70W
- Bridged into 4ohms (≤1%THD+N)
- 1 x 130W
Sound Tuning
- Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
- 1/2 Ch
- LP: 50Hz – 250Hz HP: 80Hz – 1.2kHz
- EQ (Equalizer)
- Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB
Dimensions
- Footprint
- 250 mm x 52 mm x 240 mm
General
- Power Requirements
- 14.4 V DC (11 V to 16 V)
- Input Sensitivity
- 0.2 - 8.0 V
- Frequency Response
- 5 Hz - 50 kHz (+ 0,-3 dB)
- Speaker Impedance
- 4 or 2 Ω
- Signal to Noise
- S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
- Weight
- 1.9 Kg
SWT-12S4 Bass Reflex Subwoofer Tube
With 1000W peak power handling, this ready-to-use bass reflex subwoofer tube is just the thing for big bass fans. A protective grille ensures that nothing sliding around in the trunk damages the woofer.
Features
- Speaker System: Bass Reflex Type
- 12” (30cm) High-Performance Subwoofer
- Peak Power: 1000W
- RMS Power: 300W
- Overall Dimensions Ø 324 x 660 mm
- Frequency Response 28-200Hz
- Speaker Impedance: 4 Ω
- Sensitivity: 92dB/W (1m)
- Stitched Alpine Logo
- Included Installation Brackets and Belts
- Heavy Duty Subwoofer Grill
Stinger SSK8 8GA 600W Amplifier Wiring Kit
Featuring Ultra Flexible CCA cable construction for excellent current transfer to power hungry amplifiers on a budget. Quality twisted pair interconnects for noise free signal transfer. Also includes ultra flexible speaker wire, remote turn-on, MIDI high current fuse holder and ring terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.
Includes
- 17FT Matte Blue Ultra Flexible Power Wire (CCA)
- 3FT Matte Gray Ultra Flexible Ground Wire (CCA)
- 17FT Twisted Pair RCA Interconnects (OFC)
- 17FT Blue Remote Turn-on Wire (CCA)
- 20FT Matte Blue Ultra Flexible Speaker Wire (CCA)
- 1pc. High Current Water-resistant MIDI Fuseholder with 60A Fuse
