Alpine KCX-C250MC Multi Camera Selector Interface for Alpine Camera
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Alpine
- Product Code:KCX-C250MC
- EAN / UPC:7427288182335
- Warranty:1 Year Warranty
£129.99

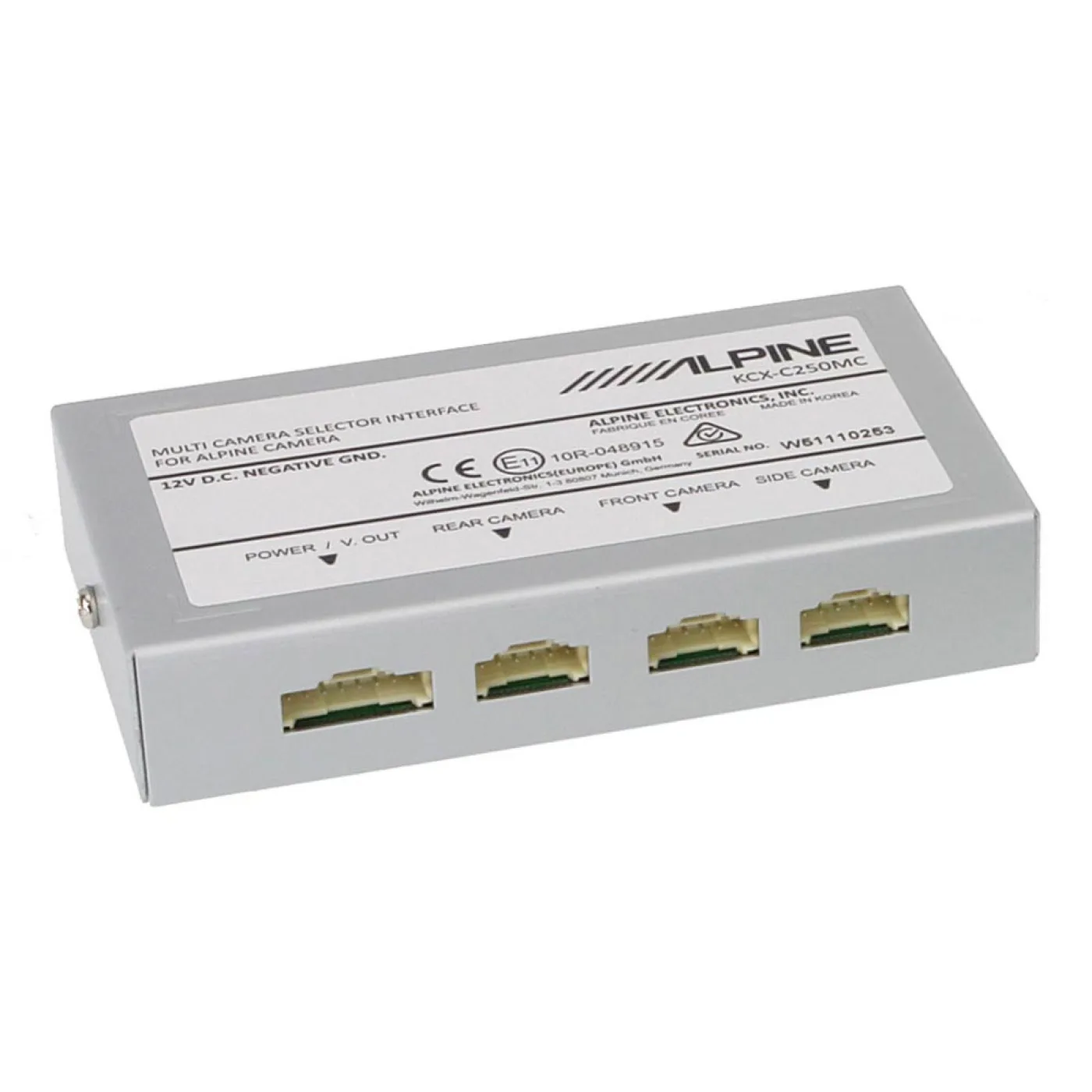

KCX-C250MC Multi Camera Selector
- Enables connection of up to three Alpine direct connetion cameras.
- Alpine front, rear and side cameras can be controlled from the head unit screen.
- Simply select camera view from receiver's touchscreen.
- Works with our latest Alpine head units featuring Direct Camera Input.
Features
- Enables connection for up to three Alpine cameras with Direct Camera Connection
- Supports power supply for direct cameras
- Supports Alpine Multiview Cameras, you can switch between up to 4 different camera views - depending on the camera: Panorama-, Back-, Corner- and Top-view.
- Required for using front, rear and side cameras at once

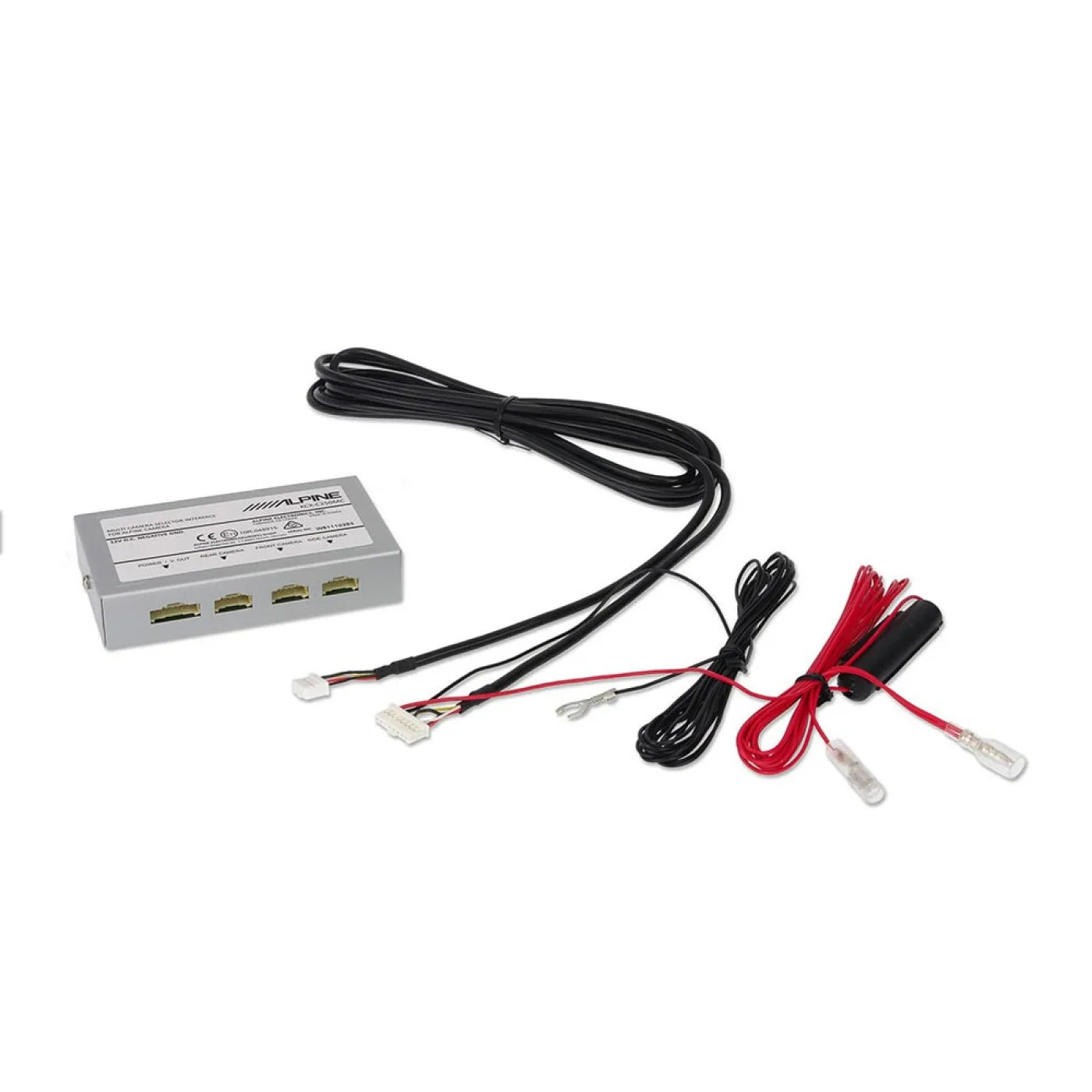

- Includes required video and power cables
- Compatible with INE-W997D, X701D-A4R, X701D-A5, X701D-Q5, X801D-U, X901D-G7 (required Software: 2.xxx or higher)
Specifications
General
- Input / output
- 3x Input / 1x Output
- Output Image
- Normal image, CVBS (NTSC Video signal) 16:9 Image output for wide-screen
- Image Output impedance
- 75 Ohm (1Vp-p)
- Power Requirement
- 9.0 to 15.6 V DC
- Power Consumption
- Less than 0.6W (12V)
- Output voltage
- 6V (DC)
- Operating Temperature
- -30°C - +70°C
- Weight Power Section
- 172g (box only)
Dimensions
- Power Unit
- 106 x 60 x 22mm
- Power Unit Cable
- 3m
