InCarTec FK-271-SWC Audi A3 Single/Double DIN Fitting Kit With CANBus/Steering Wheel Control Interface
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:FK-271-SWC
- EAN / UPC:7427282712545
- Warranty:1 Year Warranty
Complete stereo upgrade fitting kit to install a Single or Double DIN head unit and retain the original steering wheel controls in Audi A3 8P facelift (2006-2013) cars.
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | A3 | 2006 - 2013 | (8P) facelift & 8PL |
Car models with CANbus ignition and rear amplified sound systems
Fascia Colour: Matt Black

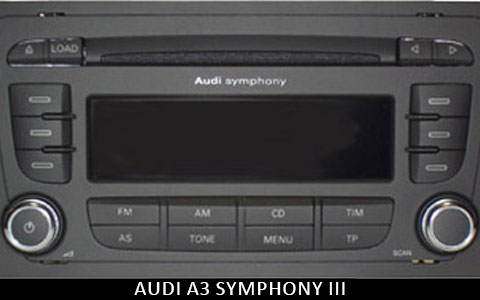

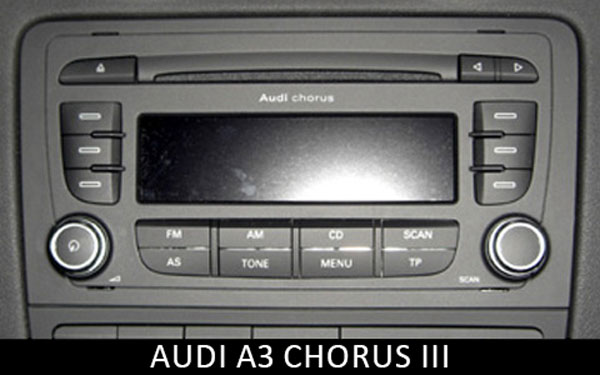

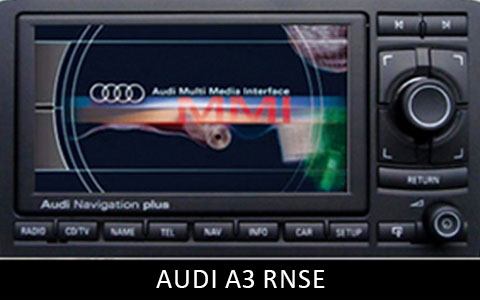

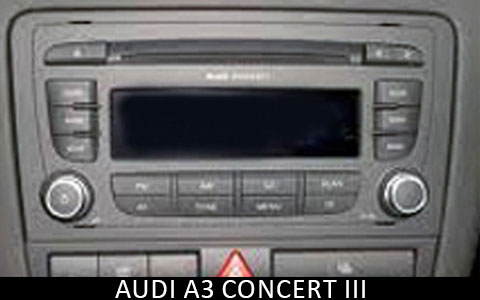

Original Stereo Should Be Look Like This

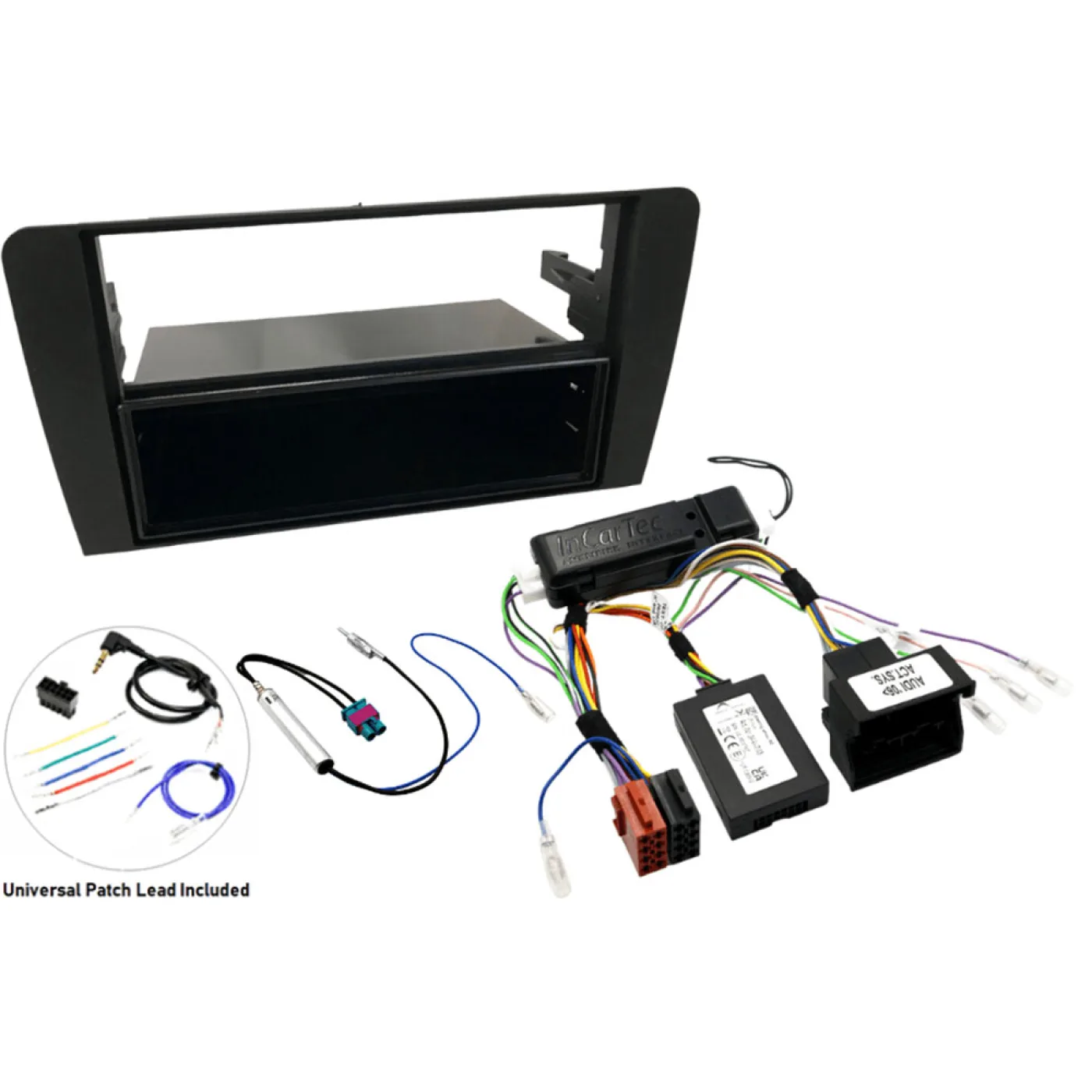

Package Includes
- Fascia adapter panel (MATT BLACK)
- Steering Wheel Control Interface
- Quadlock to ISO adapter lead
- Antenna Adaptor cable
- Universal Patch Lead (Included)

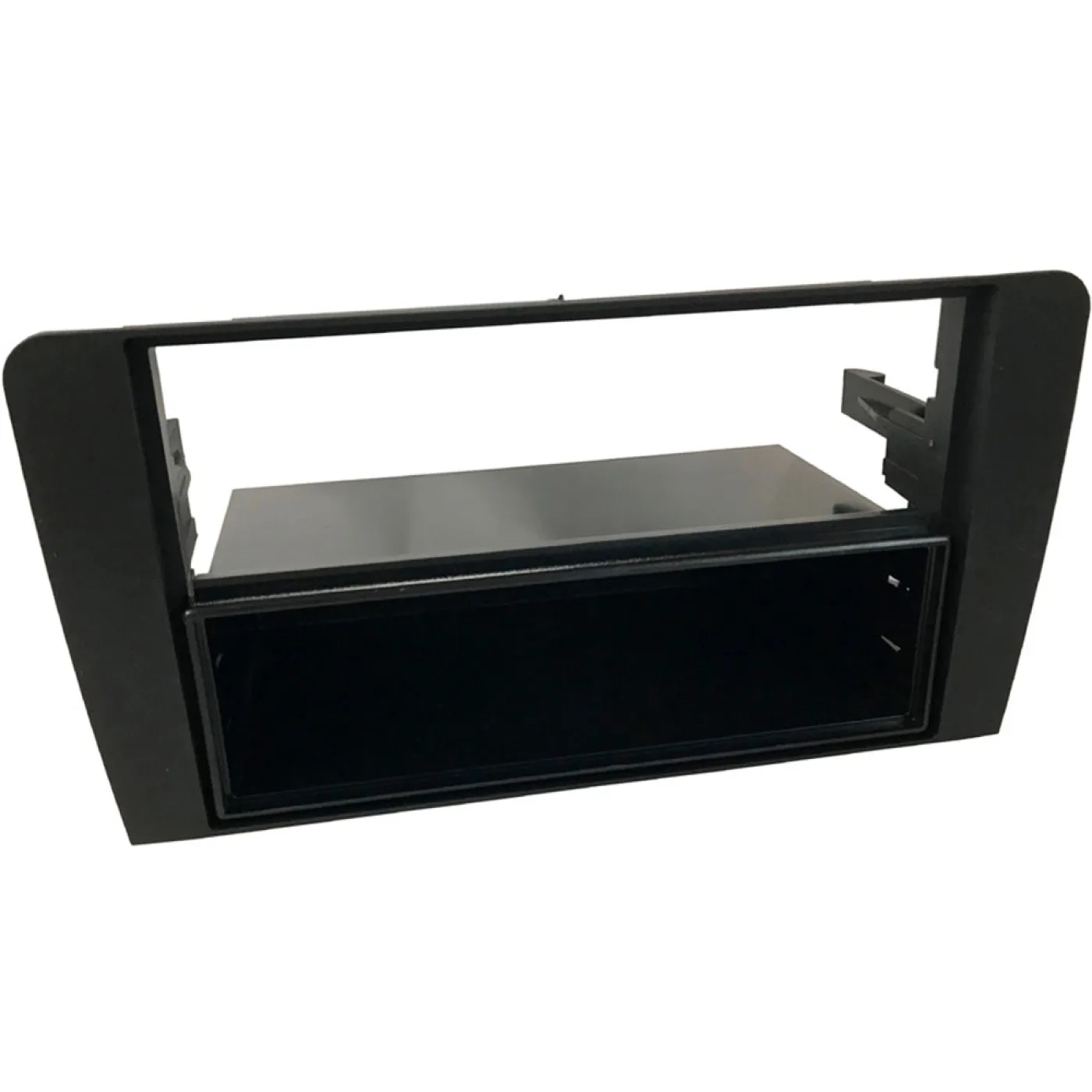

Fascia Adaptor
This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Replacement car audio fascia to enable you to change the original radio in the car to a Single and Double DIN aftermarket version
A removable pocket is included for Single DIN installation.
Steering Control Adaptor
A stalk/steering wheel control Adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

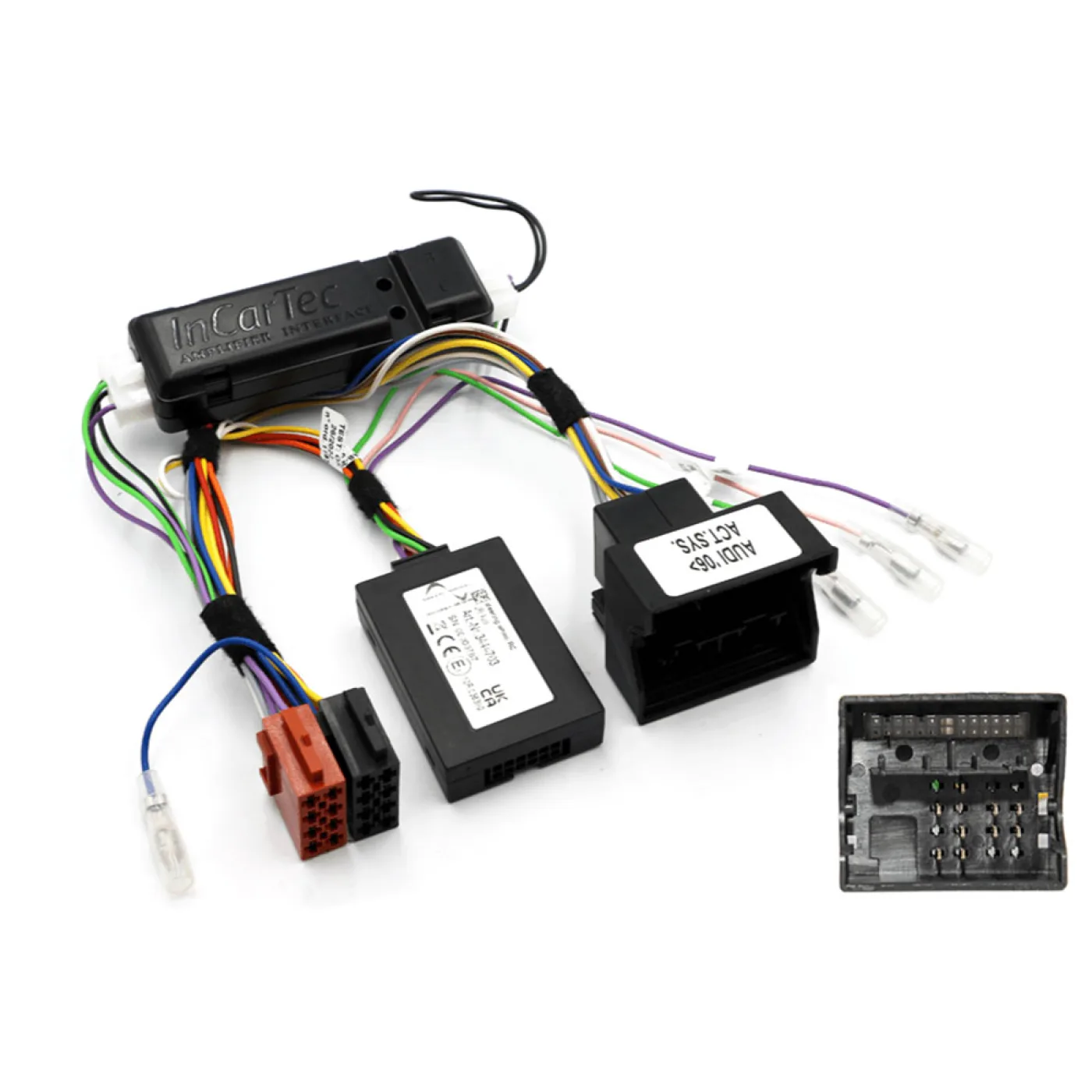

This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus steering wheel control interface will retain the use of the original radio controls on the steering wheel with an aftermarket stereo. The CANbus interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. The interface also generates speed pulse, reverse gear and handbrake output signals, these are used when installing multimedia, navigation units and reverse cameras. This interface is built into the Quadlock to ISO harness adapter so installation.
The Quadlock to ISO cable also has a built in high to low level adapter for the rear amplified speakers. The adapter allows the new stereo to work with the original amplifier which drives all the speakers in the car and the subwoofer. The high to low level adapter gives a much cleaner audio signal to the amplifier compared to using line output phono leads.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

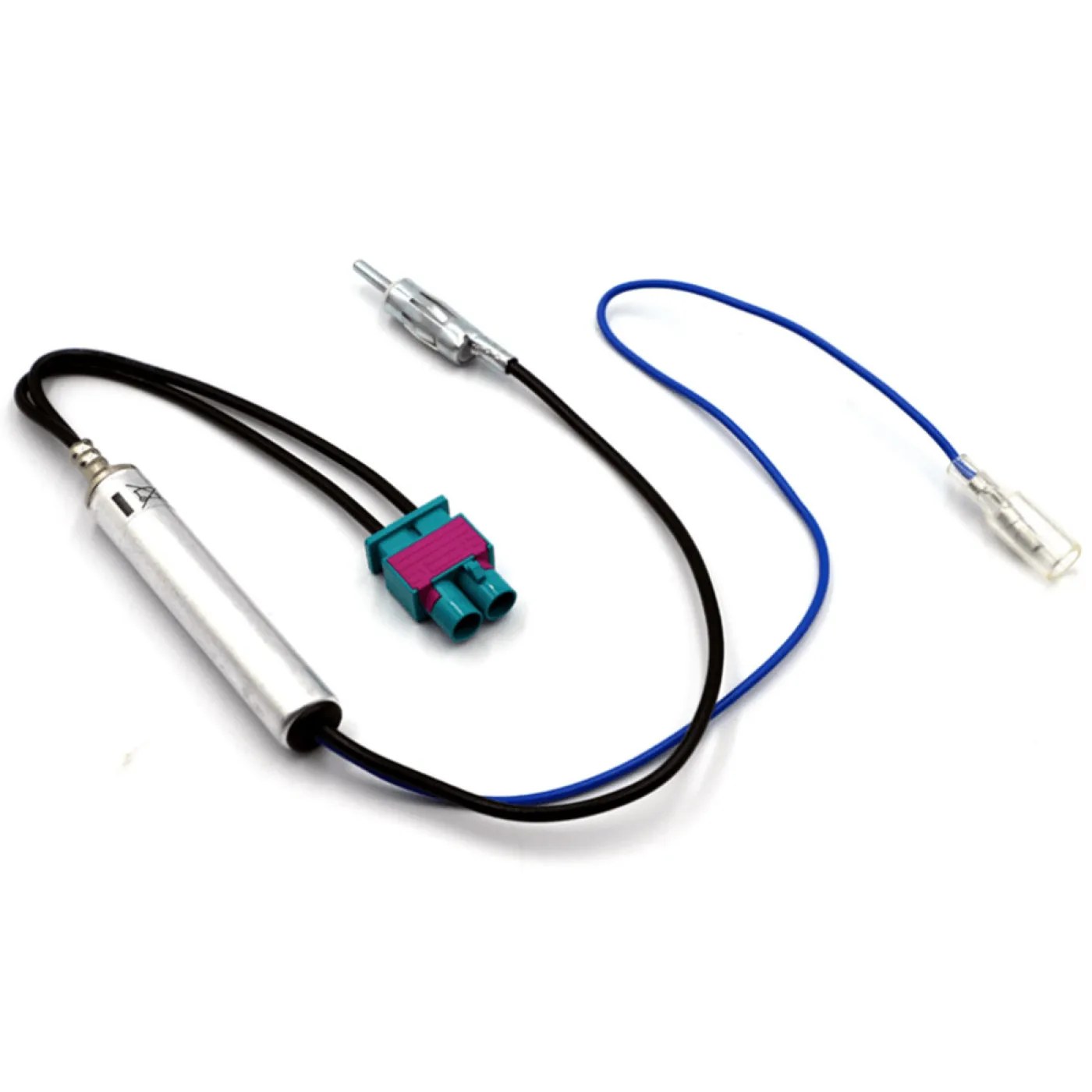

Double Fakra to DIN antenna adapter cable with 12v phantom power from a male bullet connection. This antenna adapter cable adapts from the original Double Fakra connector in the vehicle to a standard aftermarket radio DIN antenna connection for the fitting of a stereo upgrade.

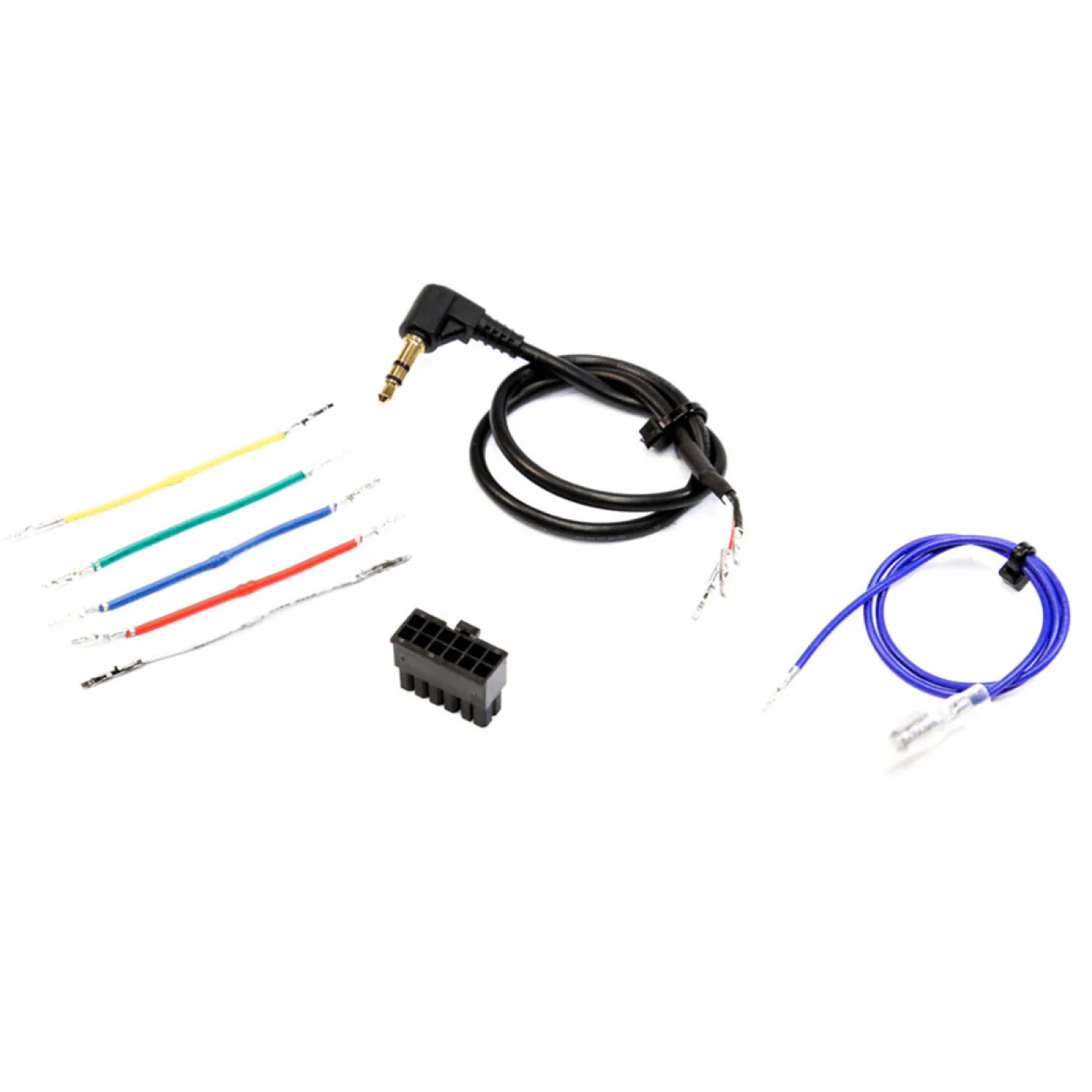

Universal patch lead
Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.
