InCarTec FK-112-IGN Audi A4 Single / Double Din Stereo Fitting Kit CANBus Ignition (REAR AMPLIFIED)
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:FK-112-IGN
- EAN / UPC:7427282687102
- Warranty:1 Year Warranty
Complete stereo upgrade fitting kit to install a Single/ Double DIN radio in an Audi A4 (B7) car (with rear amplified audio systems)
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | A4 | 2001 - 2005 | (B6) |
For Double DIN installation the central bar of the fascia needs to be cut out.
Original Stereo Should Be Look Like This

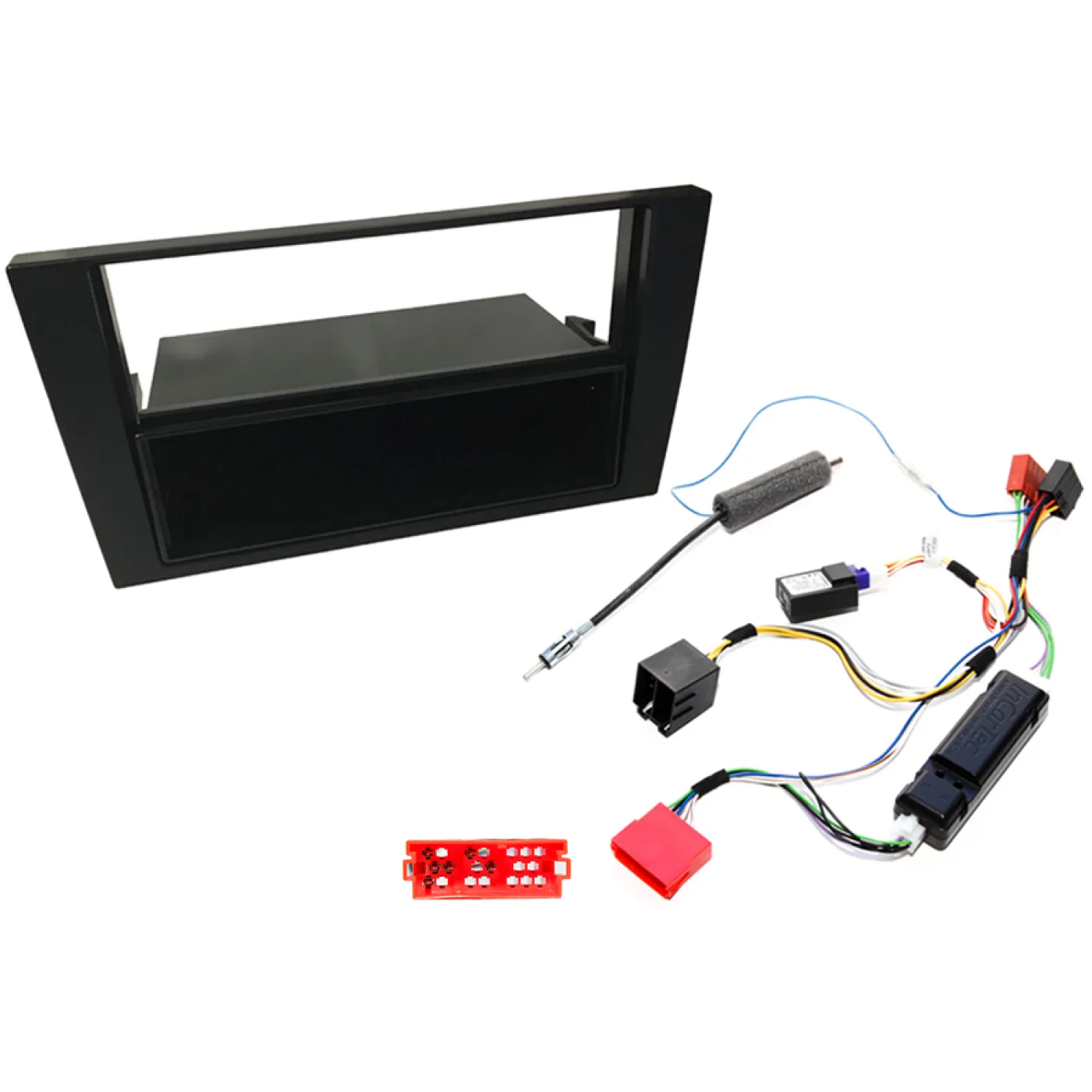

Package Includes
- Fascia Panel Adaptor
- ISO Harness Adaptor Cable
- Antenna Adaptor
- CAN Ignition Interface
Fascia Adaptor
This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Replacement car audio fascia to enable you to change the original radio in the car to a single and double DIN aftermarket version.
Use the supplied pocket with the fascia adapter to fit a single DIN radio, or remove the pocket and use the fascia trim only to fit a double DIN aftermarket head unit. For double DIN installation the fascia takes a 113mm high cage, this is the size of cages supplied with all major brand head unit manufacturers.
Wiring Harness
The wiring harness will allow to install the stereo.
CAN Ignition Interface
This is a adapter cable for Audi cars with ISO and Mini ISO connectors at the back of the original radio and with rear amplified audio systems.
This cable has an adjustable line-out converter built into the speaker cables, this drops the output levels from high level to low level in order to work with the amplifier in the car. This lead is suitable for cars with both the rear amplified audio systems.
The CANBus ignition interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.
This cable has a built in Phantom powered antenna adapter. This adapts from the antenna connector in the car, known as an ISO antenna connector, to a standard aftermarket antenna connector, known as a DIN antenna connector, for the new stereo.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
