Audi R8 MK1 (2007 - 2015) Camera Retention Kit
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Connects2
- Product Code:CAM-MB1-RT + CT27AA118
- EAN / UPC:7427307010762
- Warranty:1 Year Warranty
Package Includes
- Reverse Camera Retention Interface

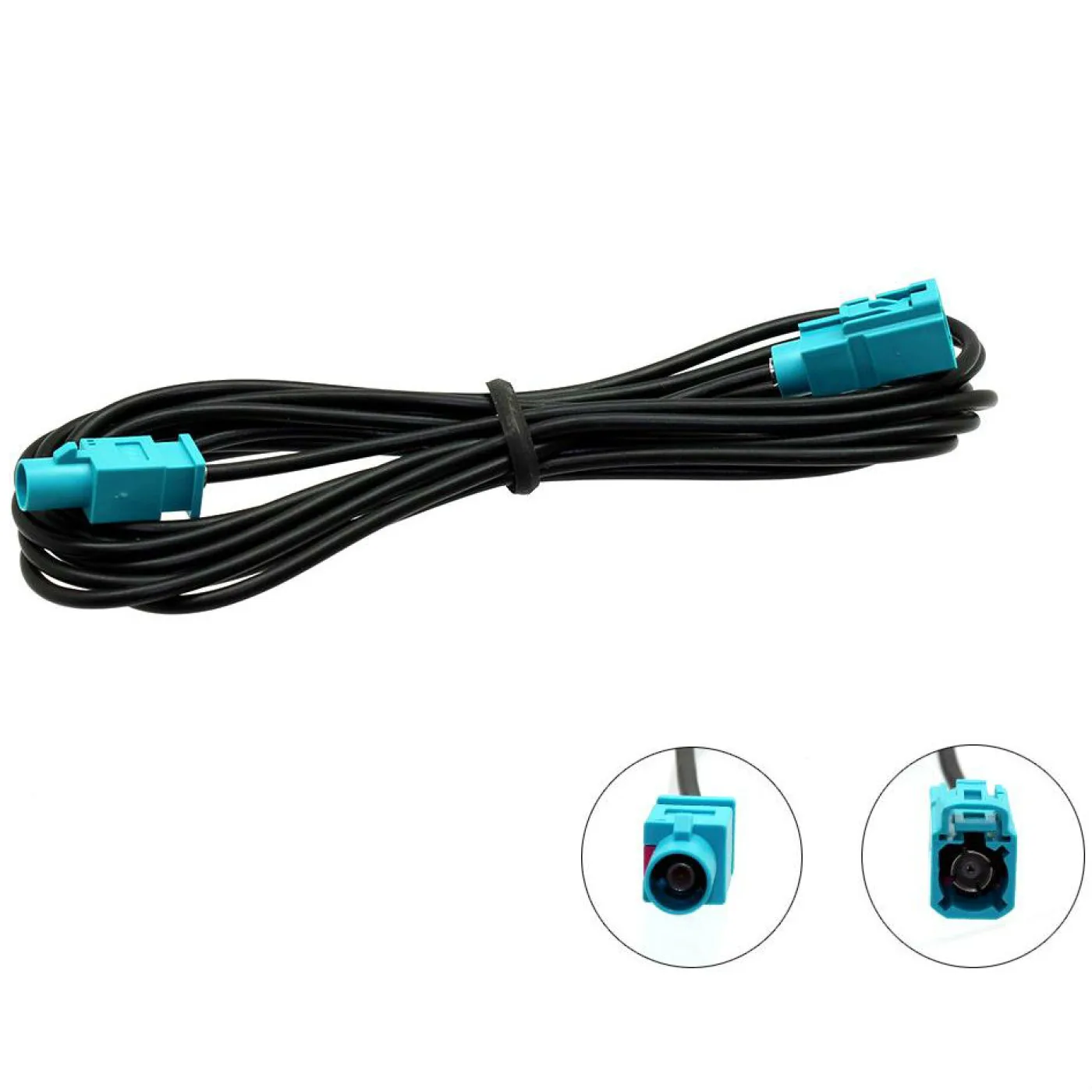

- Fakra Male to Female 3 Meter Extension Antenna Aerial Adaptor
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | R8 | 2007 - 2015 | MK1 |
The Audi R8 Camera box is located behind the passenger seat. You will need to remove the panel as shown in the photo below to access the module. Unplug the Grey Fakra connector and attach the extension lead to the Grey connector. Run the cable down through the center console to reach the rear of the new touchscreen stereo.

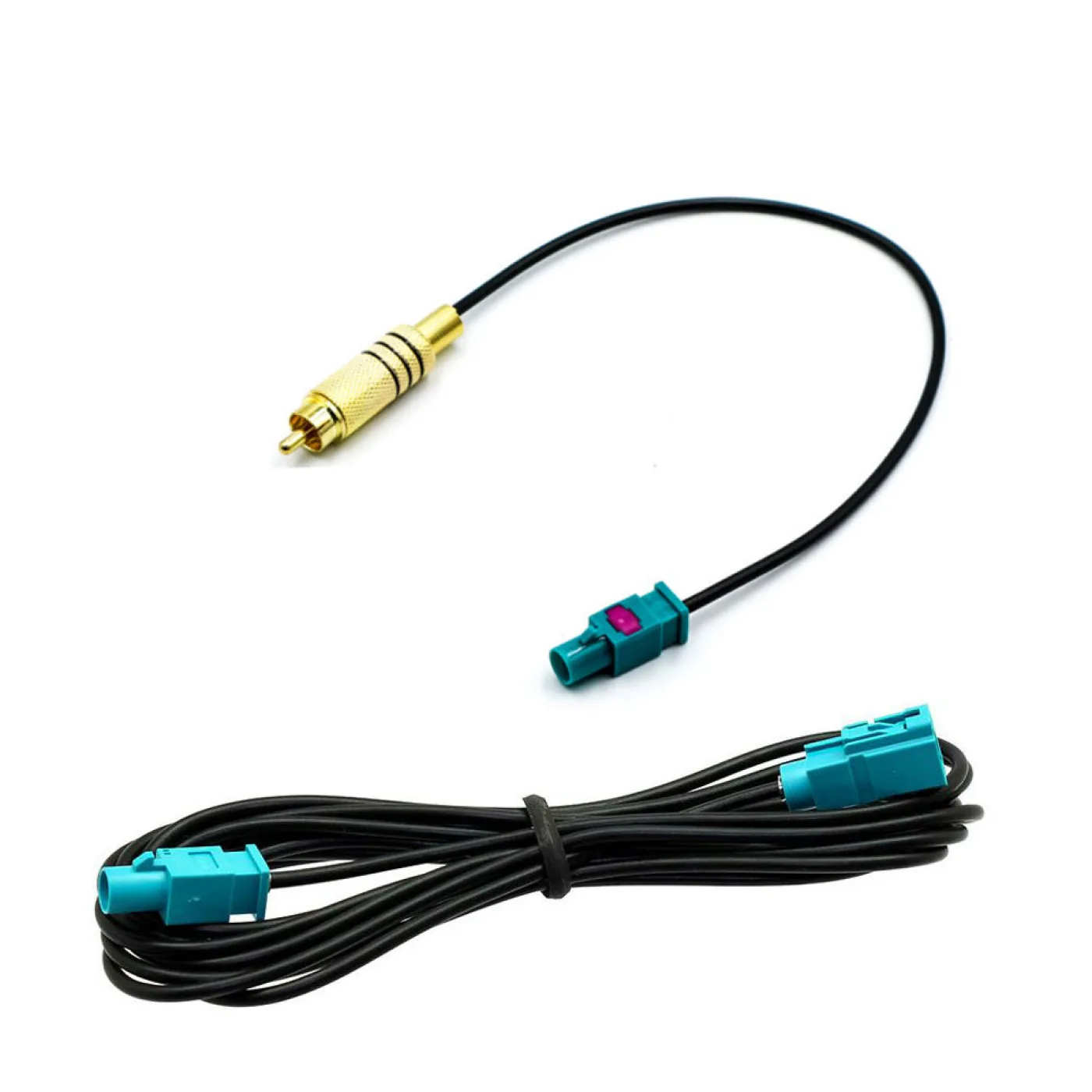

CAM-MB1-RT Reverse Camera Retention Interface
This Universal Blue Fakra (code Z) to male PHONO socket cable allows you to retain an original reverse camera from various vehicles such as Ford, Land Rover, Porsche, Jaguar & Mercedes.
For this cable to be compatible, your OEM system will have fakra connections present on the head unit. These are usually green or brown in colour and are not always located on the monitor itself, but quite often the media system the monitor is connected to. If it is connected to a seperate module, a Fakra extension may also be required.
This Adaptor also enables you to adapt and connect a video signal with a video input like DVD, Video Sources, DVB-T Tuner, etc. Most commonly, this adaptor is used to retain a factory reverse camera to be used with an after-market head unit.
Features
- Male FAKRA to male RCA fittings
- Universal blue fakra (code Z)
- Retains factory fitted camera connected with green fakra connection
- compatible with Ford models with factory navigation system LCD colour monitor and TV tuner from the factory
- compatible with Ford Blaupunkt NX factory radios from 2009
- compatible with Mercedes Command PCM 2.1 / PCM 3.0 / NTG 2.5 / NTG 4.0 / NTG 4.5 / Audio 20
- compatible with Jaguar (2012-On)
- compatible with Land Rover & Range Rover with factory fakra camera
Please make sure that is the correct Camera Retention Kit for your car by firstly checking to see if your make, model and year of car is listed in the description. Secondly by checking to see if the Shape in the picture listed is the same as you have in your vehicle. We try to provide upto date information as possible. If you are unsure please contact our Customer Service and we will be happy to help you.
