Audi TT 2006 - 2014 Pioneer 6.8" Screen Wireless Android Auto/Apple CarPlay Bluetooth DAB+ Stereo Upgrade Kit
- Availability:In Stock
- Available:8 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA77DAB + Aerial + CTKAU03
- EAN / UPC:7427307004280
- Warranty:1 Year Warranty

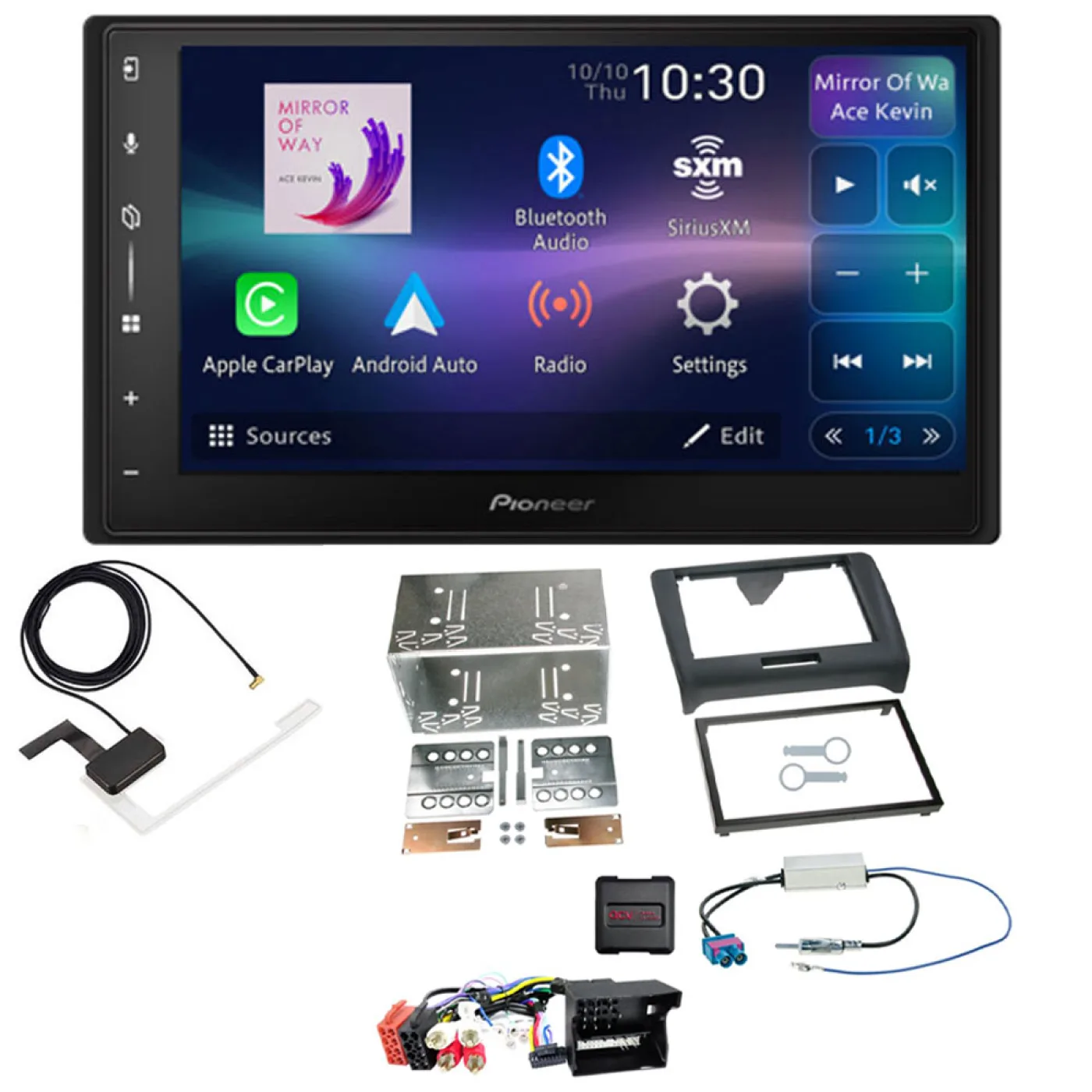

Package Includes
- Pioneer SPH-DA77DAB 6.8" WVGA Capacitive Multi-touch Panel Screen Weblink 3.0 Android Auto/ Apple CarPlay DAB Car Stereo
- DAB Aerial
- Double Din Fascia Kit
- Steering wheel Control Adaptor (Quadlock looms)
- Aerial Adaptor
- Audi release keys
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | TT | 2006 - 2014 | 8J |
This pack works with all types of systems in the Audi TT model. It will work with Bose, non Bose and Digital Amp systems. We also prepare the wiring to aid installation so it makes it easier for you to install the system.

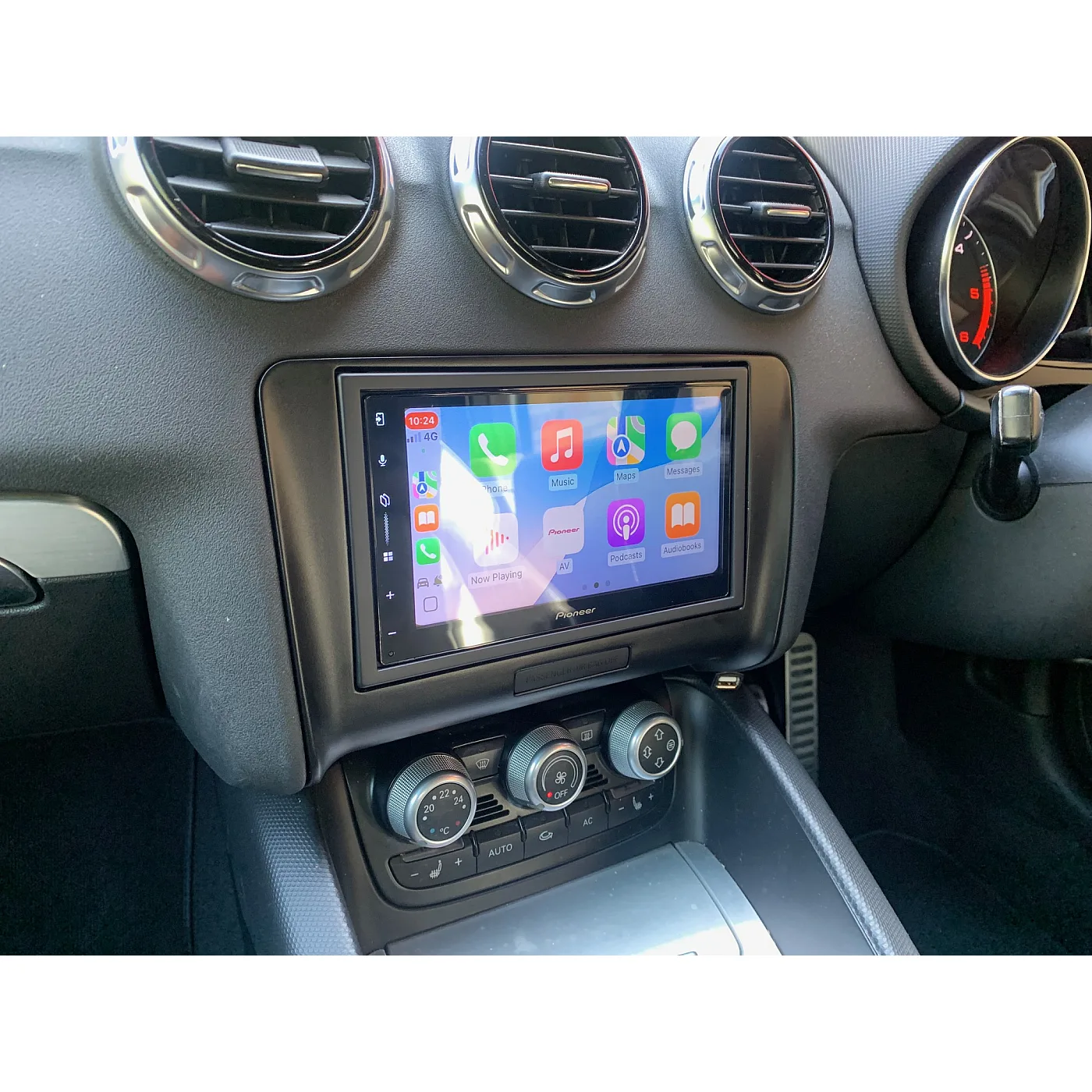

This is What a Double Din Stereo Will Look Like Once Installed.
 |
 |
 |
 |
Fitting kit
Fascia Adaptor
This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Steering Wheel Interface
A stalk/steering wheel control Adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
Stereo Removal Keys
Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.
This requires a connection from your new stereo to turn on the amplifier within the vehicle.
The wire colours differ slightly from stereo to stereo but are generally either blue in colour or blue with a white tracer as in the photos below.
The antenna adapter also has a blue wire that requires a connection to the same remote wire from the stereo harness.
If a remote wire is not present on your brand of stereo you can take a spurred feed from the red wire on the adapter harness.
Pioneer SPH-DA77DAB
Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.
Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.
To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.
Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.
Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!
The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!
Main Features
- Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
- 1Din – Short Chassis backside design
- RGB illumination
- Single Rear USB with 1.5A power supply (Type A)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Rear View and 2nd Camera Input
- Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
- Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
- Wired Remote Input
- CAN-BUS support (No HUD)
- Advanced audio features
- Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
SPH-DA360DAB vs SPH-DA77DAB comparison
SPH-DA77DAB Chassis design
SPH-DA77DAB Installation Benefit
Specifications
General
- Mechafree 6.8” WVGA Capacitive touchscreen
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Bluetooth® and DAB / DAB+ Digital Radio combined
- Digital Radio Tick Mark approved product
- Siri Eyes Free
- Advanced audio features
- Premium sound quality
- RGB
- multicolour key illumination and LCD display
- iPhone Direct Control
- Compatible with Android
- Reverse camera compatible
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Selectable wall paper (User customisation with jpeg file)
Connectivity
- Apple CarPlay (wireless & wired)
- Android Auto (wireless & wired)
- WEBLINK 3.0
- Rear USB / Rear Aux-In
- Made for iPhone / Compatible with Android
- USB Mirroring via WebLink® 3.0 for iOS, Android smartphone/tablets
- Wired Remote Control / Rear View Camera Input
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
Audio and Video
- 13-BAND GEQ and Time alignment
- 3Way Network Mode
- Video output & Audio 3 Pre-Out (4V)
DOP Related
- EZ MyCarSetting
- Setting Memory for Agricultural Business
- Start Stop Function
Bluetooth
- Pioneer Bluetooth for hands-free calling & audio streaming
- Bluetooth auto pairing
- External microphone Included
- Wireless audio browsing
Audio
- Premium Sound Quality
- MOSFET 50W x 4 Max Output Power
- Music Browsing
- 13-band Graphic Equaliser
- Low Pass/High Pass Filter
- 3 x 4 Volt RCA Pre-outs
Tuner
- DAB/DAB+ Digital Radio
- Auto Tune, Pre-set buttons
- Digital Radio Tick Mark approved product
- RDS FM/AM Tuner
- 24 Pre-set
File Playback
- Audio
- WMA/MP3/WAV/AAC/FLAC
- Video
- H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS
Accessories
- Included - Microphone for Hands-free Calling
- Included - USB extension cable
| Technical | |
|---|---|
| Android Auto | Yes |
| Apple CarPlay | Yes |
| Dab Radio | Yes |
| MirrorLink Ready | Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets. |
| Navigation System | Yes |
| Screen | 6.8 WVGA screen with capacitive Multi-touch panel |
| Size | Double Din |
| Max. Power Output | MOSFET 50W x 4 Max Output Power |
| Button Illumination | RGB: multicolour key illumination and LCD display |
| Bluetooth | Yes |
| Aux In | Rear |
| USB | Single Rear USB with 1.5A power supply (Type A) |
| Pre Out | Video output & Audio 3 Pre-Out (4V) |
