1 Year Warranty

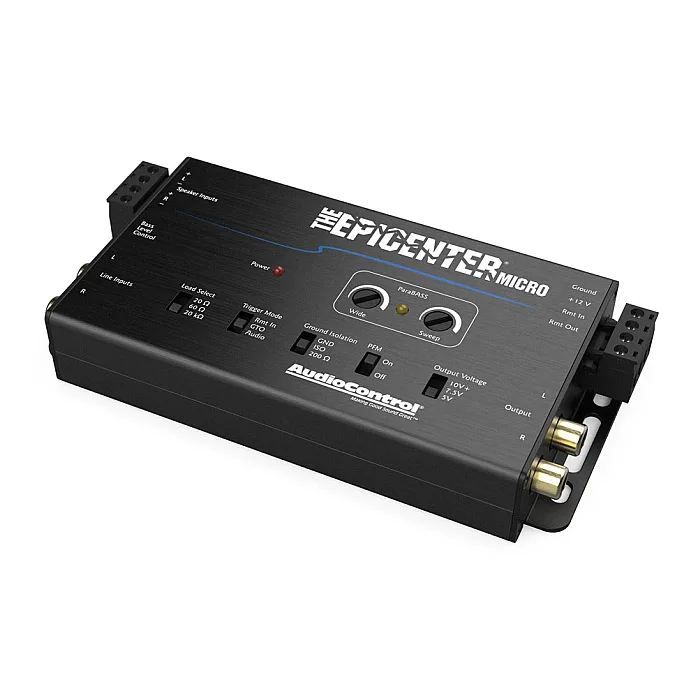

AudioControl Epicenter Micro Car Audio Bass Restoration Processor & Line Output Converter
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:AudioControl
- Product Code:Epicenter Micro
- EAN / UPC:7427307014494
- Warranty:1 Year Warranty
£389.99
Epicenter Micro
The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.
Features
- Patented Digital Bass Restoration
- ParaBASS Bass Shaping
- Speaker and Line Level Inputs
- Load Matching Circuit
- Multiple Trigger Modes
- Conformally Coated PCB for Increased Resistance to the Elements
Specifications
Inputs
- Speaker Level Input
- 1 (2 channels)
- Maximum Speaker Level Input
- 40 Vrms / 400 W (20kΩ setting)
- Speaker Level Input Impedance (selectable)
- 20Ω, 60Ω, 20kΩ
- Line Level Input
- 1 (2 channels)
- Line Level Input Impedance
- 7kΩ
Outputs
- Preamp Outputs
- 1 (2 channels)
- Maximum Output Level
- 9.5Vrms/13V peak
- Output Impedance
- 150Ω
Performance
- Total Harmonic Distortion
- 0.03%
- Signal to Noise
- >105 dB
- Frequency Response
- 10 Hz – 22 kHz ±1 dB
Control
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
General
- Current Draw
- 300 mA
- Recommended Fuse Rating
- 1 A
Weights & Dimensions
- Dimensions
- 5.9″L x 3″D x 1″H
- Weight
- 0.6 lbs. (0.27 kg)

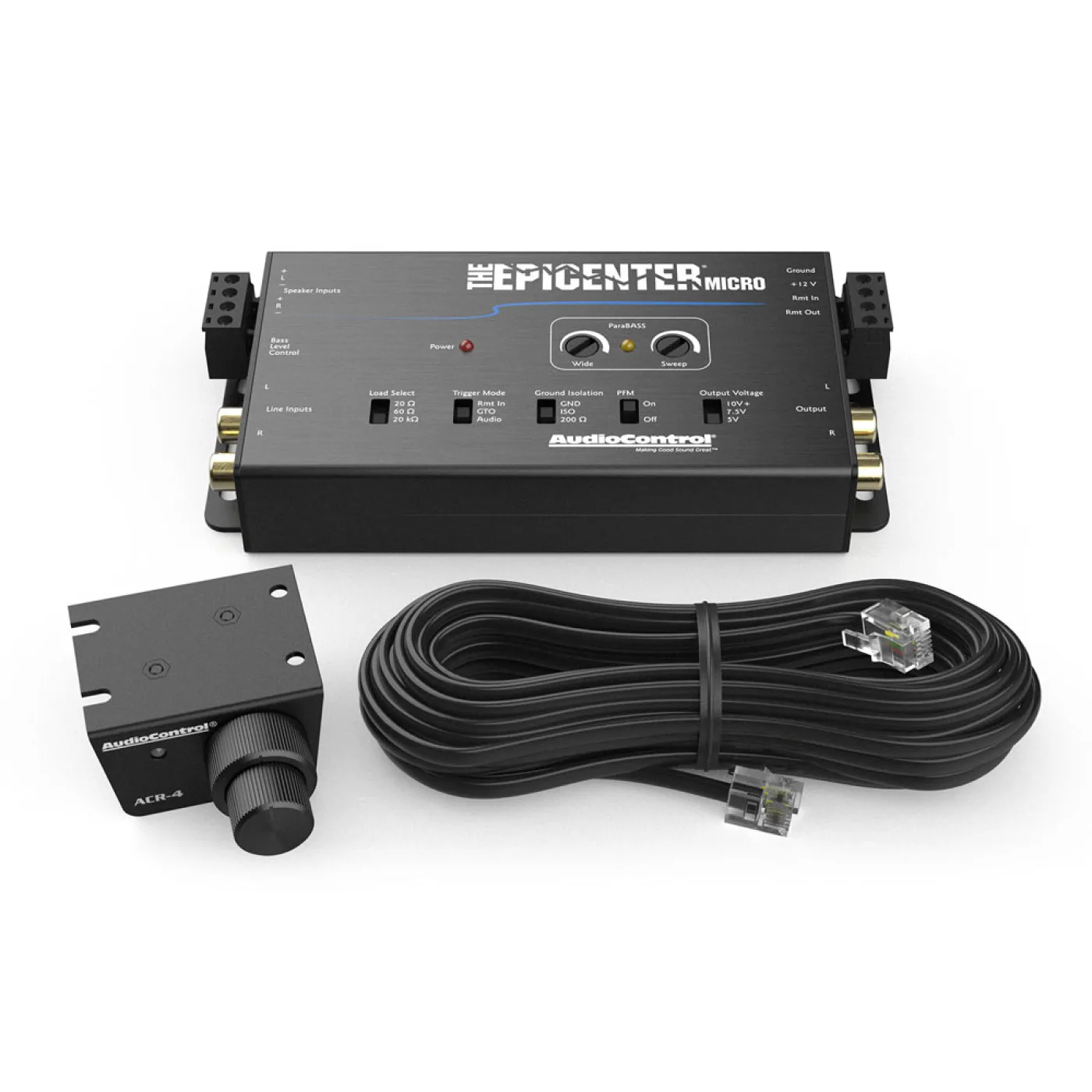

In the Box
- The Epicenter Micro
- ACR-4
- 20′ Phone Cable
- Speaker and Power connectors
- Manual
- Warranty
