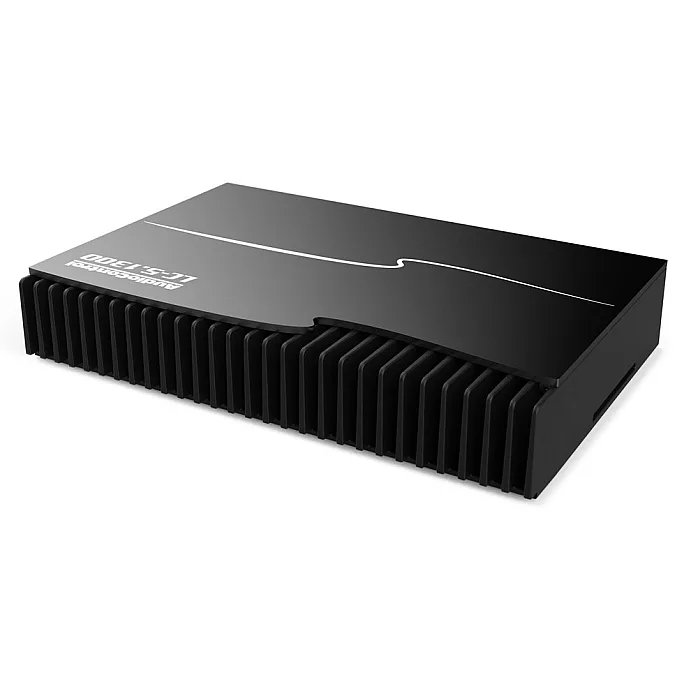

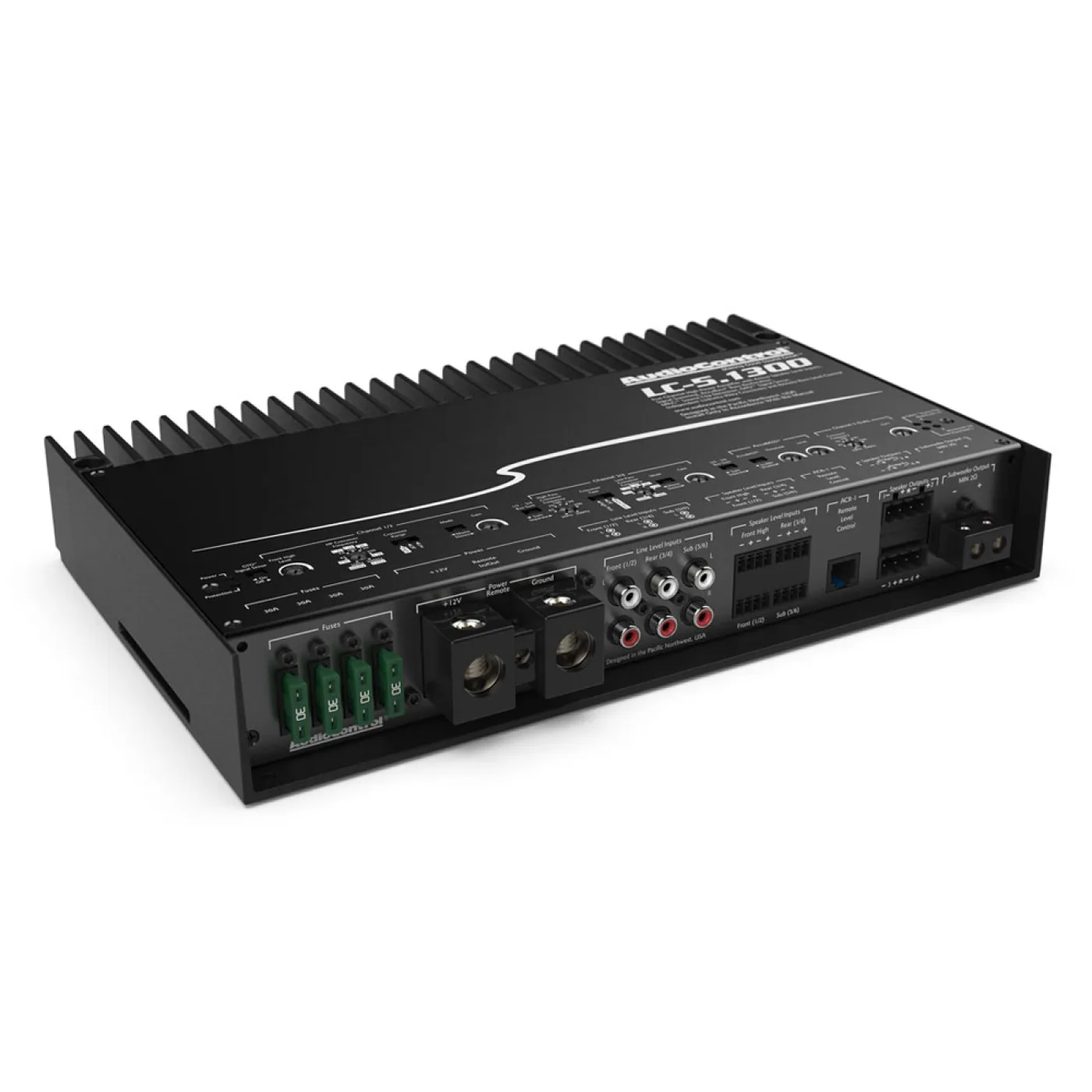

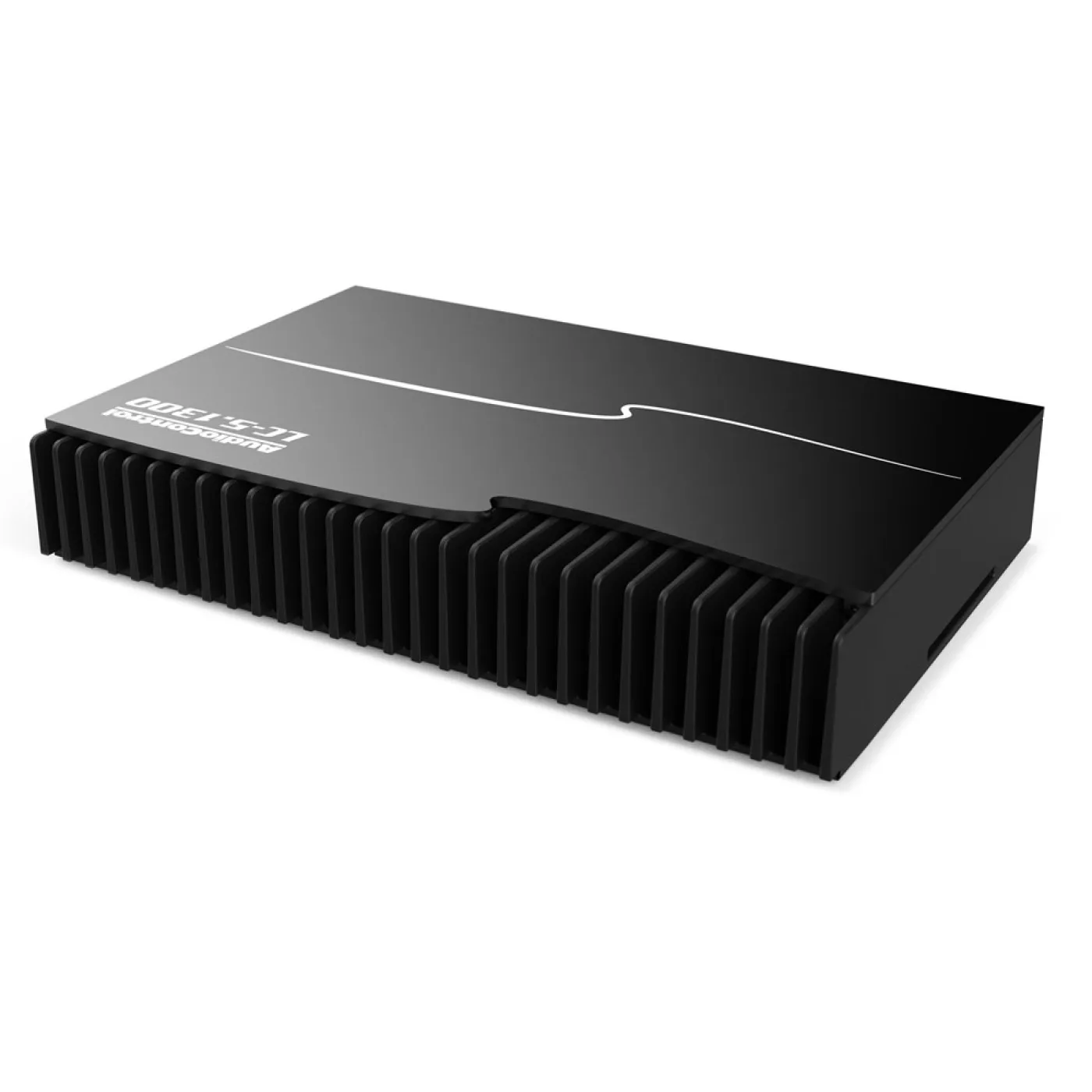

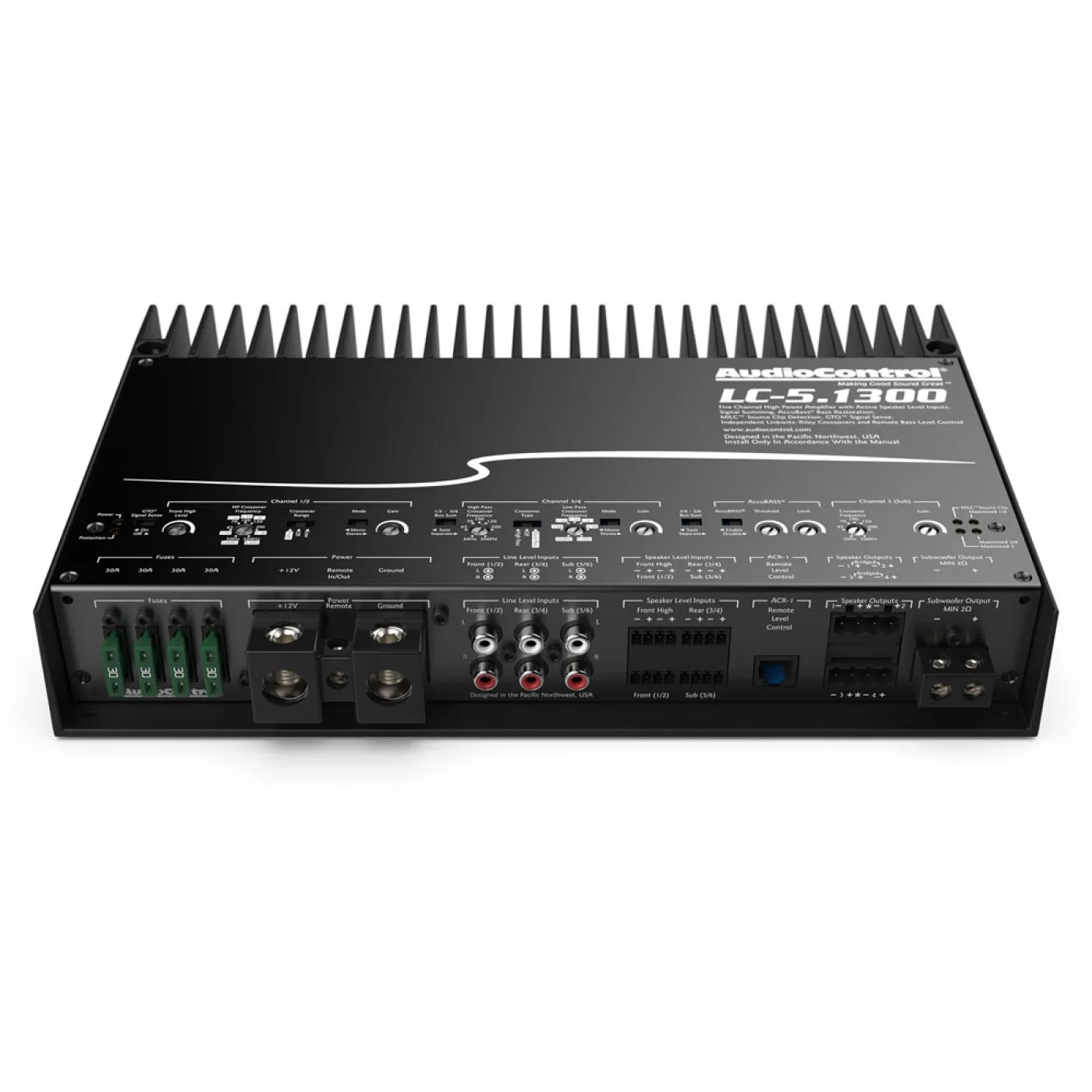

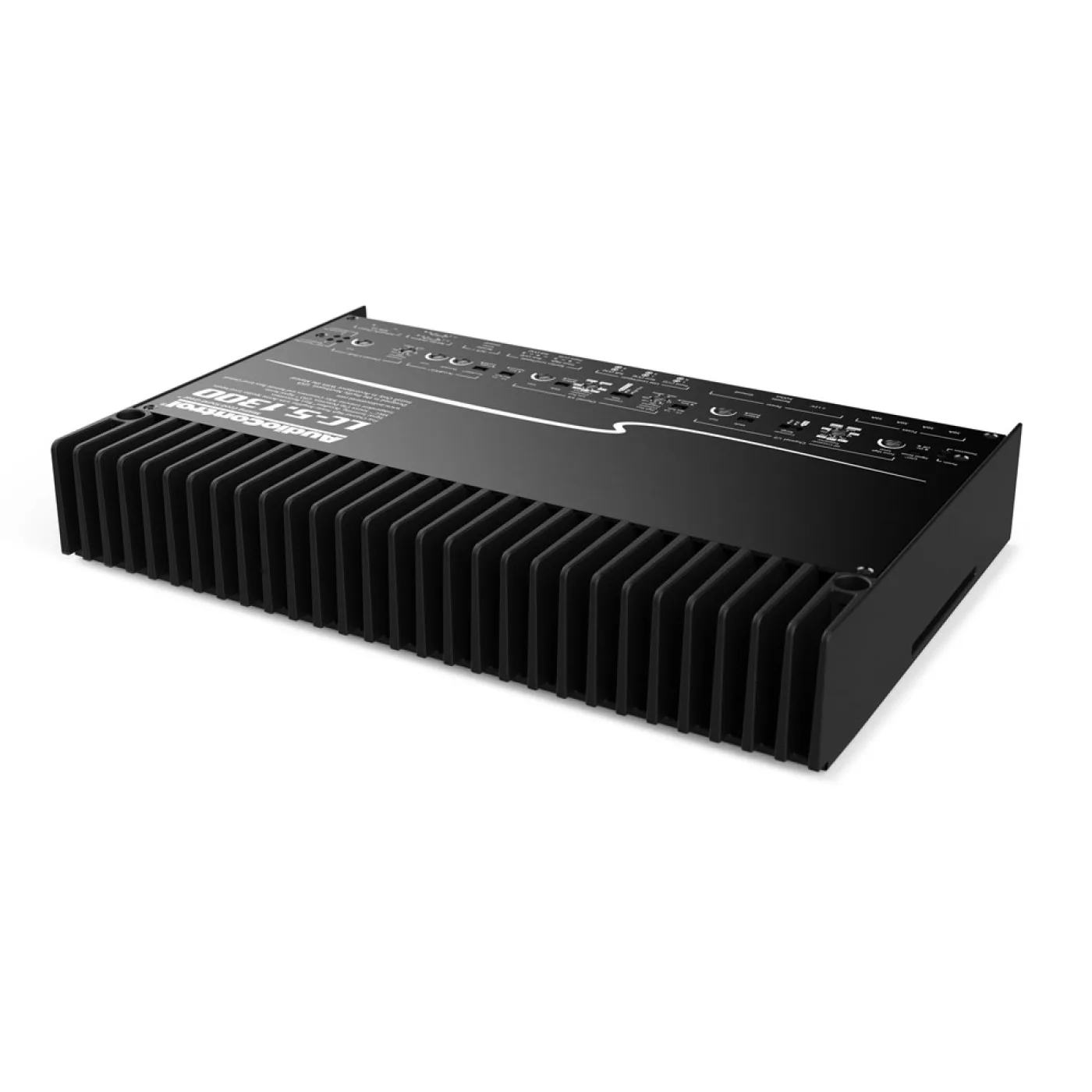

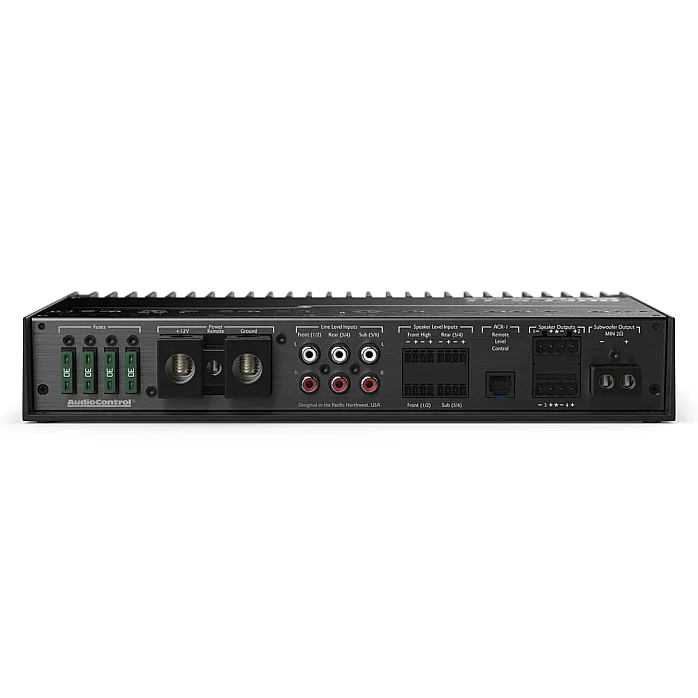

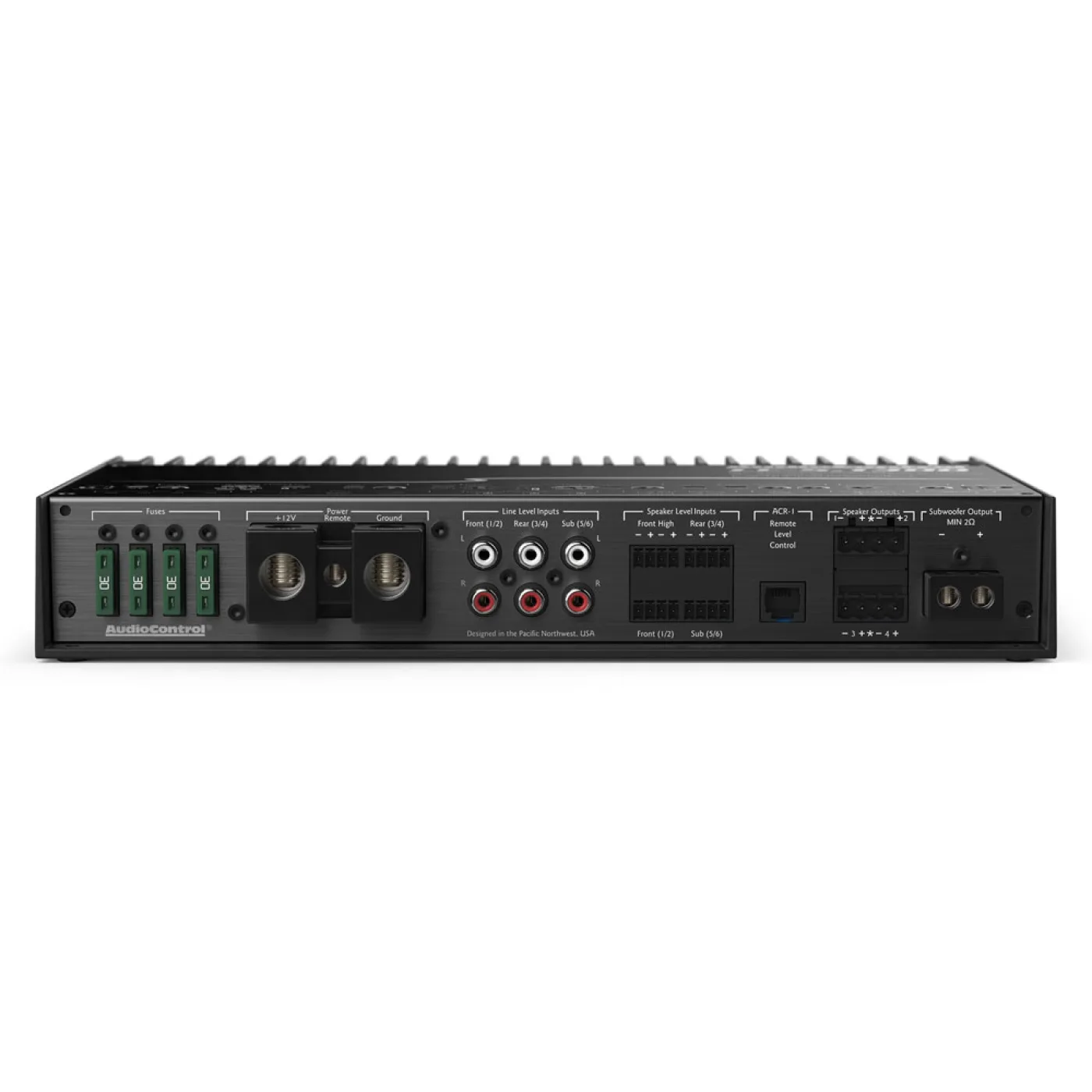

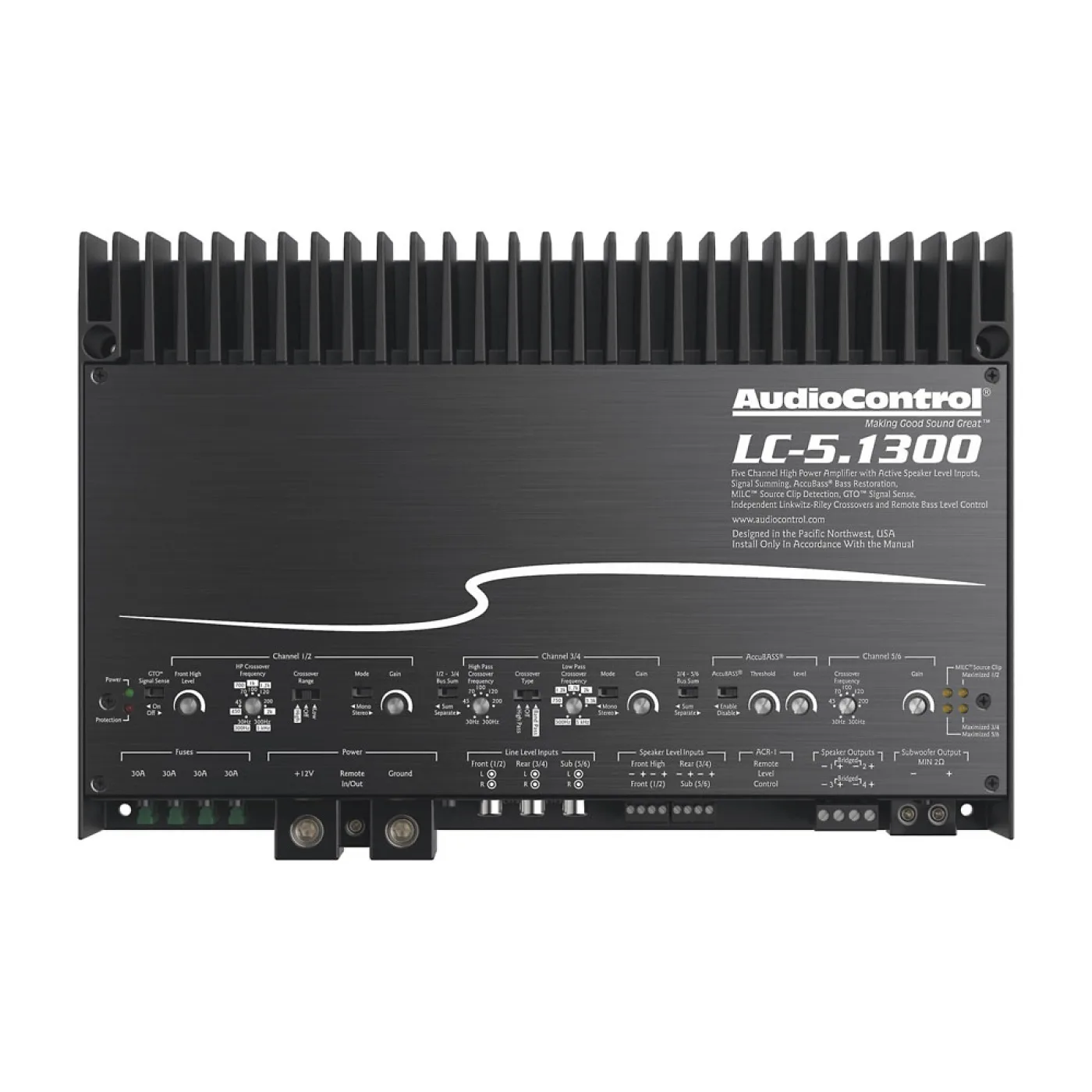

AudioControl LC-5.1300 High Power Multi Channel Amplifier with Accubass
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:AudioControl
- Product Code:LC-5.1300
- EAN / UPC:7427307014647
- Warranty:1 Year Warranty
£799.99

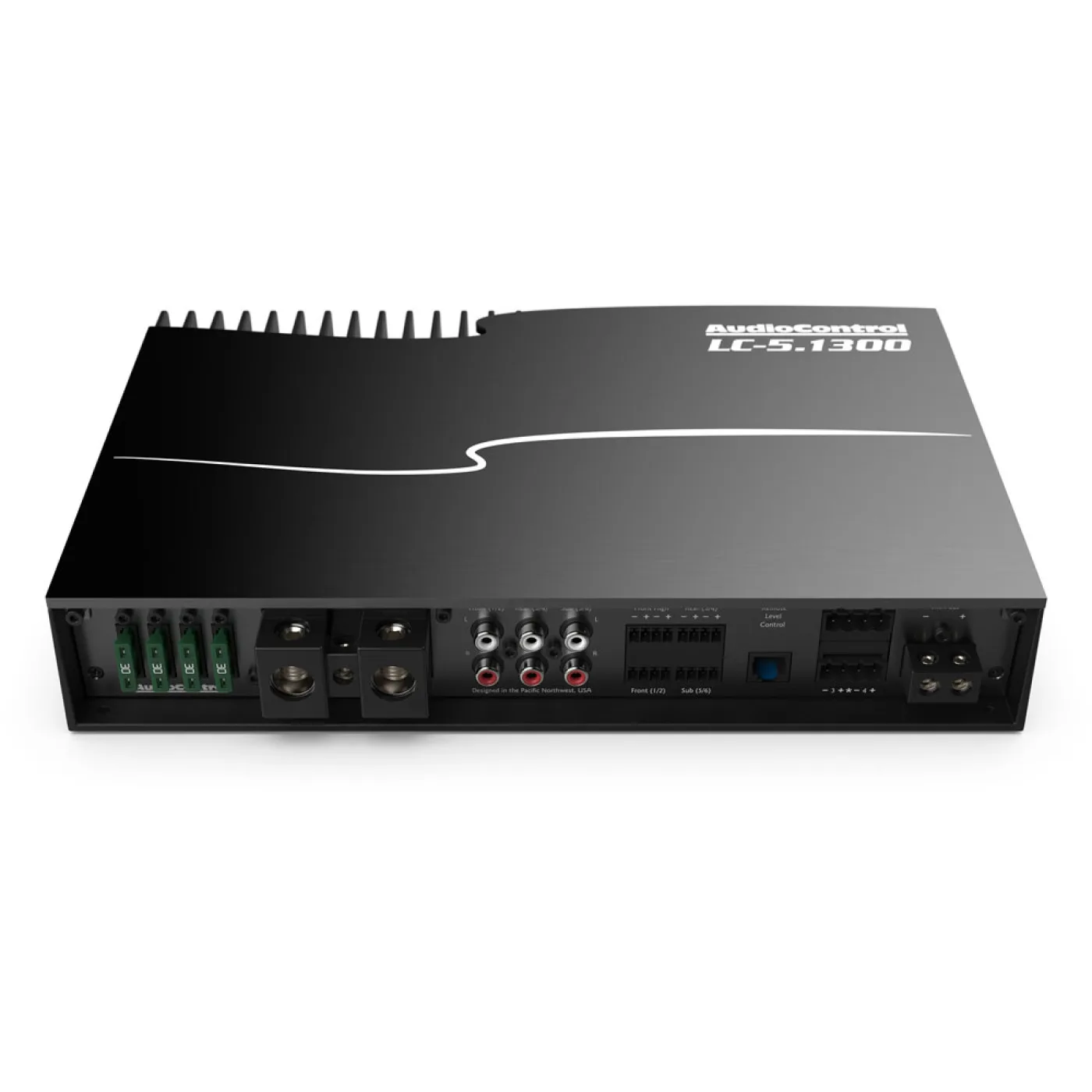

LC-5.1300 Multi Channel Amplifier
The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS.
Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.
Features
- Configurable as 5 or 3 channel amplifier
- 4 x 200 watts + 1 x 500 watts @ 2 ohms
- 4 x 100 watts + 1 x 300 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
Specifications
Inputs
- Preamp Inputs
- 6 balanced
- Preamp Input Voltage Range
- 500 mV – 6 Vrms
- Speaker Level Inputs
- 8
- Speaker Level Input Voltage Range
- 3 V – 40 Vrms
Outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 100 W x 4 + 300 W x 1
- 2 Ω – 200 W x 4 + 500 W x 1
- Bridged 4 Ω – 400 W
Performance
- Frequency Response
- 20 Hz – 22 kHz
- Signal to Noise
- 102 dBa, Ref 200 W @ 2 Ohm
- THD+N
- < 0.1%
- Minimum Power / Ground Wire Gauge
- 3 AWG wire
- Fuse Rating
- 4 x 30 A
- Crossover
- 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
Weights & Dimensions
- Dimensions
- 12.0″W x 8.0″D x 2.1″H
- Weight
- 7.2lbs. (3.3kg)
In The Box
- LC-5.1300
- Speaker connectors
- Fuses
- Manual
- Warranty
