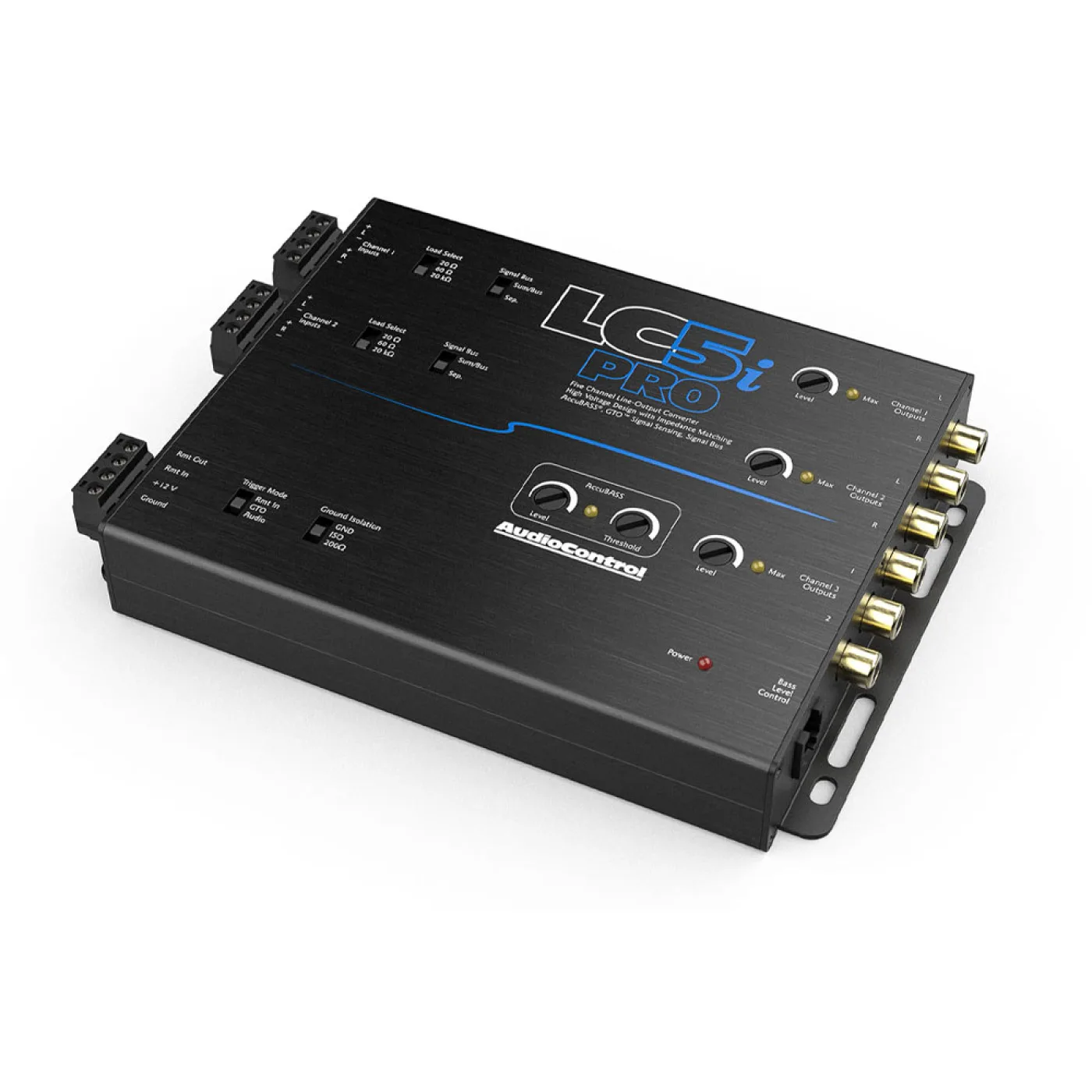

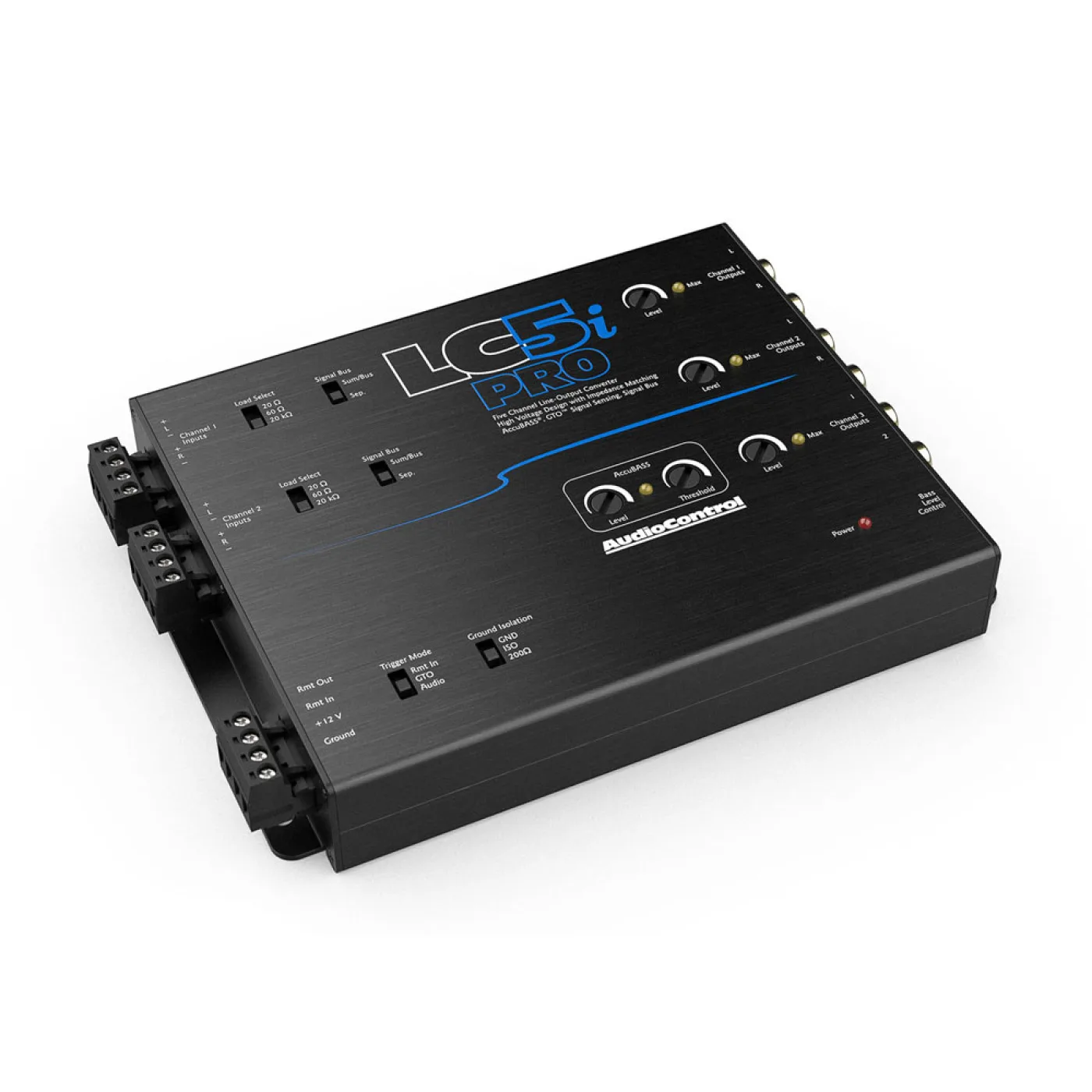

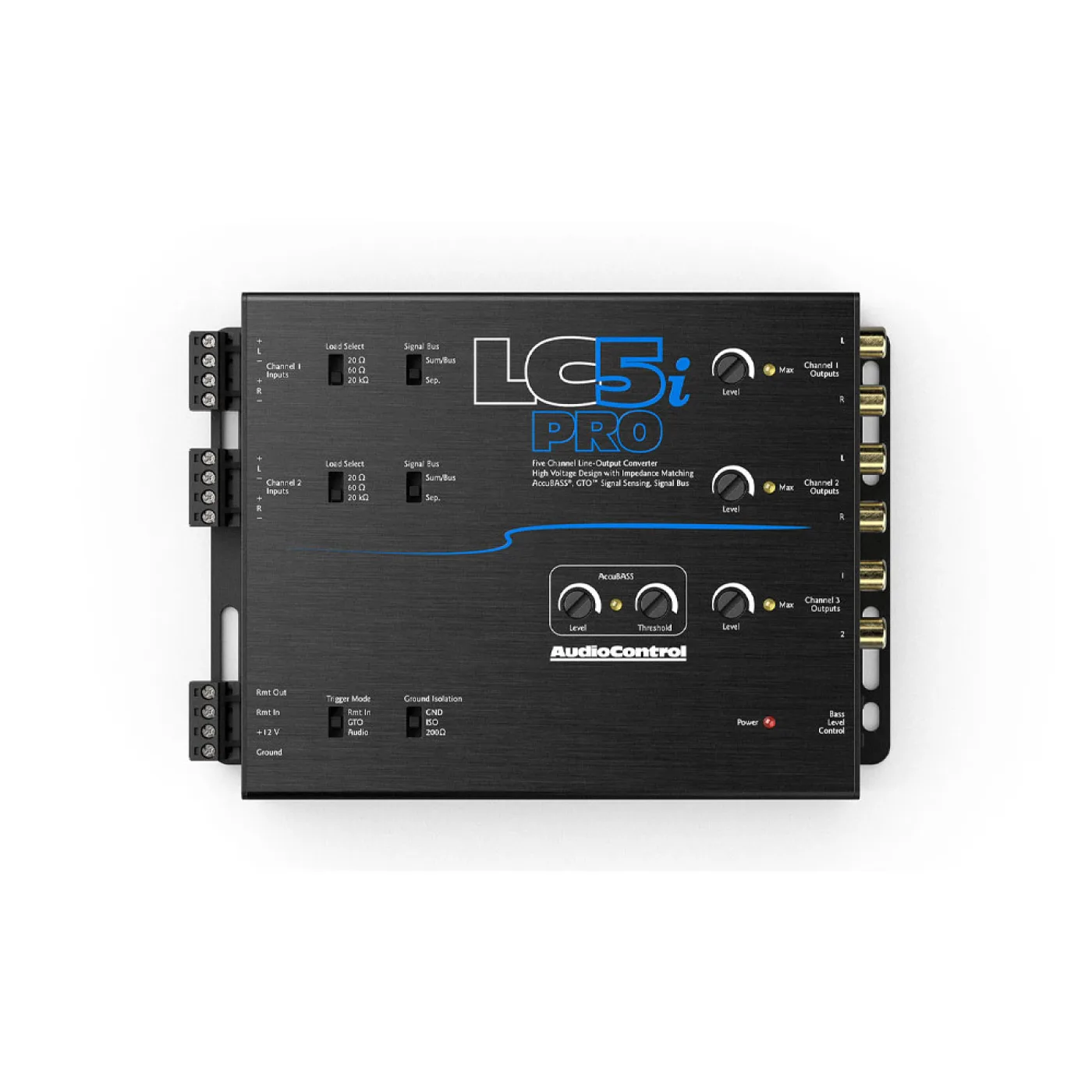

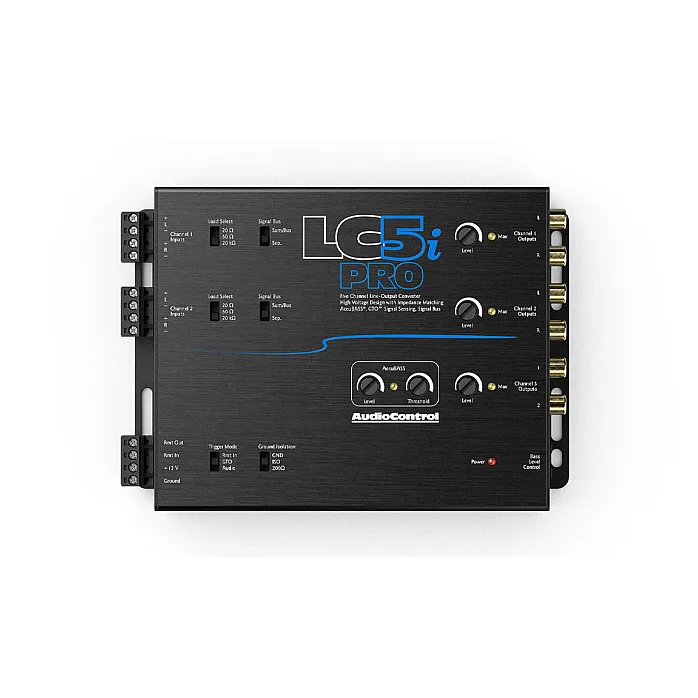

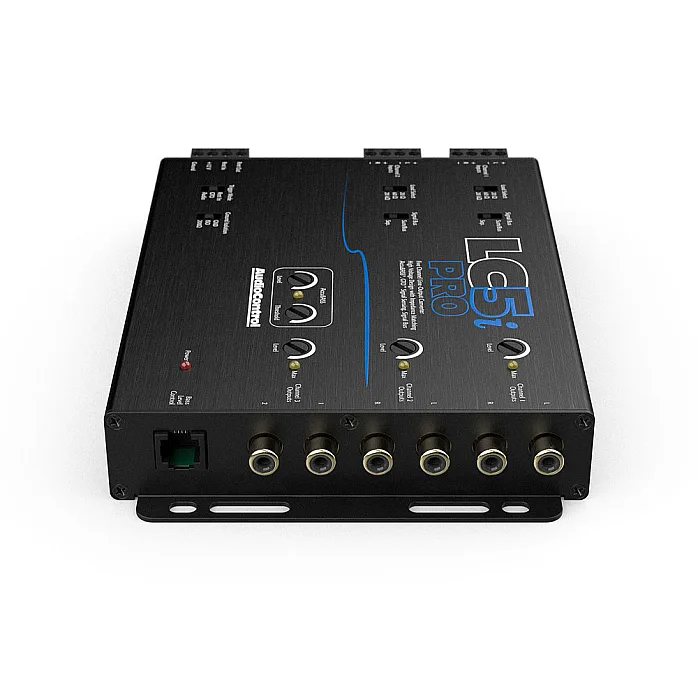

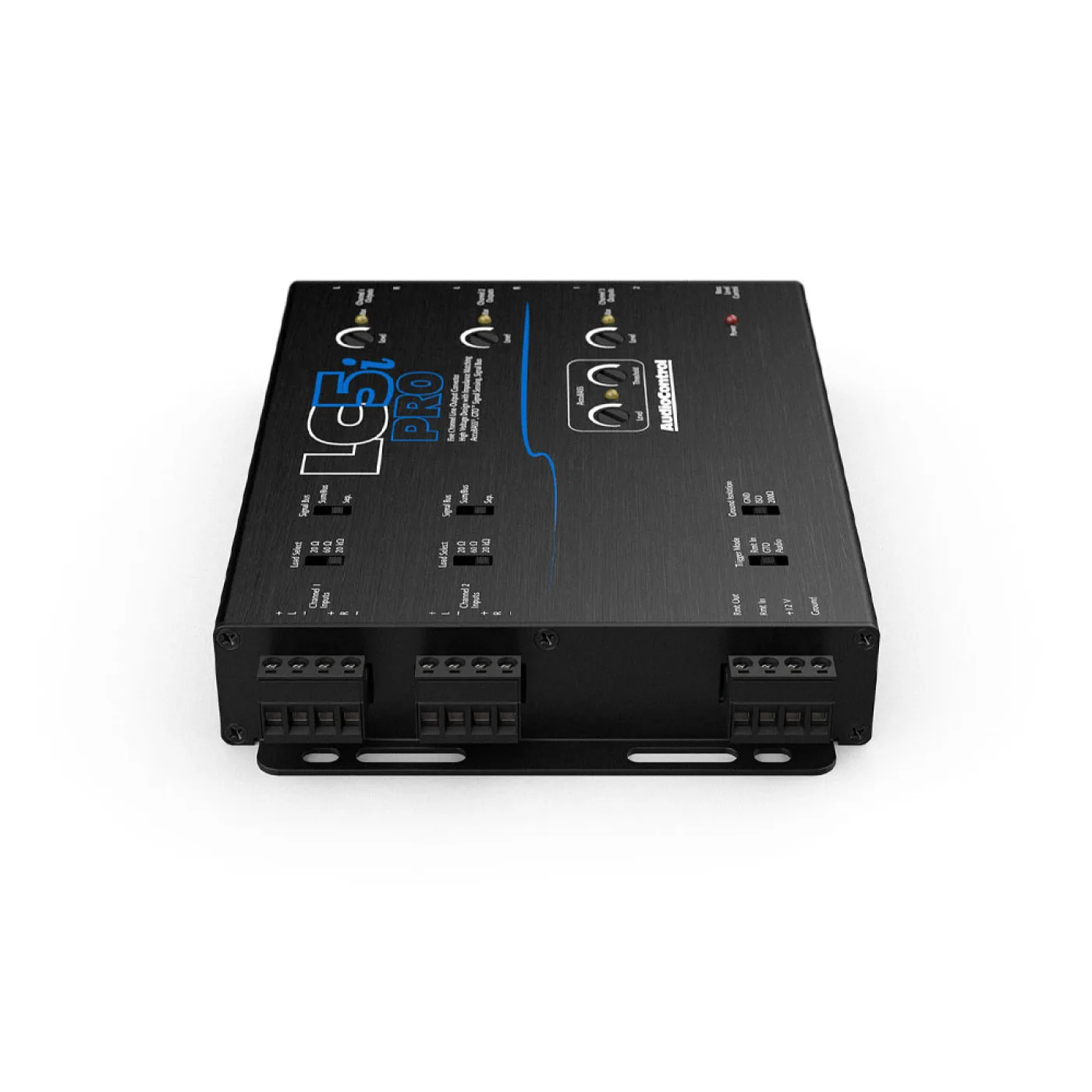

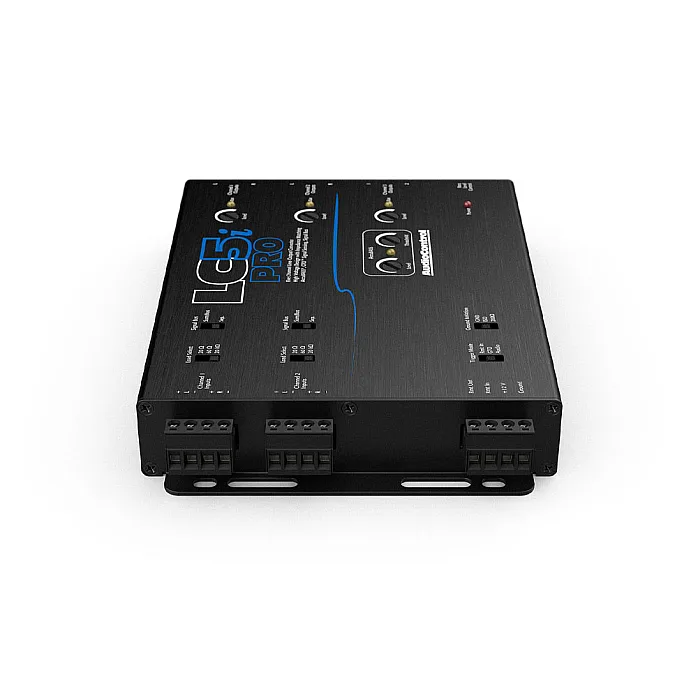

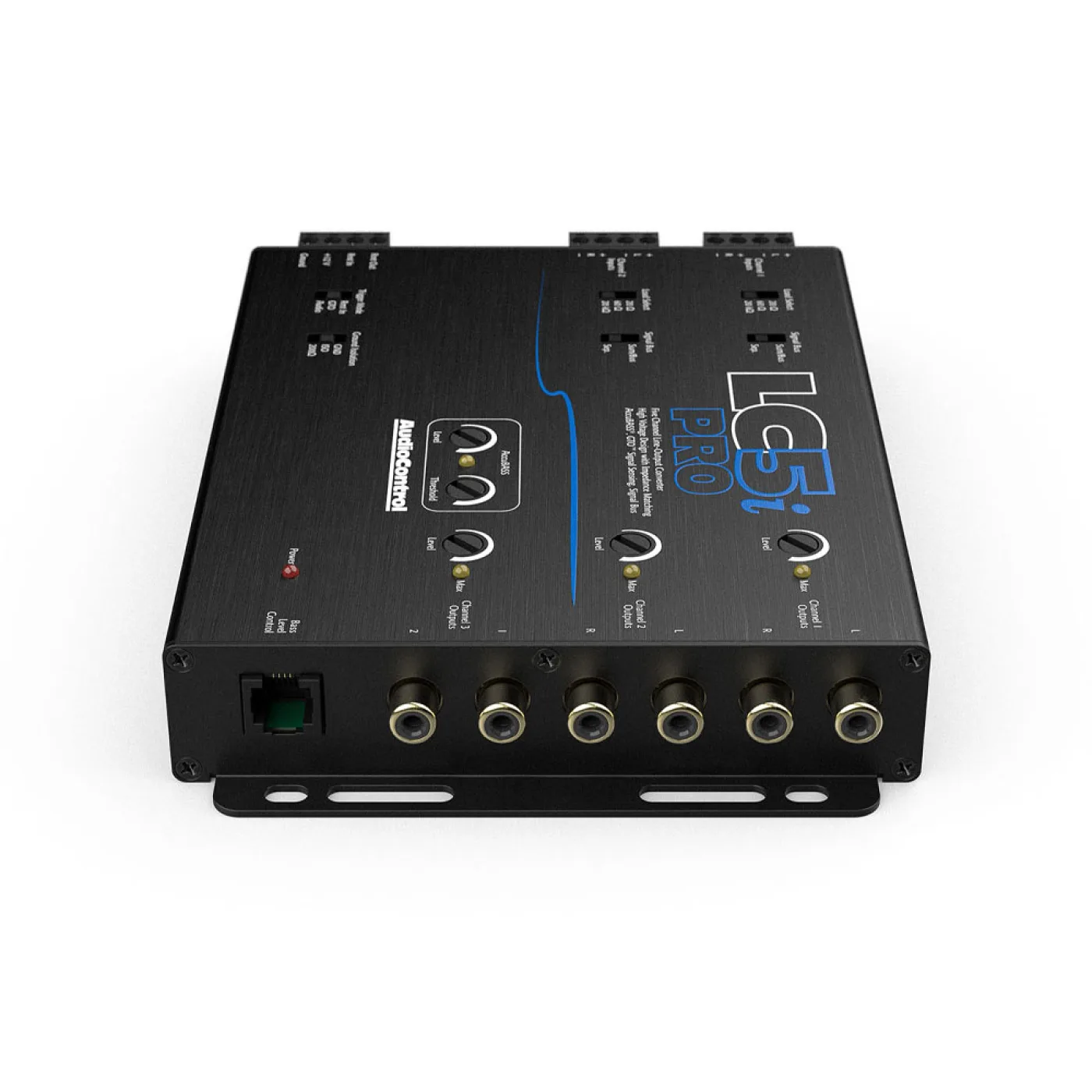

AudioControl LC5i PRO 5 Channel Line Out Converter With AccuBass ACR-1 Dash Remote Included
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:AudioControl
- Product Code:LC5i PRO
- EAN / UPC:7427307027685
- Warranty:1 Year Warranty
5 Channel Line Out Converter With Accubass
AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. Installer-friendly trigger modes offer flexibility and an expedited installation time since the units can be turned on via GTO™ Signal Sense (DC offset), audio signal sensing, or standard remote 12 volt input. All PRO series products feature AudioContol’s patented AccuBASS® for restoring low frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from the comfort of the driver’s seat. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.
Features
- Four channels of active speaker-level inputs (up to 40V input handling)
- Fixed and variable outputs with discrete-level controls
- AccuBASS® processing for correction of bass roll-off
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- ACR-1 dash remote included
- Compact design
Specifications
Inputs
- Speaker Level Input
- 1 (4 channels)
- Maximum Speaker Level Input
- 40 Vrms / 400 W (20kΩ setting)
- Input Impedance (selectable)
- 20Ω, 60Ω, 20kΩ
Outputs
- Preamp Outputs
- 5 (4 channels main, 1 channels bass)
- Maximum Output Level
- 9.5Vrms/13V peak
- Output Gain
- +/- 15 dB
- Output Impedance
- 150Ω
Performance
- Total Harmonic Distortion
- 0.01%
- Signal to Noise
- >124 dB
- Frequency Response
- 20 Hz – 20 kHz
Control
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
General
- Current Draw
- 330 mA
- Recommended Fuse Rating
- 2 A
Weights & Dimensions
- Dimensions
- 7″L x 5.1″D x 1.14″H (including speaker connectors)
- Weight
- 1.1 lbs.

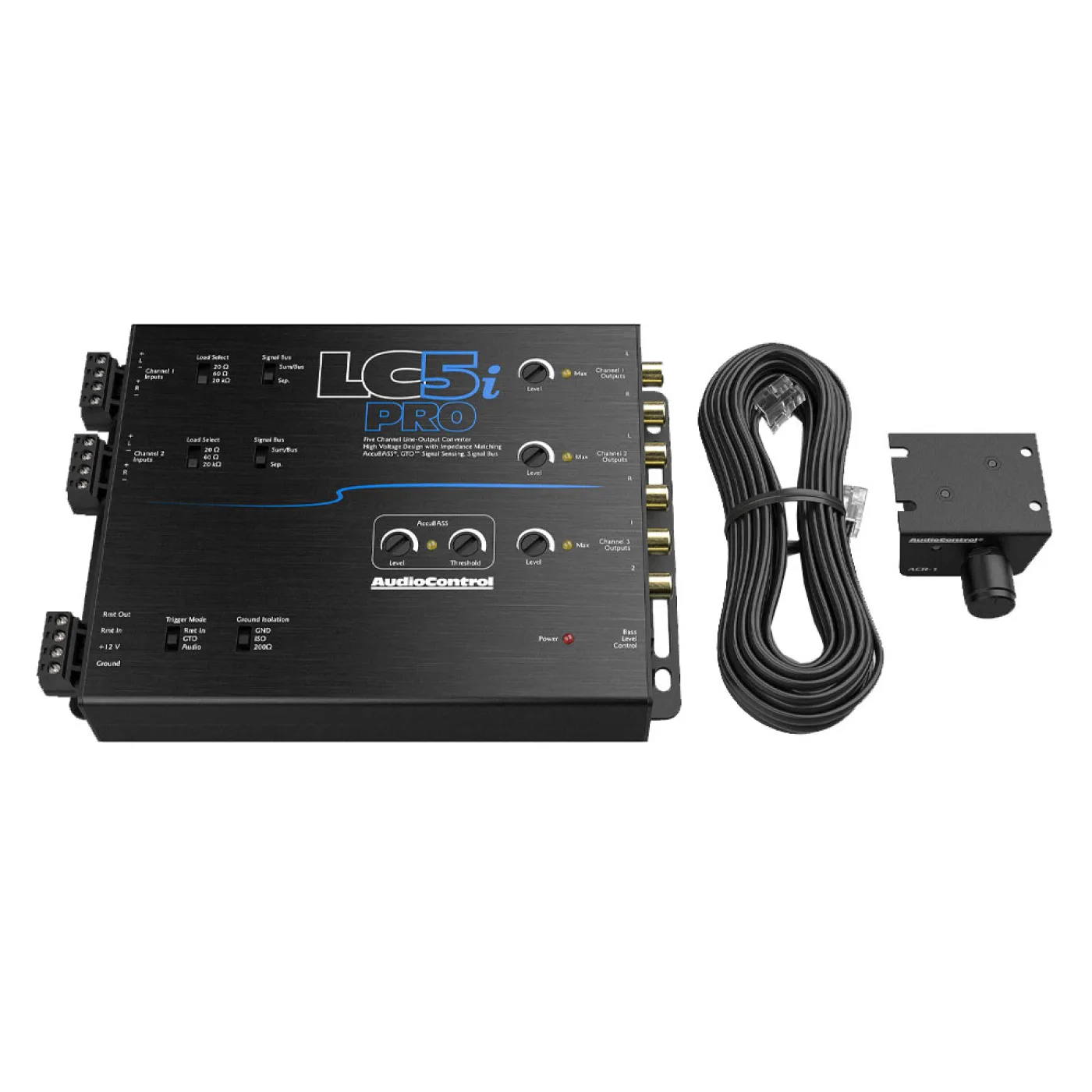

In The Box
- LC5i PRO
- ACR-1
- 20′ Phone Cable
- Speaker and Power connectors
- Manual, Warranty
