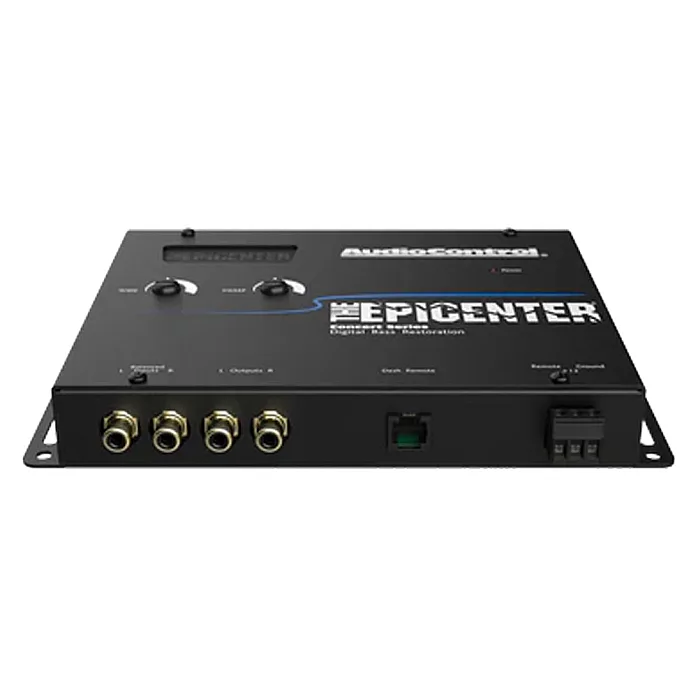

AudioControl The Epicenter Black Concert Series Digital Bass Restoration Processor
- Availability:Out Of Stock
- Item Condition:New
- Brand:AudioControl
- Product Code:The Epicenter Black
- EAN / UPC:7427288195922
- Warranty:1 Year Warranty
£229.99
AudioControl The Epicenter Black
Increase bass response from your vehicle’s audio system with The EPICENTER Concert Series Digital Bass Restoration Processor by AudioControl. The EPICENTER contains patented bass maximization circuity that analyzes the incoming audio signal from your source unit, recreates missing bass tones, and transmits this low-frequency information back into the signal path to increase bass response. This digital bass restoration processor also features parametric bass control and a subsonic filter for fine tuning. Restore the earth-shaking power and heart-pounding bass your subwoofers crave!
Features
- Patented Bass Maximizer
- Dash mount control included (ACR-1)
- Bass restoration lighted display
- Parametric bass control
- PFM Subsonic Filter
- Balanced inputs
- Bass Output Control
Specifications
Inputs
- Preamp Inputs
- 1 (2 channels)
- Maximum Input Level
- 15Vrms
- Input Impedance
- 10kQ
Outputs
- Preamp Outputs
- 1 (2 channels)
- Maximum Output Level
- 13.5Vrms
- Output Impedance
- 150Ω
Performance
- Total Harmonic Distortion
- 0.003%
- Frequency Response
- 10Hz-100kHz
- Signal to Noise
- 110dB
Control
- Remote in
General
- Power Supply
- High Headroom PWM Switching
- Current Draw
- 150mA
- Recommended Fuse Rating
- 1A
Weights & Dimensions
- Dimensions
- 8"W x 5.5"D x 1.2"H
- Weight
- 1.8 lbs (0.8 kg)

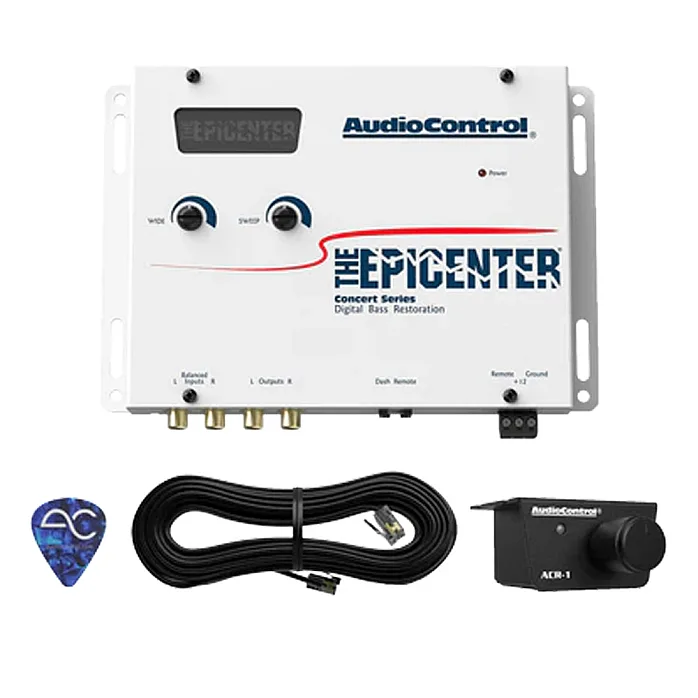

In the Box
- The Epicenter
- ACR-1 Remote
- Power Connector
- Manual
- Warranty
