BLAM BL-100RFC 100mm 4" Hi-Efficiency 2-Way Coaxial Car Audio Speakers
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:BLAM
- Product Code:BL-100RFC
- EAN / UPC:7427307002033
- Warranty:1 Year Warranty

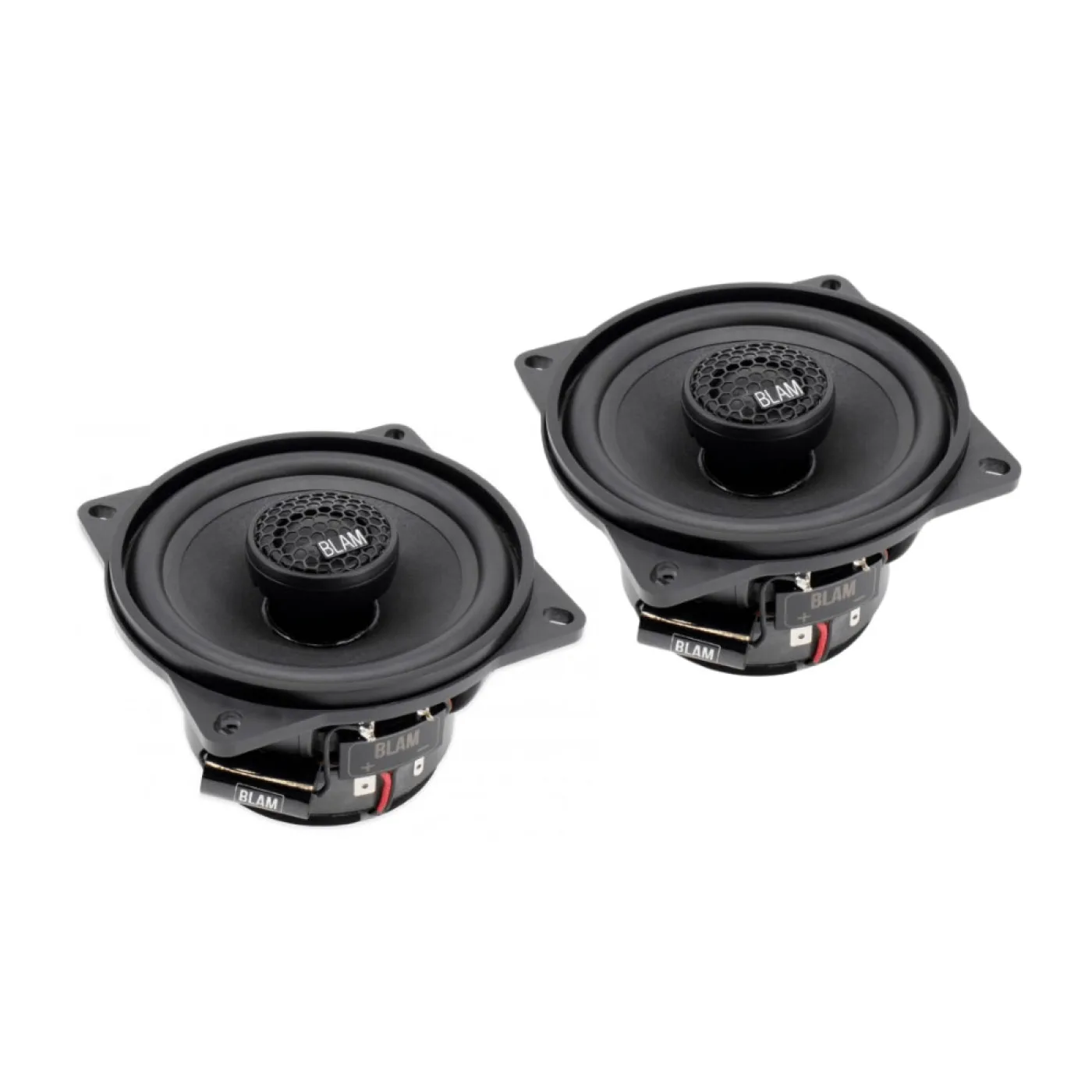

Discover the Blam Relax 100 RFC, a 4 inch (10cm) coaxial speaker precisely designed to take your car audio sound to a new level. No one can resist the powerful maximum power of 100W and a nominal power of 50W. In addition, the 20mm soft dome tweeter fits perfectly into the integrated 6 dB/oct. crossover and completes the audio miracle. The speaker is not only powerful, but also extremely efficient with a sensitivity of 90.3 dB and an impedance of 2 O. Let yourself be fascinated by the uncompromising sound and unsurpassed technology of the Blam Relax 100 RFC.
100 mm bass-midrange speaker with a high quality cellulose pulp cone and a butyl suspension. The generous dimensions of the actuator (70 mm x 15 mm) contribute to an optimal QTS, a good level of sensitivity and high power handling. The tweeter is equipped with a neodymium motor, a soft dome and a 25 mm voice coil on Kapton former.
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Alfa Romeo | 155 | 1992 - 1998 | (Type 167) |
| Audi | 80 | 1991 - 1995 | (B4) |
| Eagle | Summit | 1992 - 1996 | |
| Holden | Cruze | 2002 - 2006 | (YG) |
| Mazda | 121 | 1990 - 1996 | (Autozam Revue) |
| Nissan | Elgrand | 2002 - 2010 | E51 |
| Renault | Kangoo | 1999 - 2008 | |
| Saab | 9-4X | 2011 - 2012 | |
| Suzuki | Ignis | 2000 - 2004 | (FH) |
| Vauxhall | Corsa | 2006 - 2014 | D |
| Volkswagen | Transporter | 1990 - 2003 | T4 |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Product Features
- 100 mm (4‘’) high sensitivity speaker
- Max power 100 W
- Nominal power 50 W
- Frequency response 80 Hz – 30 kHz
- Sensitivity 90.3 dB
- Impedance 2 Ω
Specifications
Technical features
- Original BLAM composite basket reinforced with fiberglass
- High quality treated cellulose pulp membrane
- Butyl rubber surround
- Long life “Conex” spider
- 25 mm voice coil on Kapton former
- 70 mm x 15 mm ferrite magnet
- Thick magnetic circuit (4 mm)
- High quality 20 mm soft dome tweeter
- Integrated high-pass filter 6 dB/octave (Polypropylene capacitor)
Technical Specifications
- Component Speaker
- Max power 100 W
- Nominal power 50 W
- Impedance 2 Ω
- Freq. Response 80 Hz - 30 kHz
- Sensitivity (2,83V/1m) 90.3 dB
- Magnet Ferrite
- Magnet size Ø x h 70 x 15 mm 2.756‘’x 0.591‘’
- Total driver displacement 0.11 l 0.004 cf
- Weight of one component 0.578 kg 1.274 lb
- Voice coil Ø 25 mm 0.984“
- Voice coil height 8.4 mm 0.331“
- Cone Cellulose pulp
Product Parameters
- effective Ø (d) 84 mm
- Sd 55.42 cm²
- Xmax 2 mm
- Re 2.6 Ω
- Fs 109.87 Hz
- Le 97.33 µH @ 1 kHz
- L2 157.34 µH @10 kHz
- Vas 1.76 L
- Mms 5.16 g
- Cms 0.000407 m/N
- BL 3.49 Tm
- Qts 0.66
- Qes 0.77
- Qms 4.72
Dimensions
