BLAM BL-L165-LSQ BLAM Live Original LSQ 165mm (6.5") 2-Way Component Speaker System For Tesla
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:BLAM
- Product Code:BL-L165-LSQ
- EAN / UPC:7427282747028
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Tesla | Model 3 | 2017 onward | |
| Tesla | Model S | 2012 onward | |
| Tesla | Model X | 2015 onward | |
| Tesla | Model Y | 2020 onward |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
BLAM LSQ 165mm 2 Way Component System

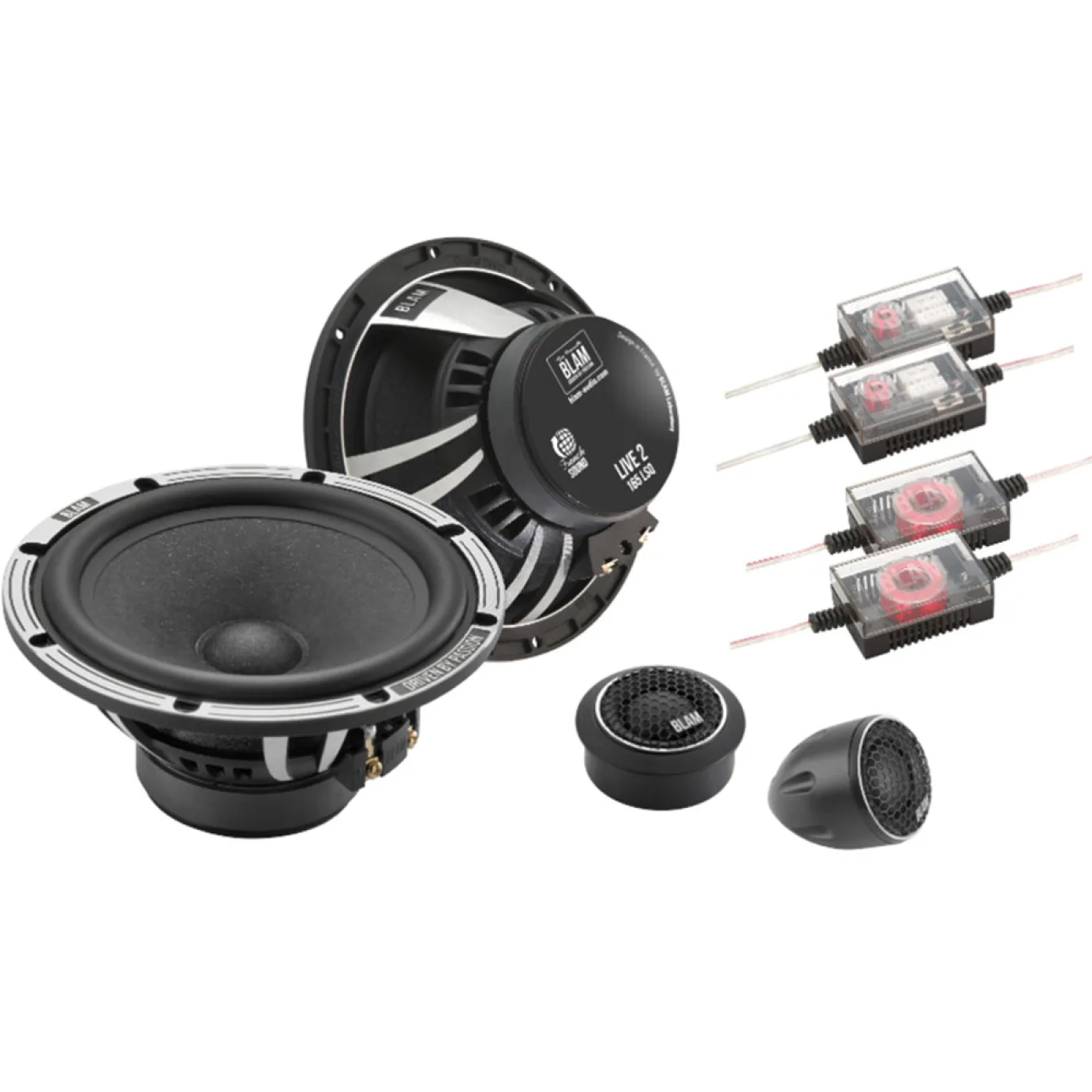

System includes two 165 mm (6.5”) woofers, two 25 mm (1”) soft dome tweeters, two high-quality low pass 6 dB/octave BFW01 crossovers and two high-quality high pass 12 dB/octave BFT01 crossovers, suitable for bi-amplification.
If you have decided to install new speakers in your car in order to fully enjoy your playlist during your rides and you are looking for a warm, aerated and strong system, the new BLAM 165LSQ of our LIVE line is made for you.
Elaborated with the “French sound” concept and by keeping in mind the “vinyl” sound idea, which is known for its delicacy, we have designed this product using very high-quality materials such as cellulose pulp membranes strengthened with bamboo fibers.
The 165LSQ will emphasize the authentic side of your favorite tracks and, no matter the music styles, it will make you want to listen and listen again to them thanks to its mesmerizing warmness, dynamism and smoothness.
- High efficiency Sound quality 2-way component system
- 165 mm (6.5’’) woofer
- Max power 120 W – Nominal power 60 W
- Frequency response 60 Hz – 25 kHz
- Sensitivity (2,83V/1m) 94 dB – Impedance 2 Ohms
Composition
- 165LSQ High Efficiency Woofer
- 165 mm (6.5?) woofer
- Max power 120 W – Nominal power 60 W
- Frequency response 60 Hz – 9 kHz
- Sensitivity 94 dB – Impedance 2 O
Machined cast aluminium basket – Cellulose pulp cone reinforced with bamboo fiber – Butyl rubber surround – Long life “Conex” damper – 28 mm (1.1’’) voice coil with kapton former – 80 mm x 15 mm (3.1’’ x 0.6’’) motor assembly – Thick magnetic circuit 5 mm
Specifications
LT25 High Quality Tweeter
- 25 mm (1’’) high quality soft dome tweeter
- Max power 100 W – Nominal power 15 W
- Frequency response 2.5 kHz – 25 kHz
- Sensitivity 91.6 dB – Impedance 3 O
- High efficiency N38 neodymium motor
BFW01 High Quality Crossover
- Low pass 6 dB/octave crossover
BFT01 High Quality Crossover
- High pass 12 dB/octave crossovers
- Adjustable tweeter level to +3 dB, 0 dB or attenuated -3 dB
Supplied Accessories
- Mounting screws
- Tweeters accessories – Angled support included
- User manual
Technical Specifications
- Component Woofer 6-1/2 ‘‘ (165 mm)
- Max Power 120W
- Nominal Power 60W
- Impedance 2 Ohms
- Freq Response 74Hz - 9KHz
- Sensitivity (2.83V/1m) 93.3dB
- Magnet Ferrite
- Magnet Size 80 x 15mm 3.15” x 0.591”
- Total Drive Displacement 0.3 I 0.011 cf
- Weight of one Component 0.922 kg 2.033ib
- Voice Coil 28mm 1.102”
- Voice Coil Height 11mm 0.433”
- Cone Paper & Bamboo
Specifications
Tweeter Specifications
- Component Tweeter
- 25 mm (1’’) High quality soft dome tweeter
- Max power 100 W
- Nominal power 15 W
- Impedance 3 Ω
- Freq. Response 2.5 KHz - 25 KHz
- Sensitivity (2,83V/1m) 91.6 dB
- Magnet N38 Neodymium motor
- Magnet size Ø x h 18 x 3 mm 0.709 ‘’x 0.118 ‘’
- Weight of one component 0.096 kg 0.212 lb
- Voice coil Ø 25 mm 0.984“
- Voice coil height 2 mm 0.079“
- Cone Soft
