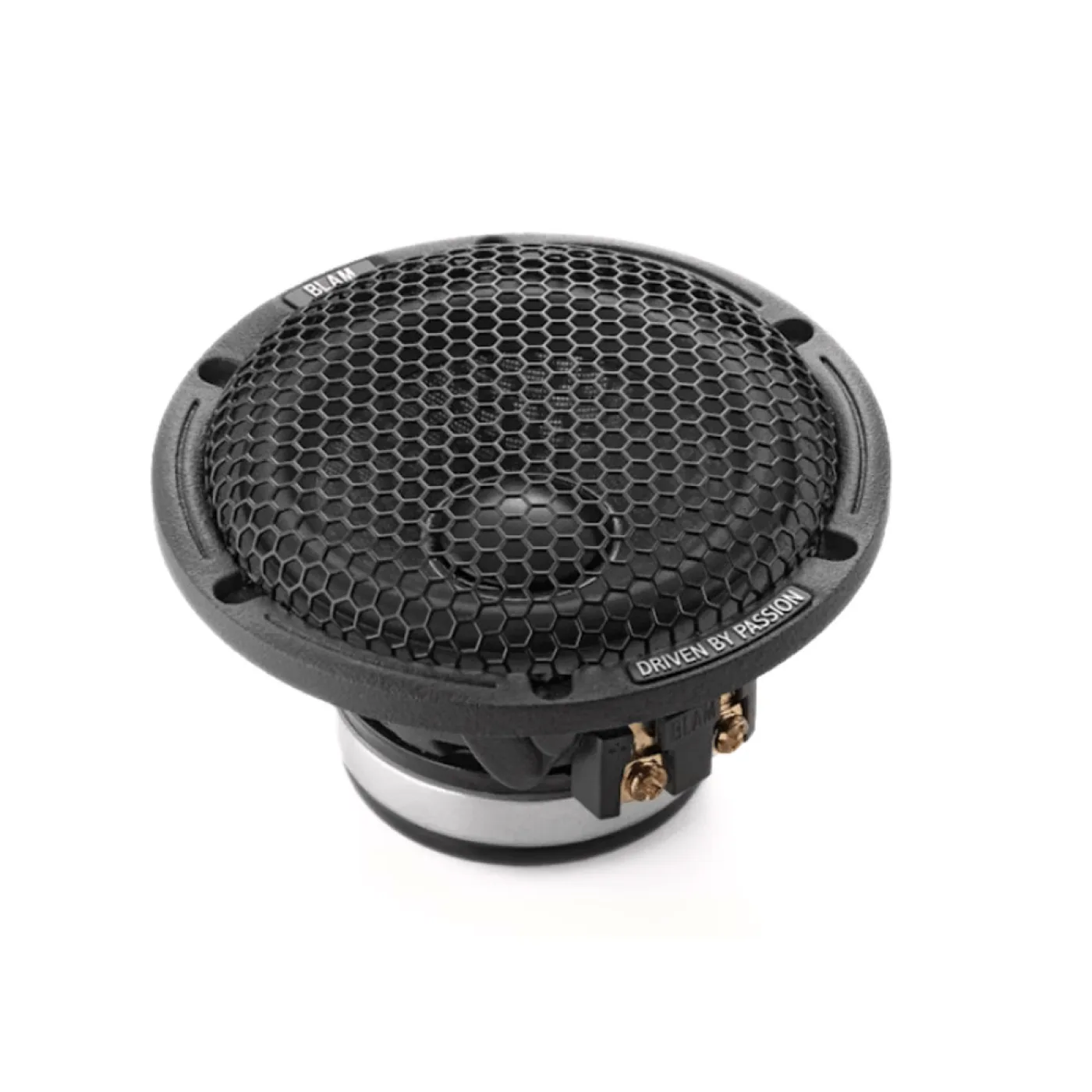

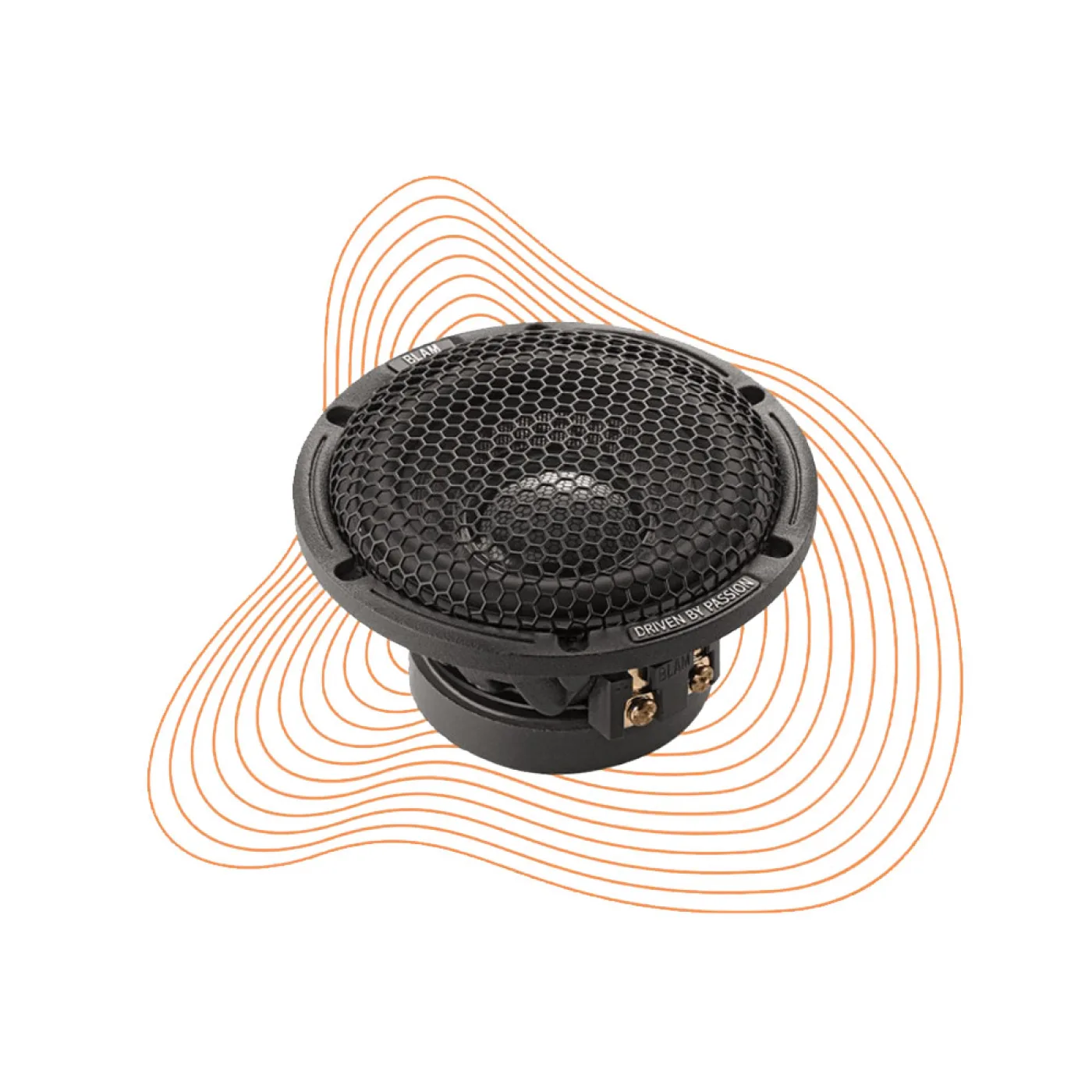

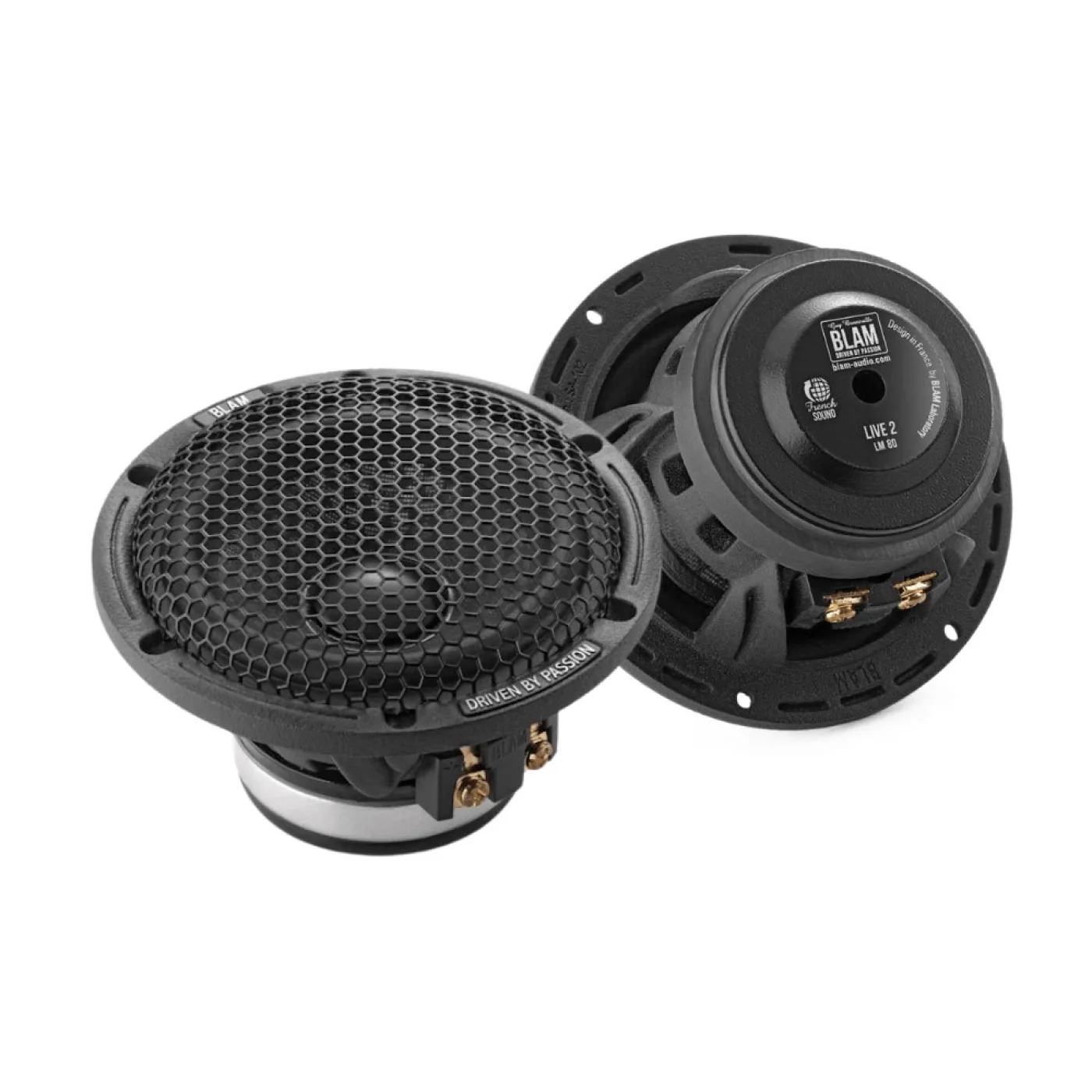

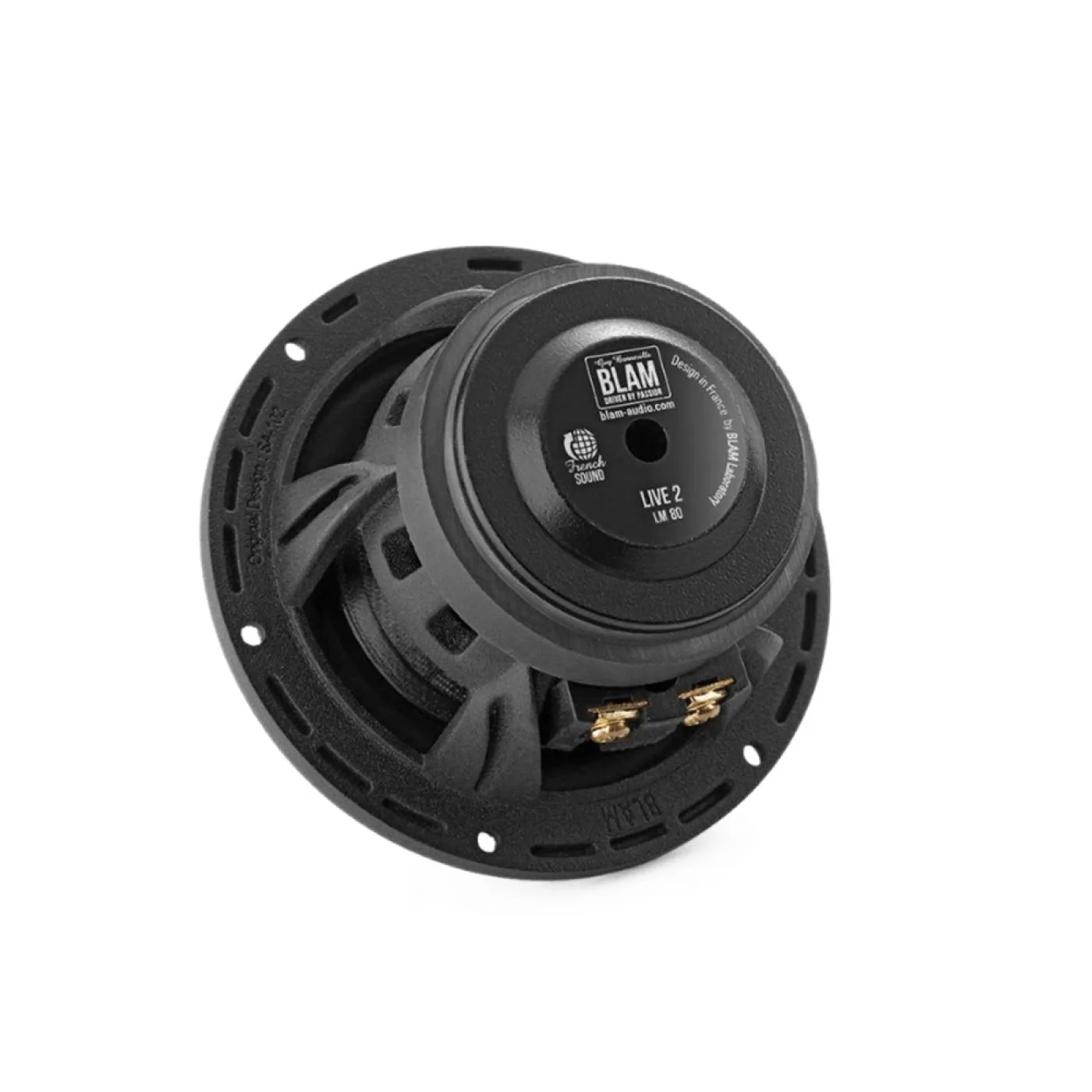

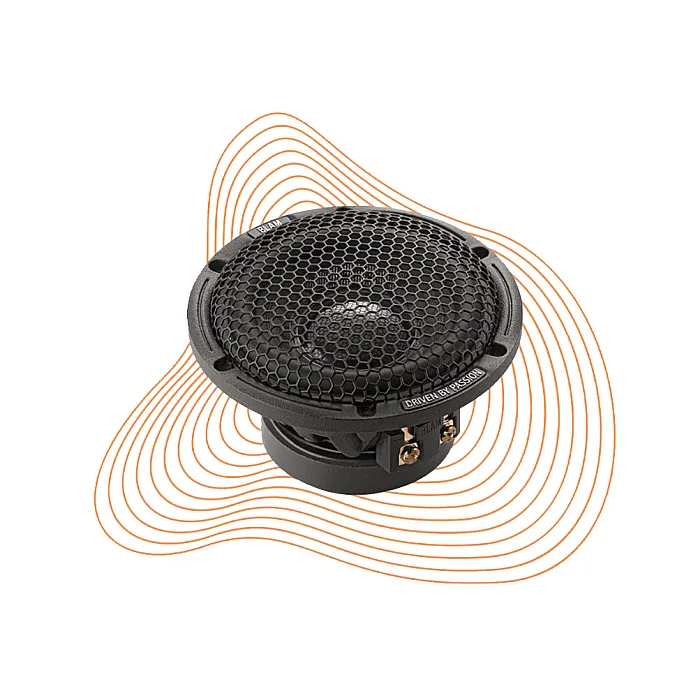

BLAM LIVE BL-LM80 80mm (3") High End 100W Mid Range Speakers (PAIR)
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:BLAM
- Product Code:BL-LM80
- EAN / UPC:7427288137588
- Warranty:1 Year Warranty
The LIVE LM80 is the latest 3 Inch (80mm) mid-range speaker from BLAM which boasts impressive technical specifications. The maximum output is 100 W with a nominal power of 25 W and an impedance of 3 ohms. Its frequency response ranges from 100 Hz to 25 kHz and it has a sensitivity of 92 dB at 2.83 V / 1 m. With a ferrite magnet, a magnet size of 55 x 10 mm, a voice coil of 20 mm diameter and 6 mm height and a cone made of carbon, this midrange driver sets new standards in the industry. With a very linear frequency response and extended high frequency range, the LM80 reproduces music with an incredible resolution that will make you want to rediscover all your favourite songs.
Specifications
Composition
- Max Power 100 W
- Nominal Power 25 W*.

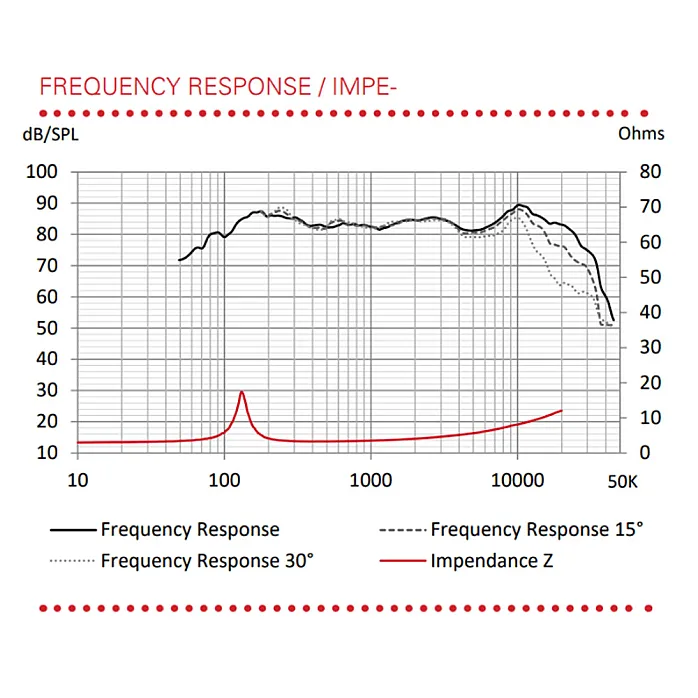

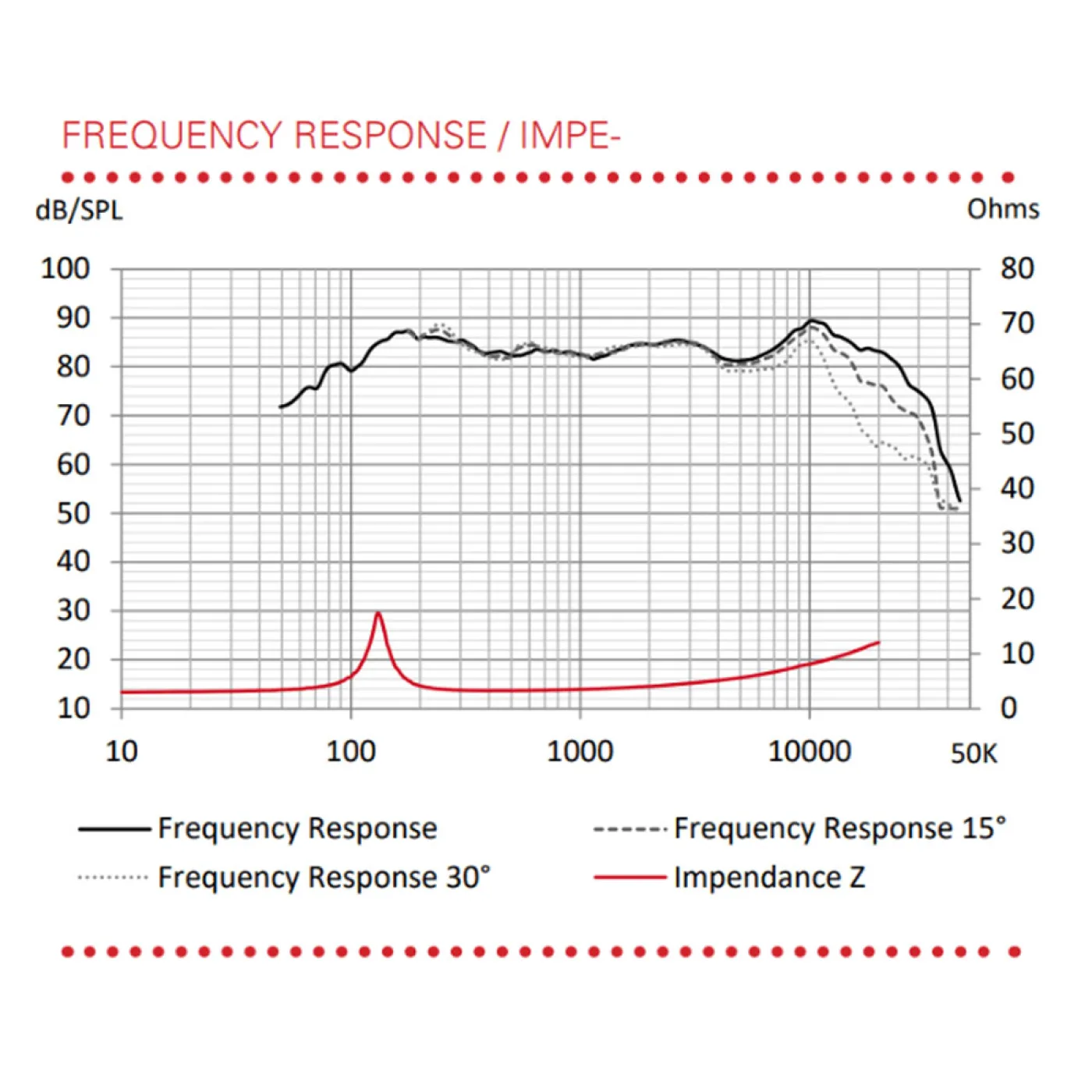

- Frequency response 100 Hz – 25 kHz
- Sensitivity 87.6 dB
- Impedance 3 Ω
- Mounting depth 45.5 mm (1.8″)
- Cast aluminium basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – “Conex” long life spider – 20 mm voice coil on TIL former – 55 mm x 10 mm ferrite magnet
- Optimized to operate in a sealed volume of 2 L to 30 L.
- Recommended minimum cut-off frequency 300 Hz 12 dB/octave

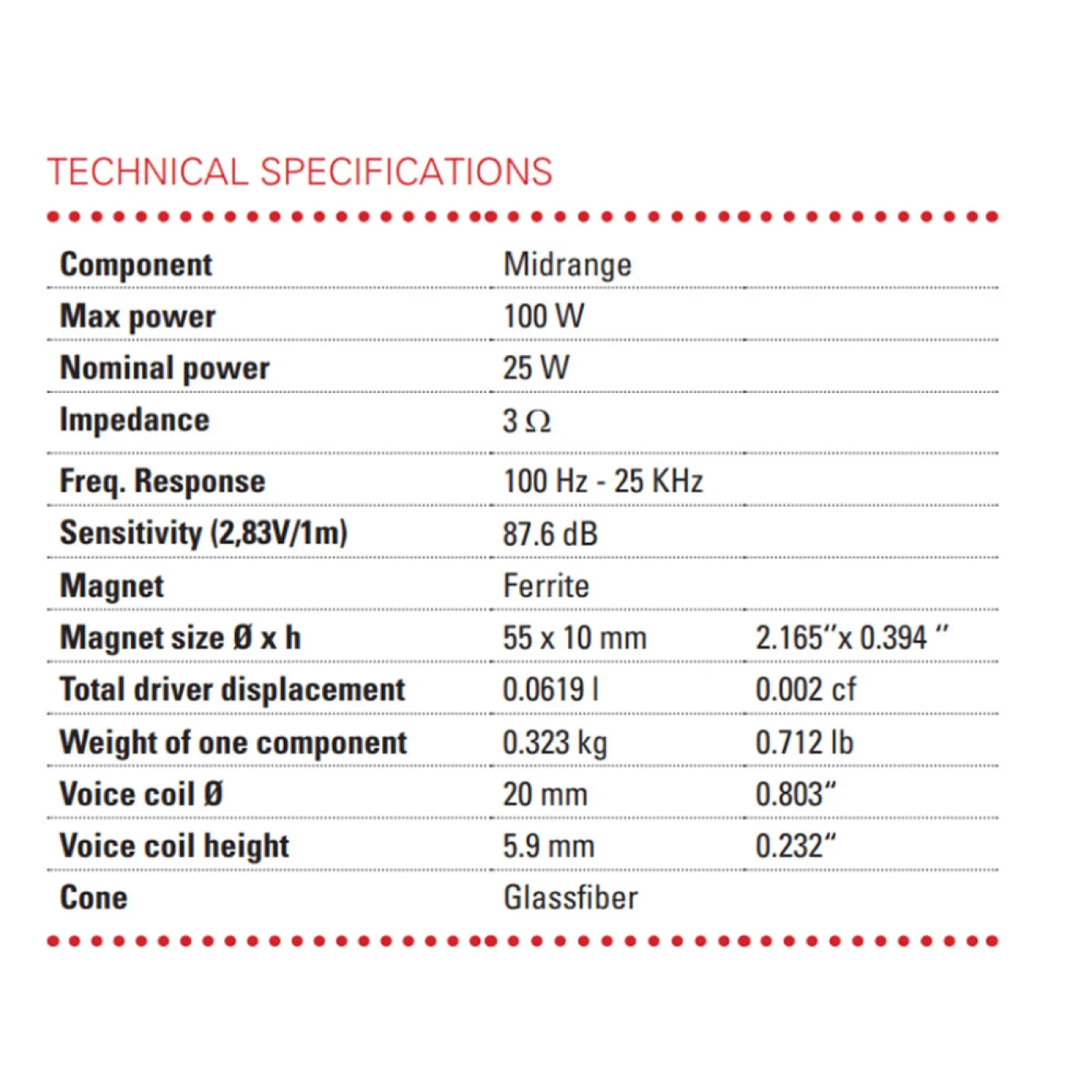

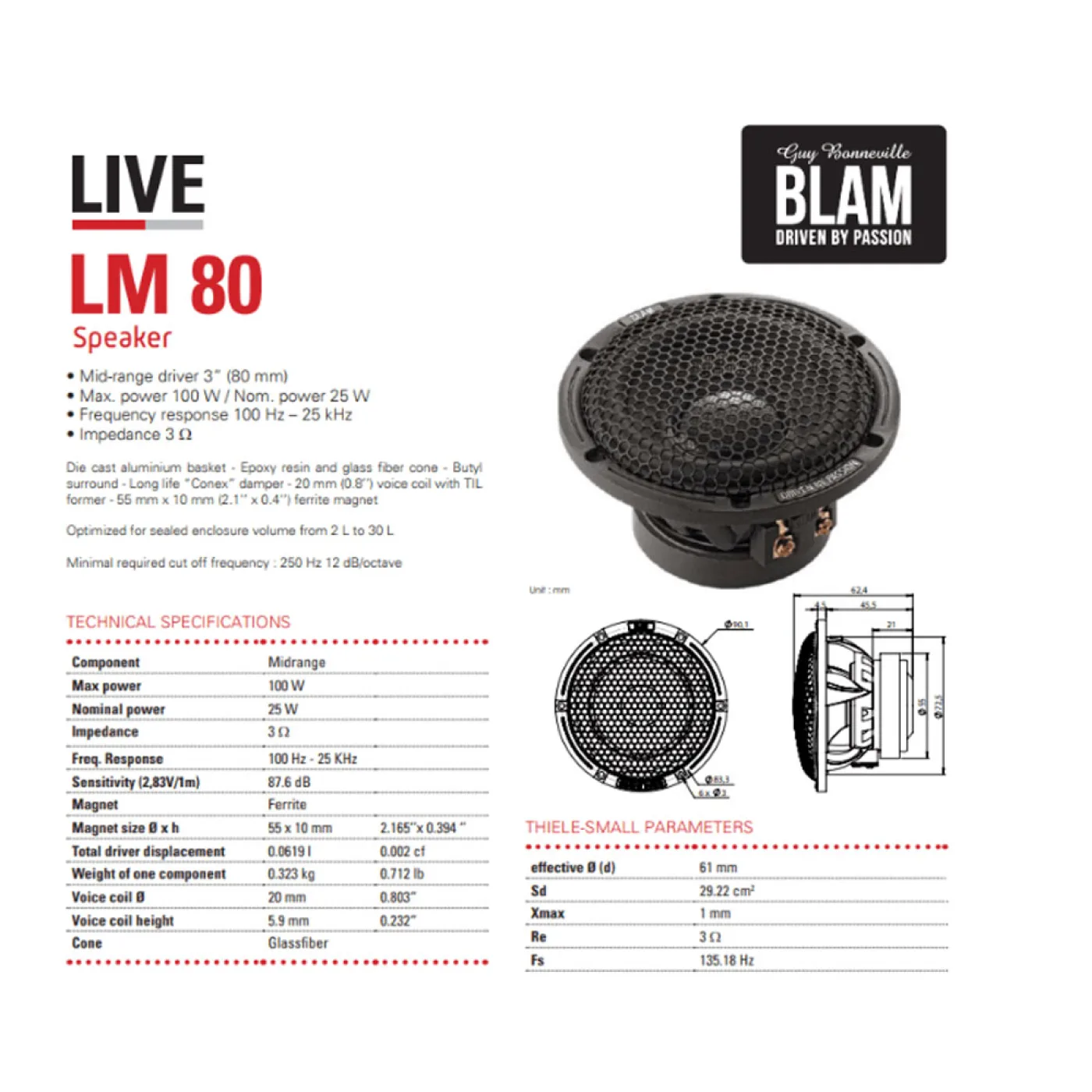

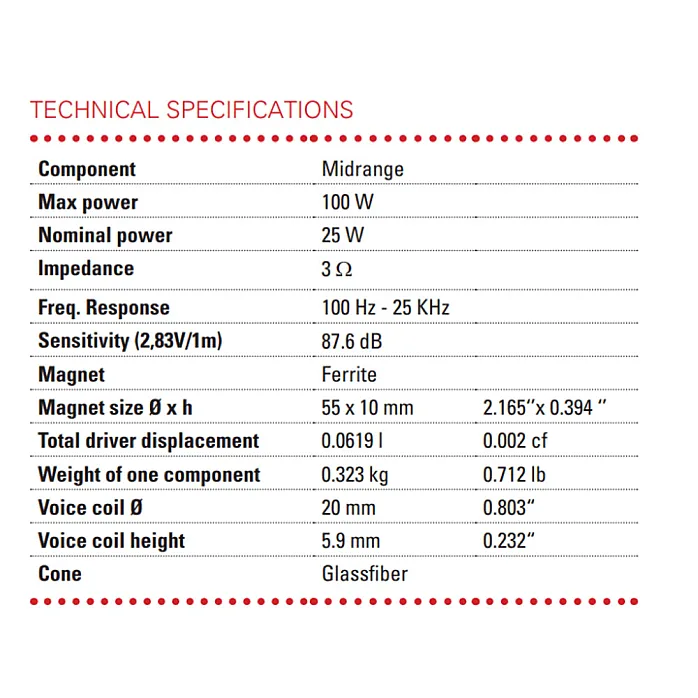

Technical Specifications
- Component
- Midrange
- Max power
- 100 W
- Nominal power
- 25 W
- Impedance
- 3 Ω
- Freq. Response
- 100 Hz - 25 KHz
- Sensitivity
- (2,83V/1m) 87.6 dB
- Magnet
- Ferrite
- Magnet size Ø x h
- 55 x 10 mm 2.165‘’x 0.394 ‘’
- Total driver displacement
- 0.0619 l 0.002 cf
- Weight of one component
- 0.323 kg 0.712 lb
- Voice coil Ø
- 20 mm 0.803“
- Voice coil height
- 5.9 mm 0.232“
- Cone
- Glassfiber

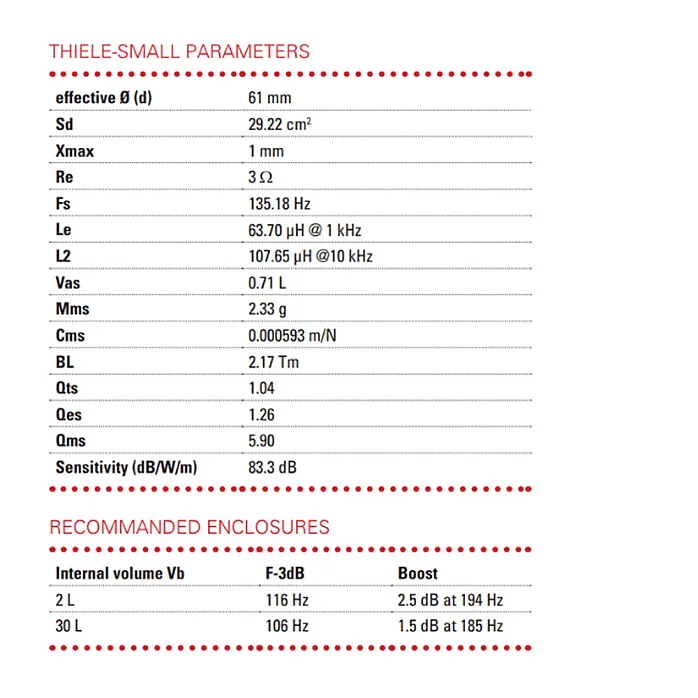

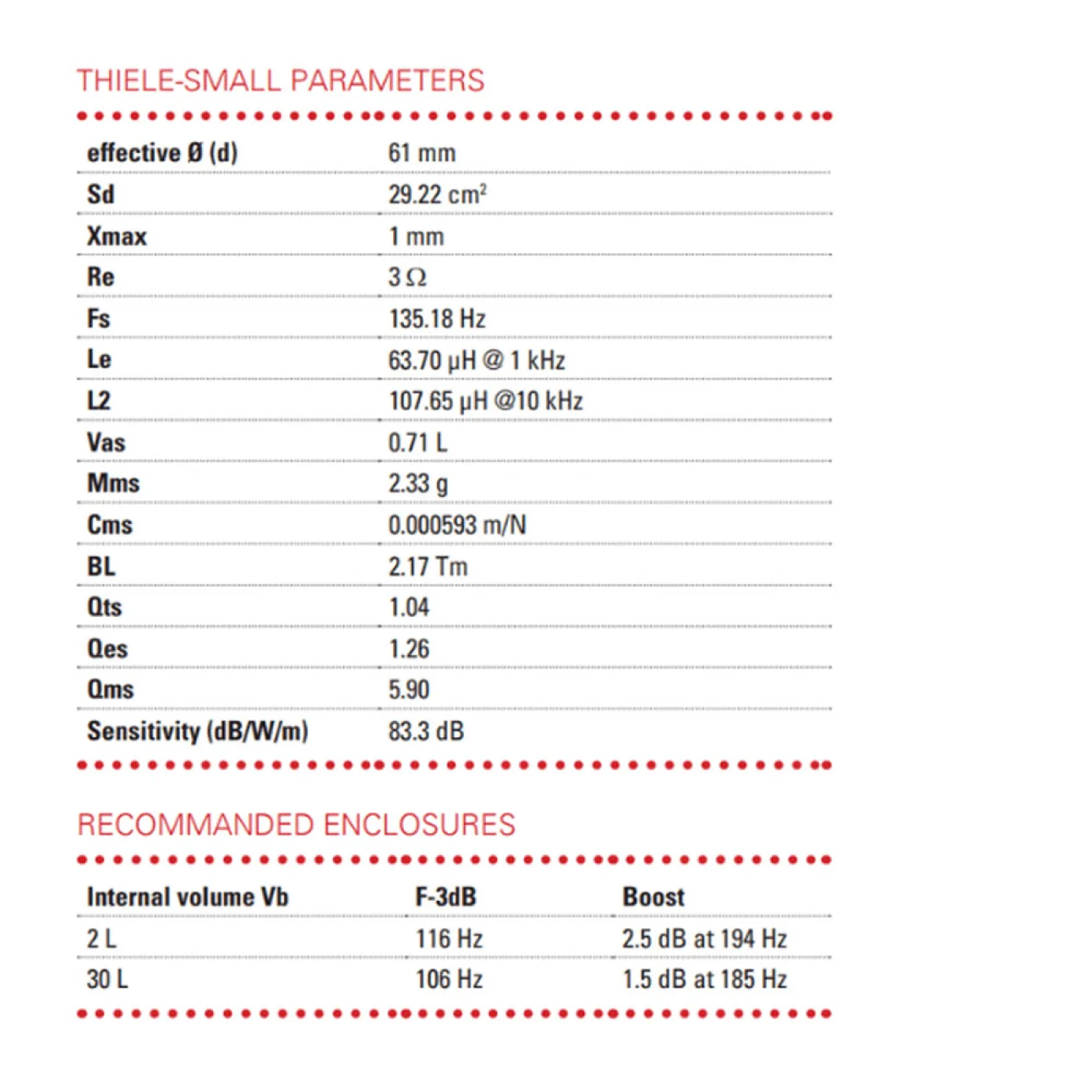

Technical Parameters
- effective Ø (d) 61 mm
- Sd 29.22 cm2
- Xmax 1 mm
- Re 3 Ω
- Fs 135.18 Hz
- Le 63.70 µH @ 1 kHz
- L2 107.65 µH @10 kHz
- Vas 0.71 L
- Mms 2.33 g
- Cms 0.000593 m/N
- BL 2.17 Tm
- Qts 1.04
- Qes 1.26
- Qms 5.90
- Sensitivity (dB/W/m) 83.3 dB
Supplied Accessories
- Mounting screws
- Protection grill
- User manual
