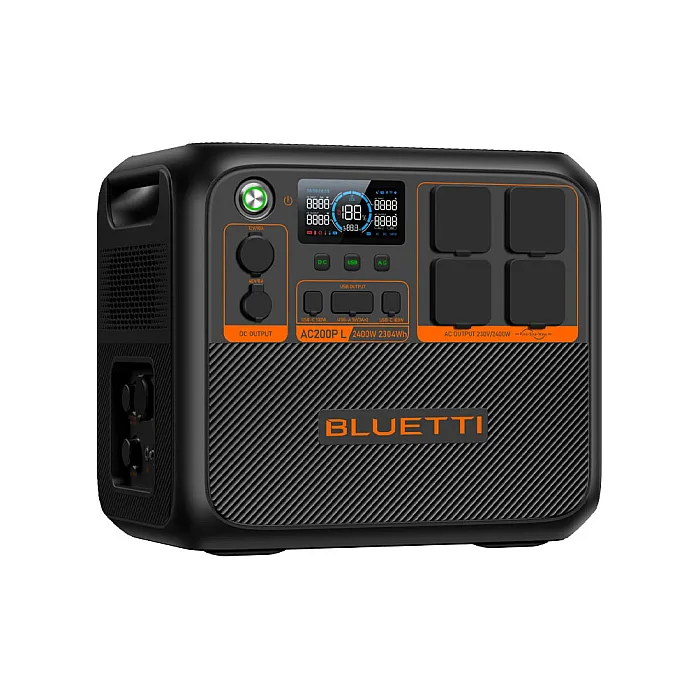

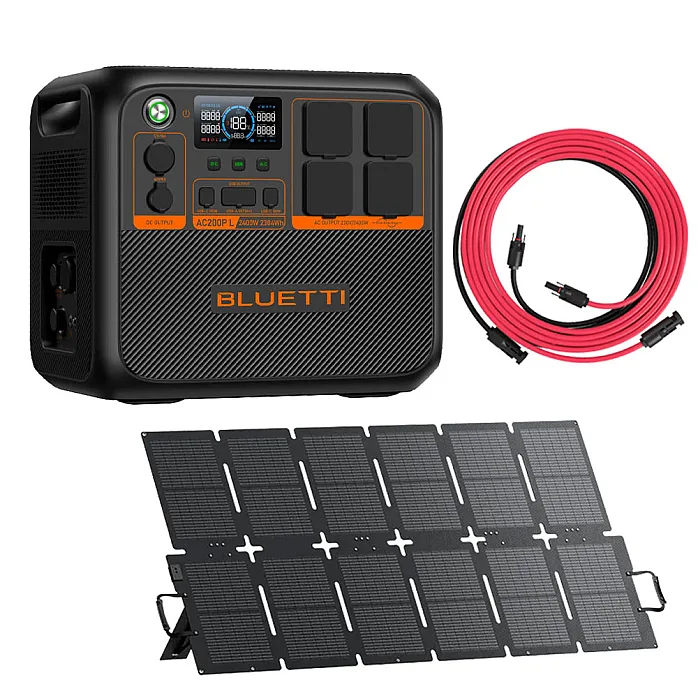

Bluetti AC200PL Premium Expandable Power Station With 220W Solar Panel & MC4 PV 5M Extension Cable
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:BLUETTI
- Product Code:AC200PL + Sora 220 + PV Solar 5M Extension Cable
- EAN / UPC:7427288183257
- Warranty:5 Years Warranty

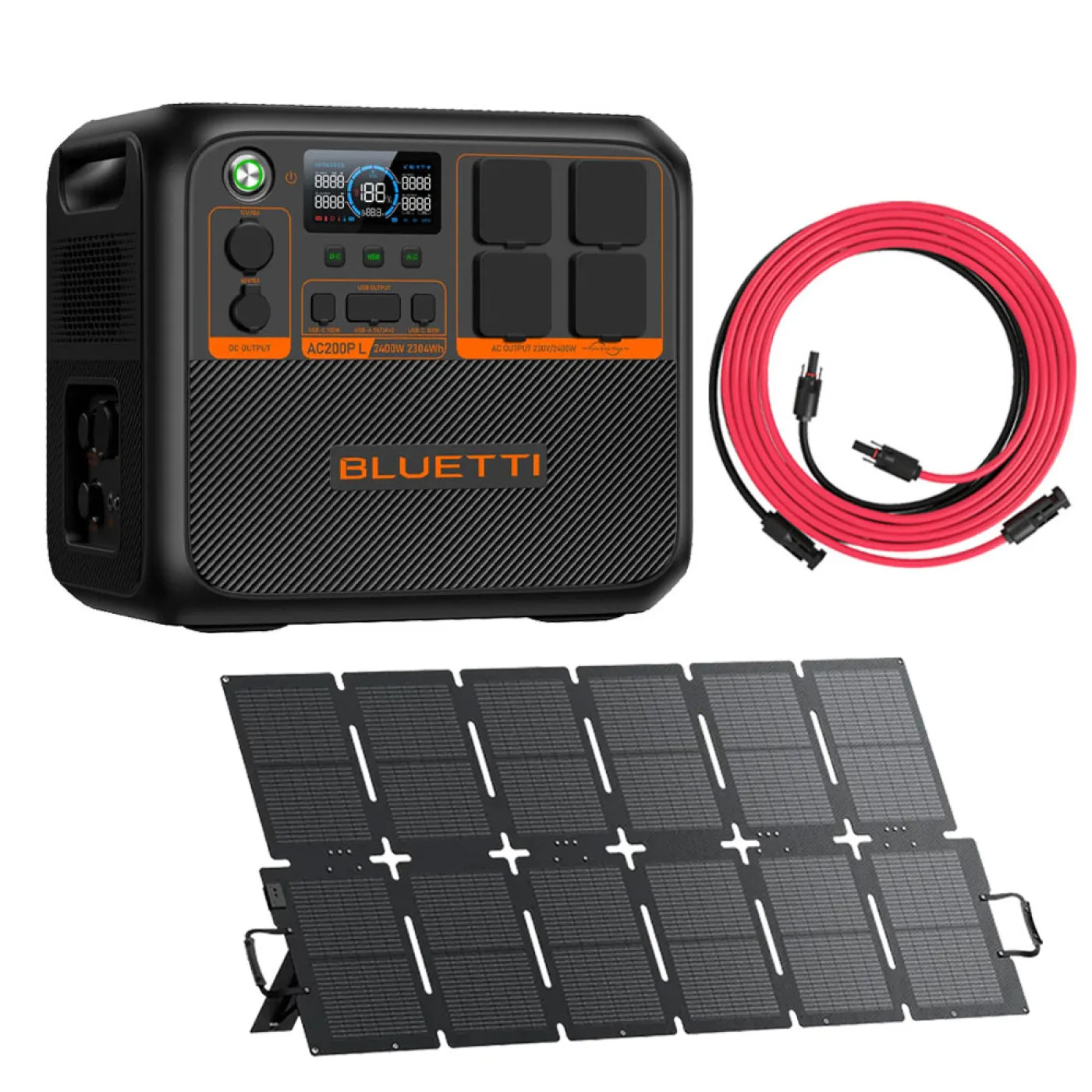

Package Includes
- Bluetti AC200PL Premium Expandable Power Station 2,400W / 2,304Wh (5 Year Warranty)
- Bluetti Sora 220 Foldable TOPCon Cell Solar Panel - 220W (1 Year Warranty)
- Bluetti MC4 PV Solar 5M Extension Red / Black Cable (1 Year Warranty)

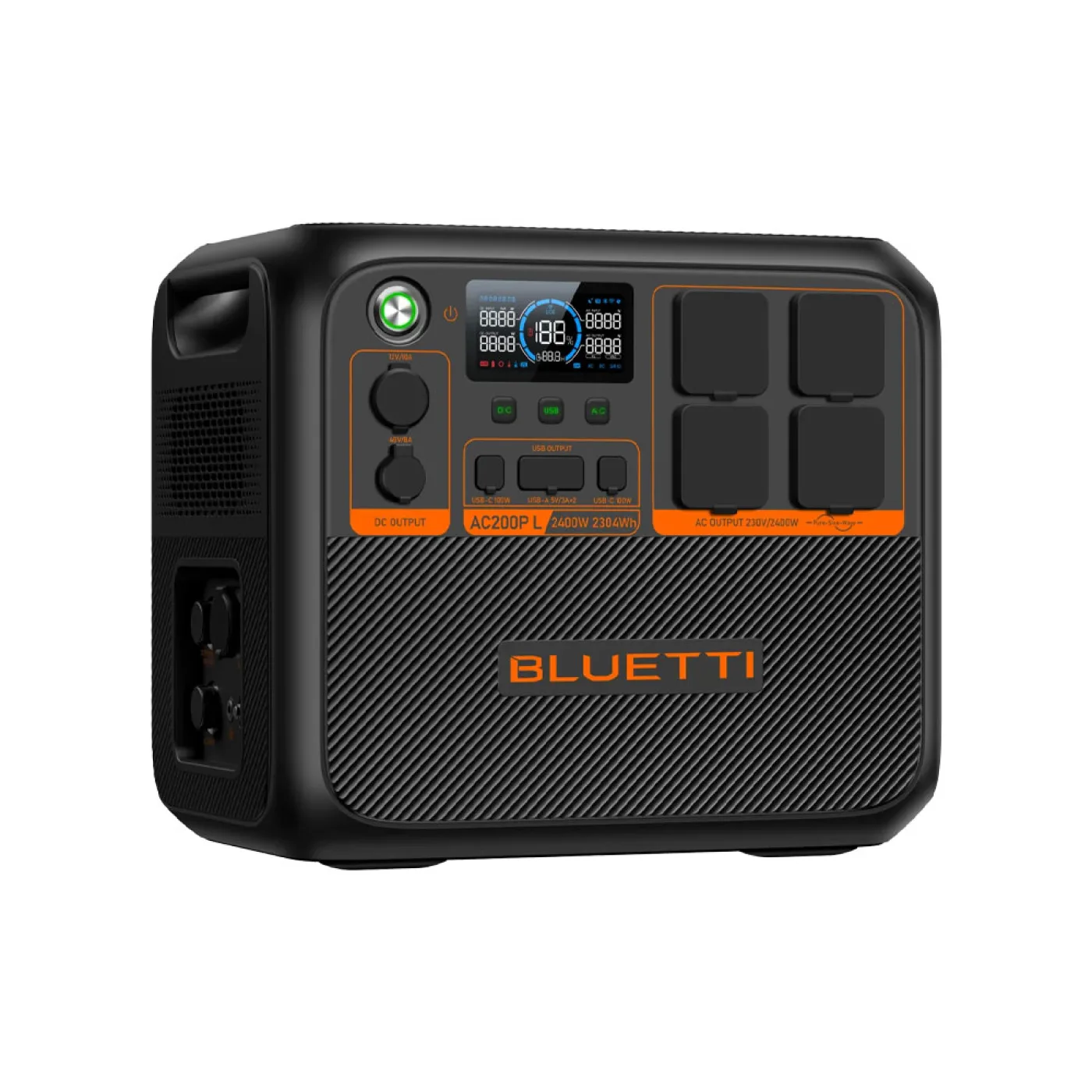

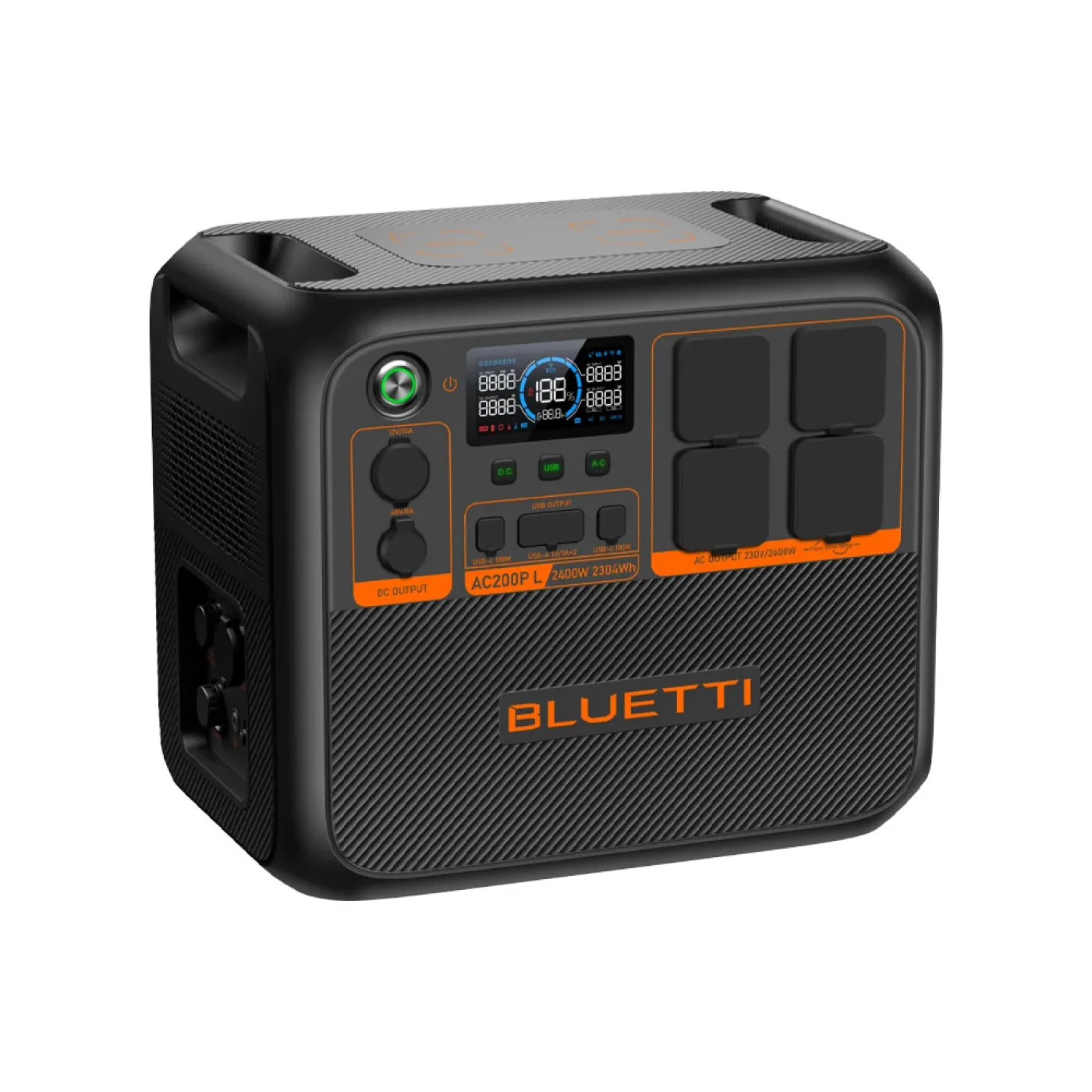

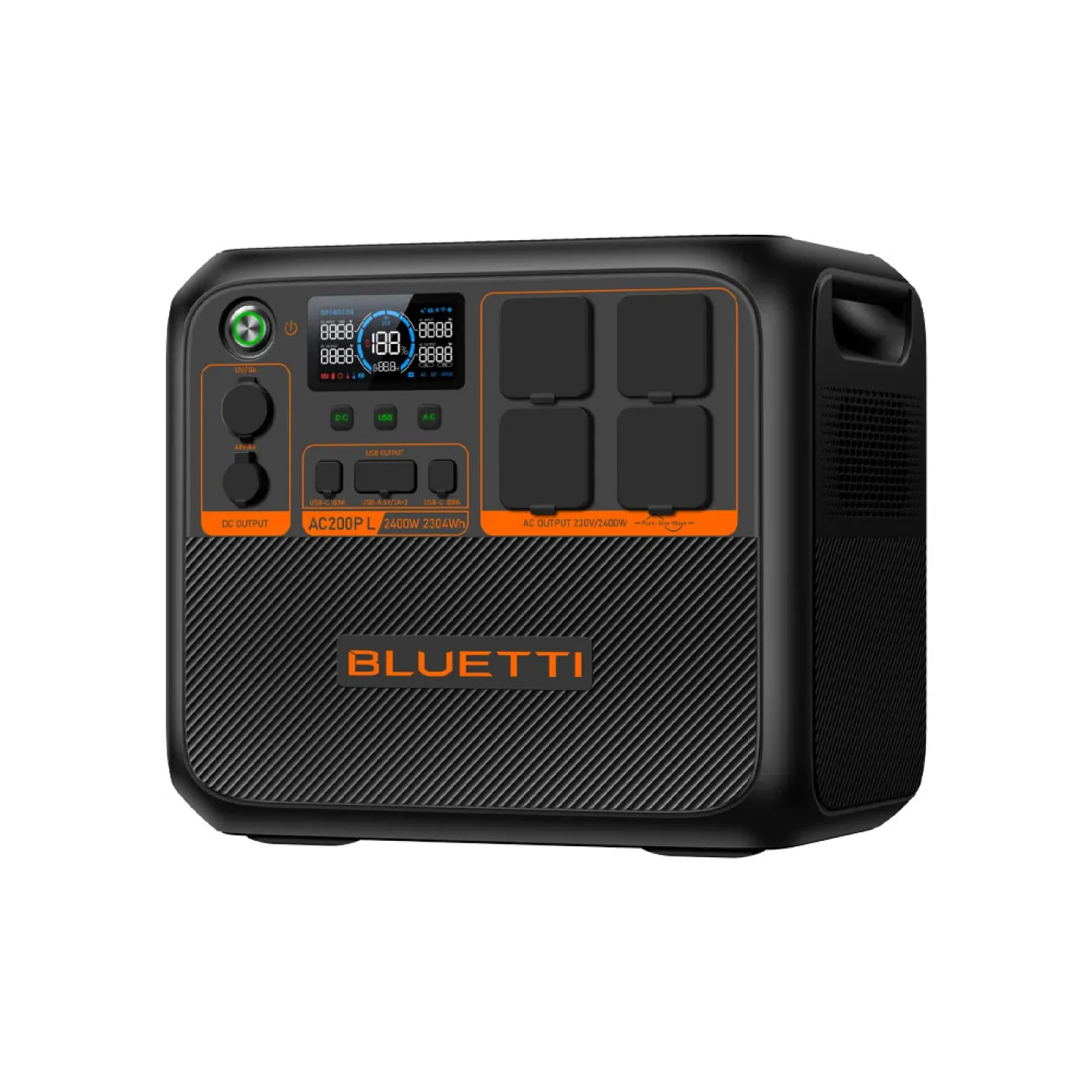

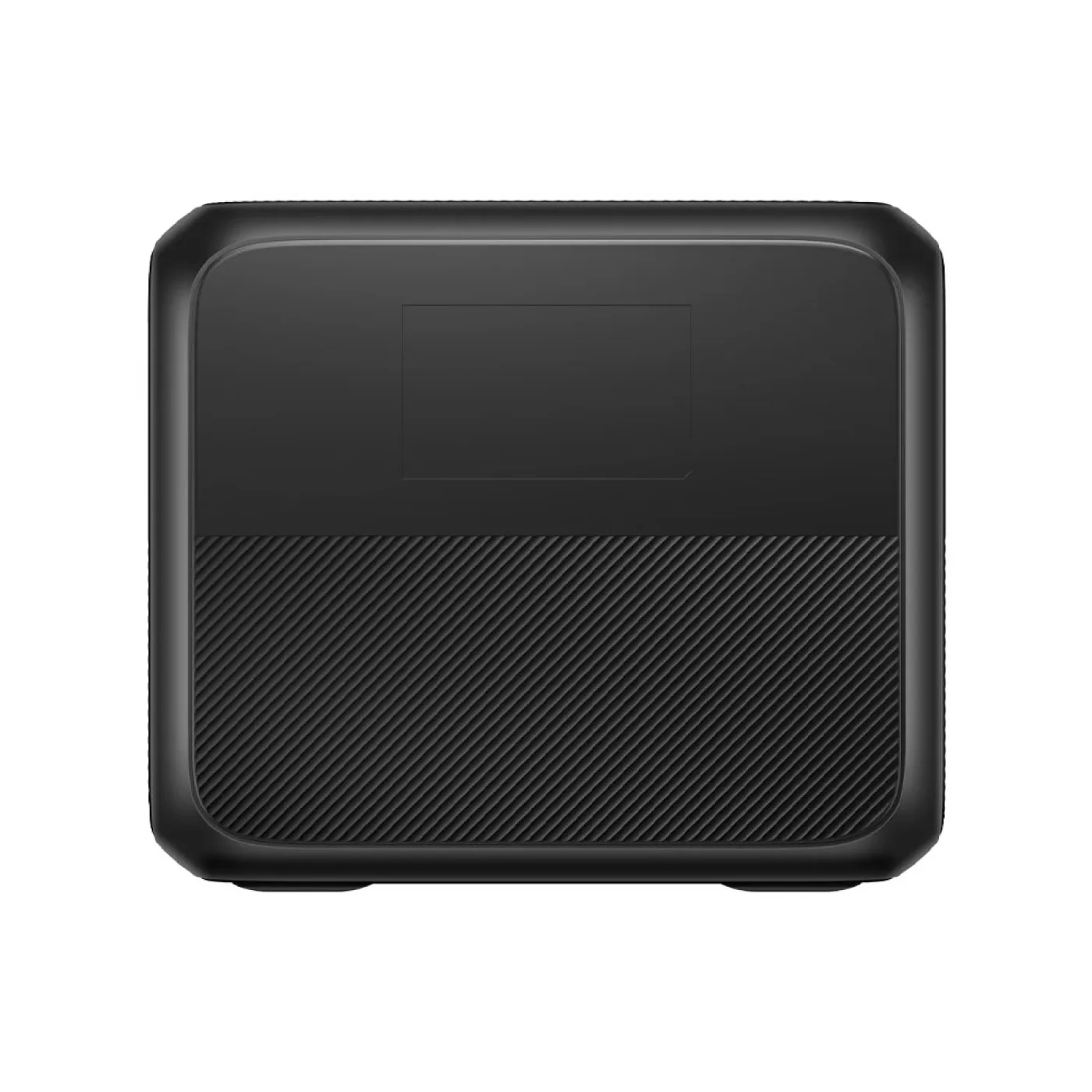

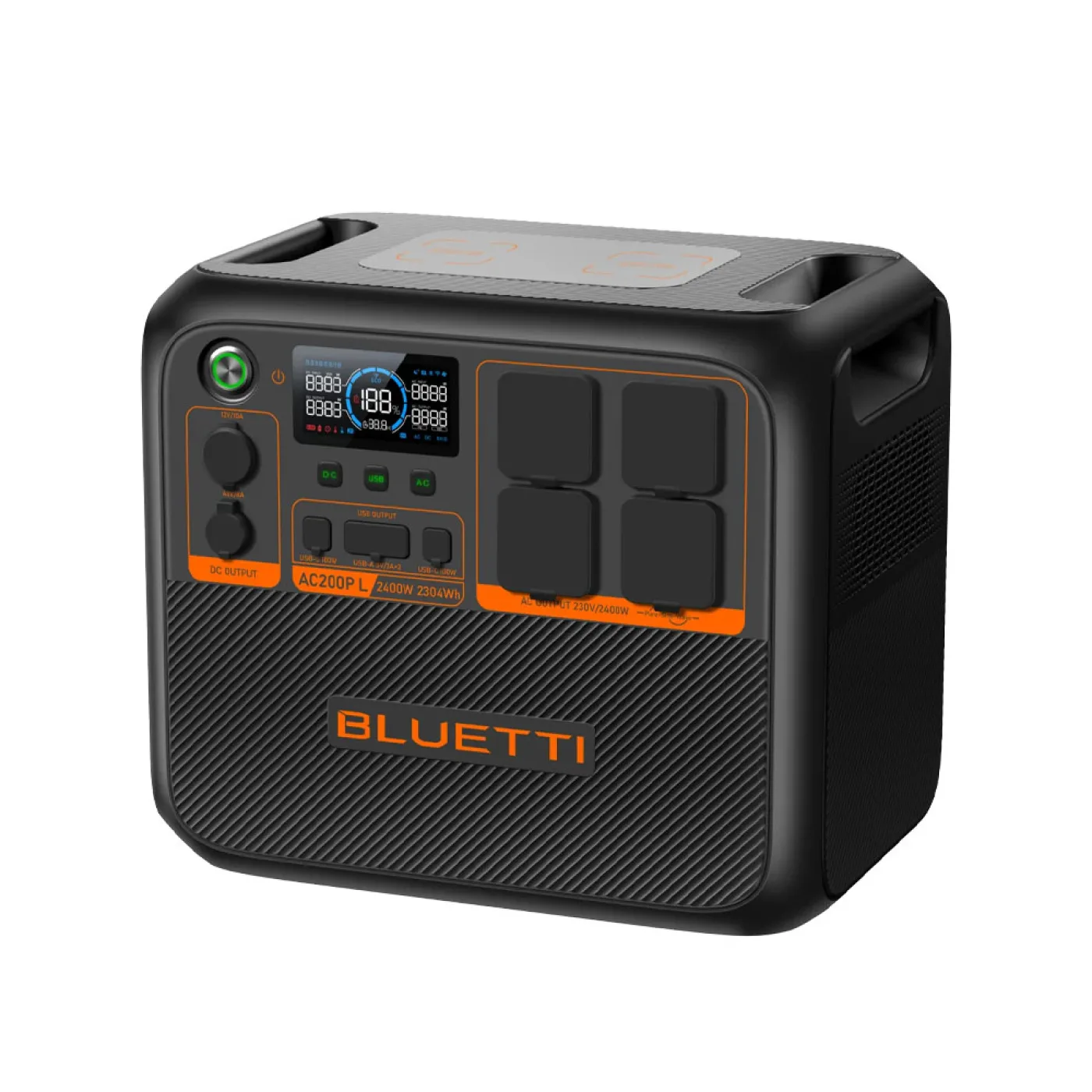

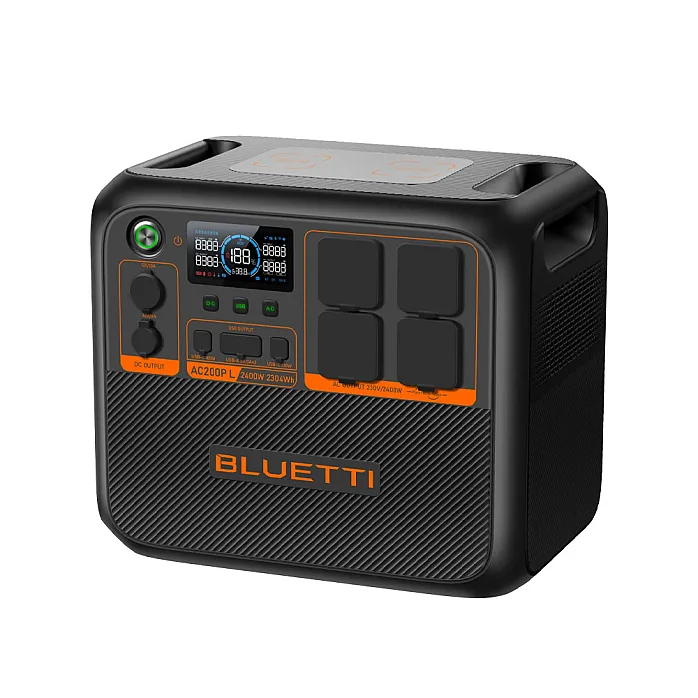

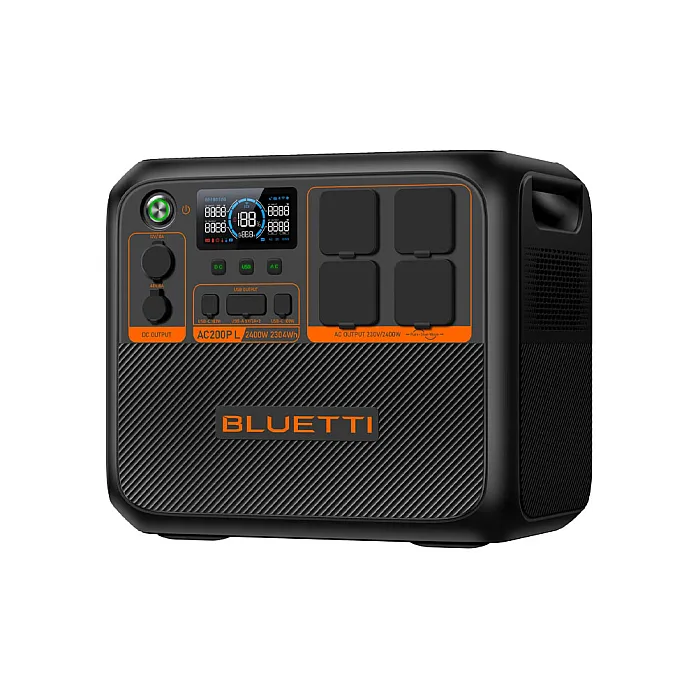

Bluetti AC200PL Expandable Power Station
- Achieve Super-Fast Charging to 80% in Just 1 Hour.
- Expandable up to 8kWh.
- Perfectly Compatible with B210P, B230, and B300 Expansion Batteries.
- Delivers 2,400W Rated Power, Meeting the Needs of Various Loads in Your RV or Home.
Ready for 99% of Devices
The AC200P L delivers 2,400W rated power, covering most loads in your RV or at home. Activate the Power Lifting Mode via the BLUETTI App, and you can kick it up a notch and run power-hungry heating devices up to 3,600W.
Your Plug-and-play RV Power Solution
With the D40 Voltage Regulator*, a DC-DC battery charger exclusively designed for RV, you can directly charge the 12V house batteries in your RV via AC200P L, solar panels, or starter batteries. Thus, the essentials in your mobile home, such as the mini fridge, air conditioner, and tire pump, will be backed by sufficient power source.
*Sold separately.
Charge Your RV Anytime, Anywhere
With a TT-30 port, you can power your RV directly from the AC200P L, making it a dependable source of energy on wheels. You can charge your laptop, cellphone, and camera while you savor your meal in style.
Up to 8kWh Expandable Capacity
AC200P L is perfectly compatible with B210P, B230, and B300 expansion batteries. So you can customize the capacity to an incredible 8,448Wh. Making the full potential of limitless power has never been easier.
Fastest Charging Among 2kWh Power Station
With accelerated 2,400W Turbo Charging, replenish to 80% capacity in just 1 Hour, and 1.5 hours for a full charge! AC200P L sets a new standard for most competitors in the market. Get ready to power up swiftly for uninterrupted use during your adventures.
Charge Your Way, Power Your Way
Flexible to get it charged via AC outlets, solar panels, car charger, generator, or lead-acid batteries, you can stay powered and explore the unknown with confidence even far off the grid.
Never Run Out of Power
Suitable for various occasions
Technical Specifications
Battery Info
- Capacity
- 2304Wh (45Ah)
- Type
- LiFePO4 (Lithium Iron Phosphate)
- Life Cycles
- 3,000+ Cycles to 80% Original Capacity
- Shelf-life
- Recharge to 80% Every 3-6 Months
- Management System
- MPPT Controller, BMS, etc.
Output
- AC Outlets
- 4 ×230V/10.5A 2,400W In Total
- Inverter Type
- Pure Sine Wave
- Surge Power
- 4,800W
- USB-C Port
- 2 ×100W Max.
- USB-A Port
- 2 ×18W (Each Port)
- 12V DC Outlet
- 1 ×12V/10A (Car outlet, regulated.)
- 48V DC Outlet
- 1 ×48V/8A (RV Outlet)
- Wireless Charging Ports
- 2 ×15W
Input
- AC Power Input (Turbo Mode)
- 2,400W Max.
- Solar Input
- 1,200W Max, 12V-145VDC, 15A
- Car Input
- 12/24V from Cigarette Lighter Port
- Max Input
- 2,400W
Recharge Time
- AC Charging Cable (950W Turbo Charging)
- ≈1.5 Hours
- Solar Panel (s) (1,200W)
- ≈2.5 Hours (With prime sunshine, ideal orientation and low temperature)
General
- Pass-through Charging:
- Weight
- About 63.5lbs / 28.8kg
- Dimensions (L ×W ×D)
- 420mm × 280mm × 366.5mm / 16.5in × 11in × 14.4in
- Charging Temperature
- 0°C-40°C / 32°F-104°F
- Discharging Temperature
- -20°C-40°C / -4°F-104°F
- Storage Temperature
- -20°C-40°C / -4°F-104°F
- Certifications
- UN38.3, UL, FCC, IC, CE, ROHS, TELEC, PSE, RCM, LOA
- Warranty
- 5 Years
In the Box
Bluetti Sora 220W
Bluetti SORA 220W Solar Panel - Lightweight, powerful and ideal for travel.
The Bluetti SORA 220W solar panel is the perfect combination of power, efficiency and portability. With a maximum output of 220W and a high efficiency of 25 percent thanks to TOPCon technology, you get the most out of every ray of sunlight. This makes the panel ideal for use with power stations while camping, traveling or off-grid applications.
Thanks to its light weight of only 5.9 kg and compact foldable design, you can easily take this solar panel anywhere. Whether you’re camping, working in your garden or need power on the go, the SORA 220W delivers reliable power when and where you need it.
The cable attached to the solar panels is an MC4 cable. An adapter cable from XT60 to MC4 is also included in the box.
The situations in which the Bluetti SORA 220W excels
Specifications
Camping and outdoor use
- Charge your power station or devices without depending on AC power.
Off-grid power supply
- Perfect for RVs, boats and remote locations without power.
Backup power during power outages
- Combine with a power station for a reliable emergency power solution.
Flexible use at home or on the go
- Use in the garden, on the balcony or take it with you when traveling.
Technical Specification
- Maximum power
- 220 Wp
- Cell technology
- TOPCon
- Efficiency
- 25 percent
- Maximum voltage (Vmp)
- 21.6 V
- Maximum current (Imp)
- 10.2 A
- Open circuit voltage (Voc)
- 25.9 V
- Short circuit current (Isc)
- 11 A
- Operating temperature
- -25°C to 65°C
- Dimensions folded
- 41.5 x 30 x 8.7 cm
- Dimensions unfolded
- 172 x 83 x 0.3 cm
- Weight
- 5.9 kg
Bluetti PV Solar 5M Extension Cable
- MC4 PV Solar 5M Extension Red / Black Cable
Warranty Period
- BLUETTI warrants that the product will be free from defect in workmanship and material to the original consumer purchaser.
- The warranty period starts on the date of purchase by the original consumer purchaser,
- For the product of portable power station, the warranty period varies from 24 months to 72 months.
- For the product of home backup system, the warranty period varies from 48 months to 60 months.
- For the product of solar panel and accessories as cable, charger etc, 12 months is provided for the warranty service.
- No warranty for gifts product and Warranty period may vary by country subject to local laws and regulations.
Warranty Statement
- Any defects in material, workmanship of your product will be covered after you provide any valid proof of purchase and information including but not limited to:
- A purchased order number made through BLUETTI official stores.
- Sales invoice or order confirmation email that clearly shows the description of the product, its price, and sales channel.
Specifications
Exclusions of Warranty
- Misused, abused, damaged by accident or damaged due to force majeure (e.g. lightning strikes, tornadoes, hurricanes, etc.);
- Unauthorised modification, repair, dis-assembly or operation not in accordance with the official instructions or manuals;
- Use for special application other than normal consumer use;
- Any defect or damage caused by exposure to excessive heat, cold, liquids or other external causes;
- Invalid proof of purchase;
Warranty period expired
- The battery model on the warranty certificate does not match the actual item
- Product wear and tear through the usage of time.
