Bluetti RV5 Power Hub For Campers / RV'S
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:BLUETTI
- Product Code:RV5 Power Hub
- Other Part #:P-RV5-EU-BU-BL-010
- EAN / UPC:7427288143145
- Warranty:5 Years Warranty

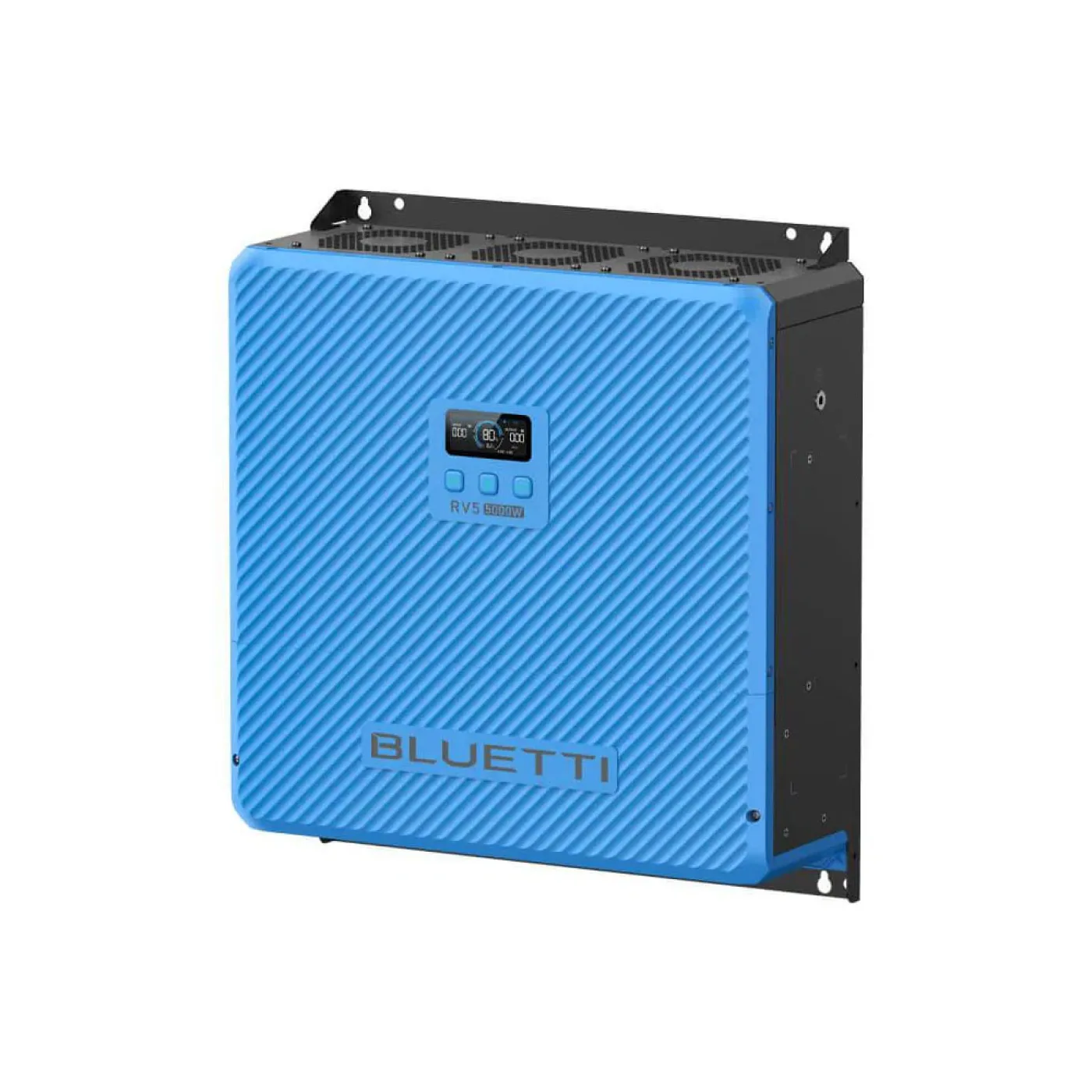

Bluetti RV5 Power Hub
The BLUETTI RV5 is a compact power hub that forms the core of a modern 48 V energy system. In a single housing it combines an inverter, AC charger, charge controller and DC-DC charger. Together with a 48 V battery such as the BLUETTI B4810, it becomes a single central unit from which you control the entire electrical installation in a motorhome, expedition vehicle, boat or small off-grid system.
What does the RV5 do?
The RV5 converts 48 V from the battery into 230 V for your wall sockets and into 12 or 24 V for the DC onboard system. At the same time, it brings together all charging sources. Shore power or a generator, solar panels on the roof and the vehicle’s alternator all feed into the RV5 first and are then used to charge the battery. Instead of working with separate chargers, inverters and relays, you use one central unit that handles the entire energy management.
AC Output
On the 230 V side, the RV5 delivers up to 5,000 W of continuous output power, enough for typical loads in a modern motorhome or off-grid installation. Think of air conditioning, fridge, boiler, cooktop or power tools, as long as the total load stays within the specifications. Via the AC input you can draw up to 5,000 W from a campsite hook-up, household socket, generator or suitable charging station. The RV5 then charges the battery and can supply your AC loads at the same time. If the mains fails, it switches over to battery operation within milliseconds, so connected equipment will usually hardly notice the transition.
Charging From Solar and Alternator
For solar energy, the RV5 has two MPPT inputs with a built-in charge controller. You connect your solar panels directly here. Together, the inputs support up to around 3,600 W of solar (2 × 1,800 W within 12–50 V per input), suitable for flexible panels on the roof of a motorhome or boat as well as fixed panels in an off-grid setup. In addition, the RV5 can draw energy from the vehicle’s alternator via a DC input. While driving it then acts as a DC-DC charger to the 48 V system, taking the starter battery and alternator load into account.
12/24 V onboard system
On the DC side, the RV5 provides a stabilised 12 or 24 V output for the onboard system, for example for lighting, water pump, fridge, ventilation and USB outlets. The output is designed for high currents, so multiple consumers can be supplied at the same time. In combination with a distribution panel with fuses and switches, you can build a neat, clearly laid-out DC installation powered from a single central 48 V battery, for example with one or more B4810 batteries.
Installation
The RV5 is designed to make installation as straightforward as possible. The main connections are grouped together: battery, AC input, AC output, PV inputs and DC output. During initial commissioning you set a few key values, such as the desired DC output voltage (12 or 24 V) and the maximum current you want to draw from the AC input. After that, the electronics in the RV5 monitor voltages and currents and keep the battery within safe limits.
Working together with the B4810
In an RVSolar 48 V Power System, the RV5 works closely together with the B4810. Via a CAN connection, the power hub and the battery’s Battery Management System continuously exchange information about state of charge, currents and limits. Based on this, the RV5 determines how fast to charge or discharge and which source makes most sense at that moment: grid, solar, alternator or generator. Via Bluetooth and the app you can see at a glance how much power is coming in, what you are using and how full the battery is. This makes the RV5 the central power hub of the system, with the B4810 as the central battery behind it.
All the Power, Half the Hassle
Stop Rationing Power. Goodbye Power Anxiety.
With 5,000 W of continuous power, the RV5 lets you run your A/C, microwave, coffee maker, and more all at once, just like at home. Powered by B4810 LiFePO₄ batteries, it gives you over 6,000 charge cycles for years of reliable energy. Even in the cold, the self-heating feature keeps things running smoothly. At only 7 W of standby power, each charge goes further. The RV5 lets you live fully, with peace of mind, and enjoy every moment of your journey without worrying about power.
Fast, Flexible Charging for Non-Stop Adventure.
Adventure doesn't stop for charging, and now you don't have to either. The RV5 keeps you powered with fast, versatile charging options. Recharge quickly with up to 5,000 W of shore power at the campsite, capture up to 1,800 W from the sun while boondocking, or harness up to 1,200 W from your vehicle's alternator while on the road. Focus on the journey, not the charge.
The 1-Day RV Upgrade. No Electrical Degree Required.
Transform your RV's power in just one weekend. Our plug-and-play system eliminates compatibility hassles and the guesswork of traditional builds. Simplicity doesn't mean you're on your own. From planning to final connections, our team of experts is here to guide you every step of the way, making your DIY upgrade a breeze.
True Tranquility, Powered by Safety.
Escape the noise of traditional generators and embrace the peace of nature. True tranquility isn't just about silence; it's about knowing you're safe. With advanced LiFePO4 battery technology and UL certification, the RV5 ensures your family, pets, and home on wheels are always protected. Enjoy worry-free, uninterrupted power, backed by the highest standards of safety and reliability.
Smart Home Tech for the Open Road.
Manage your entire electrical system from one intuitive HD touchscreen. The Epad gives you a complete overview of your power consumption, battery status, and charging inputs in real-time. With the BLUETTI app, this power is also in your pocket, wherever you are.
Specifications
AC Input
- Rated Input Voltage
- Standard AC Input (N/L1/G) - 120 V
- EV Input (L1/L2/G) - 208V
- UPS Switchover time ≤20ms
- Charging Power 5,000W Max. (limited by the battery terminal's maximum current)
AC Output
- Rated Output Voltage 120V
- Rated Output Current 42A
- Rated Output Power 5,000W
Solar Charging(PV1/PV2)
- Max. Input Power 1,800W
- Input Voltage 12V to 50V
- Max. Input Current 50A
Vehicle Charging(PV2)
- Max. Input Power 600W (12V) / 1,200W (24V)
- Input Voltage
- 12V to 14.4V (12V battery)
- 24V to 28.8V (24V battery)
- Max. Input Current 50A
DC Output
- Rated Output Voltage 12V/24V
- Rated Output Current
- 100A (12V)
- 60A (24V)
- Rated Output Power
- 1,360W (12V)
- 1,620W (24V)
- Total Load Power 6,000W Max. (varies based on battery type and quantity)
- AC+DC Input Power 6,000W Max.
General
- Weight Approx. 30.86lbs (14kg)
- Dimensions 17.72 × 19.69 × 6.30in (450 × 500 × 159.9mm)
- Operating Temperature -4°F to 131°F (-20°C to 55°C)
- Storage Temperature -4°F to 104°F (-20°C to 70°C)
- Operating Humidity 95% Max.
- Certification UL458
In The Box
- Bluetti RV5 Power Hub
- Drilling Template
- M8 Wood Screw ×8
- Anchor x8
- Manual
- Bluetti Alternator Charger Wiring Pac
