BMW Mini R55/R56/R57 2006-2013 JVC Double Din Mechless USB, Bluetooth, AUX, iPod/iPhone Car Stereo Upgrade Pack
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:JVC
- Product Code:KW-X850BT + CTKBM02
- EAN / UPC:7427288167226
- Warranty:1 Year Warranty

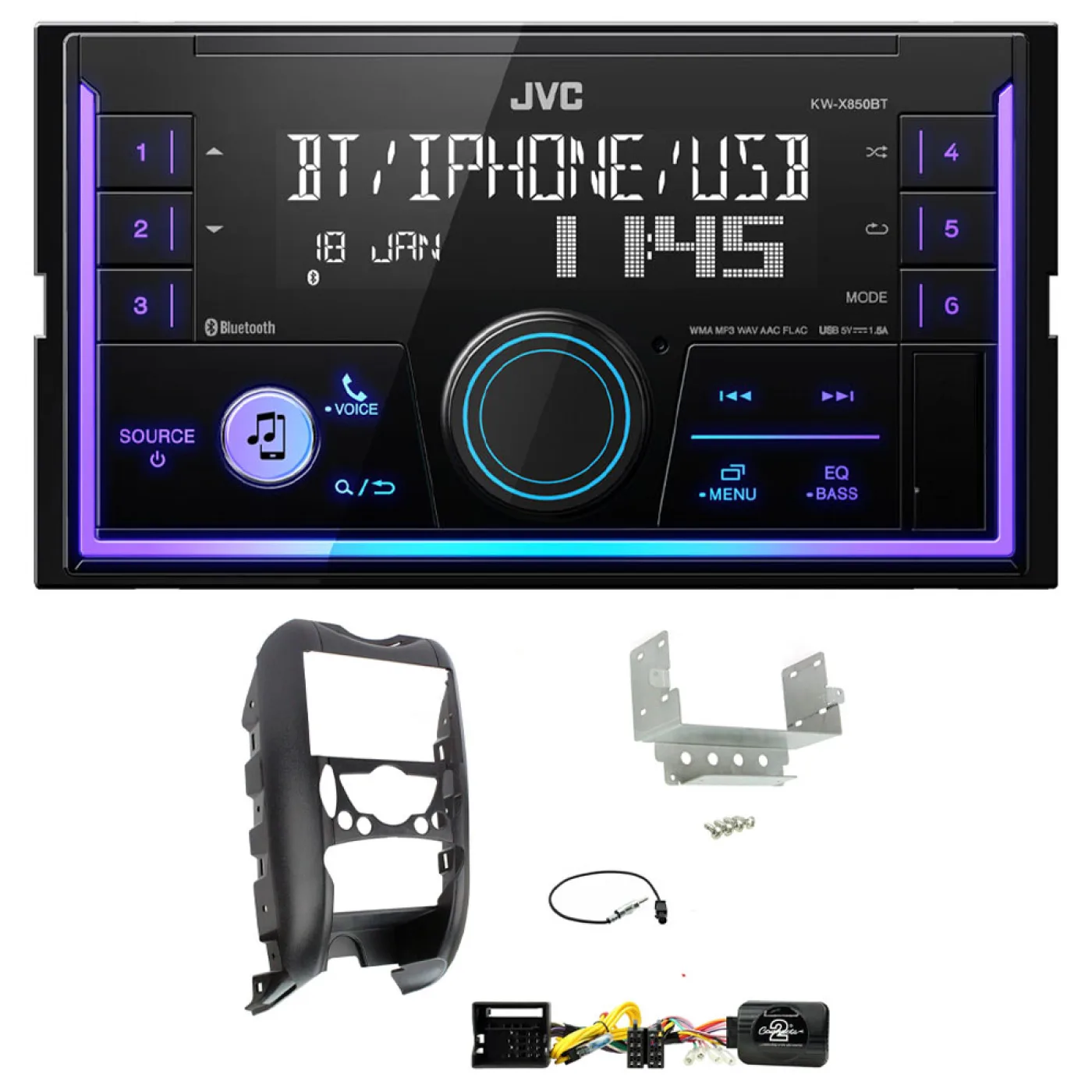

Package Includes
- JVC KW-X850BT Double Din Mechless USB, Bluetooth, AUX, iPod/iPhone Car Stereo
- Double Din Fascia kit
- CAN-Bus Steering Wheel Control
- Fakra Antenna Adaptor
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| BMW | Mini | 2006 - 2013 | R55, R56, R57 |
For non-amplified vehicles with automatic A/C
Fascia Colour: Black
PLEASE NOTE: How to mount bracket from CTKBM02. Some Trimming of Internal Plastics of The Dash May Be Required For This Bracket For This Bracket to Sit In Its Final Position.
Fitting kit
Fascia Adaptor
This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Steering Wheel Interface
A stalk/steering wheel control Adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
KW-X850BT Mechless Bluetooth Receiver
Connected through Bluetooth you enjoy safe hands-free calling and high quality audio streaming. Download the free app “JVC Remote“ and you can change audio sources or adjust audio settings with your smartphone. 13-Band equalizer and DTA gives optimal tuning enhancements.
Features
- Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
- Bluetooth technology for hands-free calls and music streaming.
- Bluetooth Phone Book Access Profile (PBAP)
- Low Battery Information
- iPhone Automatic Pairing
- iPod/iPhone Music Playback
- Front AUX input & Illuminated USB with dust cover
- USB High Current 1.5A Charging
- Use your smartphone like a wireless remote control with the JVC Remote app (IOS & Android).
- Enjoy audio streaming just by switching among 5 connected BT devices with JVC Streaming DJ.
- MP3 / WMA / AAC / WAV / FLAC music file playback.
- Wide 2 line LCD display with high contrast, wide viewing angle & white backlight
- Variable colour key Illumination
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- 3 high power (2.5V) RCA preouts to connect power amplifiers.
- Menu language in English(default), Russian, Spanish, French or German.
Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Bluetooth Wireless Technology
2 Phone Full-Time Connection:
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit.
Bluetooth AVRCP for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose songs you want to hear from the folder name and song name lists.
Bluetooth Hands-Free Profile
HPF Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.
iPhone® / Android™ Bluetooth Automatic Pairing:
Just connect your iPhone or Android device* via USB and the automatic Bluetooth pairing function will work. No complicated manual procedure to worry about. (*JVC Music Play application is required)
Sound Optimilization
Time Alignment:
By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Sound Lift:
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ:
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
2-Zone Variable-Color Illumination
You can mix the front panel illumination into 2 separate color zones. 50 preset patterns (49 colors + 1 user color preset) are available for easy customization. In addition, manual setting is possible to set each RGB color by 32 steps, providing a total of 32,768 different colors for each zone, 1 and 2, to match your preferences. You can even enjoy moving illumination, selectable from 10 color animation patterns.
Remote Control App
Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app now available for both iOS and Android. You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.
Technical Specifications
Display
- Display Type VA LCD Display
- Number of Lines 2-Line Display
- LCD Colour White
- Key Color Variable Color
- Adjustable RGB Key illumination 2-Zone
- Music Sync. Effect
- Auto Dimmer
- Brightness Control
- Russian Text Compatible
- Spanish Text Compatible
- French Text Compatible
Radio Tuner
- FM Tuner
- Radio Data System (RDS)
- FM Frequency Range 87.5 - 108.0MHz
- LW Tuner
- LW Frequency Range 153 - 279kHz
- MW Tuner
- MW Frequency Range 531 - 1,611kHz
- Preset Stations 18FM + 6AM
- Tuner Preset Back-up Memory
- Automatic Preset / SSM (FM only)
Media Playback
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB ( Up to 96kHz/24bit )
USB
- Location Front
- Drive Change Mode for Mass Storage Class
- Random / Repeat Play
- 1.5A Max. Power Supply Current
Bluetooth®
- Built-In Bluetooth (Ver 4.2)
- Voice Dialing
- Remote Control Application JVC Remote App (IOS & Android)
- Hands Free Call (HFP) (HFP 1.7 wideband speech)
- Advanced Audio Distribution Profile (A2DP)
- Audio/Video Remote Control Profile (AVRCP) (AVRCP 1.6.1)
- Phone Book Access Profile (PBAP)
- Serial Port Profile (SPP)
- 2 Phones Full-Time Connection
- Supported Audio Formats AAC / SBC
- JVC Streaming DJ with up to 5 Bluetooth devices
- Auto Pairing (iPhone only)
- Noise Canceller
- Echo Canceller
- Wired Microphone included
- Low Battery Information
iPod/iPhone Control
- iPod/iPhone Music Playback
- iPod/iPhone Music Playback (via USB or Bluetooth(R))
- iPod/iPhone Mode (2-Way Control Mode) (USB
- Audio only)
- Siri Eyes Free Mode for iPhone
- Random/Repeat Play
- Battery Charge (USB
- 1.5A Max.)
App(s)
- JVC Remote Control App
- App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
- Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink
Audio
- Maximum Power Output (Front & Rear) 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD) 22W x 4
- MOS-FET Amplifier
- Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
- K2 Technology
- EQUALIZER
- 13-Band Graphic EQ
- Preset EQ (8-preset)
- Easy EQ Setting
- Volume Link EQ
- High-Pass Filter/Low-Pass Filter
- Digital Sound Processor (DSP)
- Time Alignment
- Space Enhancement
- Sound Response
- Sound Lift
- Digital Track Expander
- Loudness Control (Off/Low/High)
- Bass Boost (Hyper Bass System)
Inputs and Outputs
- Auxiliary (AUX) Input 1 (Front)
- Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level 2.5V
- Pre-Out Impedance Less than 600 ohms
- Subwoofer Output with Level/Frequency Control (Level -8 - +8)
- Subwoofer Output Level 2.5V
General
- Rotary Encoder
- Beep Tone Support (From Speakers)
- Back Up Memory
- Wired Steering Remote Control Ready
- ISO Connector
- Dimensions (W x H x D) 182 x 111 x 100mm
- Including Sleeve and Trim plate
| Technical | |
|---|---|
| Size | Double Din |
| Plays | MP3 / WMA / AAC / WAV / FLAC |
| Max. Power Output | 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1 |
| Tuner | FM, LW, MW Tuner |
| Radio Data System | Yes |
| Button Illumination | Variable colour |
| Bluetooth | Built In |
| iPod Ready | Yes (via USB or Bluetooth(R)) |
| Works with iPhone | Yes (via USB or Bluetooth(R)) |
| Aux In | Front |
| USB | Front USB |
