Citroen Berlingo MK2 2008 - 2015 Front Door Coaxial Car Speaker & Under Seat Subwoofer Upgrade Pack
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:KFC-S1766 + CT55-PE02 + TS-WX140DA
- EAN / UPC:7427307014135
- Warranty:1 Year Warranty

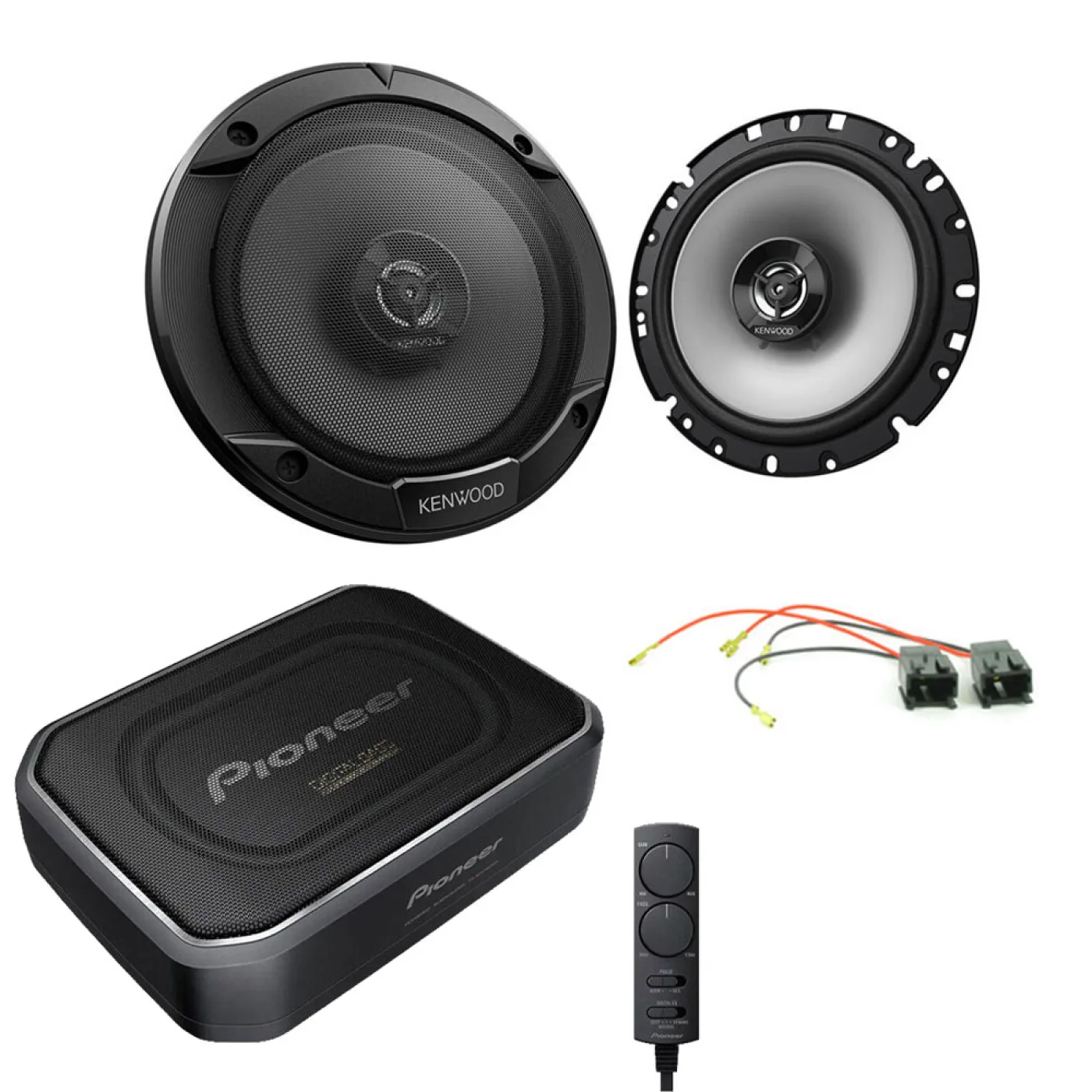

Package Includes
- Kenwood Stage Sound Series 17cm 6.5" 2-Way Coaxial Car Speaker 300 Watts
- Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Citroen | Berlingo | 2008 - 2015 | MK2 |
Speaker Adaptor Plug Converts OEM Plug To Standard Aftermarket Speaker Connectors.
Kenwood KFC-S1766 Stage Sound Series 17cm 6.5" 2-Way Coaxial Car Speaker 300 Watts
Key Features
- Stage Sound Series
- Flush Mount Speaker
- 2-Way 2-Speaker System
- 17 cm Polypropylene Woofer Cone
- Heavy-Duty Woofer Magnet Circuit
- 25mm Blanced Dome Tweeter
- Tweeter Sound Field Enhancer & Electro-Dynamic Driver
- 300W Peak Power
- 30W RMS Power
- Speaker grill included
Specifications
Speaker/woofer Specifications
- Peak Input Power 300W
- Rated Input Power 30W
- Woofer Cone material Polypropylene (PP) Cone
- Speaker Basket Steel
- Speaker Surround Cloth
- Sensitivity 89dB/W/m
- Frequency Response 35Hz ~ 22000Hz
- Speaker Impedance 4Ω
- Dimensions with Grill (WxHxD) 176 x 176 x 70mm
- Dimensions w/o Grill (WxHxD) 165 x 165 x 44.2mm
- Mounting Depth 44.2mm
- Mouting Hole Diameter Ø142mm
- Tweeter Height 7mm
- Speaker Weight with Grille (pc.) 602gr
- Speaker Weight w/o Grille (pc.)536gr
- Gross Weight 1305gr
- Weight of Magnet 220gr
Tweeter Specifications
- Cone Size 25mm
- Cone Material Balanced Dome
Accessories
- Screws (Parker-type) Ø 4 x 25mm, 8 pieces
- Speed nut φ 4, 8 pieces
- Speaker grille included
- Speaker cable 0.3m
Powerful Bass, without losing space.
Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.
Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.
TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.
EV Optimized
This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.
Car Sound Fit App Car
sound simulator application for an improved in-car sound experience
Digital Bass Control
Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.
Main Features
- EV Optimized
- CarSoundFit App
- DIGITAL BASS CONTROL
- Size 20 cm
- Maximum power 170 W
- Continuous power output 50 W
- Frequency Response
- DEEP Bass Mode: 20 - 200 Hz
- NATURAL Bass Mode: 40 - 200 Hz
- DYNAMIC Bass Mode: 40 - 160 Hz
- Sensitivity
- DEEP Bass Mode: 95 dB
- NATURAL Bass Mode: 98 dB
- DYNAMIC Bass Mode: 100 dB
- Woofer material Aluminium
- Surround Urethane
- Voice Coil type Copper Round Wire 4-Layer
- Voice Coil bobbin type Glass Imide
- Magnets Strontium
- Weight 3,1 kg
- Dimensions (W x H x D) 280 x 200 x 70
