1 Year Warranty
Connects2 CT27UV62 - Universal DAB Digital Radio Windscreen Glass Mount Antenna Aerial
- Availability:In Stock
- Available:10+ in stock
- Item Condition:New
- Brand:Connects2
- Product Code:CT27UV62
- EAN / UPC:7426871612815
- Warranty:1 Year Warranty
£14.99

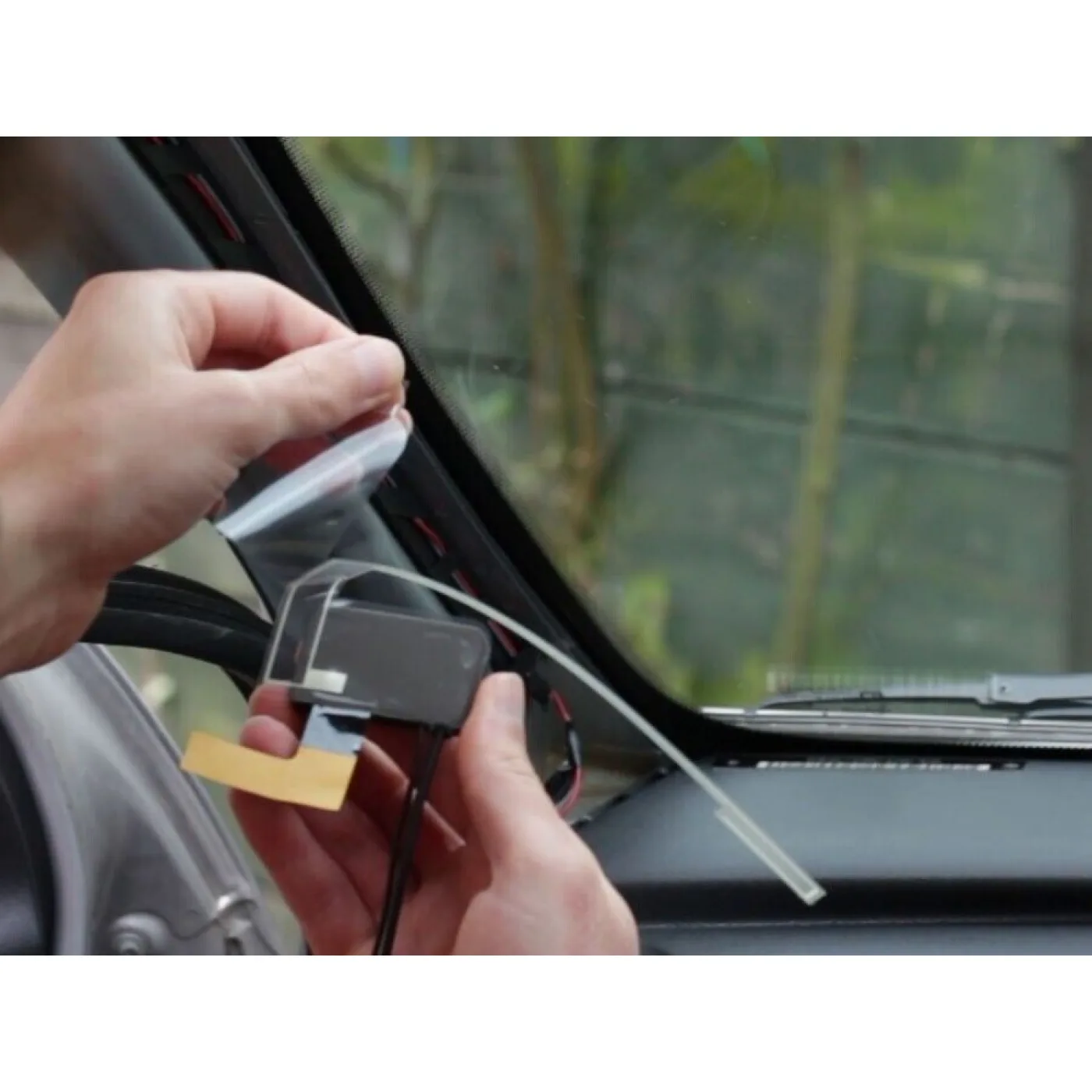

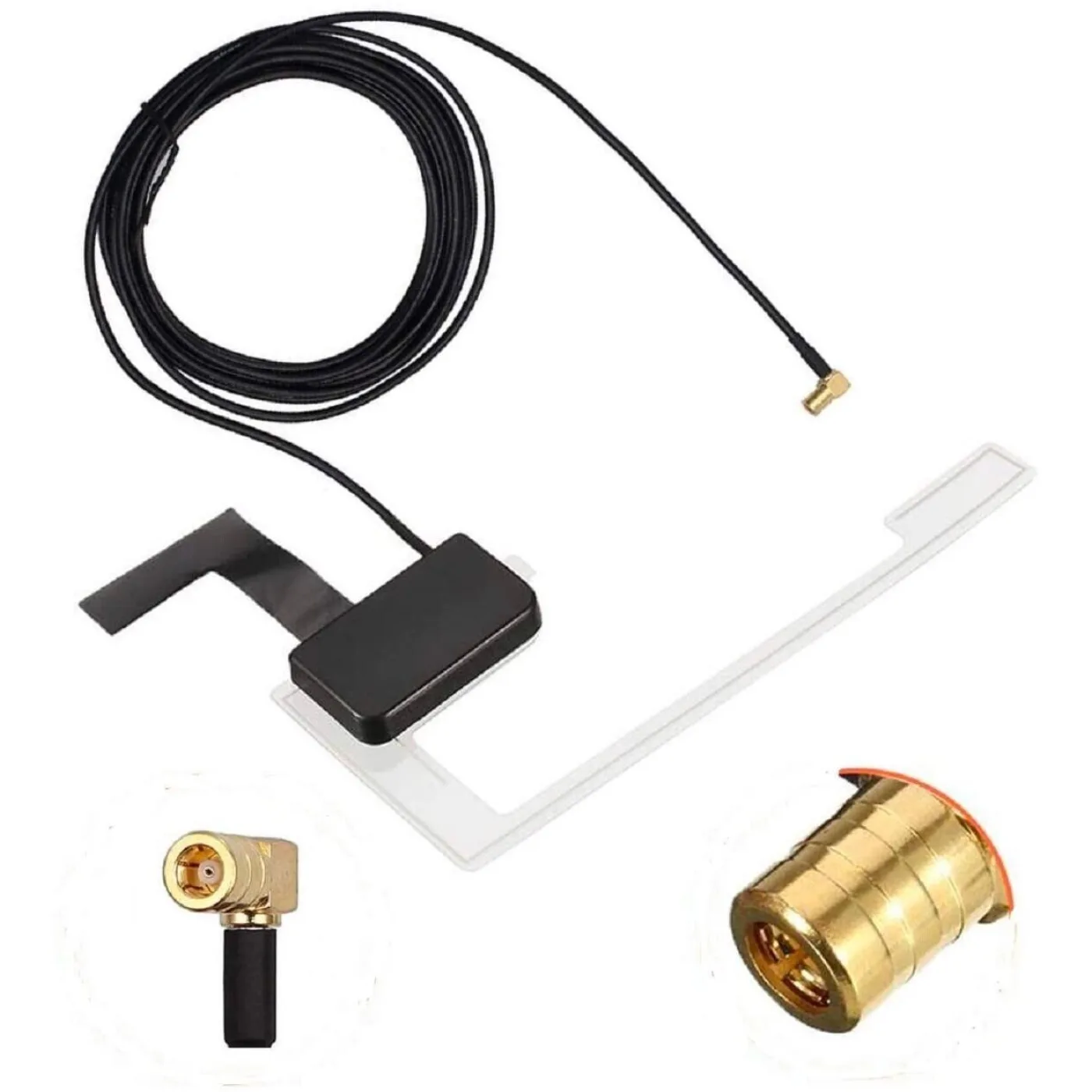

DAB Patch Antenna Amplified Glass Mount DAB Antenna
- SMB connector
- Suitable for right hand drive vehicles
- 3 Metre cable length
- Frequency ranges: DAB III 170MHz - 240MHz, DAB L 1452MHz - 1492MHz
- Working voltage: DC 9V - 16V
- Working current
Features:
Replacement Antenna To Upgrade or Replace an Existing Antenna
| Item | Specifications | |
| Antenna & Amplifier | Frequency Range | 174~240MHz/1452~1492MHz |
| Wave Band | DAB BIII/L-Band | |
| Polarization | Linear | |
| Impedance | 50Ω | |
| PCB Dimension | 75.2*35.2*1.2mm | |
| Gain | BIII:15±2dBi L-Band：2dBi | |
| V.S.W.R | ＜2.0 | |
| Supply Voltage | +12V DC | |
| Current Consumption | 25-35mA | |
| Mechanical | Cable | RG174 |
| PCB | FR4 | |
| Connetor | SMB female RA or others | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 75% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
