Connects2 CT54-04/E 10 Amp 24V To 12V Voltage Dropper For Commercial Vehicles
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Connects2
- Product Code:CT54-04/E
- EAN / UPC:7427307016924
- Warranty:1 Year Warranty
£99.99

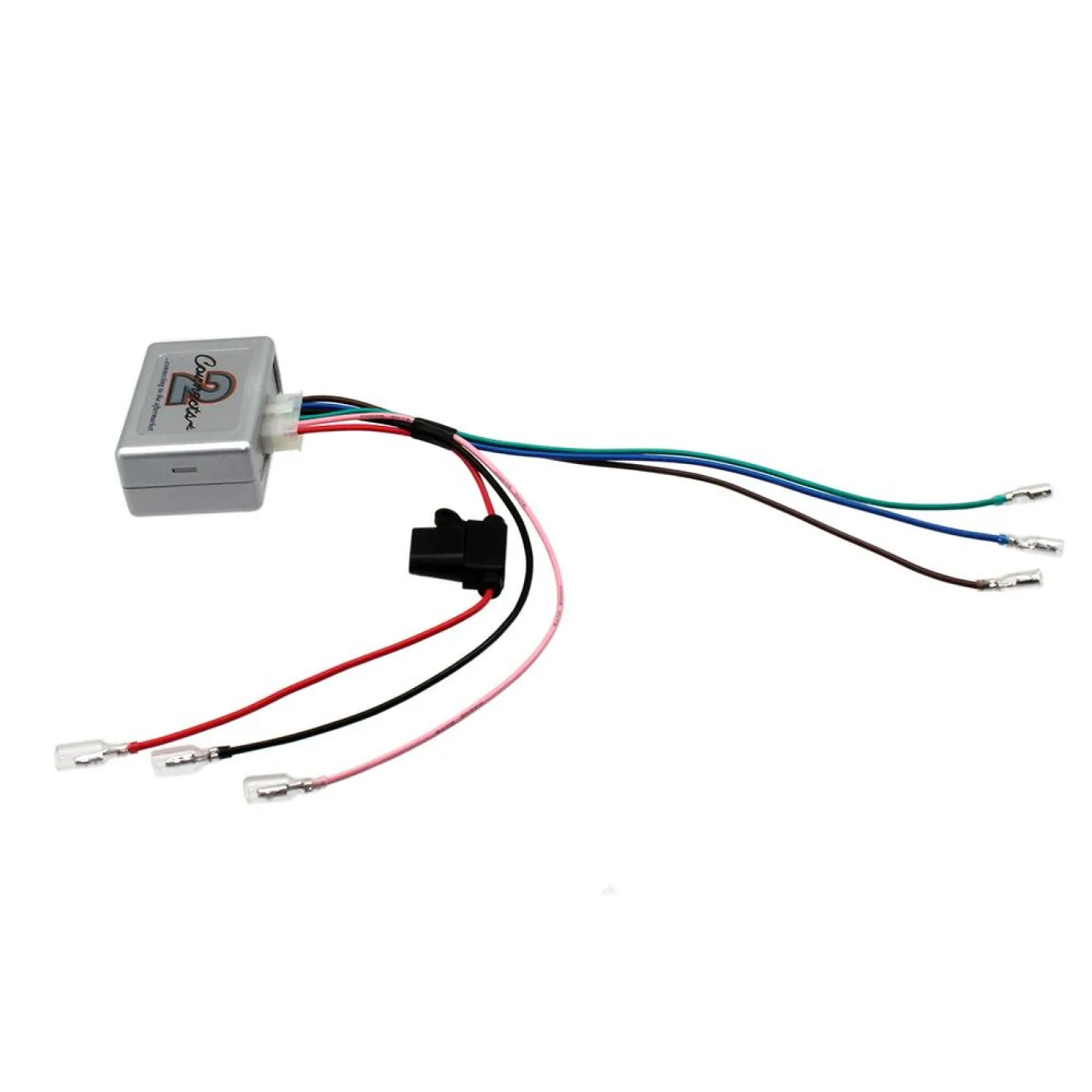

Connects2 CT54-04/E Voltage Dropper
24V- 12V Voltage Dropper - Converts ignition and permanent feeds. Switch mode power supply. 10 Amp continuous. Input voltage 18V - 30V. Output voltage 12V. Standby current <17mA. Conversion efficiency min 90% max 95%.
Specifications
Specifications
- Power Input Voltage 18V - 30V
- Output Voltage 13V (+/- 0.1V)
- Remote Input on Voltage 18V - 30V
- Remote Output on Voltage 13V (+/- 0.1V)
- Output Current - Continuous 10A
- Output Current - Maximum 12A
- Standby Current <17mA
- Efficiency 90% 95%
- Operating Temperature -40°C ~ +85°C
Features & Benefits
- Ideal for installing products with lower voltage into commercial vehicle systems
- Multiple uses. Install head units, bluetooth kits, navigation, fleet management, trackers & security/alarms
Wiring on CT54-04/E Harness
- BLACK - Connect to source of input Ground (24V)
- RED - Connect to source of input Battery Live (24V)
- PINK - Connect to source of input Ignition (24V)
- BROWN - Connect to source of output Permanent (12V)
- BLUE - Connect to source of output Ground (12V)
- GREEN - Connect to source of output ACC (12V)
