CT20AU11 Audi A2, A3, A4, A6, A8 BOSE Amplified System Wiring Harness Adaptor
- Availability:In Stock
- Available:10+ in stock
- Item Condition:New
- Brand:Connects2
- Product Code:CT20AU11
- Other Part #:PC9-410
- EAN / UPC:3776839235933
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | A2 | 2000 - 2005 | |
| Audi | A3 | 1996 - 2005 | BOSE Amplified Systems |
| Audi | A4 | 1995 - 2006 | BOSE Amplified Systems |
| Audi | A6 | 1994 - 2004 | BOSE Amplified Systems |
| Audi | A8 | 1994 - 2004 | BOSE Amplified Systems |
Connection: Mini ISO
This adaptor is required to replace factory fitted radio with an aftermarket headunit (Alpine, Pioneer, Kenwood, Sony, JVC etc.). It will convert the car original power and speakers wiring connector to a standard ISO connector. Simply plug one end of the adaptor into your cars wiring harness, and the other end into your new radio, without the need of tools or cutting of wires.
Harness Adaptors
Connect the head unit to the original radio connector without the need to cut any of the existing wiring.

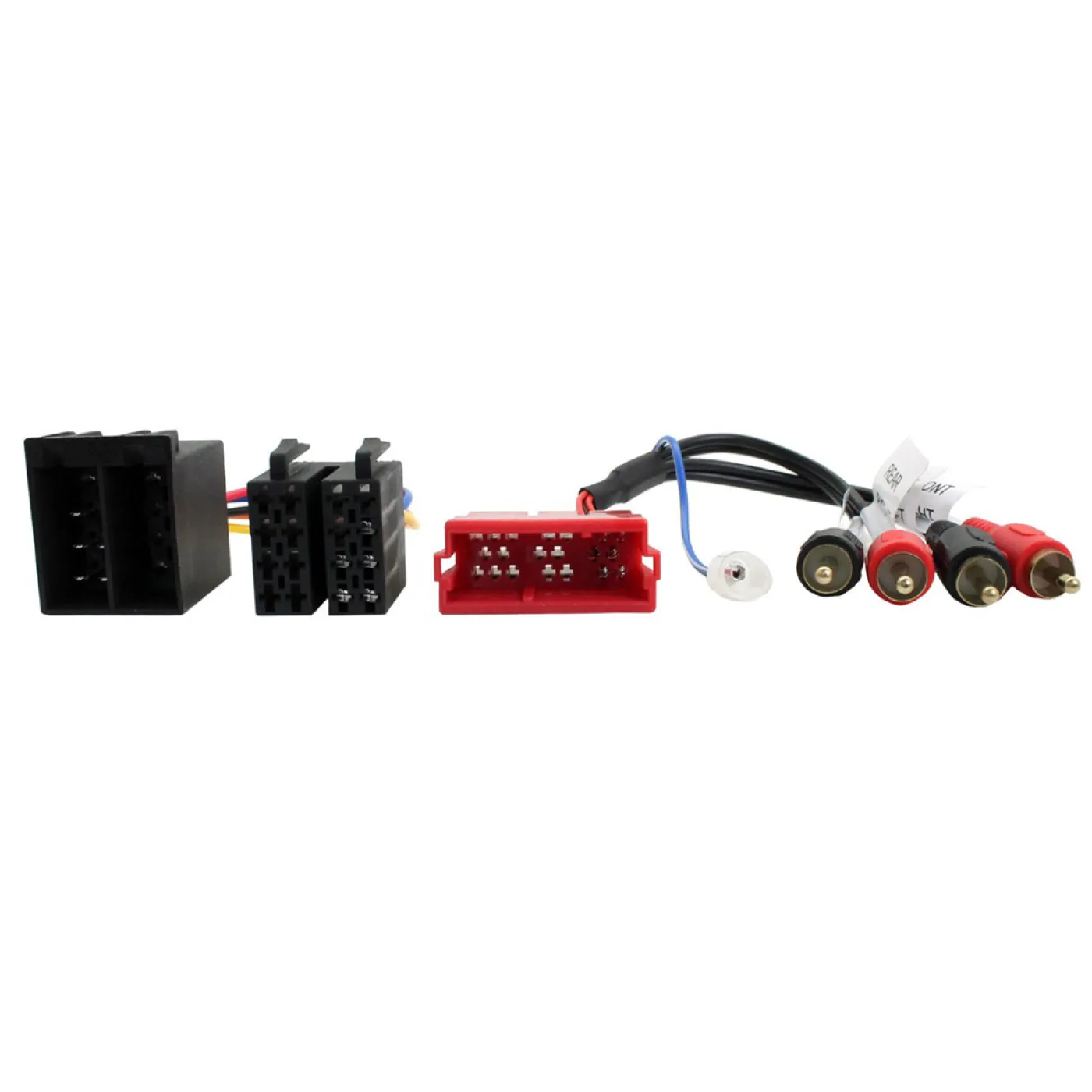

PLEASE NOTE: THIS ADAPTER SUITS FULLY AMPLIFIED AUDI WITH ISO CONNECTIONS AS IN PHOTO. MOST AUDI DO NOT HAVE IGNITION LIVE WIRE ON ORIGINAL PLUG SO STEREO MAY NOT POWER UP WHEN CONNECTED. THIS WILL NEED TO BE MANUALLY WIRED IN BY INSTALLER. THERE IS A BLUE WIRE ON ADAPTER WHICH REQUIRES CONNECTION TO REMOTE WIRE ON NEW STEREO NORMALLY BLUE ALSO OR BLUE WITH WHITE STRIPE. THIS WILL POWER ON THE FACTORY AMPLIFIER AND GIVE SOUND TO FRONT AND REAR SPEAKERS.
Please make sure that is the correct Wiring Harness for your car by firstly checking to see if your make, model and year of car is listed in the description. Secondly by checking to see if the Shape in the picture listed is the same as you have in your vehicle. We try to provide upto date information as possible. If you are unsure please contact our Customer Service and we will be happy to help you.
