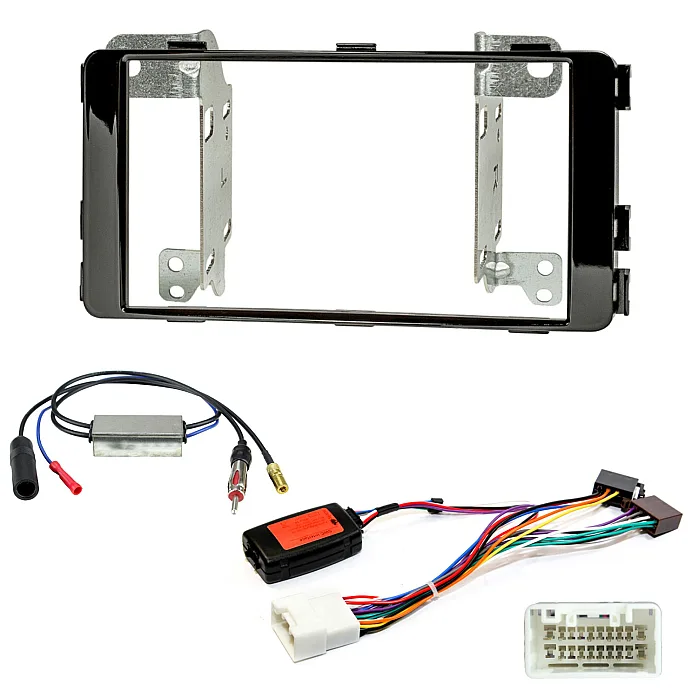

Fiat Fullback 2016 - 2019 Double Din Fascia / Steering / DAB / FM Fitting Kit
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:FKIT-FIAT-60
- EAN / UPC:7427288112387
- Warranty:1 Year Warranty
Car Audio Stereo Installation kit for installing a new after market Double Din headunit into your Fiat. This is complete kit including Fascia Trim Panel, Steering Wheel Audio Control Interface and Aerial Adaptor.

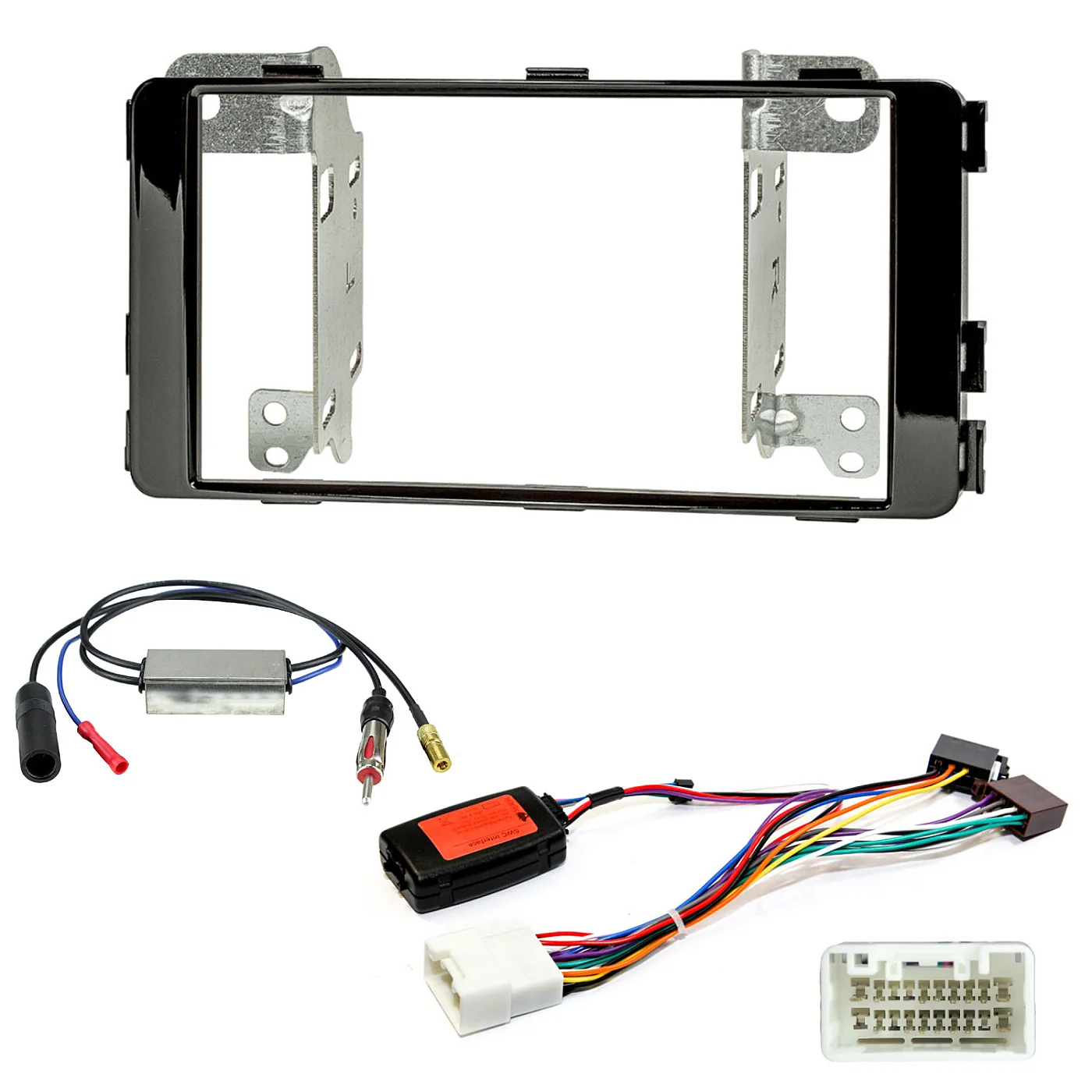

Package Includes
- Double Din Fascia Adaptor (GLOSS BLACK)
- Steering Wheel Audio Control Interface
- DAB Splitter (Uses Vehicle Antenna For Both DAB And FM Signal)
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Fiat | Fullback | 2016 - 2019 |
For Replacing the factory unit as shown below:

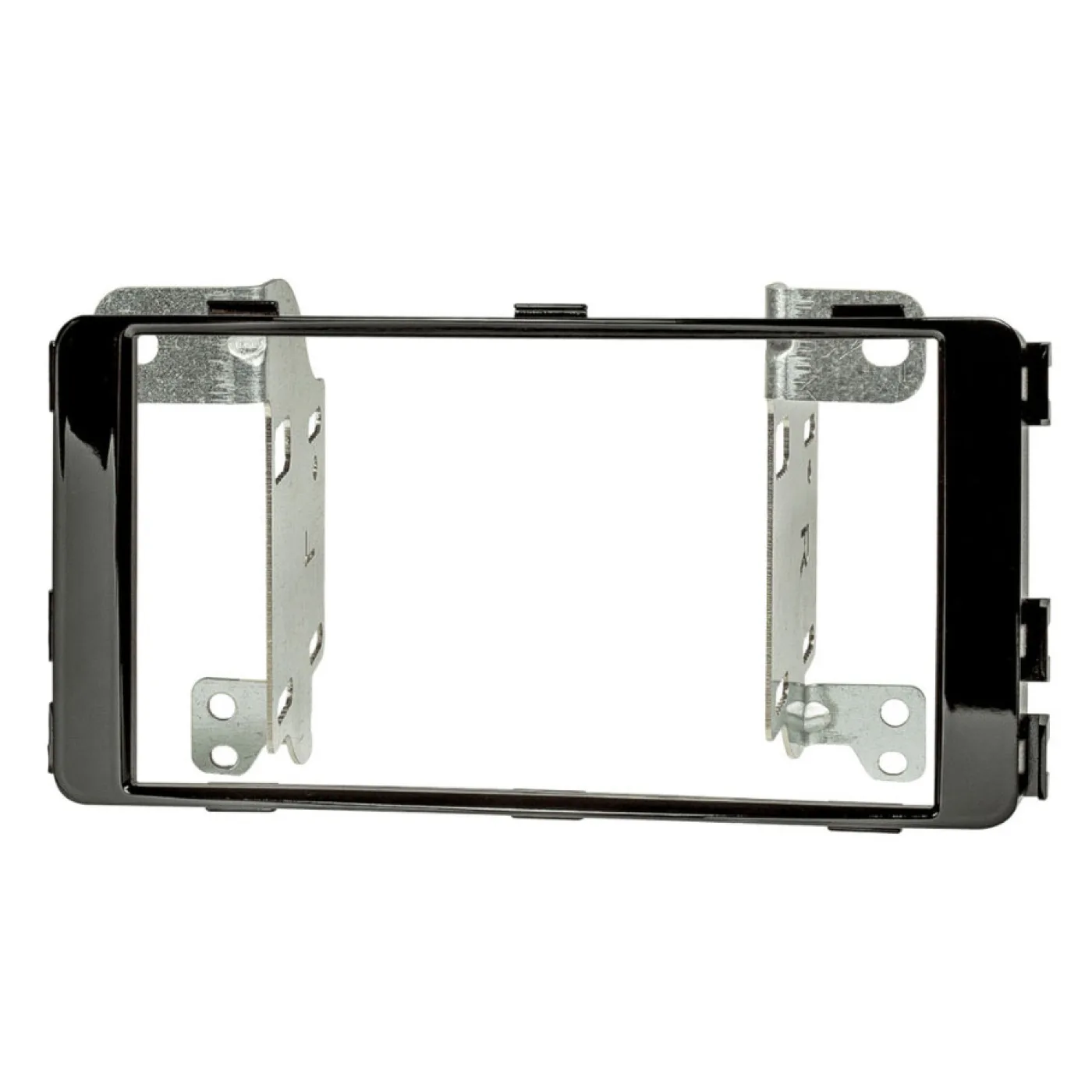

Fascia Adaptor
Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version This fascia adapter allows the fitting of an aftermarket radio into the cars dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio.
Fascia gap size: 172mm x 98mm
This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel.
COLOUR: GLOSS BLACK

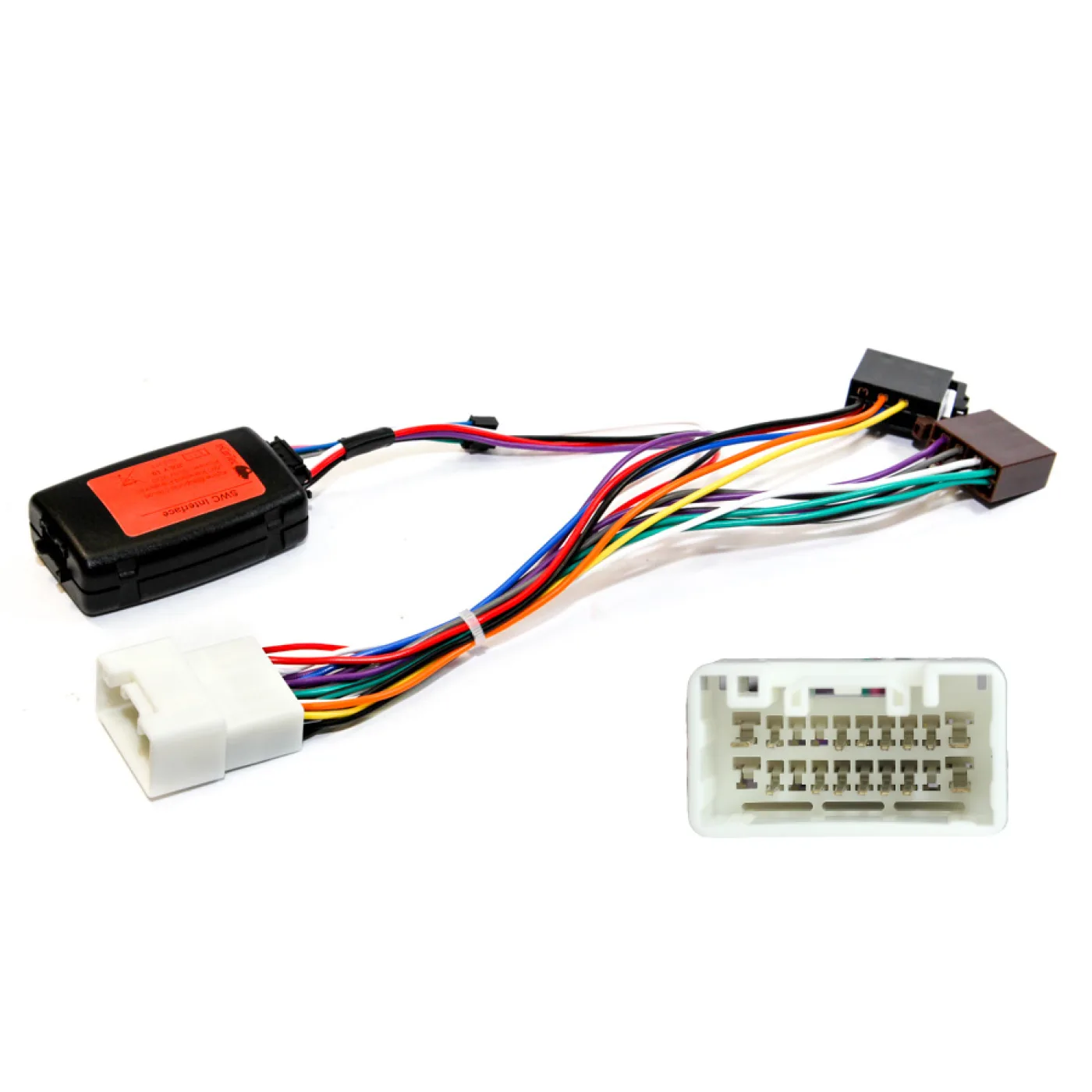

Steering Wheel Interface
Car Audio Steering wheel interface and ISO cables allowing use of original buttons with a new aftermarket head-unit.
This interface will retain the use of the steering wheel audio controls with an aftermarket head unit. Includes PHONE commands for compatible head-units.
Aerial Adaptor
Connects2 DAB DAB+ antenna splitter does away with the need to install an additional dedicated Glass / Roof mount DAB antenna when installing an aftermarket DAB tuner i.e. Alpine, Pioneer, Kenwood, JVC, Sony etc.
DAB Splitter - DIN Female to DIN Male. With SMB Connector. Allows DAB installation while using the existing vehicle antenna. For non amplified antenna only
Features & Benefits
- Compatible with a wide range of vehicles
This antenna is compatible with all non-amplified FM aerials only and will NOT work with amplified booster aerial systems. Simply plug in line with your head unit aerial connection and then plug the DAB plug into the DAB socket on the back of the head unit.
- Connect the blue wire to the aerial power lead that is 12 volts with the radio switched on.
- No need to install an additional DAB Antenna when installing an aftermarket DAB Tuner.
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Compatible aftermarket headunits:
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- EONON
- JOYING
- XTRONS
- PUMPKIN
- Other Chinese SWC learning head units
