Focal EC165KE 6 1/2” (165MM) 2-Way Coaxial Car Speaker Kit with Sound Deadening Sheets
- Availability:In Stock
- Available:4 in stock
- Item Condition:New
- Brand:Focal
- Product Code:EC165KE + RKXSK
- EAN / UPC:7427306993219
- Warranty:1 Year Warranty

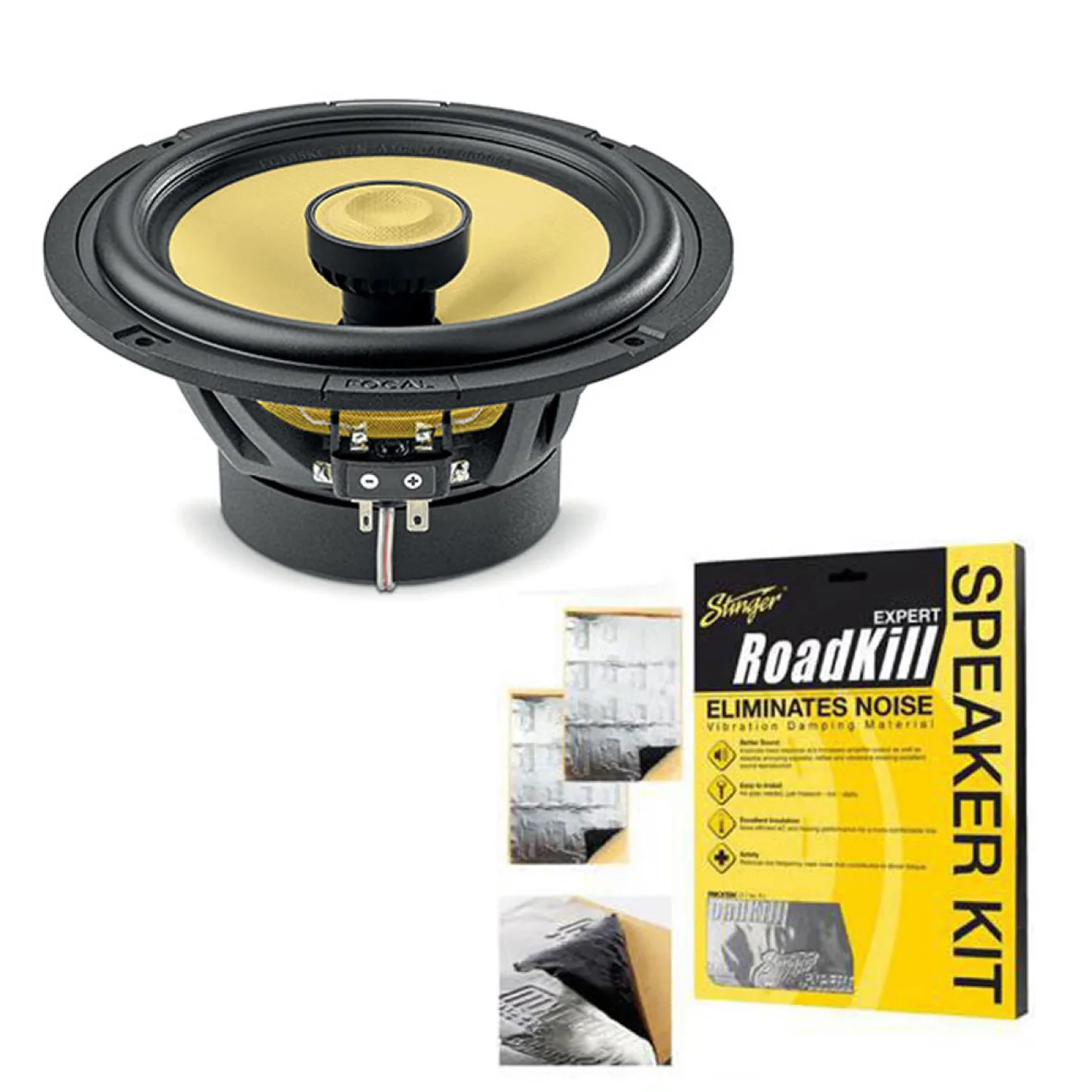

Package Inlcudes
- Focal EC165KE 6 1/2” (165MM) 2-Way Coaxial Car Speaker Kit
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

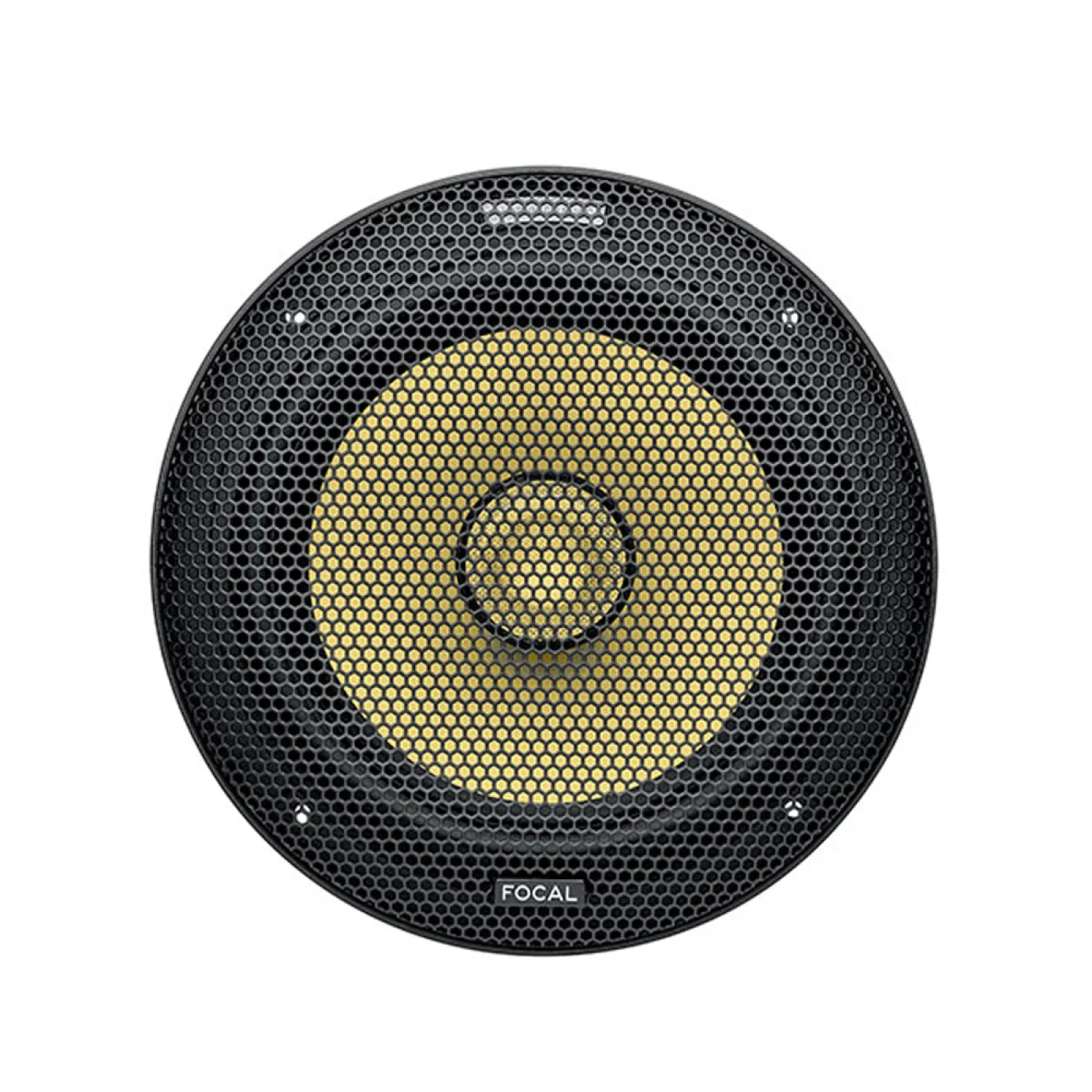

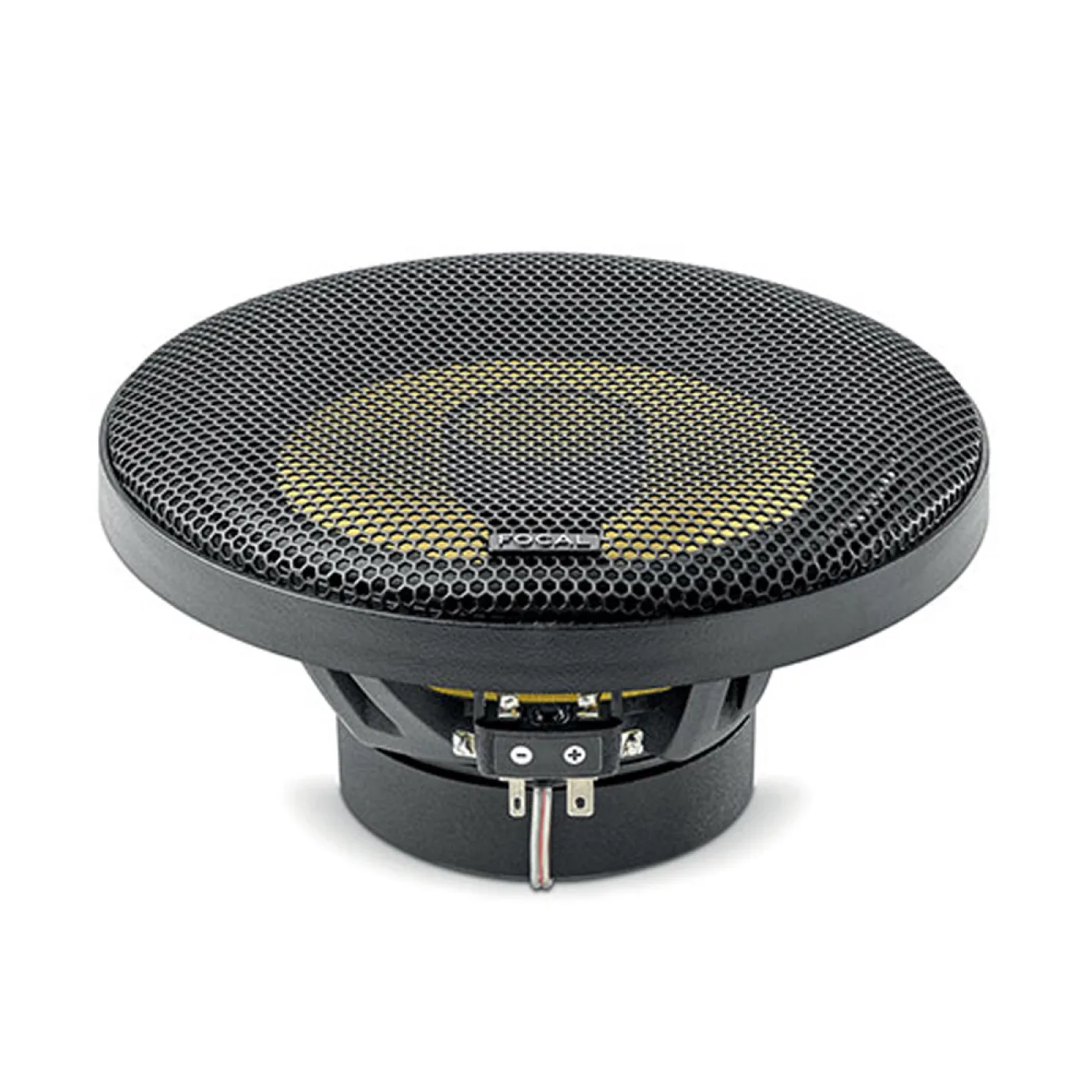

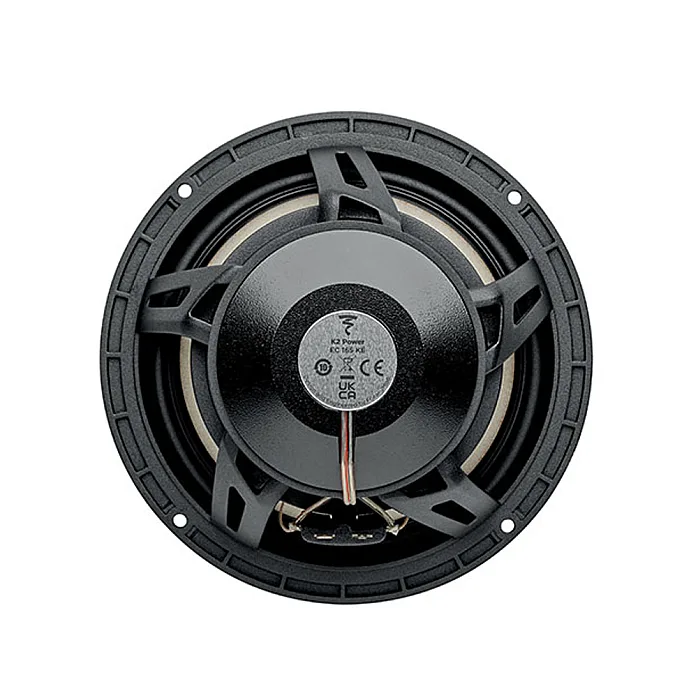

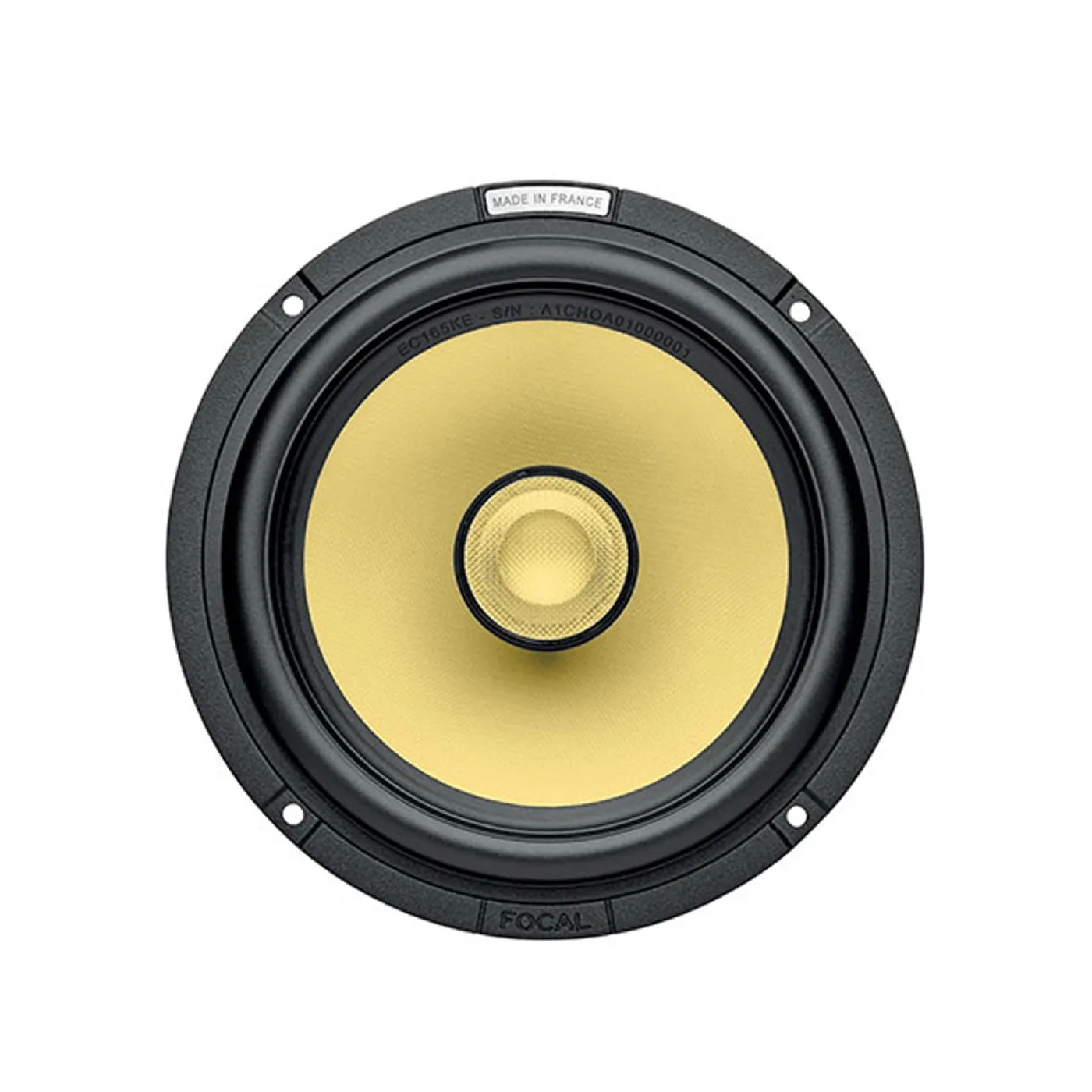

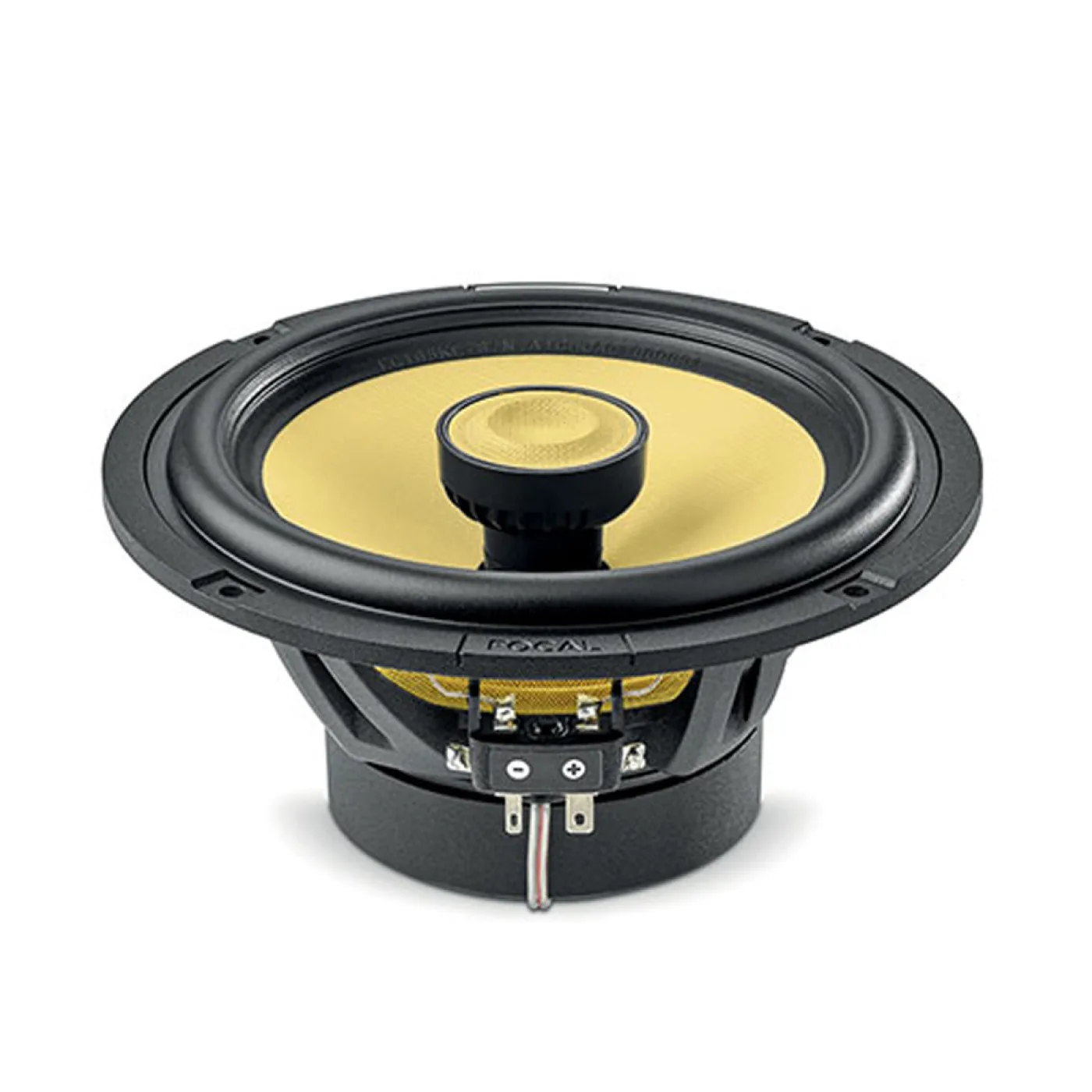

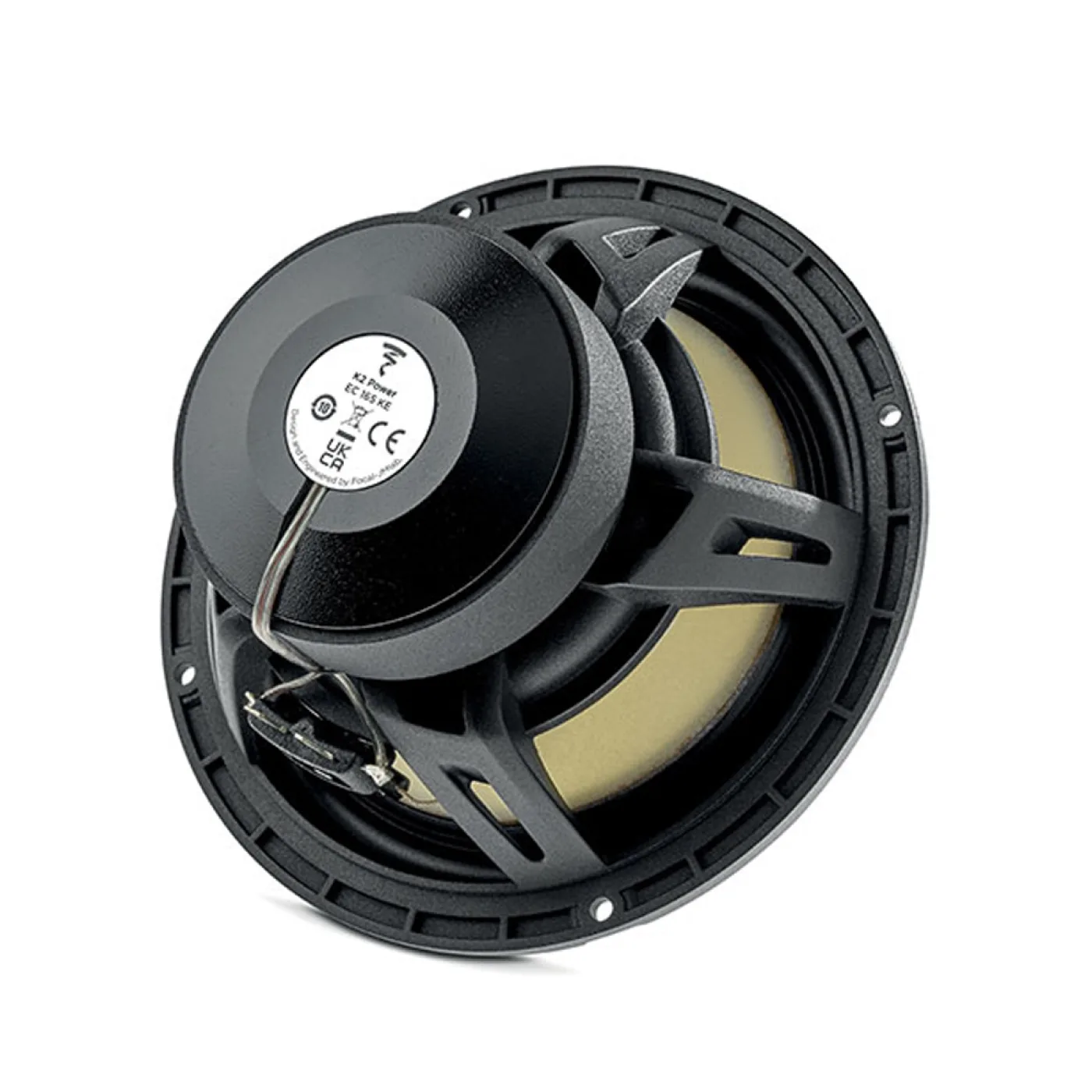

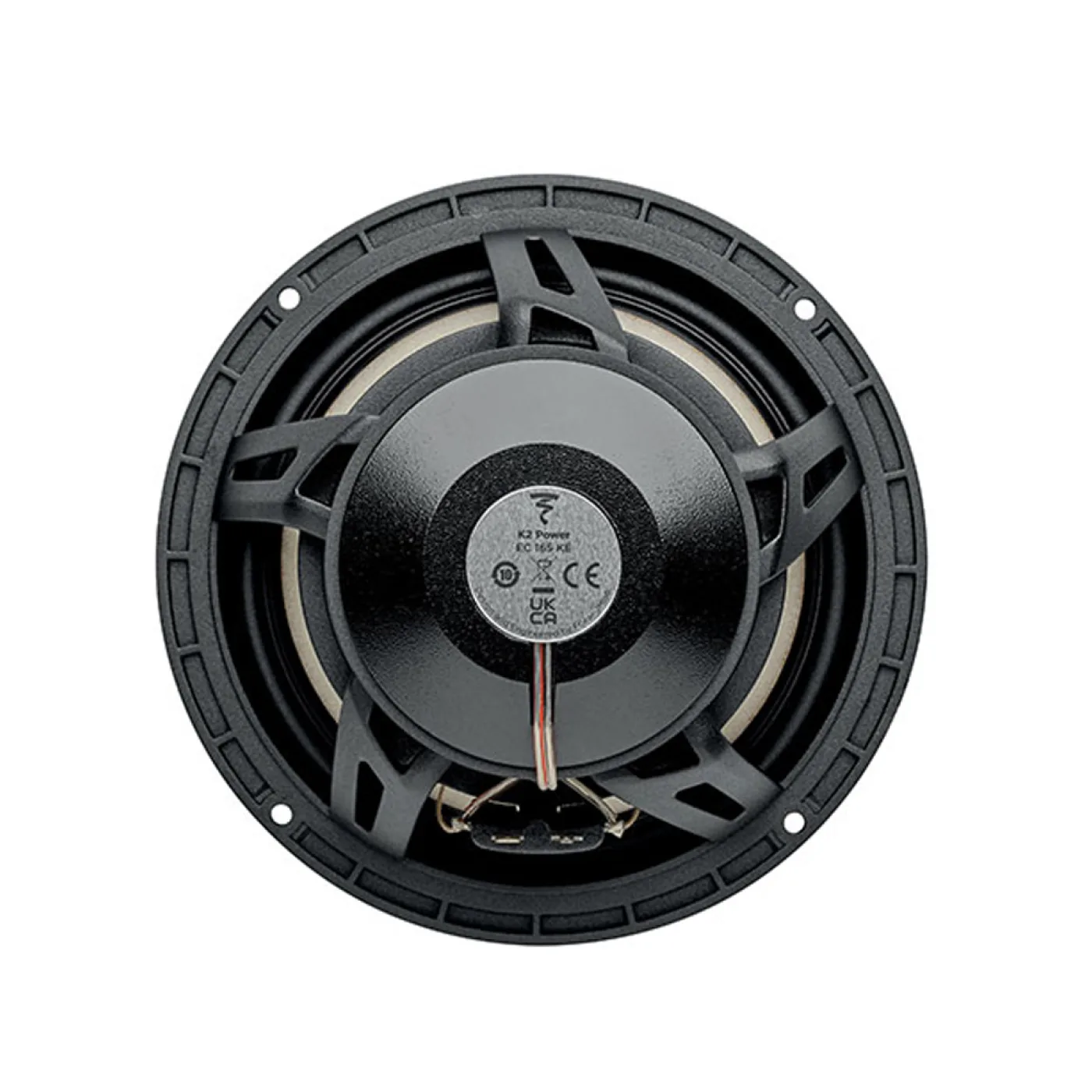

6 1/2” (165MM) 2-Way Coaxial Kit
The EC 165 KE audio kit consists of 2 x 6 1/2” (165mm) woofers with coaxial tweeters. It features Focal’s aramid fibre cone. The legacy of our acoustics expertise, this cone, in its iconic yellow cloak, combines lightness, rigidity and damping, the perfect recipe for a good speaker driver.
The result is faithful, dynamic, and perfectly defined sound. Combined with the cone, the TMD surround® guarantees low distortion for perfect cone control.
For smooth, precise treble, the kit includes a pair of coaxial tweeters inspired by Focal’s TKME.
Its K2 cone with inverted dome, combined with its ‘M’-shaped profile, allows optimal dispersion of high frequencies during in-car listening.
In terms of compactness and design, EC 165 KE is tough and sleek, giving your in-car audio system both good looks and character.#
Performance K2 Excellence
K2 Sandwich Cone
The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get.
TMD® Surround
The speaker drivers benefit from TMD (Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic.
TKME Tweeter
The ‘M’-profile TKME tweeter extends the frequency response to 22 kHz with an even greater reduction of distortion, for smooth and precise diffusion in the high treble. Coupled with a ‘push-pull’ motor, based on IAL2 technology, it achieves very low resonance frequencies for perfect harmonic balance.
FRAK Tweeter
The ES 165 KX2E and ES 165 KX3E kits are equipped with Focal's ‘M’-shaped FRAK tweeter. A revolution in Car Audio, it combines aluminium and magnesium for good frequency lowering and superb damping. Its lightness helps it shine in the high treble
Power And Reliability Pushing The Boundaries
More Linearity And Precision
The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound.
Increased SPL
The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound.
Optimised Crossovers
All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently.
Slim Profile
The ES 165 K2S and SUB 25 KXS kits have a shallow depth. This slim profile takes up minimal space whilst maintaining exceptional power handling.
Key points
- Made in France in the Focal workshops
- K2 Cone
- Robust design and high quality materials
- Exceptional power handling
- Aluminium grilles included
Specifications
Specifications
- Type 2-way coaxial kit
- Maximum power 160W
- Nominal power 80W RMS
- Sensitivity (2.83V/1m) 93dB
- Frequency response 60Hz – 22kHz
- Cone K2 Sandwich
- Woofer 61/2" (165mm)
- Voice coil diameter 1" (25mm)
- Depth 27/8" (74mm)
- Magnet Ferrite
- Surround TMD®
- Tweeter 'M'-profile
- Crossover Integrated
- Nom. impedance 4Ω
- Surround Butyl
- DC resistance 3Ω
- VC diameter 25mm 1"
- Former Kapton
- Layers 2
- Wire CCAW
- Net weight 1100g 2.43lbs
Parameters
- Rdc 3Ω
- Fs 65Hz
- Mms 13.9g
- Cms 0.43mm/N
- Vas 10l
- Qts 0.55
- Qes 0.6
- Qms 7
- Bxl 5.3 N/A
- Sd 128.7cm2
- SPL 90dB
- Xmax 4.5mm
Specifications
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
