Focal ES165KE K2 Performance 6.5” (16.5cm) 2-Way Component Car Speaker Kit With Sound Deadening Sheets
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:Focal
- Product Code:ES165KE + RKXSK
- EAN / UPC:7427306993257
- Warranty:1 Year Warranty

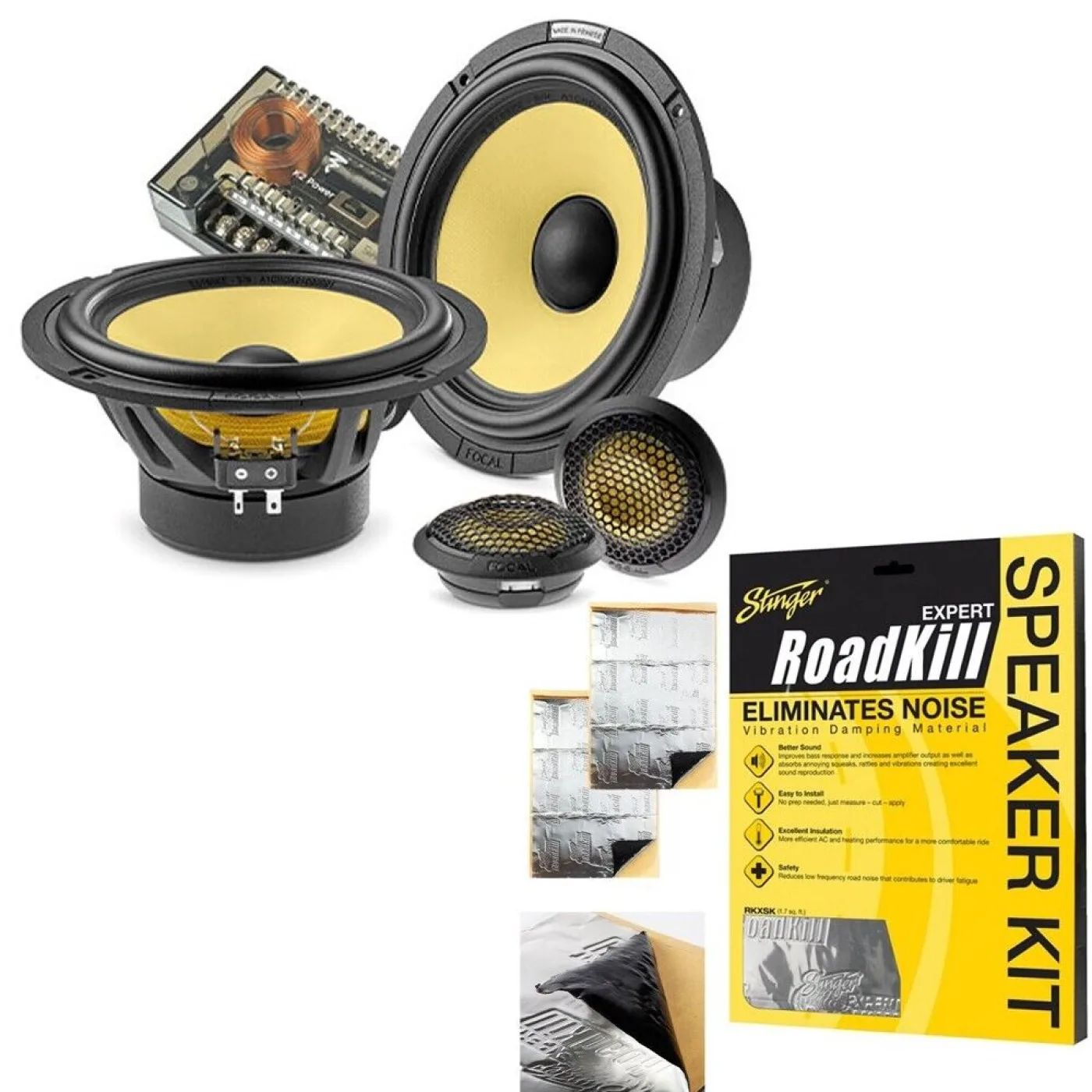

Package Includes
- Focal ES165KE 6.5” (16.5cm) 2-Way Component Car Speaker Kit
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
6 1/2” (165 Mm) 2-Way Component Kit

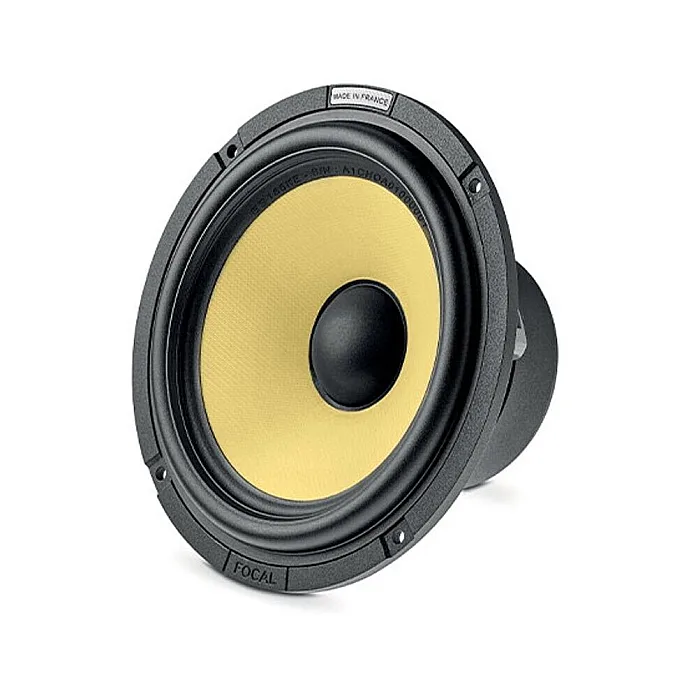

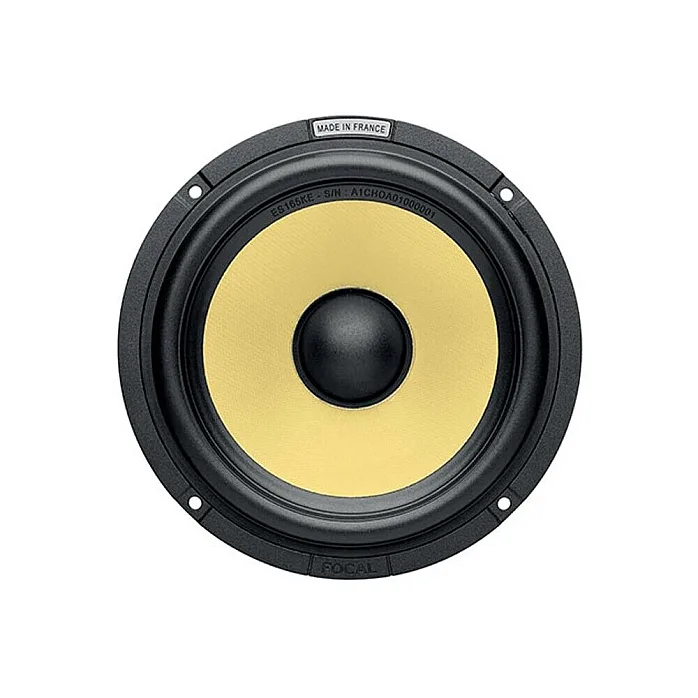

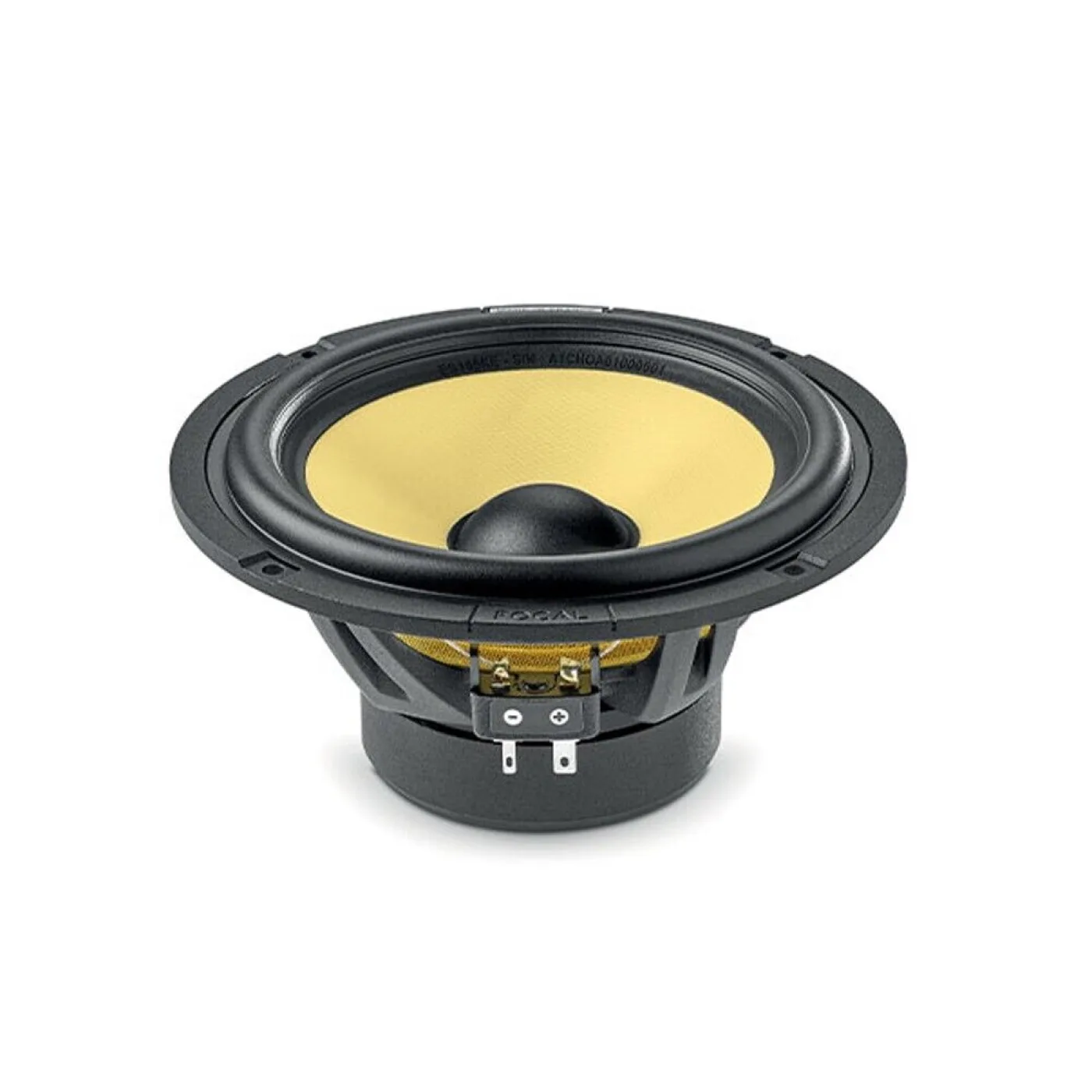

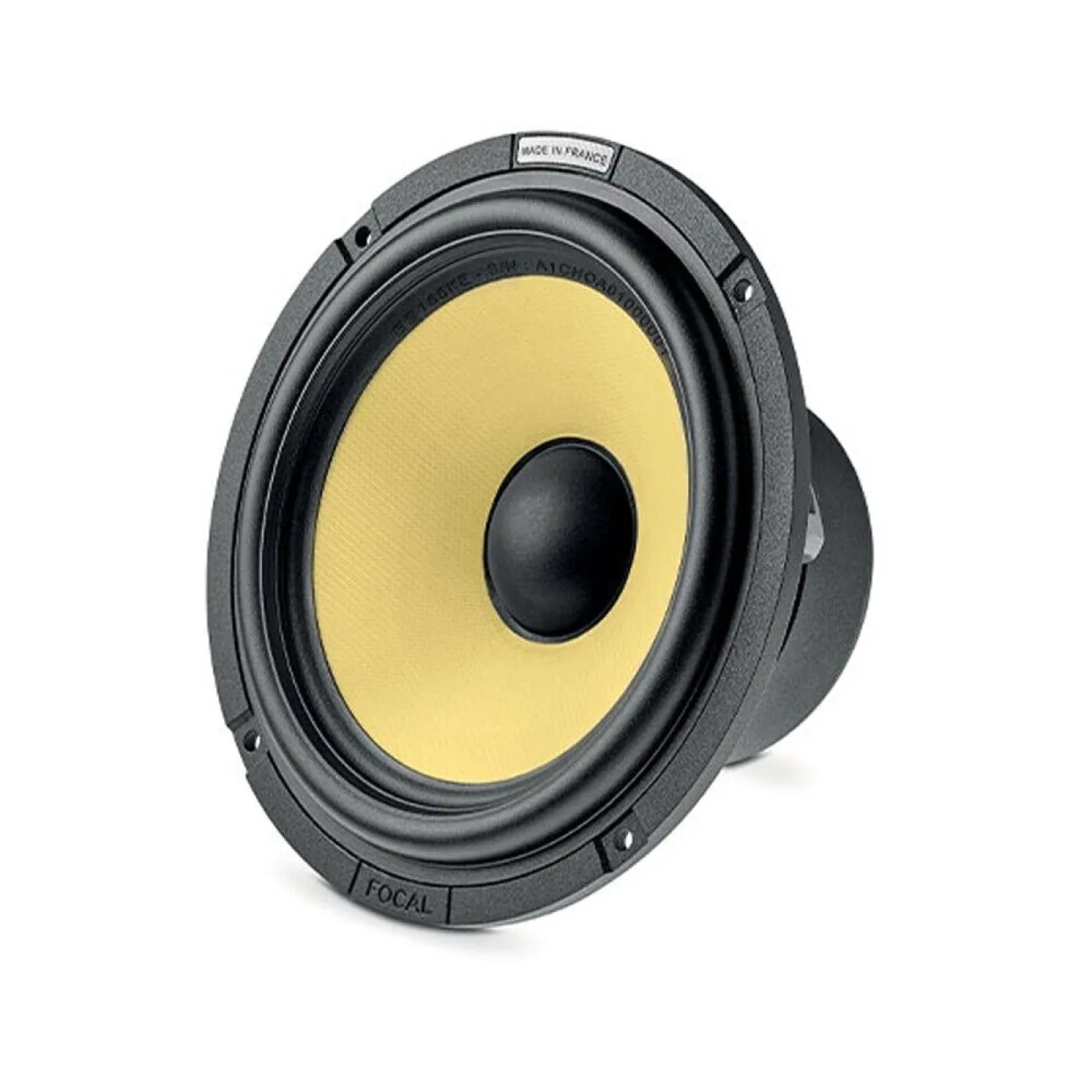

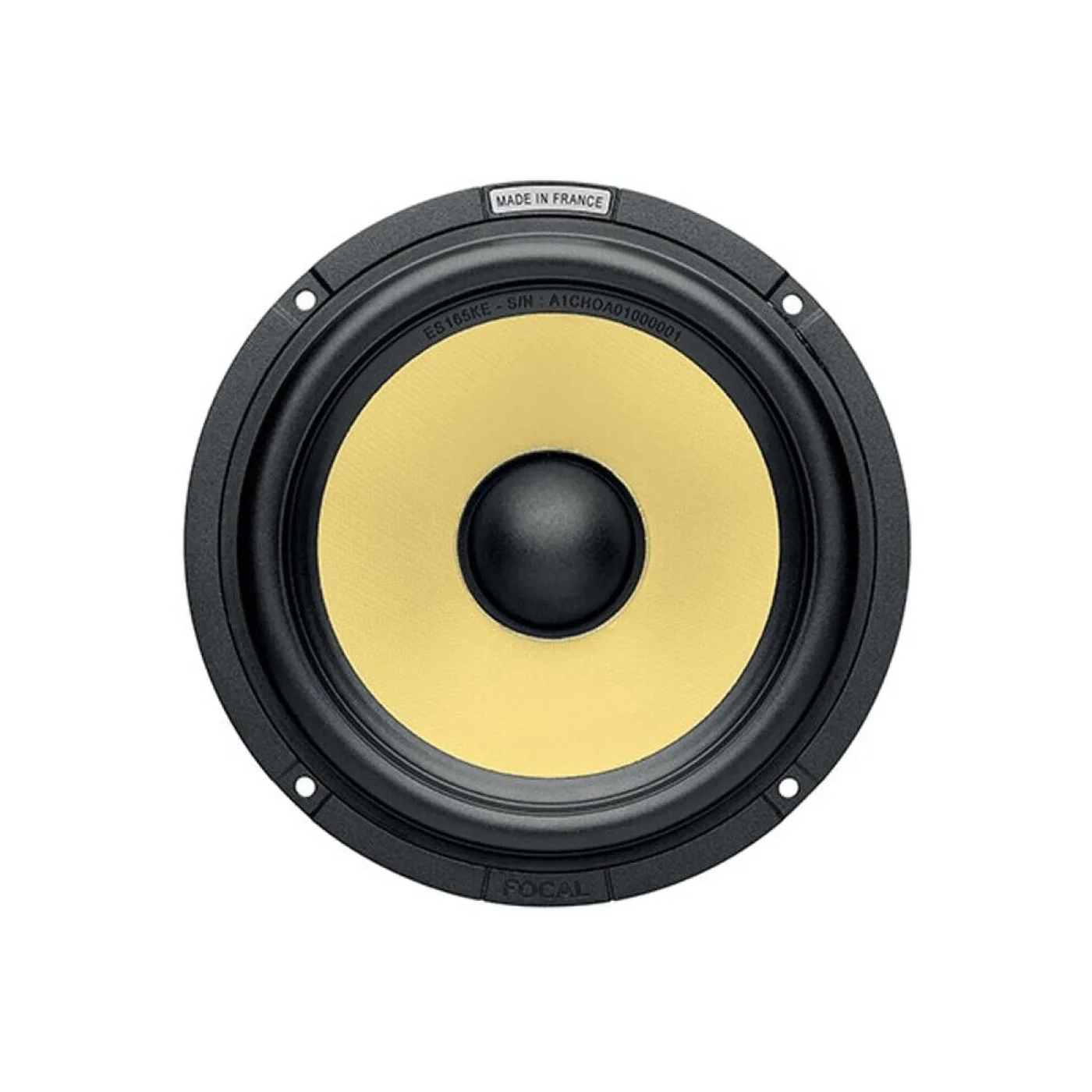

Composed of two 6 1/2" (165mm) woofers and two TKME tweeters, the ES 165 KE kit is a compact, easy-to-install system.
The speaker drivers’ K2 cones diffuse super dynamic, razor-sharp sound. Born from Focal’s expertise in all things acoustic, they combine the assets of lightness, rigidity and damping, all prerequisites of a good speaker driver.
The inverted dome TKME tweeters also feature an aramid fibre dome. Their exclusive ‘M’-shaped profile helps to improve control of cone deformation and to reproduce the high frequencies smoothly and accurately.

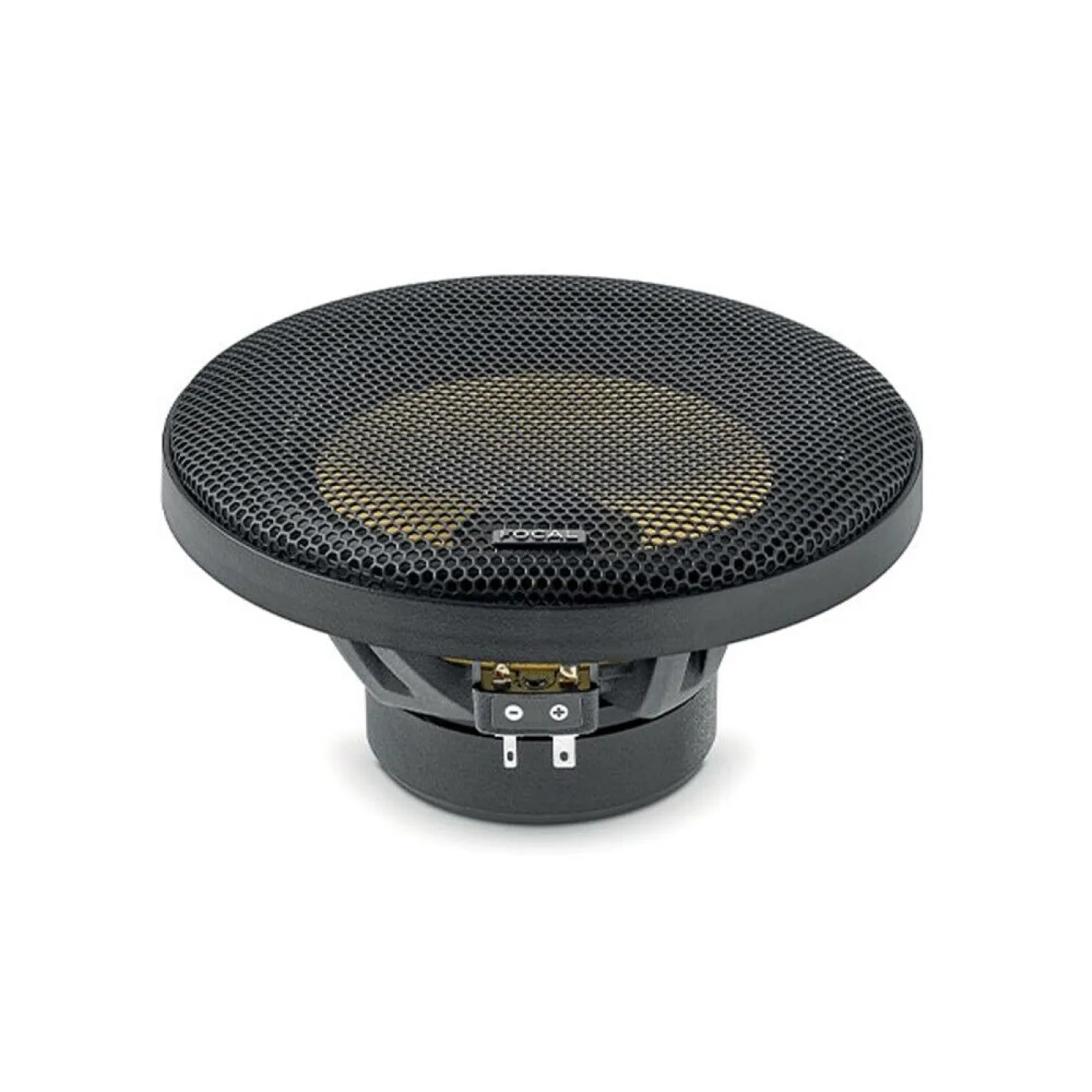

The tweeters can be mounted in different ways: in the factory locations, flush or on angled brackets, for all-encompassing installation options. The kit is also supplied with aluminium grilles.
Performance K2 Excellence
K2 Sandwich Cone
The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get.
TMD Surround
The speaker drivers benefit from TMD(Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic.
TKME Tweeter
The ‘M’-profile TKME tweeter extends the frequency response to 22 kHz with an even greater reduction of distortion, for smooth and precise diffusion in the high treble. Coupled with a ‘push-pull’ motor, based on IAL2 technology, it achieves very low resonance frequencies for perfect harmonic balance.
FRAK Tweeter
The ES 165 KX2E and ES 165 KX3E kits are equipped with Focal's ‘M’-shaped FRAK tweeter. A revolution in Car Audio, it combines aluminium and magnesium for good frequency lowering and superb damping. Its lightness helps it shine in the high treble
Power And Reliability Pushing The Boundaries
More Linearity And Precision
The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound.
Increased SPL

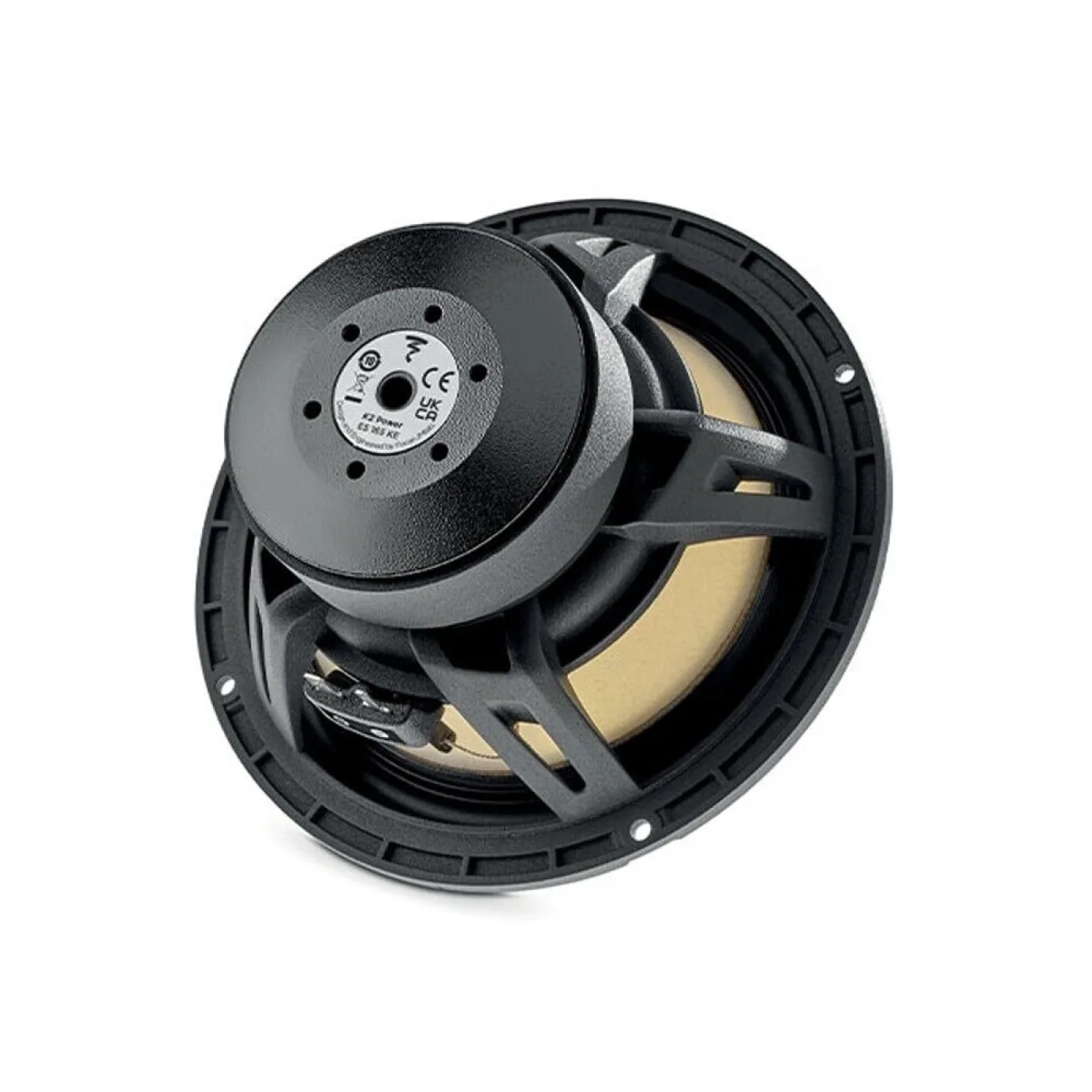

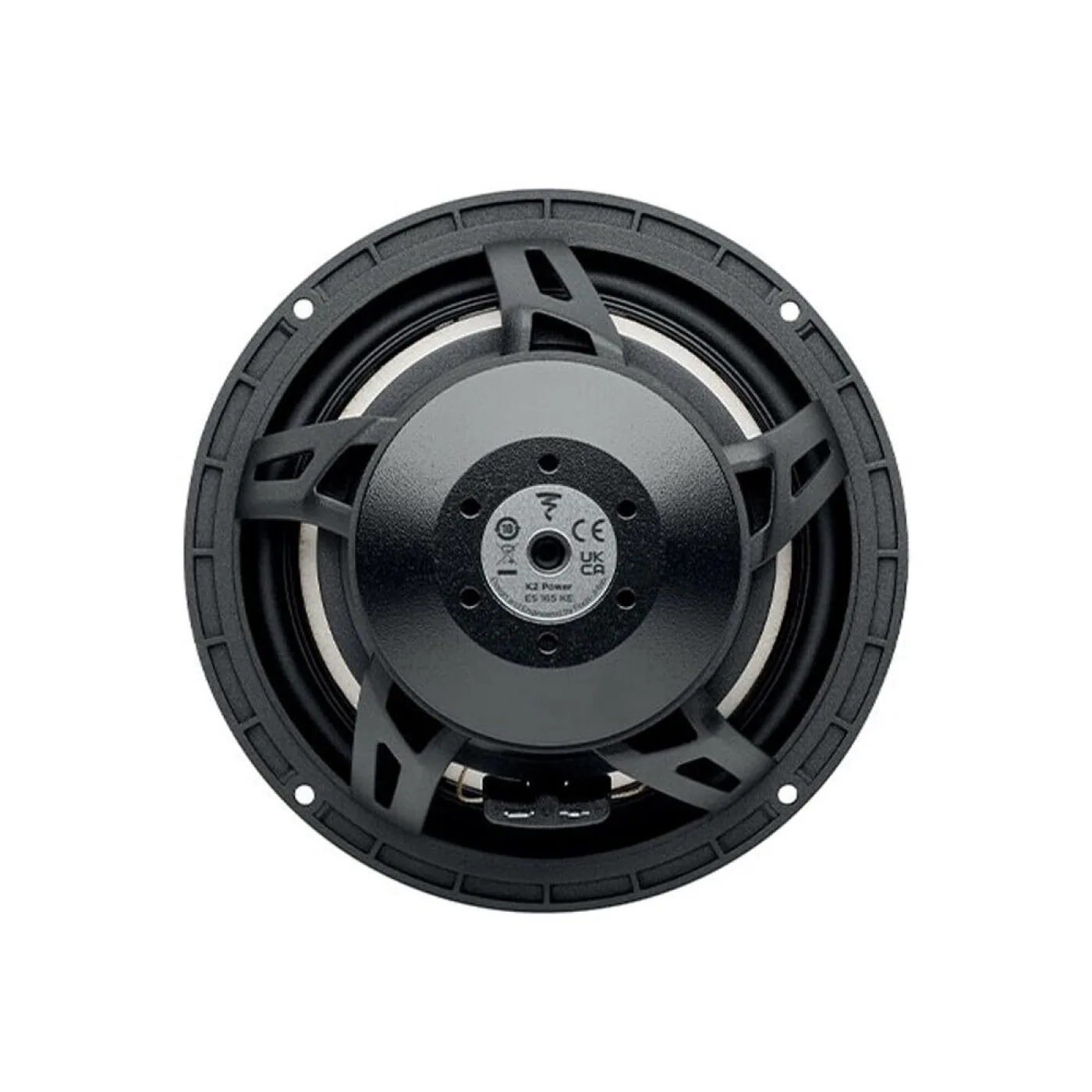

The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound.

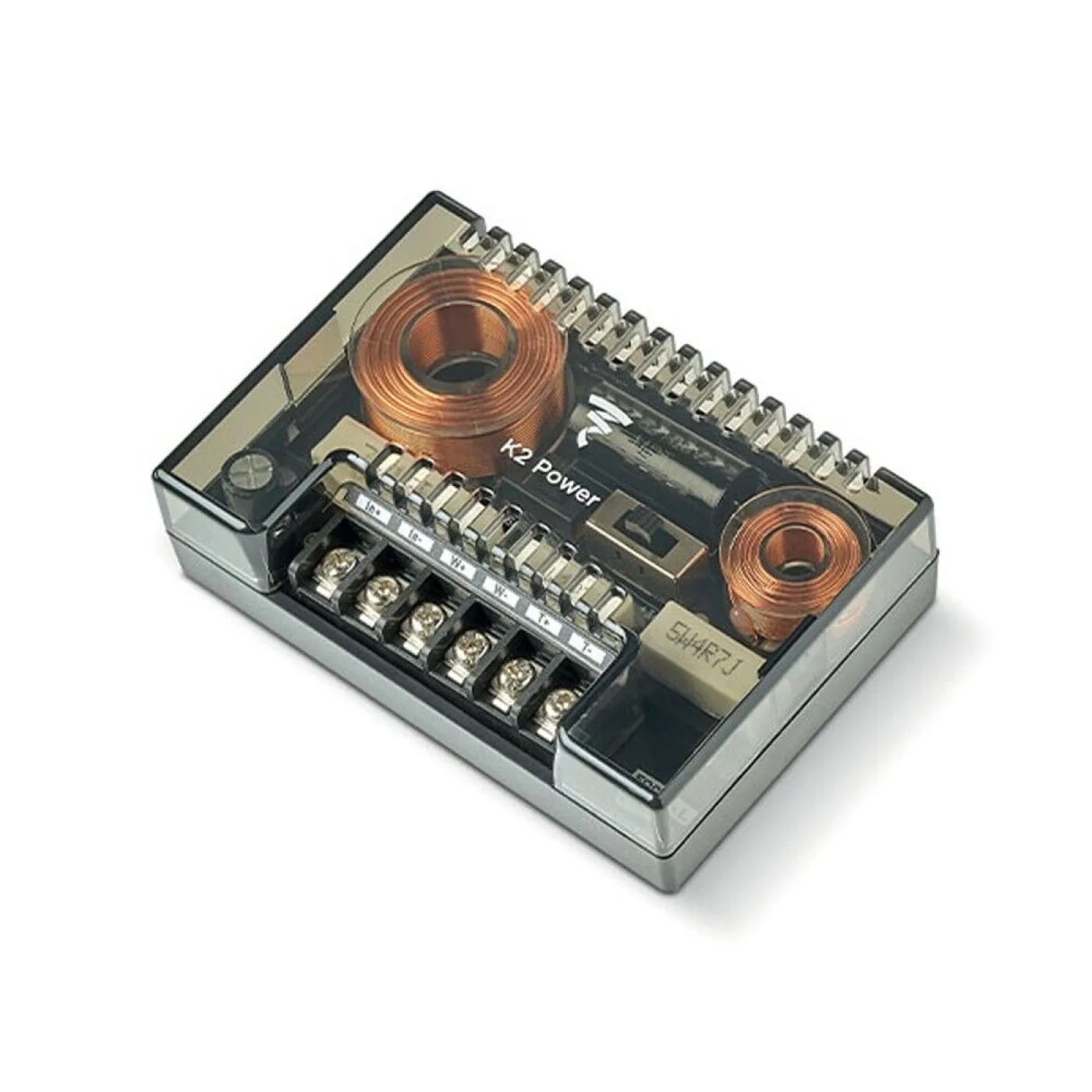

Optimised Crossovers
All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently.
Slim Profile
The ES 165 K2S and SUB 25 KXS kits have a shallow depth. This slim profile takes up minimal space whilst maintaining exceptional power handling.
Key points
- Made in France in the Focal workshops
- K2 Cone
- Robust design and high quality materials
- Exceptional power handling
- Aluminium grilles included
Specifications
Specifications
- Type 2-way component kit
- Nominal power 100W
- Maximum power 200W
- Sensitivity (2.83V/1m) 90.8dB
- Cone K2 Sandwich
- Nom. impedance 4Ω
- Surround Butyl
- DC resistance 3.2Ω
- VC diameter 32mm 11/4"
- Former Kapton
- Layers 2
- Wire CCAW
- Magnet (dxh) 90x20mm 31/2x3/4"
- Frequency response 60Hz – 22kHz
- Woofer 61/2" (165mm)
- Voice coil diameter 11/4" (32mm)
- Depth 27/8" (74mm)
- Magnet Ferrite
- Surround TMD®
- Tweeter 'M'-profile
- Crossover 6-12/12dB (3kHz)
- Net weight 1350g 3lbs
Parameters
- Rdc 3.2Ω
- Fs 64Hz
- Mms 14.5g
- Cms 0.41mm/N
- Vas 10l
- Qts 0.62
- Qes 0.69
- Qms 5.7
- Bxl 5.2 N/A
- Sd 128.6cm2
- SPL 89dB
- Xmax 4.5mm
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
