1 Year Warranty

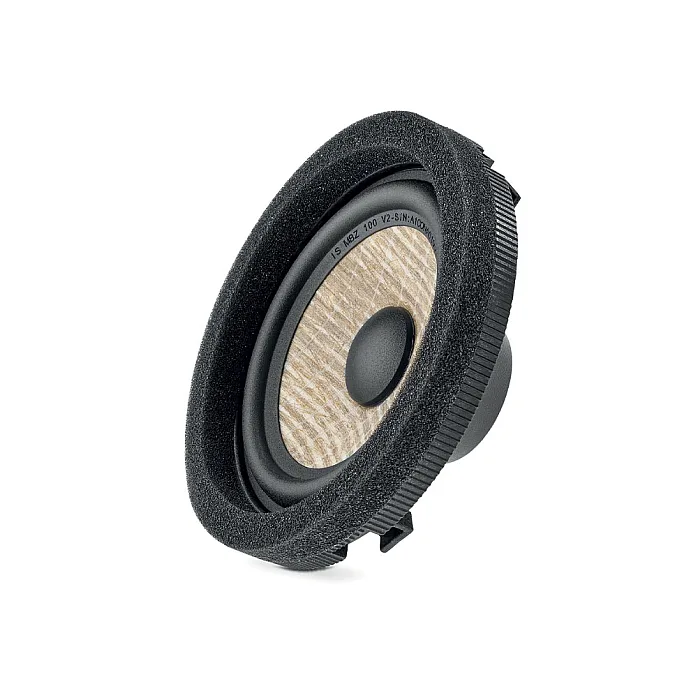

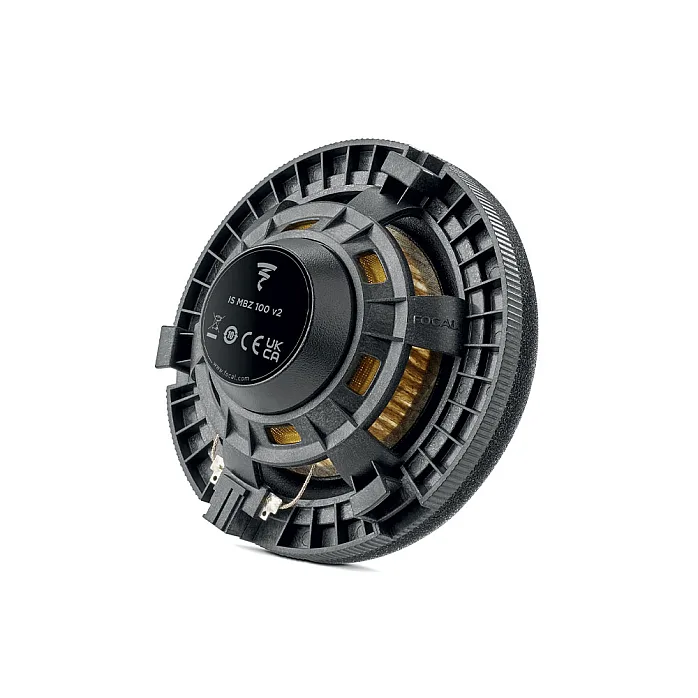

Focal ISMBZ100-V2 Inside Series 4" Direct Fit Mercedes 2 Way Component Speaker With Sound Proofing Sheet
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Focal
- Product Code:ISMBZ100-V2 + RKXSK
- EAN / UPC:7427288121877
- Warranty:1 Year Warranty
£299.99

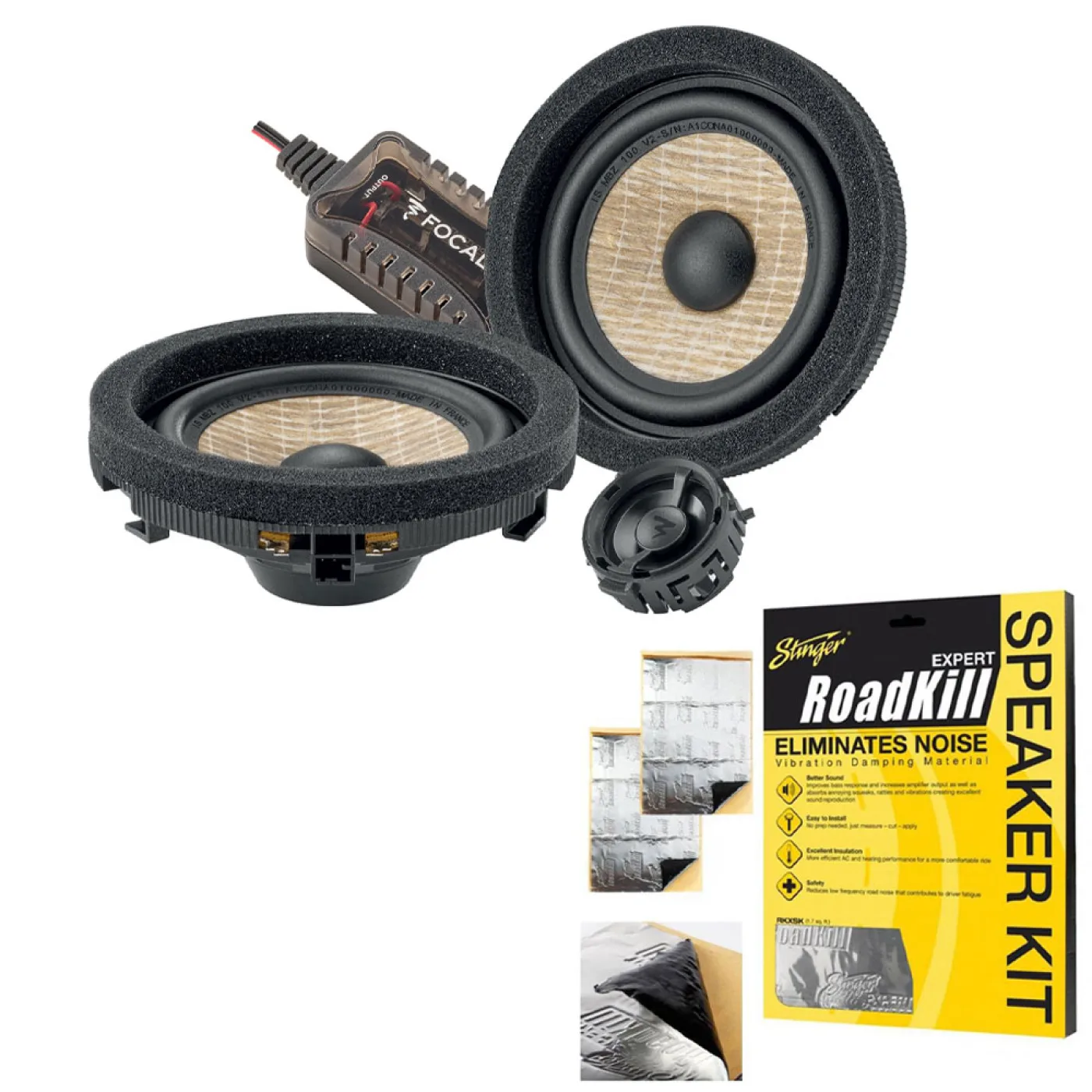

Package Included
- Focal ISMBZ100-V2 Inside Series 4" Direct Fit Mercedes 2 Way Component Speaker
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
2-Way Component Kit
Upgrade your vehicle's front channels and discover a whole new world of audio with the impressive IS MBZ 100 v2 kit. It showcases cutting-edge Flax cone midrange drivers and aluminium inverted dome tweeters. The advanced Focal technology ensures crystal-clear highs and superior spatialization, resulting in an unbelievably natural sound experience. The kit was specifically engineered to seamlessly replace the original system in the newest Mercedes-Benz models.
Key Points
- Kit developed and manufactured in France
- Exclusive Focal high-fidelity sound
- Quick and easy to install with no modifications to the vehicle required
- Perfect integration into the cabin
- Installation tutorial video available on focal-inside.com and youtube.com
Specification
- Type 2-way component kit

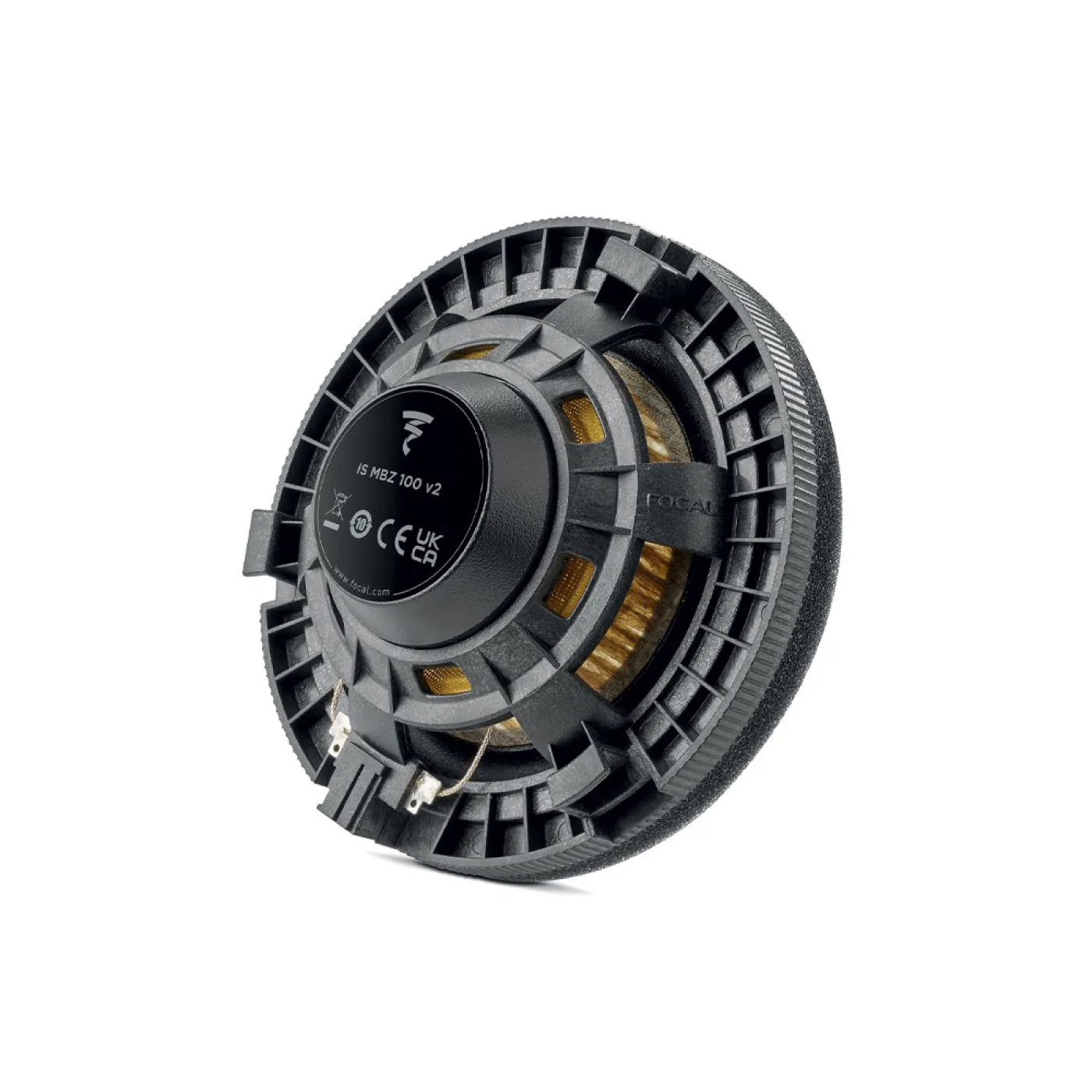

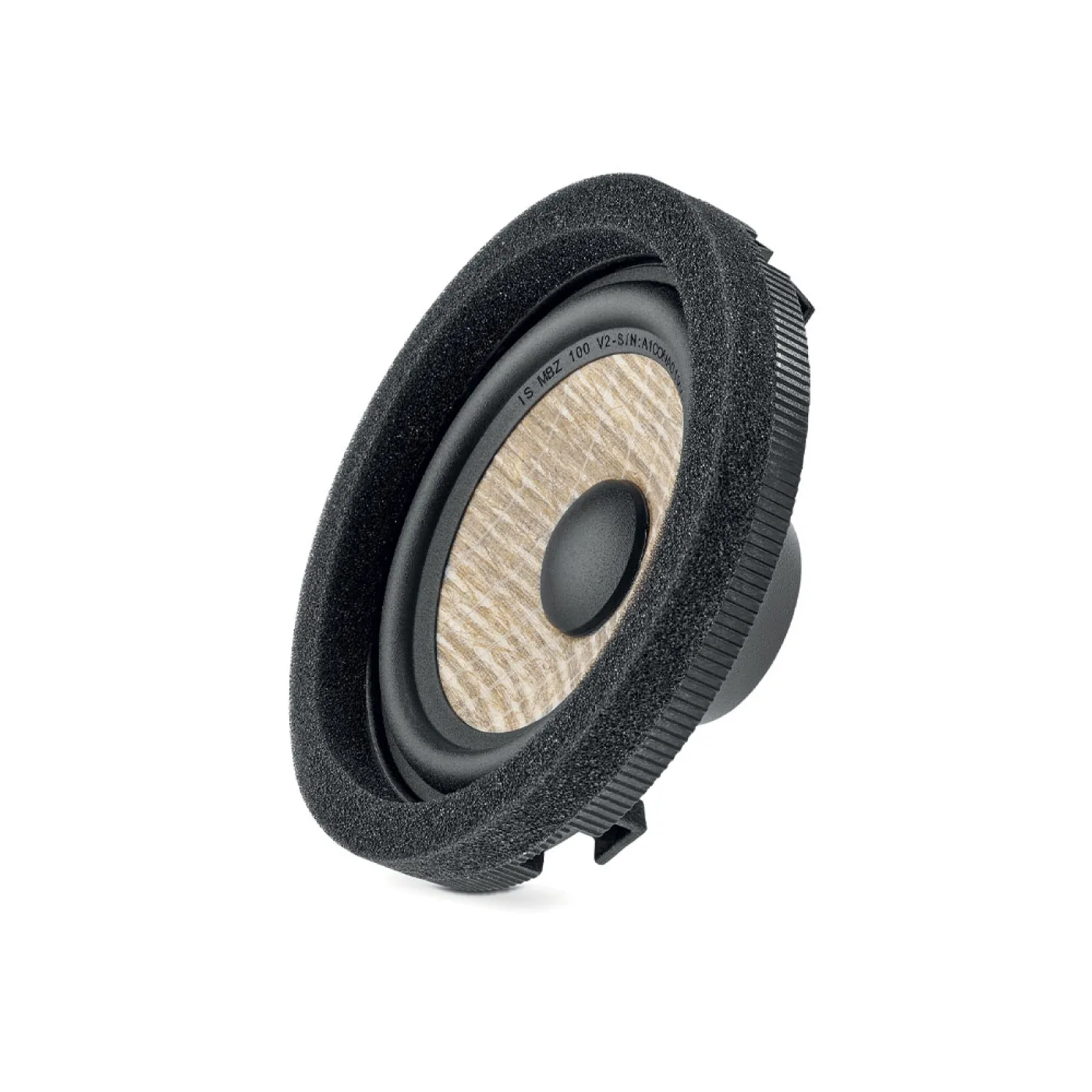

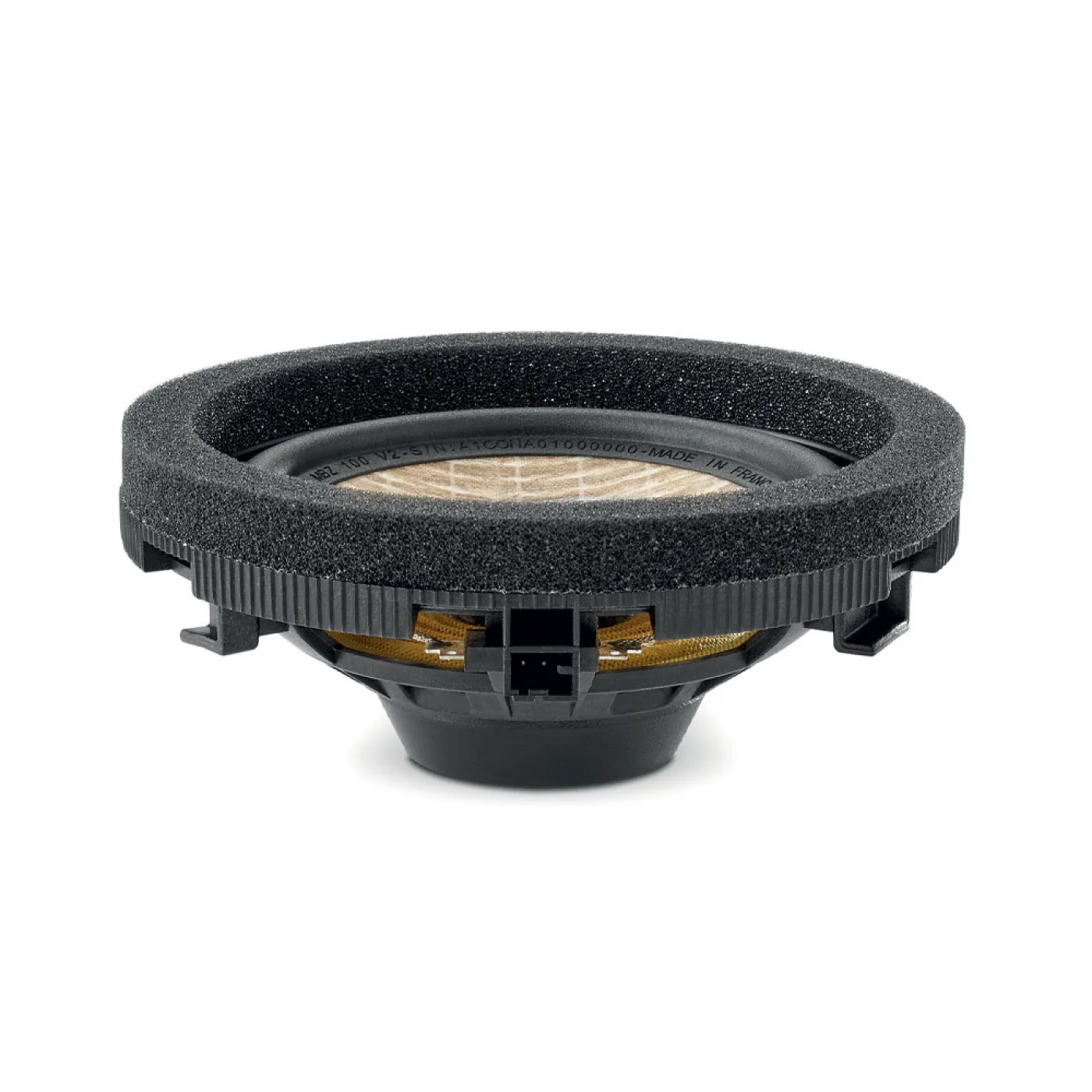

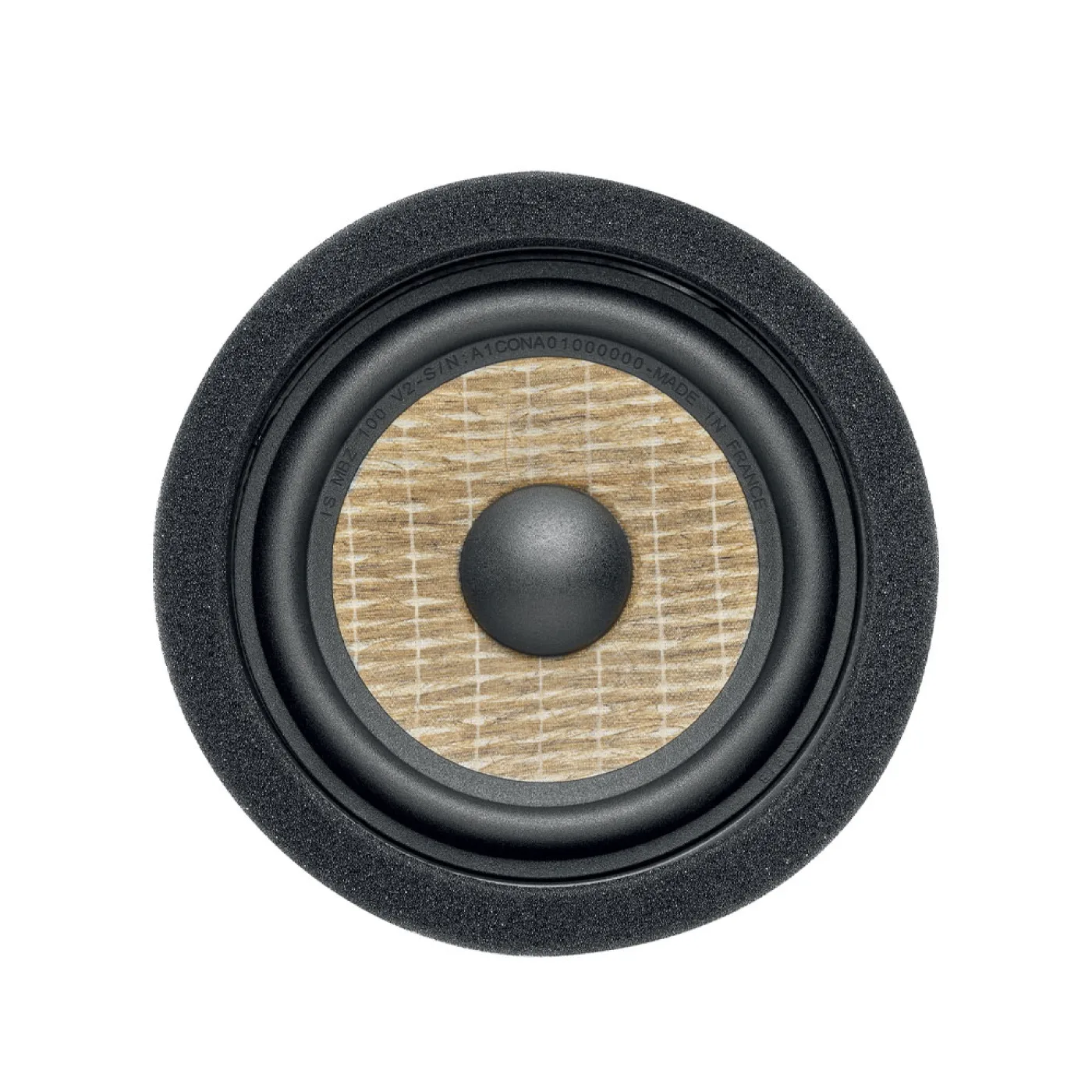

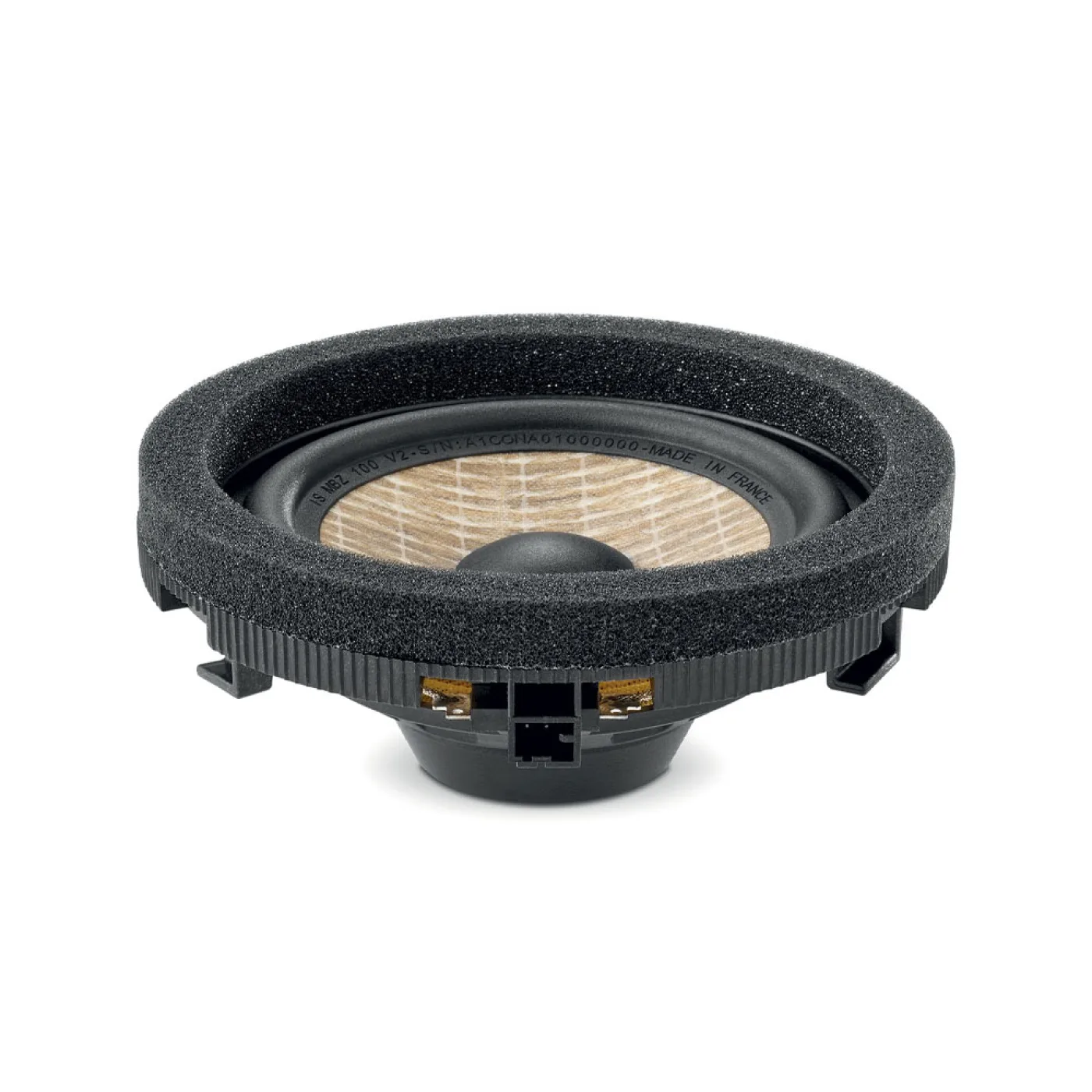

- Midrange 4" (100mm)
- Tweeter Aluminium inverted dome
- Voice coil diameter 1" (25mm)
- Voice coil height 5/16" (8mm)
- Magnet Neodymium
- Cone Flax
- Surround Butyl
- Impedance 4Ω
- Max. power 100W
- Nom. power 50W RMS
- Sensitivity (2.83V/1m) 87dB
- Frequency response 150Hz-20kHz
- Crossover
- Tweeter: in-line
- Woofer: in-line casing
Specifications
Design
- Cut-Out diameter
- 121 mm / 4.76 in
- Depth behind surface (Mounting depth)
- 49.55 mm / 1.95 in
Sound - Acoustic
- Product type
- 2-way separate kit
- Loudspeakers
- Midrange: 4"
- Membrane
- Flax
- Coil diameter
- 1''
- Medium
- 4"
- Filter
- Woofer: Online / Tweeter box: Online
- Frequency response (+/- 3dB)
- 150Hz - 20kHz
- Maximum power
- 100 watts
- Motor
- Neodymium
- Nominal Impedance
- 4 Ω
- Nominal power
- 50 W RMS
- Sensitivity
- 87 dB
- Surround material
- Butyl
Included Accessories
- Grilles
- Included
- ISO cables supplied

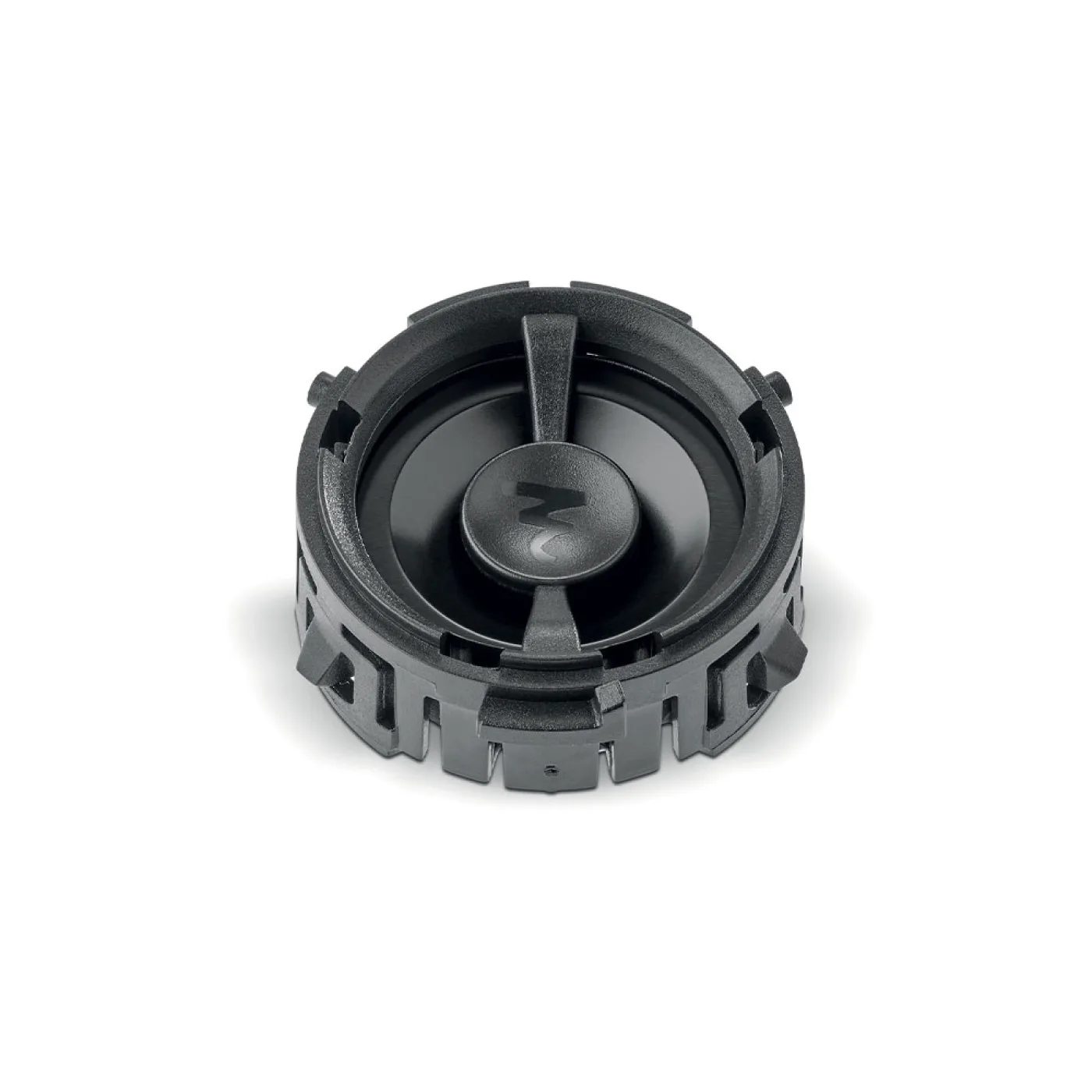

Tweeter Specification
- Nominal power 15W
- Maximum power 100W
- Sensitivity 91dB
- Nom. impedance 4 Ω
- Cone Alu
- DC resistance 3.4 Ω
- VC diameter 20mm 0.8"
- Former Kapton
- Layers 2
- Wire Alu
- Net weight 40g 0.08 lbs
Also in this bundle
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
