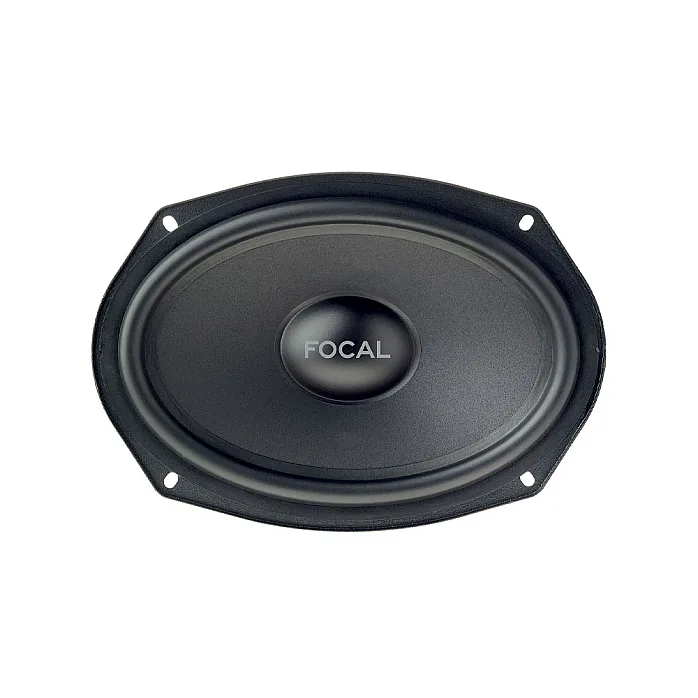

Focal ISU690 Integration Series 6" x 9" 2 Way Component speakers With Sound Proofing Deadening Sheet
- Availability:In Stock
- Available:4 in stock
- Item Condition:New
- Brand:Focal
- Product Code:ISU690 + RKXSK
- EAN / UPC:7427288127022
- Warranty:1 Year Warranty

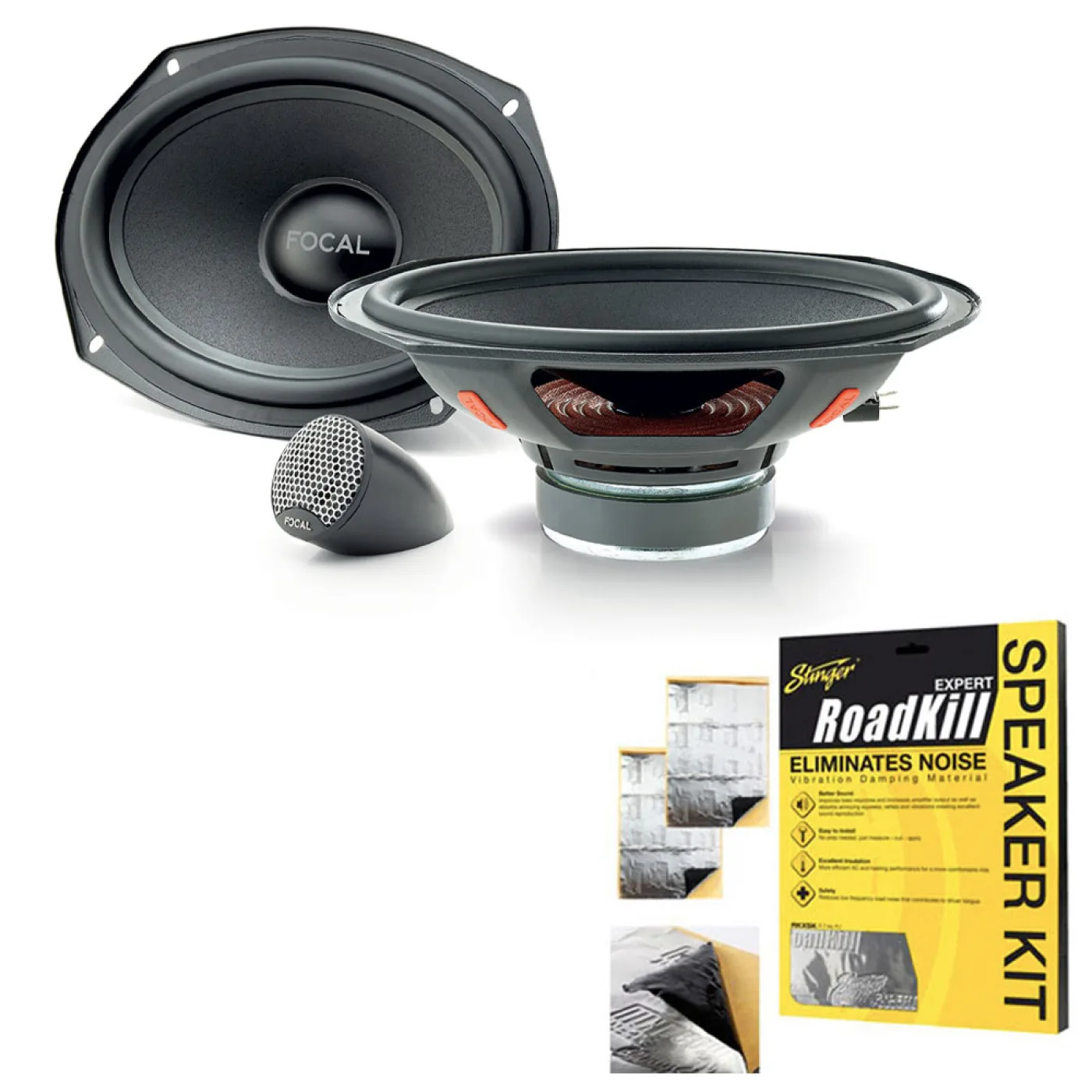

Package Included
- Focal ISU690 Integration Series 6" x 9" 2 Way Component speakers
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
2 Way Separate Kit – 69cm woofer
With the ISU690 2-way separate kit, take advantage of the perfect Focal sound compromise - easy installation to improve your in-car audio installation. With its large emissive surface and its Focal innovations, it ensures a good descent into the bass and very significant power handling. It is also equipped with separate filters to facilitate door mounting.
Slim Profile
ISU690 has a very low mounting depth (just 8.35 cm) compared with its large emissive surface, making it a compact, high-performance kit.
Optimal Integration
Thanks to a connector with integrated crossovers and a basket designed for optimum integration, mounting the loudspeakers is a breeze. They can be easily installed in a variety of vehicles, and are ideal for certain Ford® and Toyota® models.
Complementarity
The aluminum/magnesium tweeter delivers clear, detailed treble. It is also perfectly compatible in timbre with loudspeakers with Polyglass diaphragm loudspeakers, which deliver natural, uncolored sound.
Woofer Specifications
- Nominal power 80W RMS
- Maximum power 160W
- Sensitivity (2,83V/1m) 93.6dB
- Frequency response 55Hz-21kHz
- Cone type Polyglass
- Surround type Butyl
- Nom. impedance 4Ω
- VC diameter 25mm 1"
- Net weight 1.25kg 2.7lbs
Tweeter Specifications
- Nominal power 15W RMS
- Maximum power 100W
- Sensitivity (2,83V/1m) 94dB
- Frequency response 4kHz-21kHz
- Surround type Poron®
- Nom. impedance 4Ω
- VC diameter 20mm 0.8"
- Net weight 40g 0.09lbs
- Dome Al/Mg
Specifications
Design
- Weight
- 1.25 g / 2.7 lb
- Cut-Out diameter
- 143 mm / 5.1 in
- Depth behind surface (Mounting depth)
- 49 mm / 1.9 in
Sound Acoustics
- Product type
- 2-way separate kit
- Membrane :
- Polyglass
- Coil diameter
- 8"
- Tweeter :
- 164x235mm
- Filter
- Integrated
- Frequency response (+/- 3dB) :
- 55Hz -21kHz
- Maximum power
- 160 watts
- Motor
- Ferrite
- Nominal Impedance
- 4 Ω
- Nominal power
- 80 W RMS
- Sensitivity
- 93.6 dB
- Surround material
- Butyl
What's In The Box
- Two woofers
- Two inverted dome tweeters (each with 5" length of speaker wire attached)
- 2 Bottom mount woofer adapters
- 2 Flush mount tweeter housings (with tweeters installed)
- 2 Angled surface mount tweeter housings
- Two 18" Lengths of speaker wire with in-line tweeter crossovers
- Two 7" Lengths of speaker wire with in-line woofer crossovers
- 2 Woofer mounting gaskets
- 8 Speed clips
- Four 1" Flathead screws
- Eight 1" Pan head screws
- User manual (English/ French/ German/ Italian/ Spanish/ Portuguese/ Dutch/ Russian/ Polish/ Arabic)
- Focal window sticker
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
