Ford Fiesta 2013-2017 Pioneer 6.8" Bluetooth Apple CarPlay DAB Stereo Upgrade Kit

Availability:In Stock
Available:2 in stock
Item Condition:New
Brand:Pioneer
Product Code:SPH-DA160DAB + Aerial + FKIT-FORD-96
EAN / UPC:7427282701150
Warranty:1 Year Warranty

£564.99

Addons

SonoConnect Wireless Carplay / Android Auto USB Adapter +£39.99

Dashboard Door Panel Trim Removal Tool Kit (5 Pcs) +£12.99

Dashboard / Door Trim Removal & Precision Hook Set (9 Pcs) +£19.99

Pioneer CA-IU.52C USB to Lightning Cable +£24.99

Pioneer ND-BC9 Universal Rear View Reversing Camera +£89.99

Dashboard Trim Tool Panel (4 Pack Assorted) +£7.99

DC 5V-90V Voltage Circuit Tester Digital Display +£14.99

Navigation App

Pioneer Sygic Camper Navigation App +£149.99

<p>The 2-Din SPH-160DAB lets you connect to a compatible iPhone or Android phone using a single USB cable, which will allow you to control Apple CarPlay, Android Auto and Waze (Via Android Auto or Apple CarPlay) from your dashboard in a convenient and safe way. It plays DAB/DAB+ Digital Radio, audio/video content from USB devices.</p>

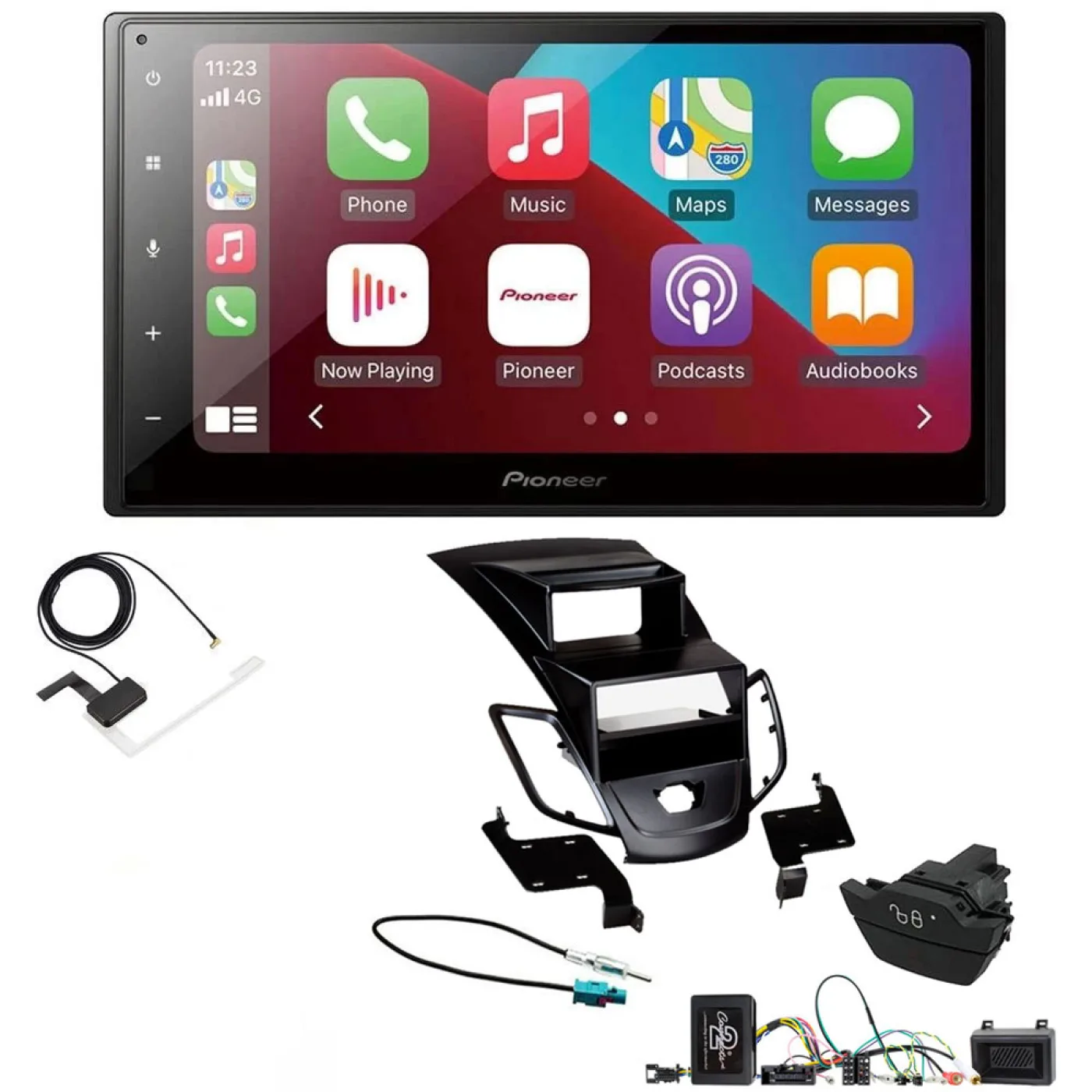

Package Includes

Pioneer SPH-DA160DAB 6.8" Capacitive Touch Screen Bluetooth Apple Car Play DAB
DAB Antenna Aerial
Fascia Plate Frame & Pocket (Black)
Steering Wheel Interface Adaptor
Ford Hazard / Door Lock Switch
Aerial Adaptor
Stereo Patch Lead

Product Compatibility Chart

Make	Model	Years	Notes
Ford	Fiesta	2013 - 2017

ONLY SUITABLE FOR FIESTA WITH ORIGINAL TOP MOUNTED RADIO DISPLAY ON THE DASH.

Steering Wheel Control Interface. Allows Date/Time To Be Set From The Steering Wheel, Retains Parking Sensor Audio

Fitting kit

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

A removable pocket is supplied for single DIN installation.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

FITTING GUIDE

SETTING THE TIME/DATE

1. Press Speech to turn on the vehicle display
2. Press and hold Speech for two seconds to enable menu mode
3. Press Volume +/- to navigate to the clock setting menu option and press Speech to
confirm selection
4. Adust the time using Volume +/- and press Speech to confirm
5. Follow the same process to adjust the date
6. Once time and date have been set, press Speech to confirm
NB: The menu option will time out after 15-20 seconds of inactivity
6. Connect the female vehicle specific connectors on the harness to the male vehicle
connector from the vehicle.
8. Remove the car display connector from the vehicle and plug into the interface
(please remove the dust cover from the interface before making the connection).
9. Connect the display connector from the loom to the vehicle (the port previously
occupied by the car display connector, removed in Step 8.)
Test head unit for correct operation.
7. Connect the chime speaker box to the loom via the 4 pin connector and the red/
white RCA connectors to the stereo Aux Input.

The product

Powerful Entertainment For Your Car.

The 2-Din SPH-160DAB lets you connect to a compatible iPhone or Android phone using a single USB cable, which will allow you to control Apple CarPlay, Android Auto and Waze (Via Android Auto or Apple CarPlay) from your dashboard in a convenient and safe way. It plays DAB/DAB+ Digital Radio, audio/video content from USB devices.

Additionally, this car AV player features Bluetooth, allowing you to stream your music or call hands-free over a wireless connection.

Upgrade your music with high-grade audio functions: The 13-band graphic EQ allows you to customise the sound settings to your own preferences.

Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
Android AutoExtends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
DAB+Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
Digital Radio Tick Mark Approved productManufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
6.8" Capacitive TouchscreenA fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
MechafreeThis product is designed for modern digital music formats.
Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
Compatible with AndroidConnect and listen to music stored on your device without the need for an app
USB InputConnect any device with an USB interface cable to charge your device or listen to clean, clear sound.
SpotifyWith Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
Wazeis a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
Siri Eyes Freemake use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
Multi colour illuminationMatch the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.

Main Features

Apple CarPlay
Android Auto
DAB+
Digital Radio Tick Mark Approved product
Bluetooth®
Mechafree
USB Input
Spotify Via Android Auto or Apple CarPlay
Waze Via Android Auto or Apple CarPlay
Multi colour illumination
FM Radio
Camera Input
Screen 6.8" Capacitive Touchscreen
Plays
- Your iPod, iPhone, Android Smartphone
- Bluetooth audio
Via USB:
- MP3, WMA, AAC, WAV and FLAC audio files
- H.264, MKV, FLV, MPEG4, MPEG2 (PS) and TS video files in Full HD
- JPEG and BMP image files
Customisable Key and Display Illumination
Installation Type 2-DIN
Accessories Included:
- 1 USB extension cables
- 1 Microphone for hands-free calling
Optional:
- CA-IU.52C (USB to Lightning cable)
- ND-BC8 (Reverse camera)
USB Input Rear USB (1 Amp)

Specifications

Screen Features

6.8" Capacitive Touchscreen

Apple Compatibility

Made for iPod / iPhone

Siri Eyes Free

Works with iPhone

Android Compatibility

Compatible with Android

Display Mirroring for Android

Audio

FLAC; 13-band Graphical EQ; MOSFET 50 W x 4 Amplifier
Graphic Equaliser: 13-band; Listening Position Selector; High Pass Filter; Low Pass Filter; Subwoofer Control; RCA Pre-Outs 3. (Front, rear and subwoofer); DAB+ Digital

Tuner Features

RDS FM Radio

Bluetooth

Hands Free Calling (Hands Free Profile); Music Streaming; Additional Bluetooth Features Audio streaming
Compatibility: HFP/A2DP/SPP; Pioneer Bluetooth

Connections

Aux-in 1 rear AV Aux-In

RCA AV Input

RCA AV Rear Output

Hard Wired Remote Ready

ISO connector

Fitting information

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.

Technical
Dab Radio	Yes
Screen	6.8" Capacitive Touchscreen
Size	Double DIN
Plays	MP3, WMA, AAC, WAV and FLAC audio files
Max. Power Output	4 x 50W MOSFET
Tuner	Yes
Display Illumination	Multi-colour display and screen
Button Illumination	Customisable Key and Display Illumination
Bluetooth	Yes
Android Ready	Yes
iPod Ready	Yes
Works with iPhone	Yes
Aux In	Rear Aux In
USB	Rear USB
Pre Out	3 (Front, Rear, Subwoofer)
