Ford Fiesta 2013 - 2017 Single / Double Din Stereo Black Fascia / Steering / Antenna Fitting Kit
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:FKIT-FORD-96
- EAN / UPC:7426871617292
- Warranty:1 Year Warranty
Ford Single / Double Din Stereo Replacement Kit allows fitment of a Single / Double DIN aftermarket headunit to the selected vehicle. The kit includes fascia, steering control adaptor & aerial adaptor.

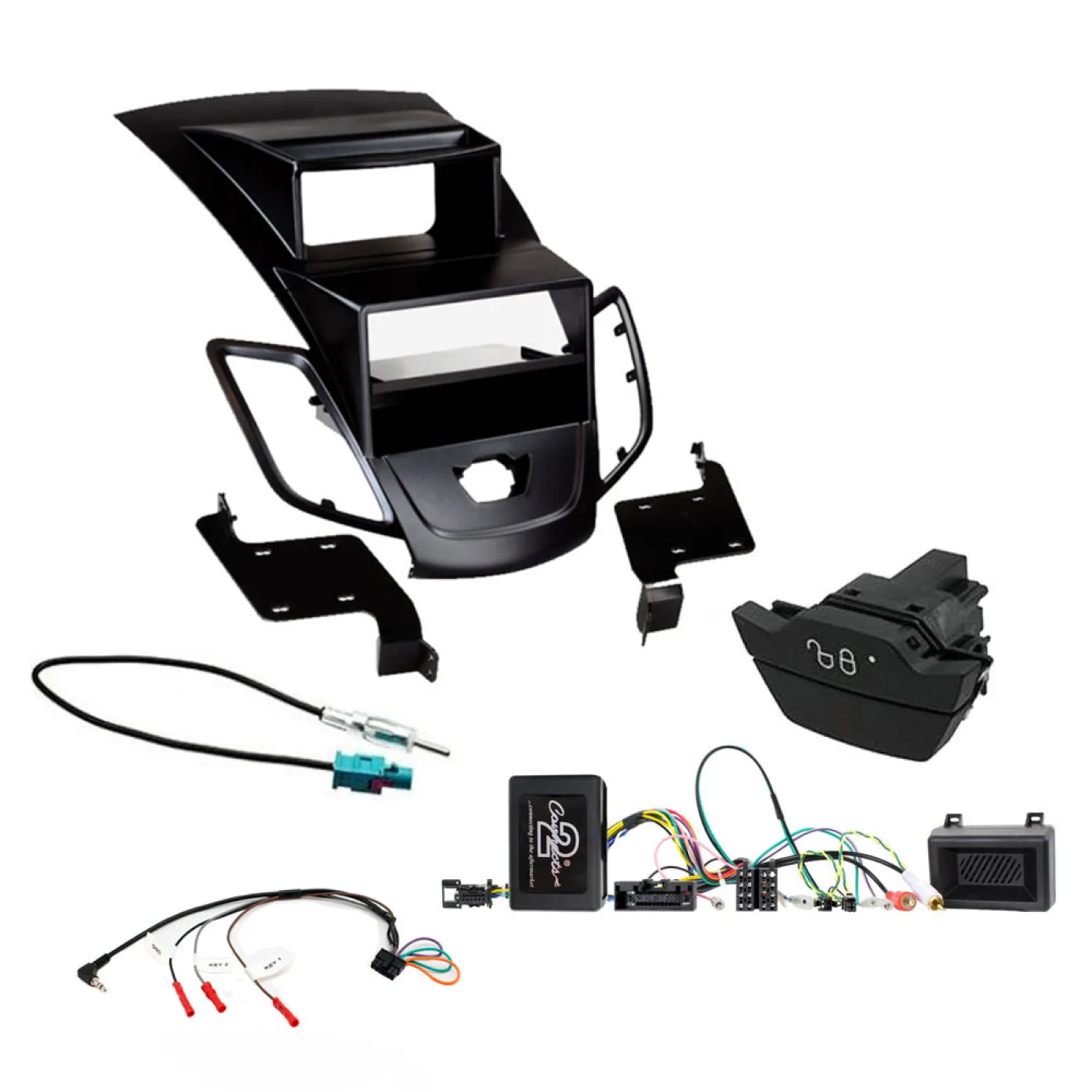

Fitting Includes
- Fascia Plate Frame & Pocket (Black)
- Steering Wheel Interface Adaptor
- Hazard / Door Lock Switch
- Aerial Adaptor
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Fiesta | 2013 - 2017 |
ONLY SUITABLE FOR FIESTA WITH ORIGINAL TOP MOUNTED RADIO DISPLAY ON THE DASH.
Steering Wheel Control Interface. Allows Date/Time To Be Set From The Steering Wheel, Retains Parking Sensor Audio

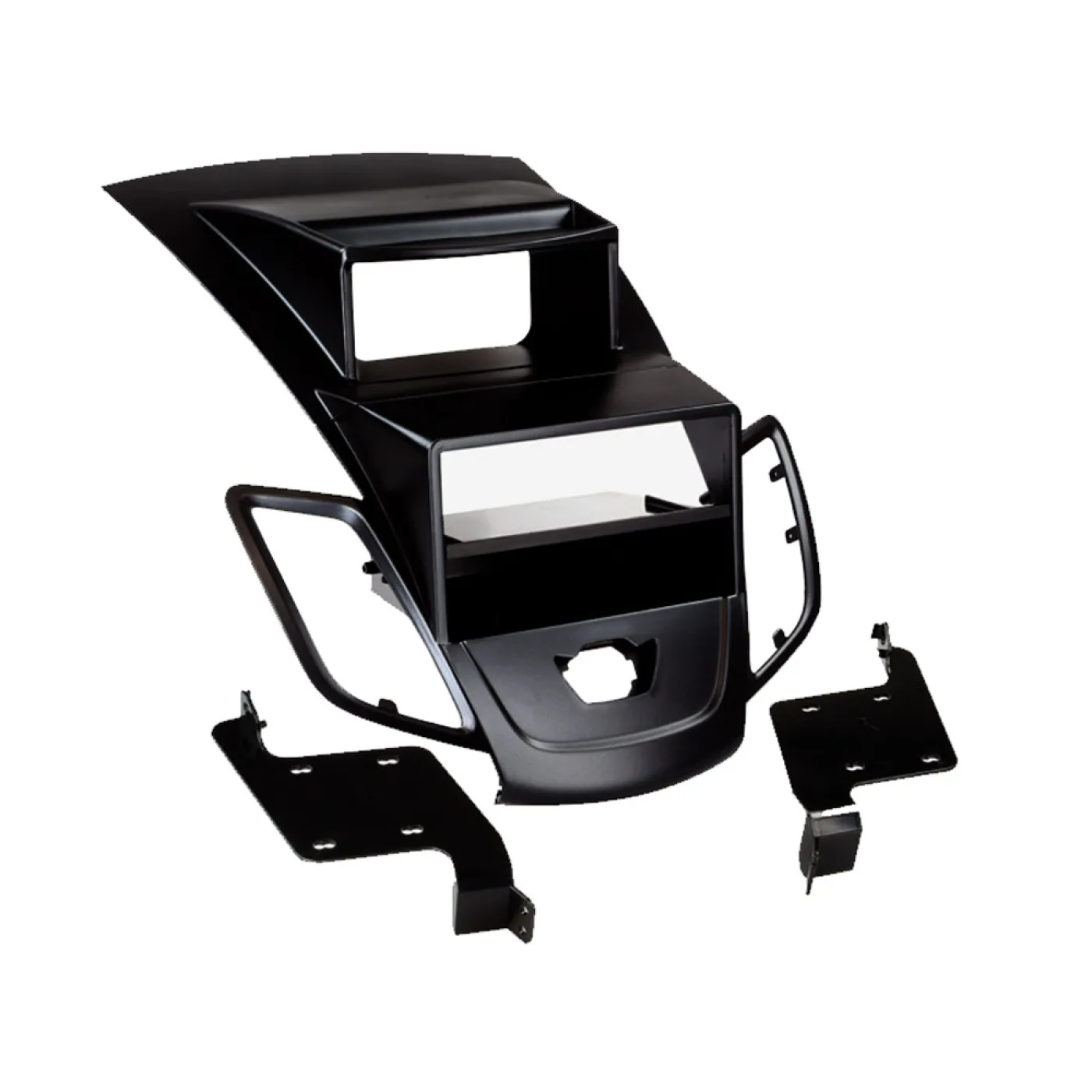

Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
A removable pocket is supplied for single DIN installation.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Steering Wheel Interface
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
FITTING GUIDE
SETTING THE TIME/DATE
- 1. Press Speech to turn on the vehicle display
- 2. Press and hold Speech for two seconds to enable menu mode
- 3. Press Volume +/- to navigate to the clock setting menu option and press Speech to
- confirm selection
- 4. Adust the time using Volume +/- and press Speech to confirm
- 5. Follow the same process to adjust the date
- 6. Once time and date have been set, press Speech to confirm
- NB: The menu option will time out after 15-20 seconds of inactivity
- 6. Connect the female vehicle specific connectors on the harness to the male vehicle
- connector from the vehicle.
- 8. Remove the car display connector from the vehicle and plug into the interface
- (please remove the dust cover from the interface before making the connection).
- 9. Connect the display connector from the loom to the vehicle (the port previously
- occupied by the car display connector, removed in Step 8.)
- Test head unit for correct operation.
- 7. Connect the chime speaker box to the loom via the 4 pin connector and the red/
- white RCA connectors to the stereo Aux Input.
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Compatible aftermarket headunits:
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- EONON
- JOYING
- XTRONS
- PUMPKIN
- Other Chinese SWC learning head units
