1 Year Warranty
Ford Galaxy, S-Max Kenwood Front or Rear Door 6.5" 17cm Coaxial Speaker Upgrade Kit
- Availability:In Stock
- Available:3 in stock
- Item Condition:New
- Brand:Kenwood
- Product Code:KFC-S1766 + CT25FD11
- EAN / UPC:7427282748735
- Warranty:1 Year Warranty
£49.99
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Galaxy | 2006 - 2015 | |
| Ford | S-Max | 2006 - 2014 |
Front or Rear Door 165mm / 17cm
This Kit Will Suit Front or Rear Door Shelf Applications.
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.

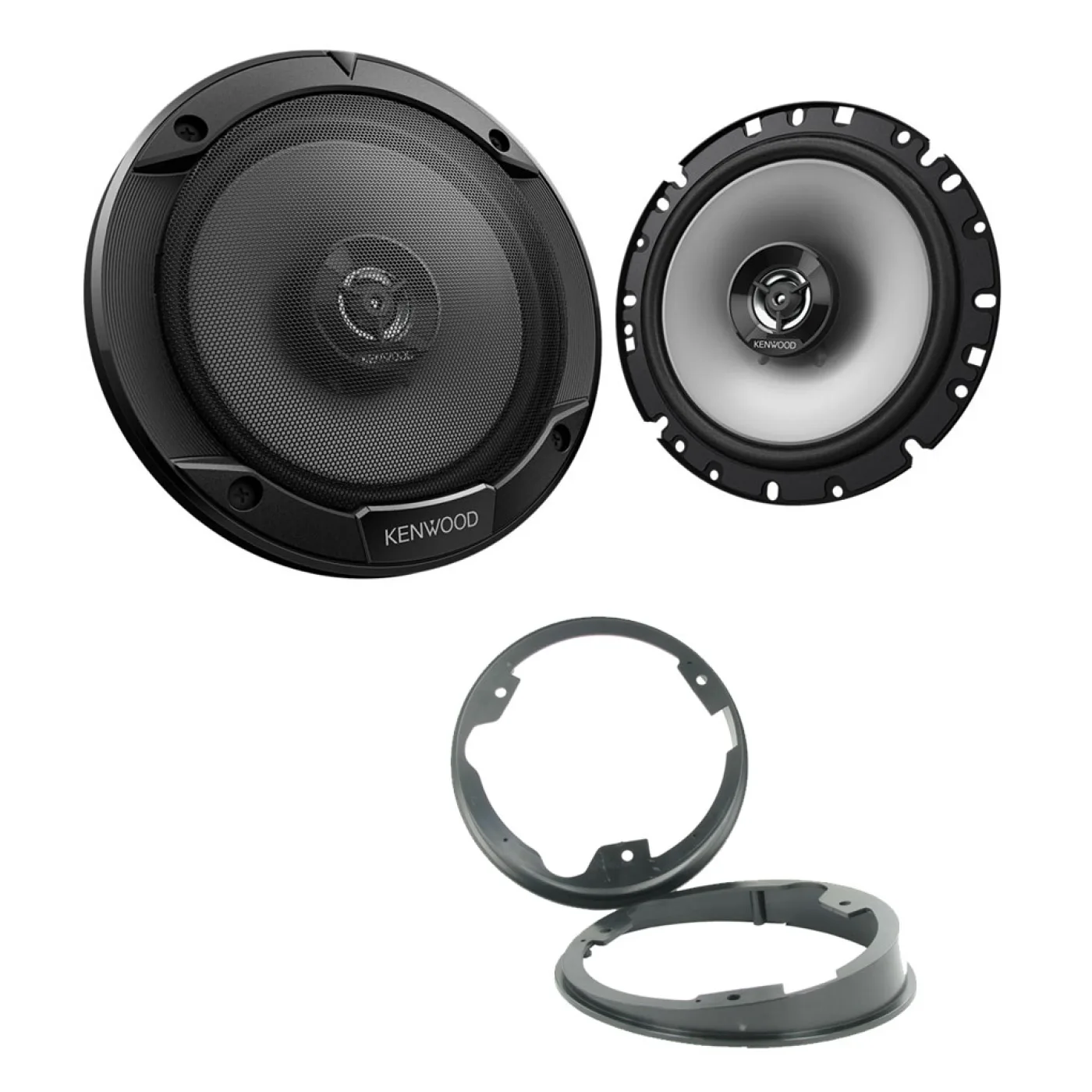

Package Includes
- Kenwood Stage Sound Series 17cm 6.5" 2-Way Coaxial Car Speaker 300 Watts

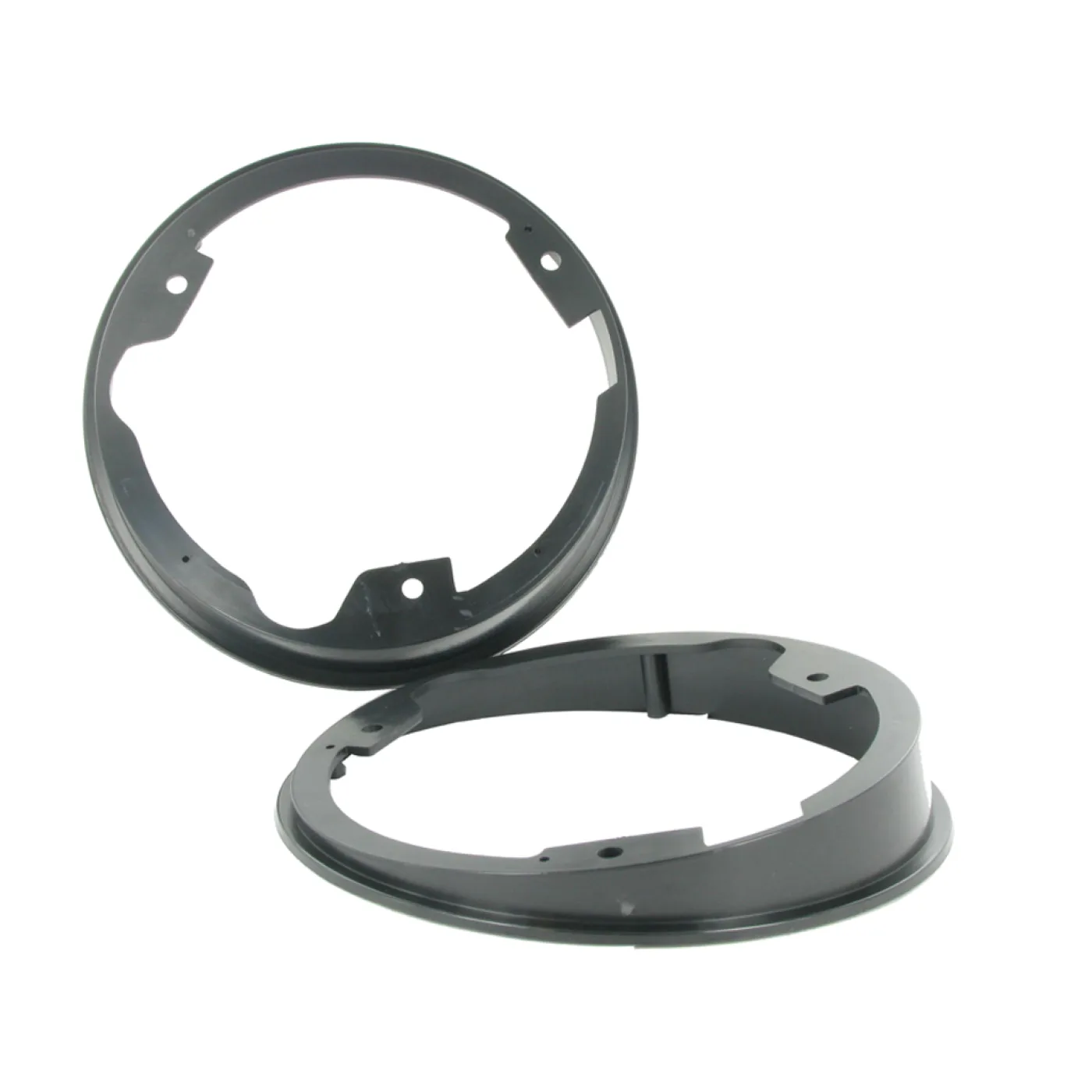

- 165mm Speaker Adaptor
Key Features
- Stage Sound Series
- Flush Mount Speaker
- 2-Way 2-Speaker System
- 17 cm Polypropylene Woofer Cone
- Heavy-Duty Woofer Magnet Circuit
- 25mm Blanced Dome Tweeter
- Tweeter Sound Field Enhancer & Electro-Dynamic Driver
- 300W Peak Power
- 30W RMS Power
- Speaker grill included
Specifications
Speaker/woofer Specifications
- Peak Input Power 300W
- Rated Input Power 30W
- Woofer Cone material Polypropylene (PP) Cone
- Speaker Basket Steel
- Speaker Surround Cloth
- Sensitivity 89dB/W/m
- Frequency Response 35Hz ~ 22000Hz
- Speaker Impedance 4Ω
- Dimensions with Grill (WxHxD) 176 x 176 x 70mm
- Dimensions w/o Grill (WxHxD) 165 x 165 x 44.2mm
- Mounting Depth 44.2mm
- Mouting Hole Diameter Ø142mm
- Tweeter Height 7mm
- Speaker Weight with Grille (pc.) 602gr
- Speaker Weight w/o Grille (pc.)536gr
- Gross Weight 1305gr
- Weight of Magnet 220gr
Tweeter Specifications
- Cone Size 25mm
- Cone Material Balanced Dome
Accessories
- Screws (Parker-type) Ø 4 x 25mm, 8 pieces
- Speed nut φ 4, 8 pieces
- Speaker grille included
- Speaker cable 0.3m
