Ford Transit Custom 2012-2018 Pioneer 6.8" Wireless Android Auto/Apple CarPlay DAB+ Stereo Upgrade Pack
- Availability:In Stock
- Available:4 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA77DAB + FK-9261/2
- EAN / UPC:7427307021713
- Warranty:1 Year Warranty

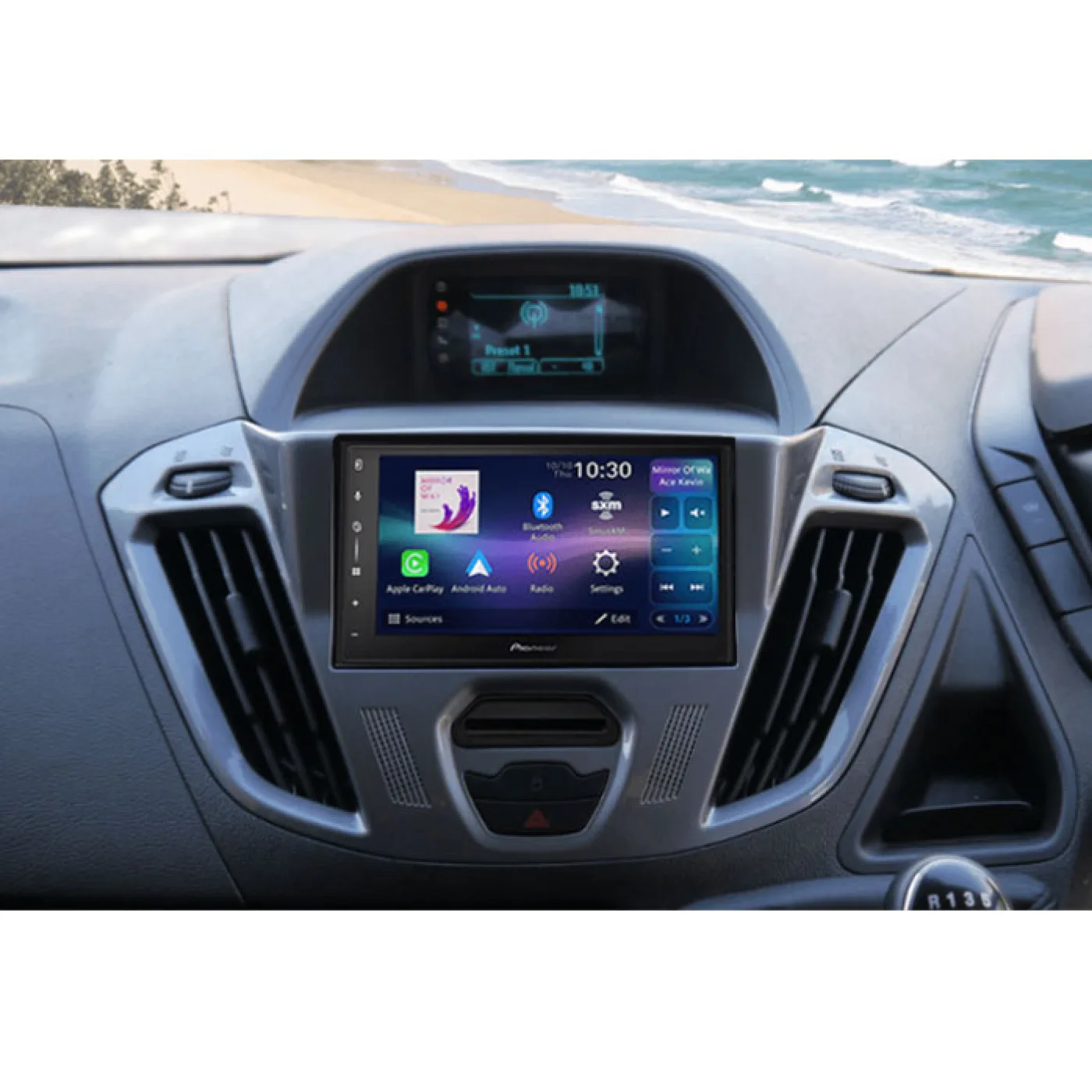

Upgrade your driving experience with this complete car stereo fitting kit, designed specifically for select 2012-2018 Ford Transit Custom (Trend model variants) van and campervan models. This kit allows for the seamless installation of the Pioneer SPH-DA77DAB car stereo, ensuring you can enjoy top-of-the-line smartphone connectivity without breaking your budget.
Retain essential factory features such as steering wheel controls, parking sensor audio, and the ability to adjust the time and date directly from the steering wheel. The kit also includes CAN ignition and speed pulse integration, perfect for navigation systems. Additionally, it comes with a genuine Ford OEM card holder (FORD-F1832265),
which covers the spare slot typically used for the Passenger Airbag button in higher-spec models, providing a clean and factory-like finish. The Pioneer SPH-DA77DAB head unit features the latest in automotive smartphone technology, including Apple CarPlay® (both wireless and wired), Android Auto™ (both wireless and wired), Dual Phone Bluetooth®, and dual camera inputs. This comprehensive fitting kit ensures a smooth, functional, and aesthetically pleasing stereo upgrade, enhancing your vehicle's functionality while maintaining its original appearance.

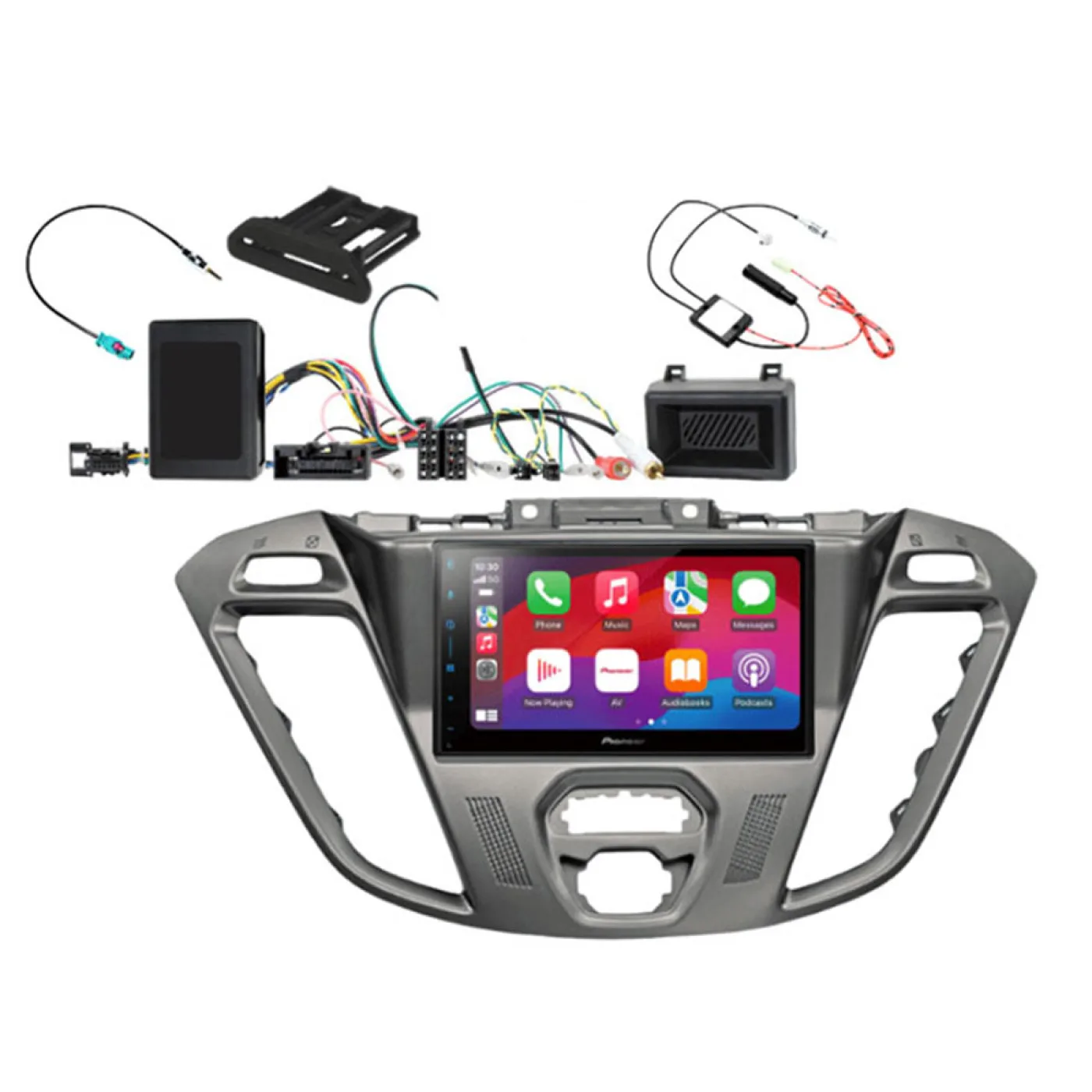

Package Includes
- Pioneer SPH-DA77DAB 6.8" Wireless Android Auto / Apple CarPlay DAB Car Stereo
- Double Din Fascia Phoenix Silver With Brackets
- DAB Splitter (Uses Vehicle Antenna For Both DAB And FM Signal)
- Steering Control Interface with OEM Display
- Fakra to DIN Antenna Adaptor
- OEM Card Holder
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Transit Custom | 2012 - 2018 | MK1 |
An additional OEM lock and hazard switch assembly (FORD-F1519127) may be required if the original can not be retained.
This kit is only for Trend model variants with display above the radio and without DAB as standard
Fitting kit
Fascia Adaptor
Fascia kit to install a double din after market radio. This kit comes with side fix mounting brackets, no fitting cage is needed. Phoenix Silver colour, usually found on the Base models.
COLOUR: PHOENIX SILVER
Fitting kit
Steering Control Adaptor
CAN-Bus Steering Wheel Control Interface for Ford vehicle models. Retains steering wheel controls, parking sensor audio and allows time/date change from the steering wheel.
Also maintains date, time & temperature display, OEM parking sensor audio with new parking buzzer. Includes CAN ignition and speed pulse for Navigation systems
Fitting kit
Fakra to DIN Antenna Adaptor
Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.
This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.
Ford OEM Card Holder
When upgrading your car stereo, some Ford vehicle fascia's are designed with a space for a passenger airbag light. If your vehicle doesn't feature this light, the OEM replacement card holder insert offers a cost-effective solution to cover the hole, avoiding the need for an expensive airbag light insert.
Specifically designed for Ford Transit, Transit Connect, and Transit Custom models, this high-quality, genuine Ford card holder seamlessly fits into your vehicle's interior, combining both functionality and style. Easy to install, it helps maintain a clean, finished appearance by covering gaps and unsightly holes in the dashboard, making it an ideal choice for when upgrading your vehicle’s infotainment system.
DIN to DAB & FM Antenna Aerial Amplifier Splitter / Radio Distributor
High quality quick fix DAB antenna is for cars with DIN original antenna connectors, it can be used on other cars with the addition of an antenna adapter.
This interface amplifies the existing FM signal and extracts from it a DAB signal, splitting the existing FM antenna into both FM and DAB.
This amplifier takes a separate 12V supply feed, it can also work with the 5V phantom power supplied by most DAB units via the DAB connection.
SMB connector for DAB radios.
Ford Transit Custom Trend model Infotainment
Trend models of the Ford Transit Custom come with a Radio/ CD system with 3.5" dot matrix multifunctional display, Ford SYNC with Emergency Assistance and audio streaming, USB connectivity, Steering wheel remote audio controls and four front speakers
Pioneer SPH-DA77DAB
Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.
Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.
To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.
Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.
Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!
The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!
Main Features
- Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
- 1Din – Short Chassis backside design
- RGB illumination
- Single Rear USB with 1.5A power supply (Type A)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Rear View and 2nd Camera Input
- Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
- Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
- Wired Remote Input
- CAN-BUS support (No HUD)
- Advanced audio features
- Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
SPH-DA360DAB vs SPH-DA77DAB comparison
SPH-DA77DAB Chassis design
SPH-DA77DAB Installation Benefit
Specifications
General
- Mechafree 6.8” WVGA Capacitive touchscreen
- Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
- USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
- Bluetooth® and DAB / DAB+ Digital Radio combined
- Digital Radio Tick Mark approved product
- Siri Eyes Free
- Advanced audio features
- Premium sound quality
- RGB
- multicolour key illumination and LCD display
- iPhone Direct Control
- Compatible with Android
- Reverse camera compatible
- 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
- Selectable wall paper (User customisation with jpeg file)
Connectivity
- Apple CarPlay (wireless & wired)
- Android Auto (wireless & wired)
- WEBLINK 3.0
- Rear USB / Rear Aux-In
- Made for iPhone / Compatible with Android
- USB Mirroring via WebLink® 3.0 for iOS, Android smartphone/tablets
- Wired Remote Control / Rear View Camera Input
- Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)
Audio and Video
- 13-BAND GEQ and Time alignment
- 3Way Network Mode
- Video output & Audio 3 Pre-Out (4V)
DOP Related
- EZ MyCarSetting
- Setting Memory for Agricultural Business
- Start Stop Function
Bluetooth
- Pioneer Bluetooth for hands-free calling & audio streaming
- Bluetooth auto pairing
- External microphone Included
- Wireless audio browsing
Audio
- Premium Sound Quality
- MOSFET 50W x 4 Max Output Power
- Music Browsing
- 13-band Graphic Equaliser
- Low Pass/High Pass Filter
- 3 x 4 Volt RCA Pre-outs
Tuner
- DAB/DAB+ Digital Radio
- Auto Tune, Pre-set buttons
- Digital Radio Tick Mark approved product
- RDS FM/AM Tuner
- 24 Pre-set
File Playback
- Audio
- WMA/MP3/WAV/AAC/FLAC
- Video
- H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS
Accessories
- Included - Microphone for Hands-free Calling
- Included - USB extension cable
| Technical | |
|---|---|
| Android Auto | Yes |
| Apple CarPlay | Yes |
| Dab Radio | Yes |
| MirrorLink Ready | Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets. |
| Navigation System | Yes |
| Screen | 6.8 WVGA screen with capacitive Multi-touch panel |
| Size | Double Din |
| Max. Power Output | MOSFET 50W x 4 Max Output Power |
| Button Illumination | RGB: multicolour key illumination and LCD display |
| Bluetooth | Yes |
| Aux In | Rear |
| USB | Single Rear USB with 1.5A power supply (Type A) |
| Pre Out | Video output & Audio 3 Pre-Out (4V) |
