Ford Transit Custom 2012 - 2017 Component Front Speaker / Under Seat Active Subwoofer Upgrade Kit
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Focal
- Product Code:ISFORD165 + ISUB ACTIVE + CT10FD09 + RKXSK
- EAN / UPC:7427288187194
- Warranty:1 Year Warranty
Package Included
- Focal Car Audio ISFORD165 2-way Component Speaker Kit
- Focal INSIDE ISUB ACTIVE Flat Active Subwoofer Enclosure Amplified Under Seat Bass
- Connects2 CT10FD09 Ford Parrot ISO-T SOT Harness Adaptor Lead
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
Product Compatibility Chart
| Make | Model | Variations | Years | Notes |
|---|---|---|---|---|
| Ford | Transit Custom | Gen 1 (2012 >) | 2012 - 2017 |
For vehicles with these style / shape factory fitted stereo:
2-WAY COMPONENT KIT
The IS FORD 165 2-way component kit is designed for all drivers who wish to install a quality sound solution in their vehicle.
The speaker drivers feature Polyglass technology, which delivers well defined midrange and bass, and the Aluminium inverted dome tweeter, a Focal technology that provides perfect treble reproduction.
Installing this kit does not require any soldering, cable trimming or vehicle modification. The integration is also invisible.
This kit is designed for vehicles that have tweeter slots.
Key Points
- Quick and easy install
- No modifications needed on the vehicle
- Polyglass cone: natural sound without coloration
- Butyl surround: excellent durability
- Insulation foams provided: perfect sound reproduction, vibrations absorbed
Features
- Type 2-way component kit
- Power max. 120W
- Power nom. 60W RMS
- Sensitivity (2.83V/1m) 91.7dB
- Frequency response 60Hz - 20kHz
- Impedance 4Ω
- Woofer 61/2" (165mm)
- Mounting depth 111/16" (42.5mm)
- Cone Polyglass
- Voice coil diameter 1" (25mm)
- Magnet Ferrite
- Surround Butyl
- Tweeter Compact Aluminium
- inverted dome
- Crossover Woofer : integrated
- Tweeter : on line
Specifications
Specifications
- Nominal power 60W
- Maximum power 120W
- Sensitivity 91.7dB
- Nom. impedance 4Ω
- Cone Black Polyglass
- Surround Butyl
- DC resistance 3.48Ω
- VC diameter 25mm 1"
- Former Kapton
- Layers 2
- Wire Copper
- Net weight 860g 1.9lbs

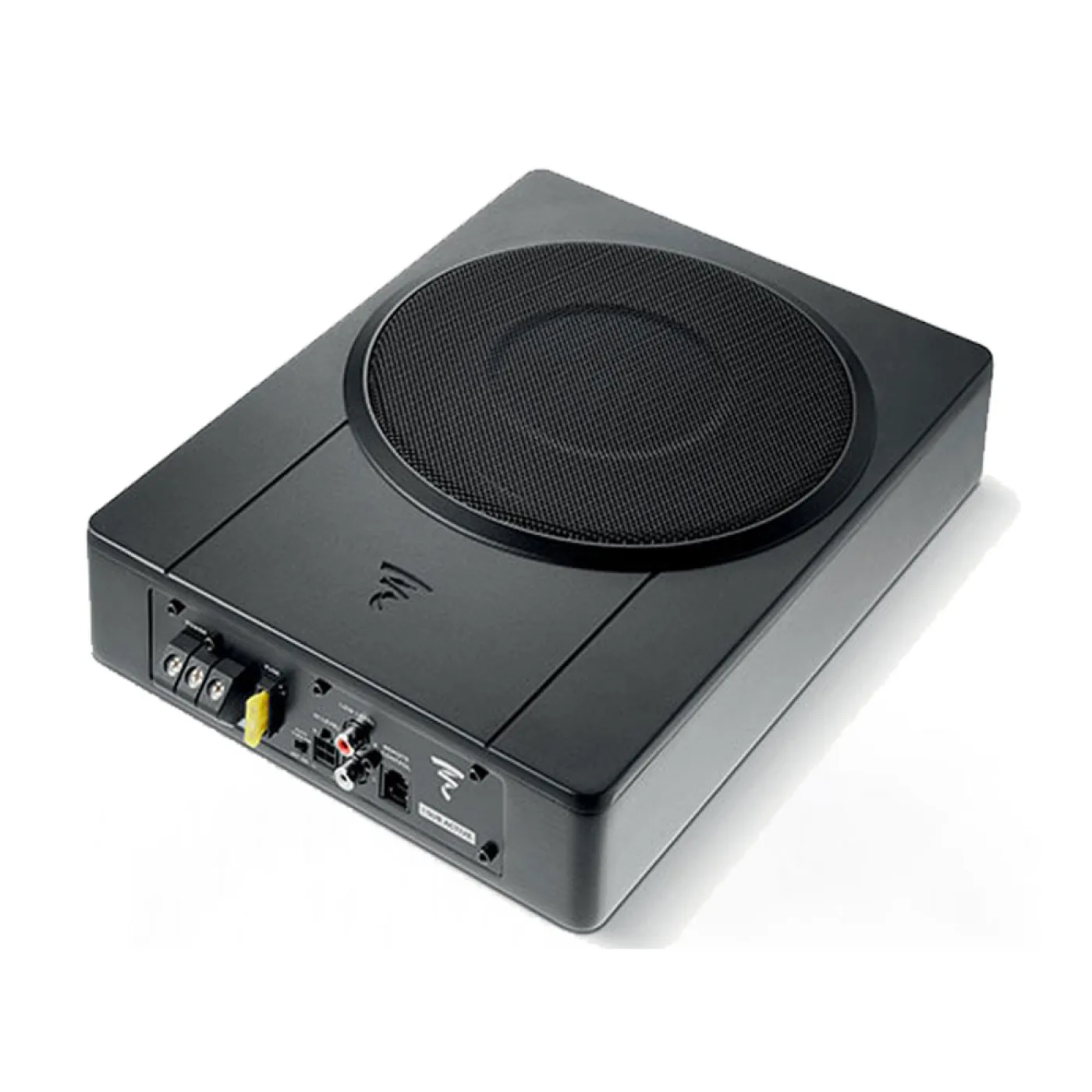

Amplified Subwoofer Powerful Bass
Self-powered subwoofer ISUB ACTIVE is the perfect way to complete any factory audio system by adding powerful (260W) and dynamic bass. It connects to the HP outputs of the car radio through the cable supplied to genuinely enhance the sound experience without taking up any space in the cabin or boot.
Measuring 21/2” (6.3cm) high, it slides easily underneath a seat, even a tight-fitting one. Thanks to the available settings, you can customise the sound reproduction. A wired remote control is also included for users to adjust the bass level as desired.
Key Points
- Focal expertise
- Ready to use (ISO cable supplied)
- Compact product, discreet integration
- Easy to use
- Various settings options (adjustable incoming signal, adjustable amplifier crossover, volume boost, etc.)
- Robust design
Specifications
Specifications
- Type 8" ultra-compact amplified subwoofer
- Max. power 260W
- Nom. power 130W RMS
- Frequency response 45Hz - 150Hz
- Impedance 4Ω
- Fuse rating 20A
- Subwoofer phase 0 or 180°
- SNR > 80dBA
- Dimensions (L x W x H) 127/8 x 91/16 x 21/2" (328 x 230 x 63 mm)
- Weight 9.6lbs (4.25kg)
Ford ISO T-Harness
The ISO-T Harness SOT lead (SOUND ON TOP) is the perfect accessory when installing an aftermarket amplifier. The ISO-T harness installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers. The SOT leads are versatile and can be used for multiple installation purposes, accommodating Bluetooth car kits and hands-free kits for seamless integration into your vehicle.
The ISO-T Harness can also be used when connecting a Bluetooth car kit. Engineered for connecting your car's audio and radio harness, it supplies the necessary power and earth connections to your kit and also channels phone audio through the front speakers of your vehicle. This installation requires no invasive cable cutting, preserving the integrity of your vehicle's wiring system.
Features
- Allows the installation of any handsfree car kit with ISO connectors
- Can be used with an OEM or an aftermarket radio
- Please check the connections in the vehicle match the harness you are purchasing
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
