Ford Transit Custom 2012-2021 Focal Component Front Door Speaker With Under Seat Subwoofer Pack
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:165AS + CT25FD14 + CT55-FD02 + TS-WX140DA
- EAN / UPC:7427307014050
- Warranty:1 Year Warranty

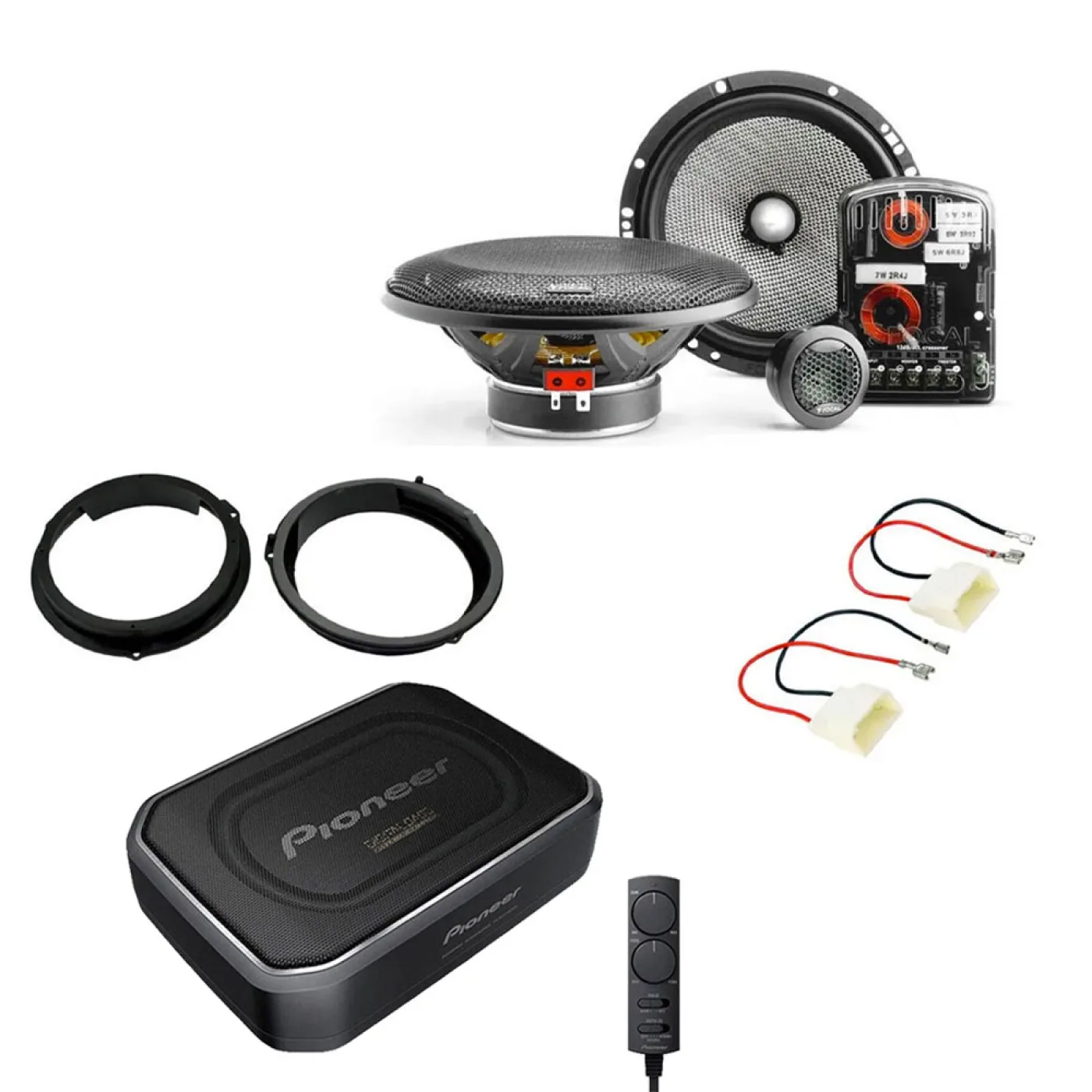

Package Includes
- Focal Access Series 2-Way 16.5cm 6.5" Component Car Speakers
- Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Transit Custom | 2012 - 2021 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Discover New Musical Sensations
With Focal's Access 165 AS, you can discover new musical sensations. Become part of the world of performance with a kit that offers multiple configuration possibilities to enhance your audio installation. This range's reference model is a best-seller with a worldwide reputation.
Cutting-Edge Technologies and Innovative Materials
DFS ® cone, aluminium inverted dome tweeter; Focal's engineers have paid special attention to every detail to bring you a truly satisfying listening experience without breaking the bank. By using cutting-edge technologies and innovative materials, Focal has reached its objective... Listen to the result!
Specifications
What Makes It Special
- DFS® cone (Dual Fiberglass Structure)
- High sensitivity (direct connection to car stereo)
- High power handling, great bass
Accessories
- Grilles included
Techinal Specifications
- Woofer
- 61/2" (165mm)
- Voice-coil diameter
- 1" (25mm)
- Voice-coil height
- 07/16" (11mm)
- Magnet
- 31/3" (85mm)
- Tweeter
- Aluminum inverted dome
- Ajustable Tweeter level
- 3 positions (-3/0/+3dB)
- Crossover
- 12dB/oct
- Max. power
- 120 Watts
- Nom. power
- 60 Watts RMS
- Sensitivity (2.83V/1m)
- 91.3dB
- Frequency response
- 60Hz – 20kHz
- Accessories
- Supplied grilles
Powerful Bass, without losing space.
Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.
Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.
TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.
EV Optimized
This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.
Car Sound Fit App Car
sound simulator application for an improved in-car sound experience
Digital Bass Control
Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.
Main Features
- EV Optimized
- CarSoundFit App
- DIGITAL BASS CONTROL
- Size 20 cm
- Maximum power 170 W
- Continuous power output 50 W
- Frequency Response
- DEEP Bass Mode: 20 - 200 Hz
- NATURAL Bass Mode: 40 - 200 Hz
- DYNAMIC Bass Mode: 40 - 160 Hz
- Sensitivity
- DEEP Bass Mode: 95 dB
- NATURAL Bass Mode: 98 dB
- DYNAMIC Bass Mode: 100 dB
- Woofer material Aluminium
- Surround Urethane
- Voice Coil type Copper Round Wire 4-Layer
- Voice Coil bobbin type Glass Imide
- Magnets Strontium
- Weight 3,1 kg
- Dimensions (W x H x D) 280 x 200 x 70
