Ford Transit Custom MK1 2013 - 2018 Alpine 8" Subwoofer Box Amplifier Wiring Kit
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:SUBBOX-T5 + SWG-844 + BBX-T600 + SSK8 + CTLOCA25H
- EAN / UPC:7427306993387
- Warranty:1 Year Warranty

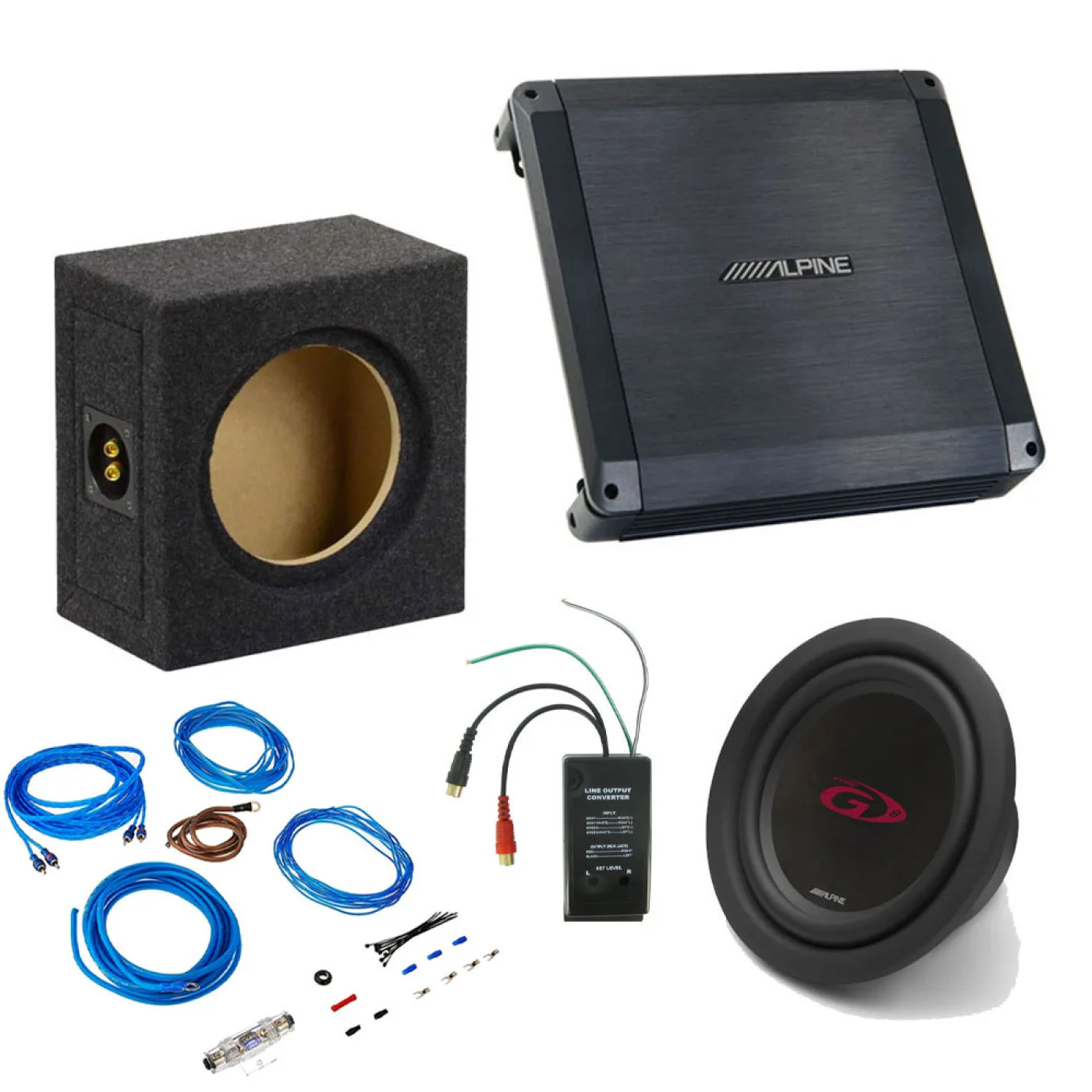

Package Includes
- Alpine BBX-T600 BBX Power Class A/B Amp 2 Channel Car Amplifier 300W
- Alpine SWG-844 Type-G 8" 20cm 400W Car Subwoofer 4 Ohm Bass Driver
- Incartec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)
- Stinger SSK8 8GA 600W Amplifier Wiring Kit
- Connects2 CTLOCA25H PC1 - 610 High to Low level converter Two channel RCA Output
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Transit Custom | 2013 - 2018 | MK1 |
Compatible with original Ford stereo using the supplied Hi to Low converter 23-001 from the kit.
( HARDWIRING IS REQUIRED FOR THIS )Compatible with after market radios with a subwoofer Pre out using the supplied RCA lead from the kit.

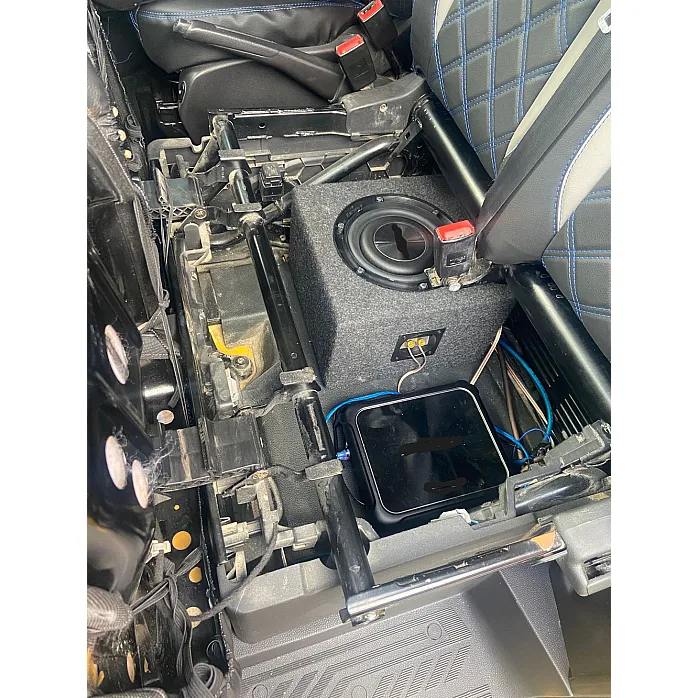

Only suitable for vehicles with double storage lift up passenger seats in the front as the photo below:
Designed for Europe
This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.
High Power, Great Value
This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters
These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Bass EQ for Best Bass
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

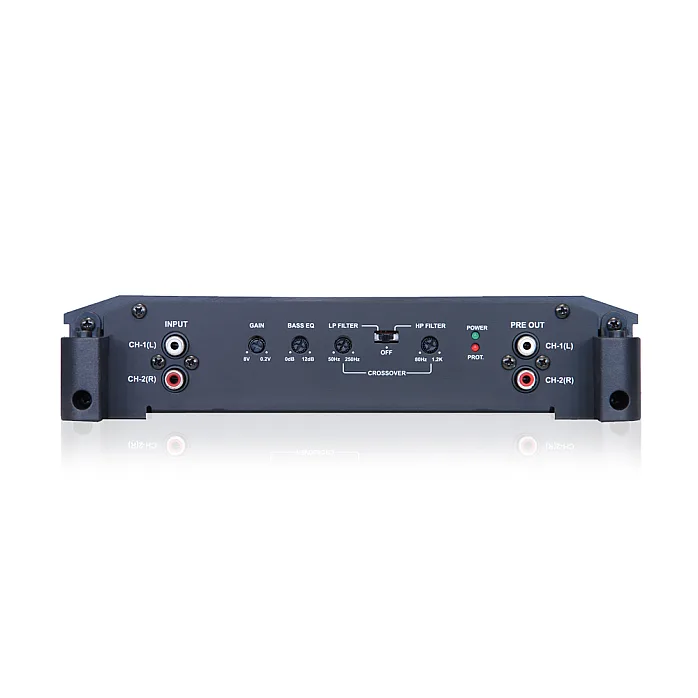

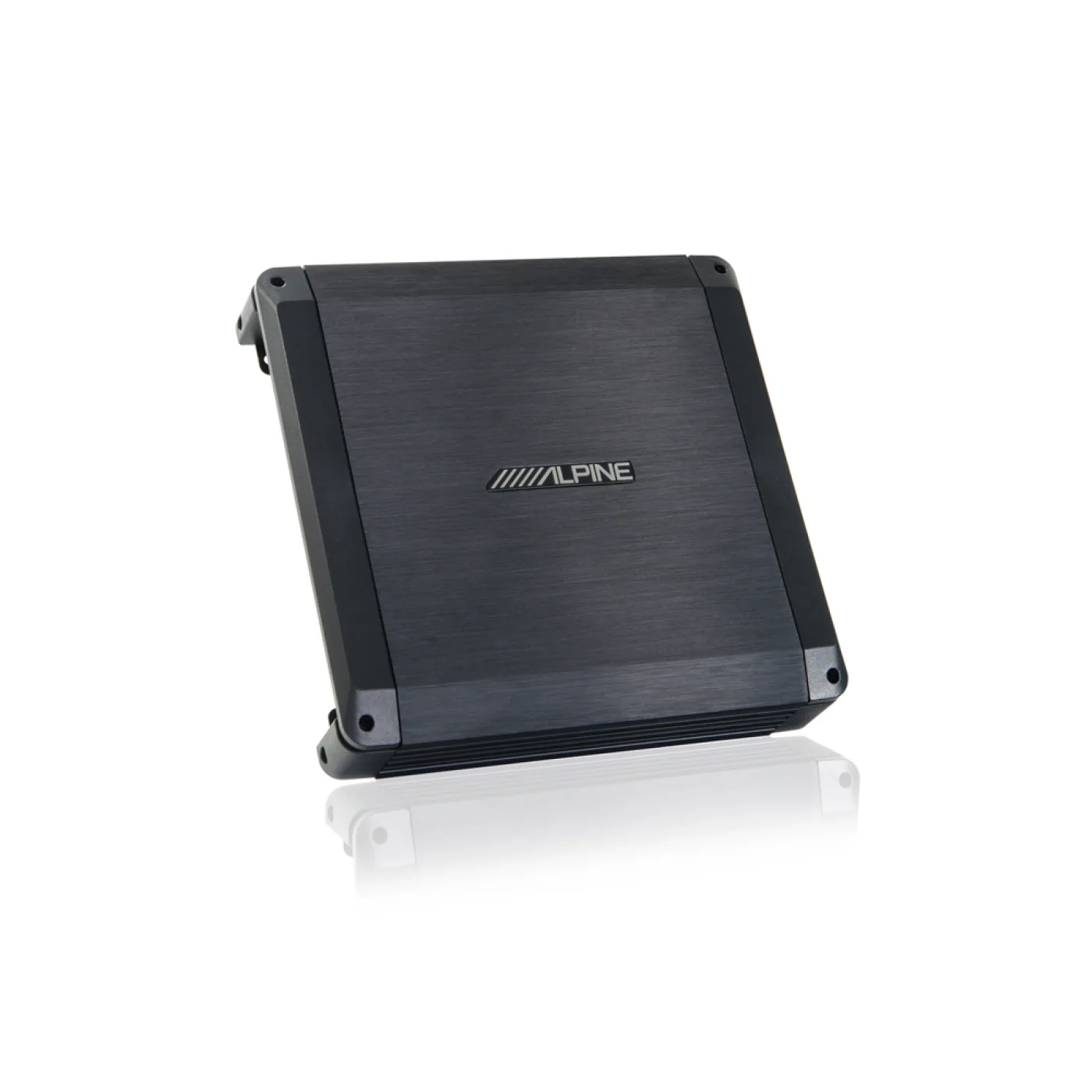

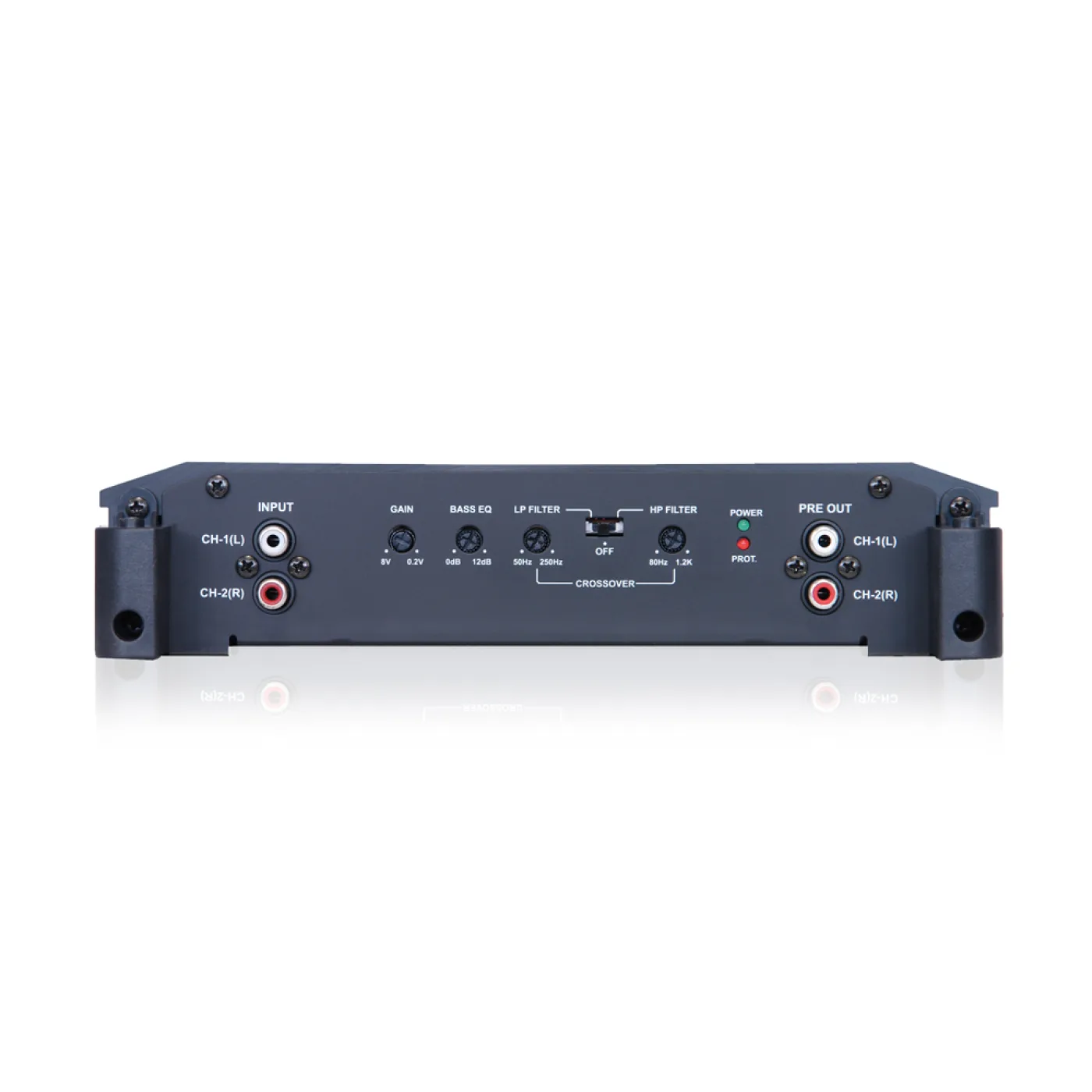

Alpine BBX-T600 Features
Specifications

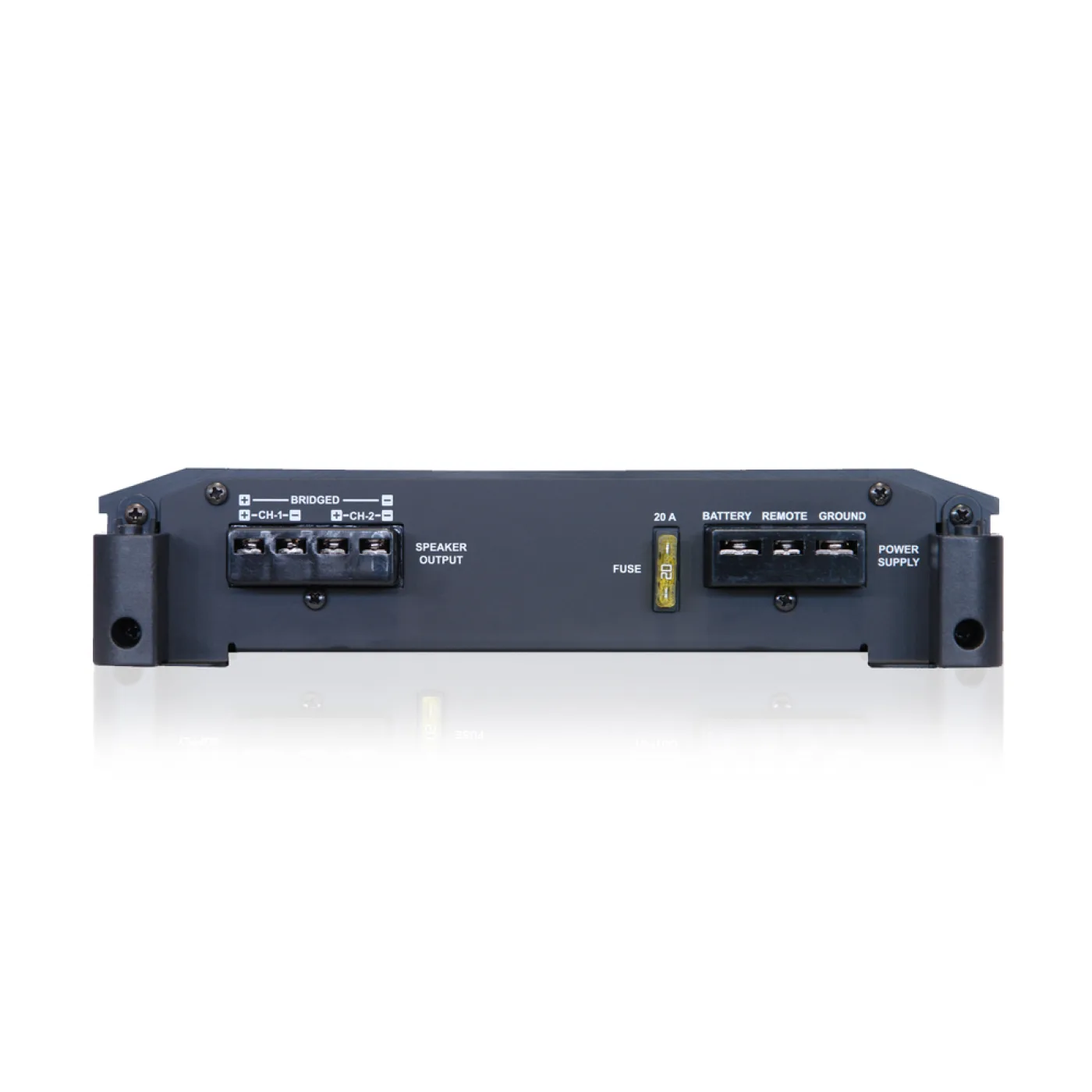

Install
- Terminal Layout
- Two-Sided
- Screw Mount / Wire Cover
- Integrated Wire and Mounting Screw Terminals
General
- Amplifier Type
- Class-A/B
- Channel Design
- 2/1 Channel
- Thermal Control
- Thermal Management Control
- Power Supply
- DC-DC PWM Power Supply
- Power Supply Design
- MOSFET Power
- Current Protection
- Over-Current, Over-Voltage and Thermal Protection
- Crossover
- Variable Low-Pass / High-Pass
- Green/red Status LED
- 1 pair RCA pre-inputs
- 1 pair RCA pre-outputs
Specifications
Max Power Output Ratings
- Total Max Power
- 300W
RMS Power Ratings
- Per Channel into 4ohms (≤1%THD+N)
- 2 x 50W
- Per Channel into 2ohms (≤1%THD+N)
- 2 x 70W
- Bridged into 4ohms (≤1%THD+N)
- 1 x 130W
Sound Tuning
- Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
- 1/2 Ch
- LP: 50Hz – 250Hz HP: 80Hz – 1.2kHz
- EQ (Equalizer)
- Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB
Dimensions
- Footprint
- 250 mm x 52 mm x 240 mm
General
- Power Requirements
- 14.4 V DC (11 V to 16 V)
- Input Sensitivity
- 0.2 - 8.0 V
- Frequency Response
- 5 Hz - 50 kHz (+ 0,-3 dB)
- Speaker Impedance
- 4 or 2 Ω
- Signal to Noise
- S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
- Weight
- 1.9 Kg
InCarTec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)
VW T5 8 Inch (8 Litre) Under Seat Subwoofer box (MDF)
MDF carpeted sub woofer box for a 8 inch sub woofer. 8 litre volume. Speaker wire connection port
Specifications
Product Specifications
- Board MDF
- Fabric Grey Melange
- Speaker size 8"/20cm
- Mounting hole diameter (mm) 182
- Undercut diameter (mm) 222
- Subwoofer depth (mm) 32
- MAX magnet diameter (mm) 182
- Volume closed enclosure (liters) 8
- Weight (kg) 4.70
- Enclosure width (mm) 305
- Enclosure height (mm) 295
- Enclosure depth (mm) 185

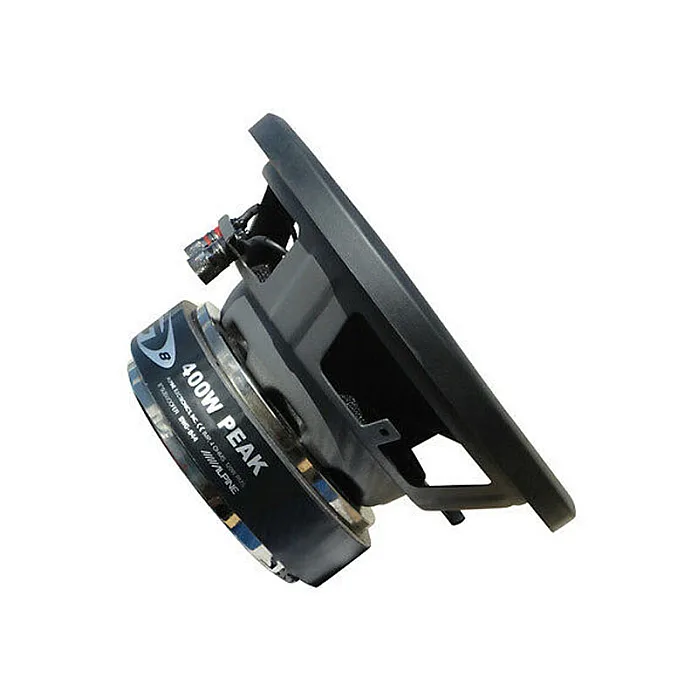

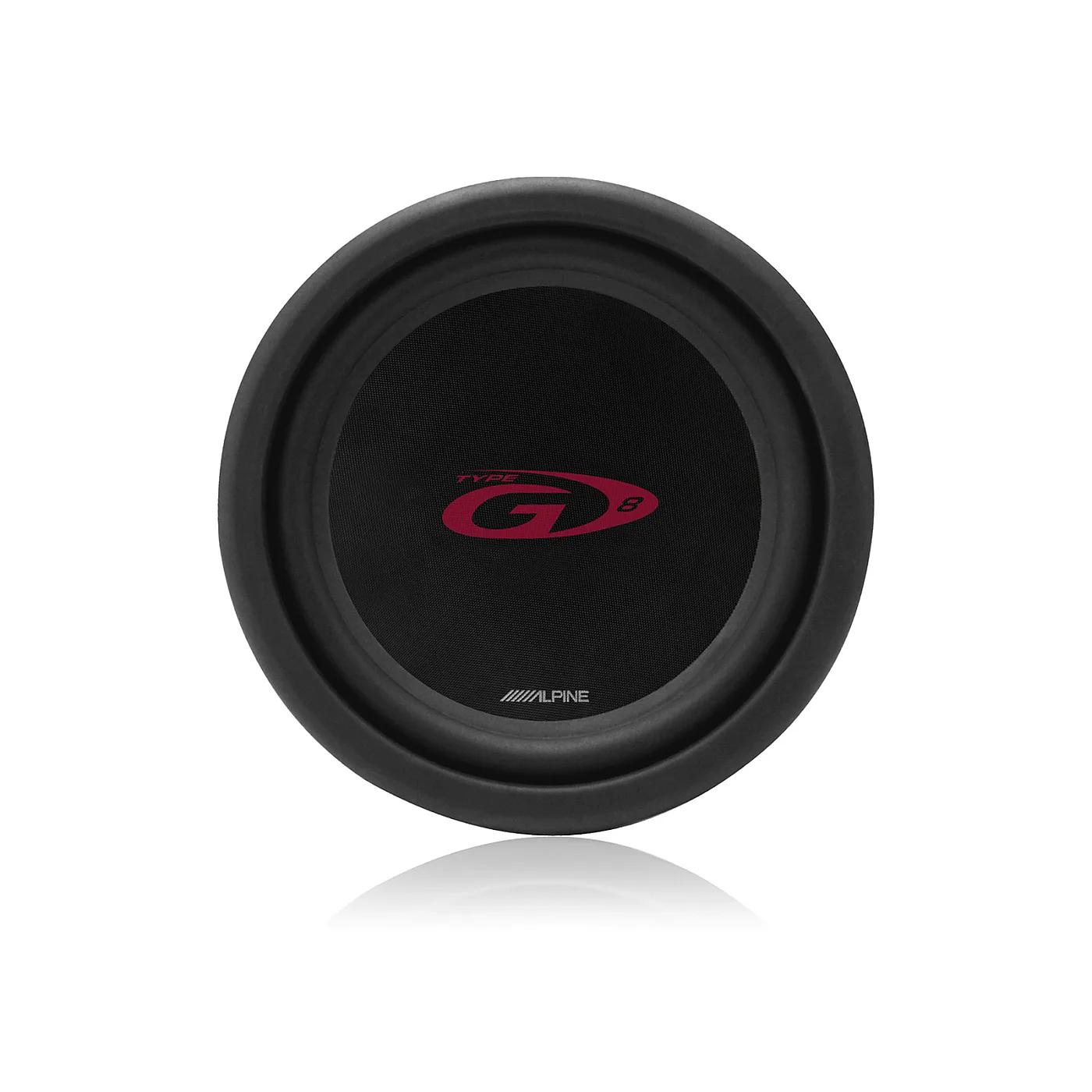

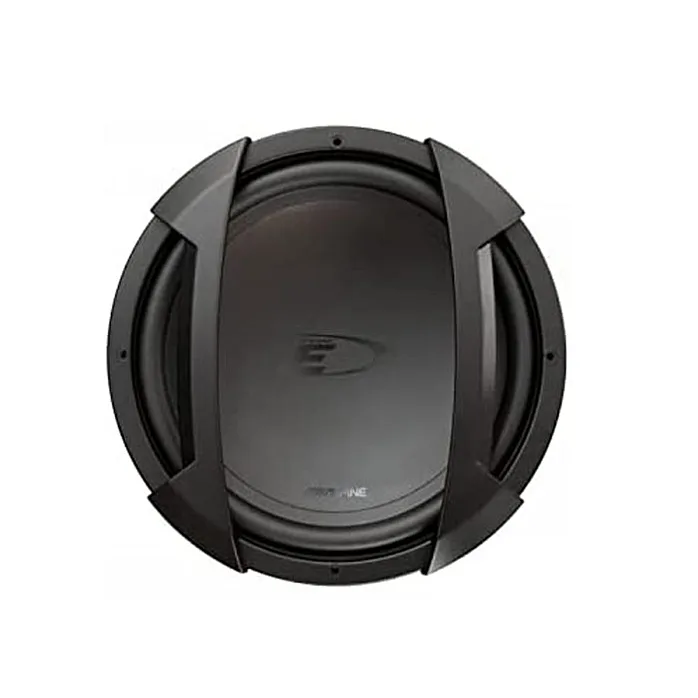

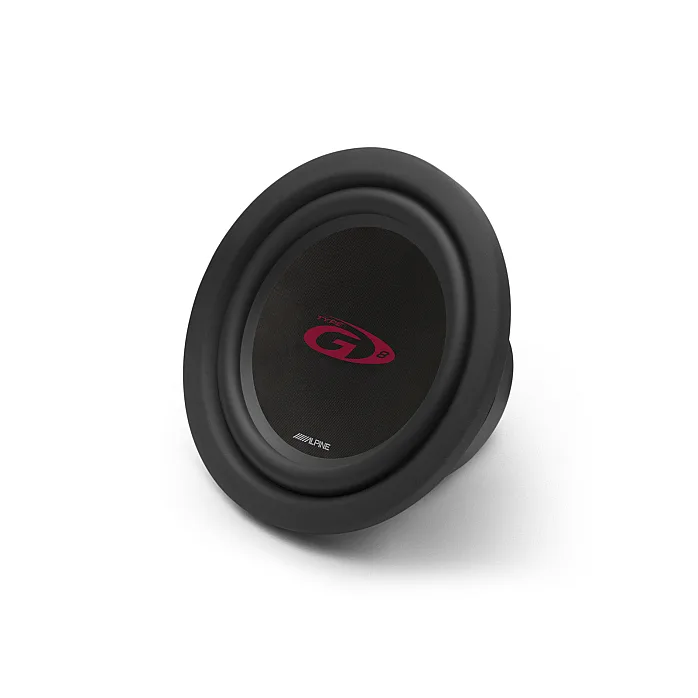

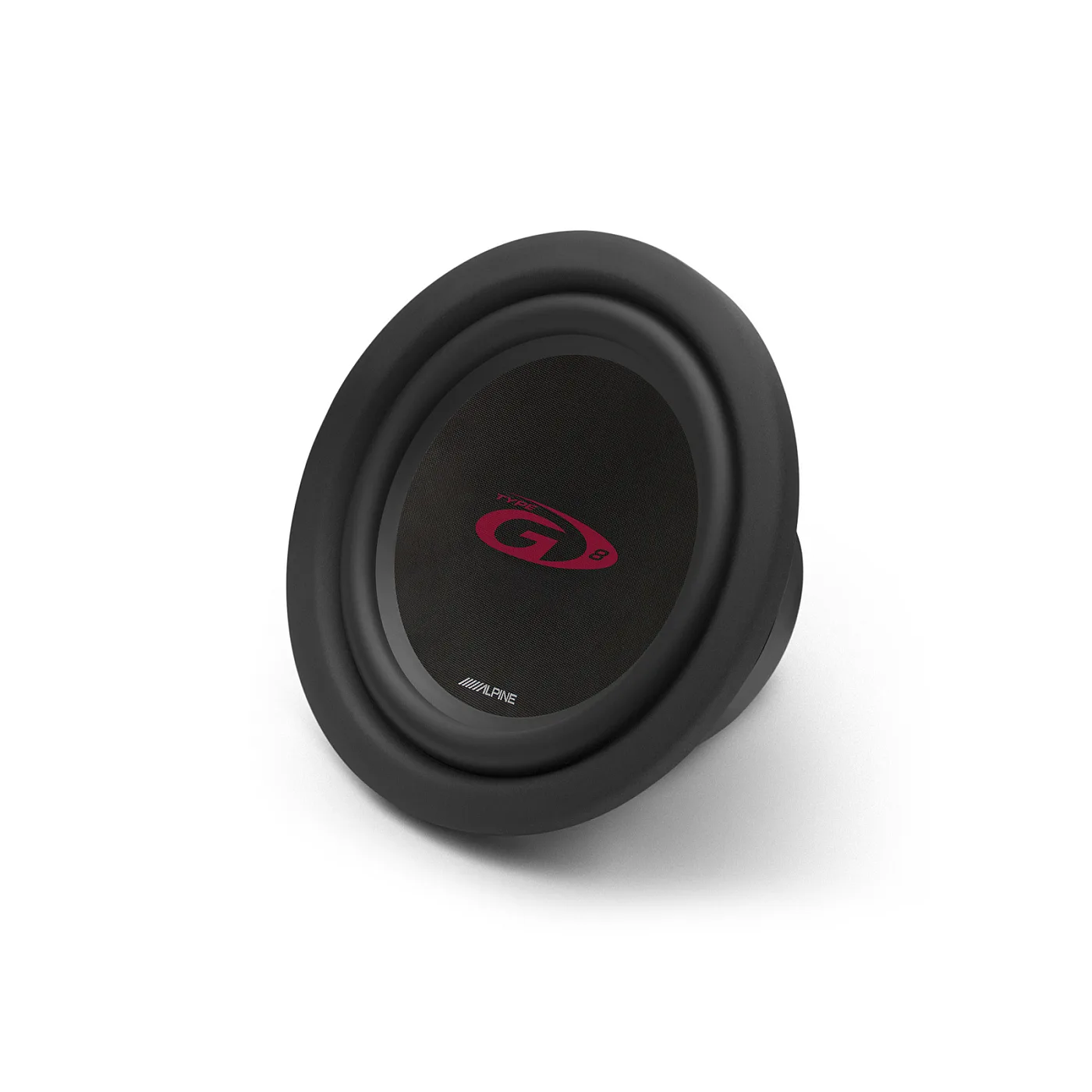

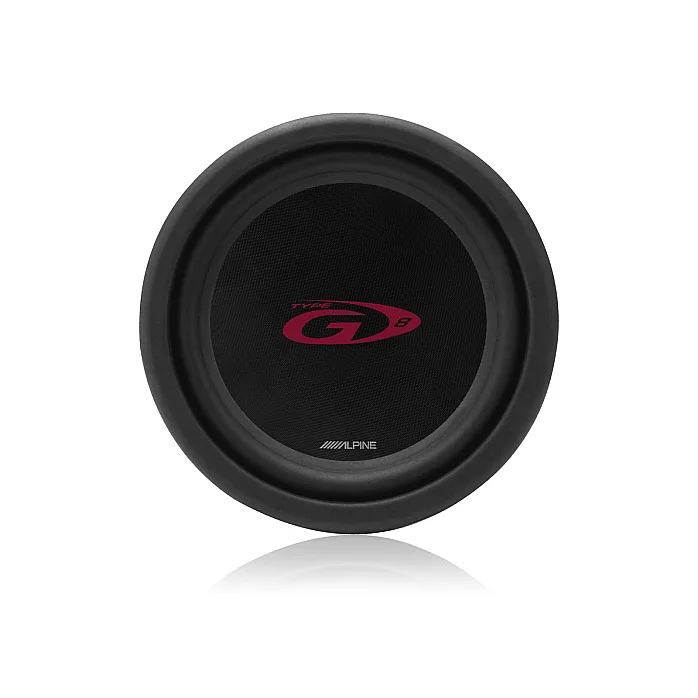

SWG-844
An excellent match for the Type-G speakers, the Type-G subwoofers combine impressive bass output with high power handling and efficiency, and at a comfortable price level!
Features
- Peak Power: 400W
- RMS Power: 120W
- Frequency Response: 34Hz – 1.5kHz
- Sensitivity: 87dB/W (1m)
- Installation Diameter: 183mm
- Depth: 114mm
Stinger SSK8 8GA 600W Amplifier Wiring Kit
Featuring Ultra Flexible CCA cable construction for excellent current transfer to power hungry amplifiers on a budget. Quality twisted pair interconnects for noise free signal transfer. Also includes ultra flexible speaker wire, remote turn-on, MIDI high current fuse holder and ring terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.
Includes
- 17FT Matte Blue Ultra Flexible Power Wire (CCA)
- 3FT Matte Gray Ultra Flexible Ground Wire (CCA)
- 17FT Twisted Pair RCA Interconnects (OFC)
- 17FT Blue Remote Turn-on Wire (CCA)
- 20FT Matte Blue Ultra Flexible Speaker Wire (CCA)
- 1pc. High Current Water-resistant MIDI Fuseholder with 60A Fuse
Connects2 CTLOCA25H PC
Line Output Converter - High to Low level converter. Level adjustable. Two channel speaker input, two channel RCA Output
