Ford Transit Custom Phoenix Silver Double Din Fascia Stalk Antenna Reversing Camera Kit
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:FKIT-FORD-78 + CAM-FD8 + CAM-RCA1
- EAN / UPC:7426871617643
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Transit Custom | 2012 - 2021 |
Vehicles without OEM display, Connection: OEM Specific
NOT SUITABLE FOR VEHICLES WITH SEPARATE RADIO DISPLAY.
Additional OEM Parts From Ford Required - 1799698 Jewels Lamp/Passenger Airbag Warning (If Passenger Airbag Fitted) or 1832265 Card Holder (If No Passenger Airbag) & 1519127 Hazard/Door Lock Switch.
Ford Transit 2012 On wards (V363) Vehicles Without OEM Display Original stereo will have display built into original radio and not separate:
Ford Double Din Stereo Replacement Kit allows fitment of a Double DIN aftermarket headunit to the selected vehicle. The kit includes fascia, steering control adaptor & aerial adaptor.

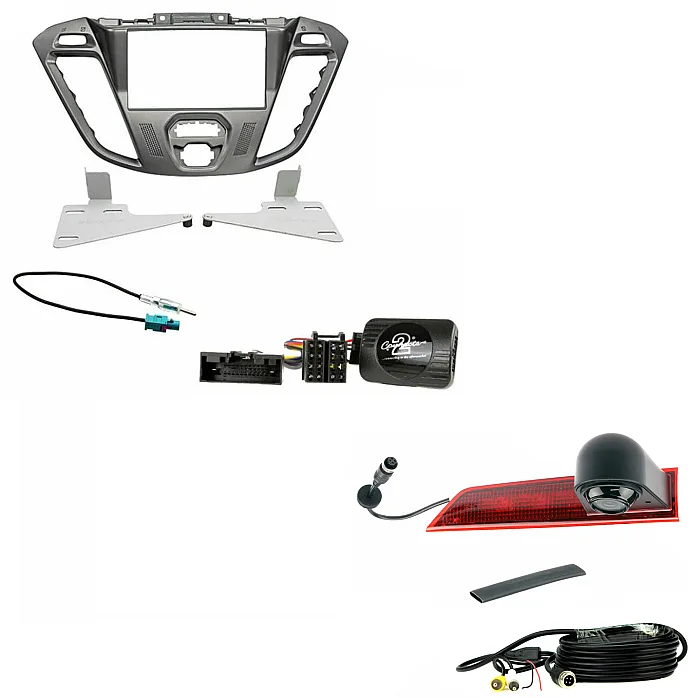

Double Din Fitting Includes
- Double Din Fascia Adaptor (Phoenix Silver)

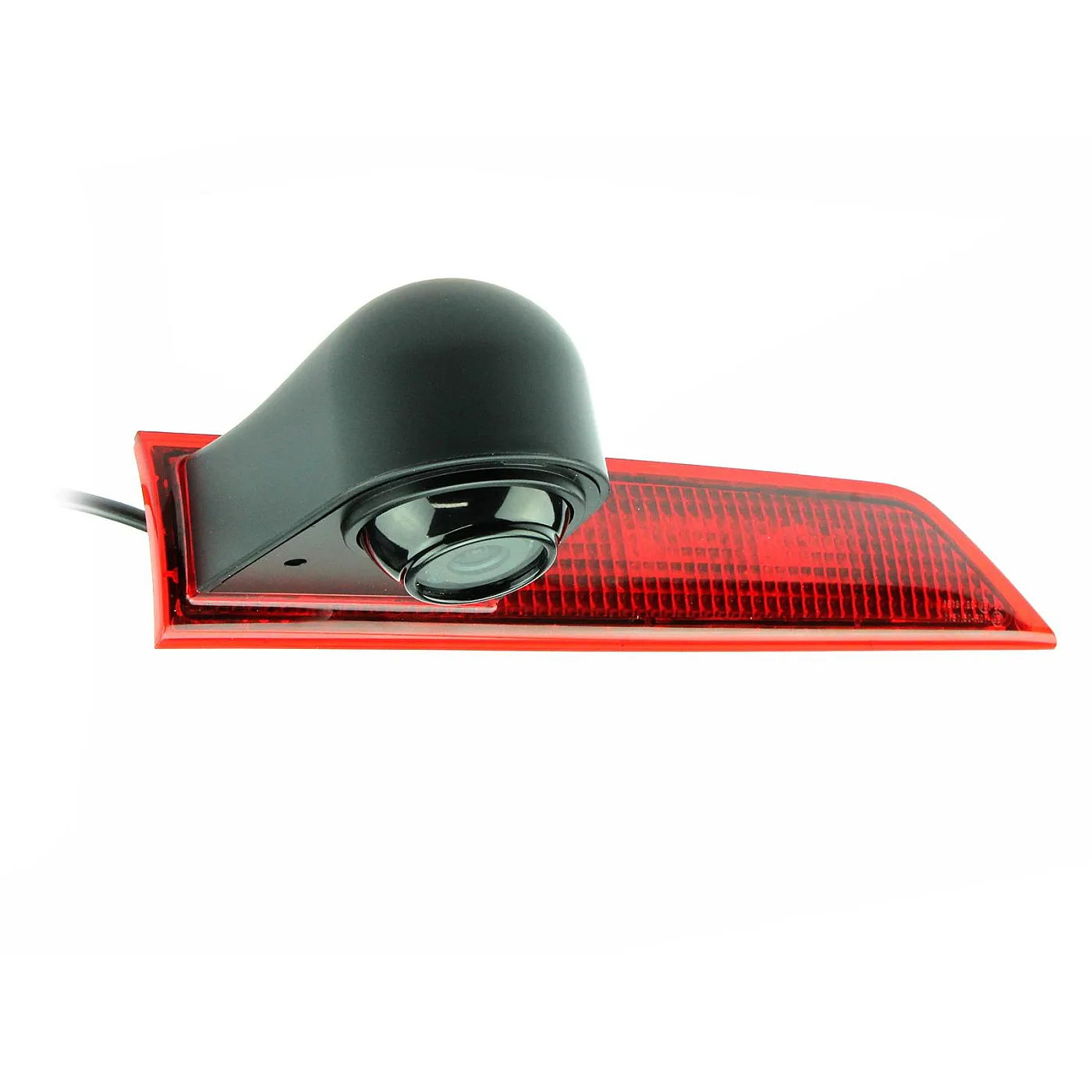

- Brake Light Reversing Camera

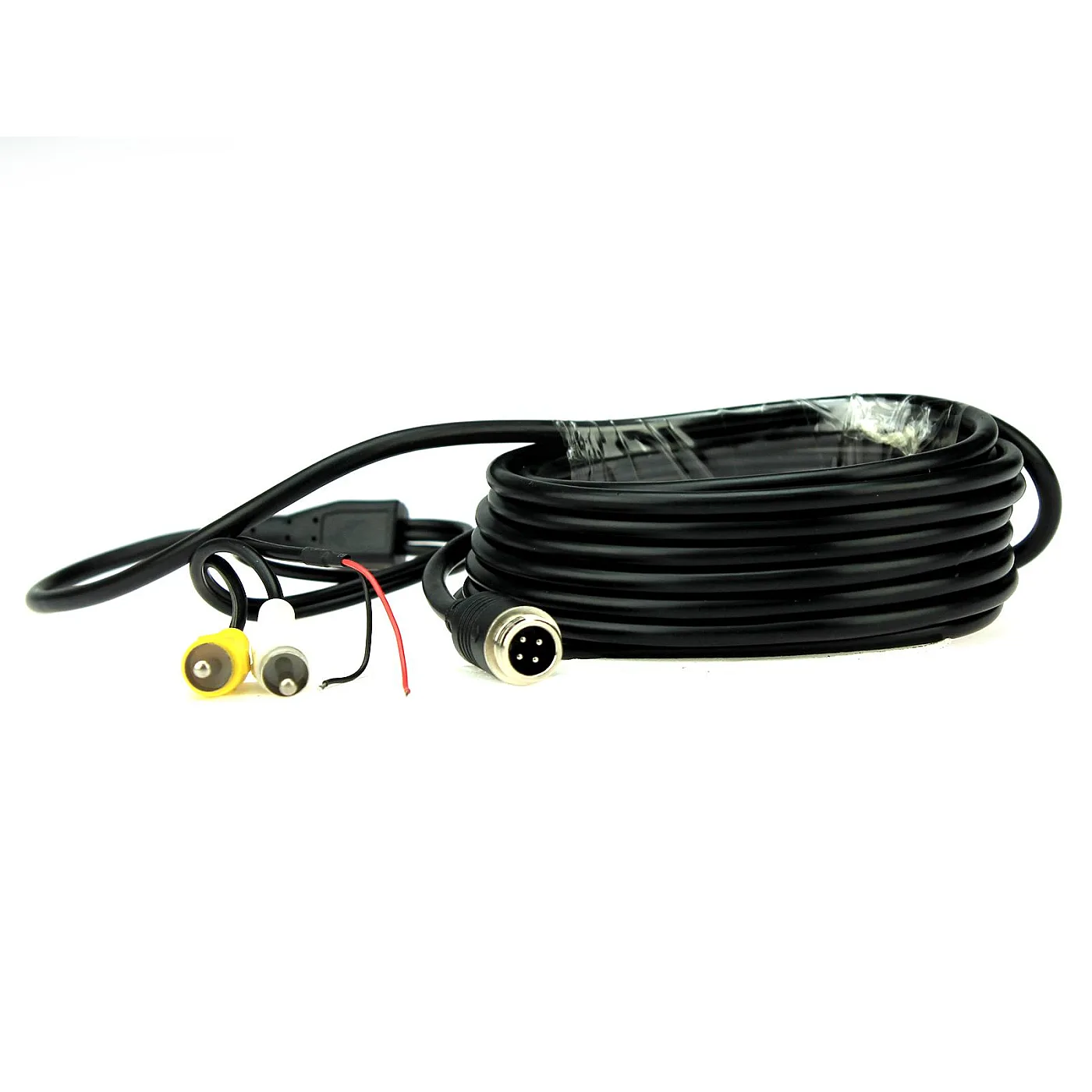

- 4 Pin Din Camera Adaptor
- Steering Wheel Interface Adaptor
- Aerial Adaptor
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Click here for Installation Guide

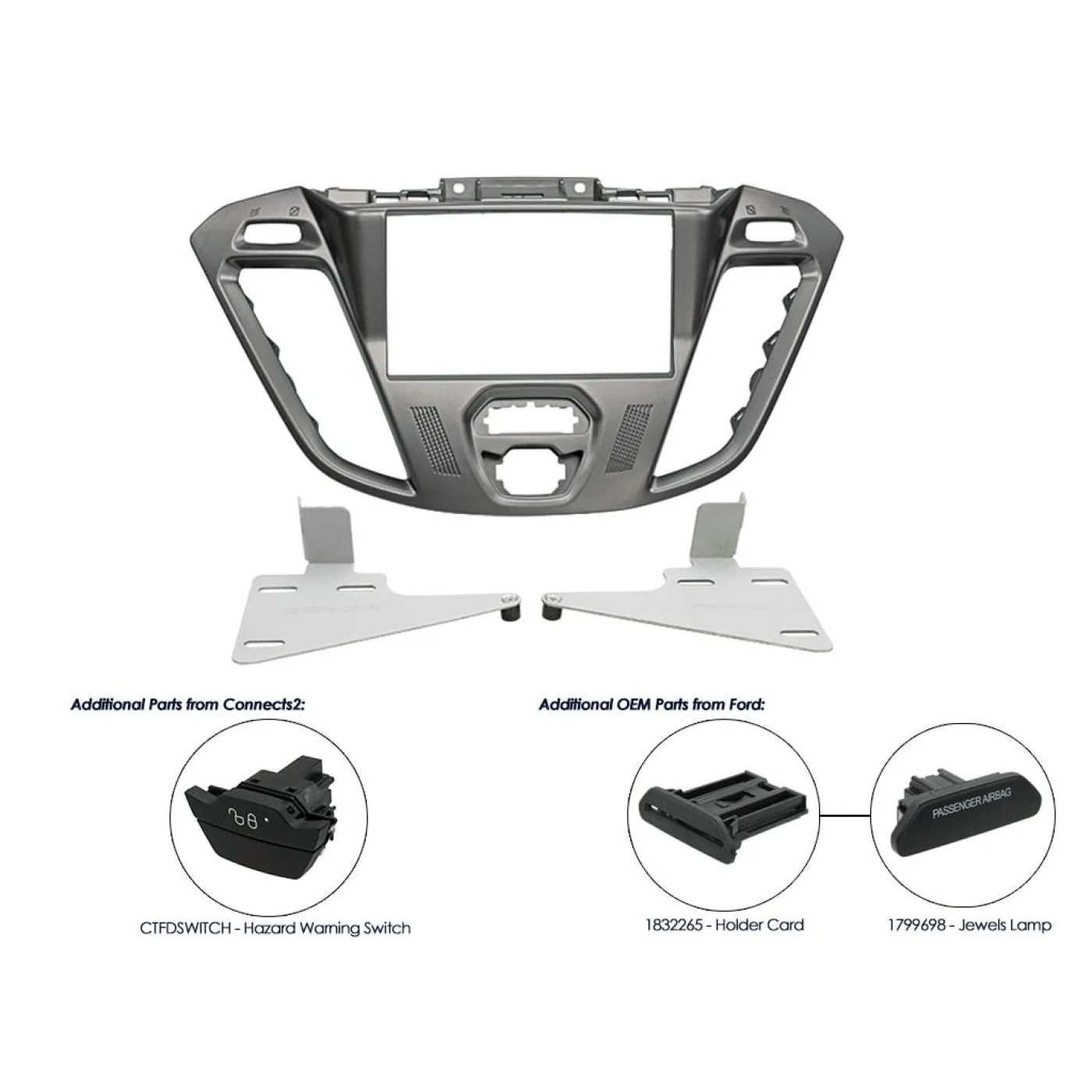

Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Steering Wheel Interface
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Specifications
Compatible Aftermarket Headunits
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- Other Chinese SWC learning head units
- EONON
- JOYING
- XTRONS
- PUMPKIN
Important Patch Lead Notes
- You can simply cut the loops / wires to select which brand you are fitting. Supplied with instruction sheet
- This patch lead CANNOT be used for Blaupunkt / Parrot / Becker / JVC KW-AVX head units / Older Kenwood units with the DIN plug. For those models you need to purchase the lead from the add-on options.
Important Fascia Notes
- The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
- China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
- We do not take any responsibility for China units not fitting as they are not industry standard size.
