Holden Astra, Captiva Pioneer 6.8" Wired CarPlay / Android Auto Bluetooth Stereo Upgrade Pack
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:Pioneer
- Product Code:SPH-DA150BT + FK-8412
- EAN / UPC:7427307026503
- Warranty:1 Year Warranty

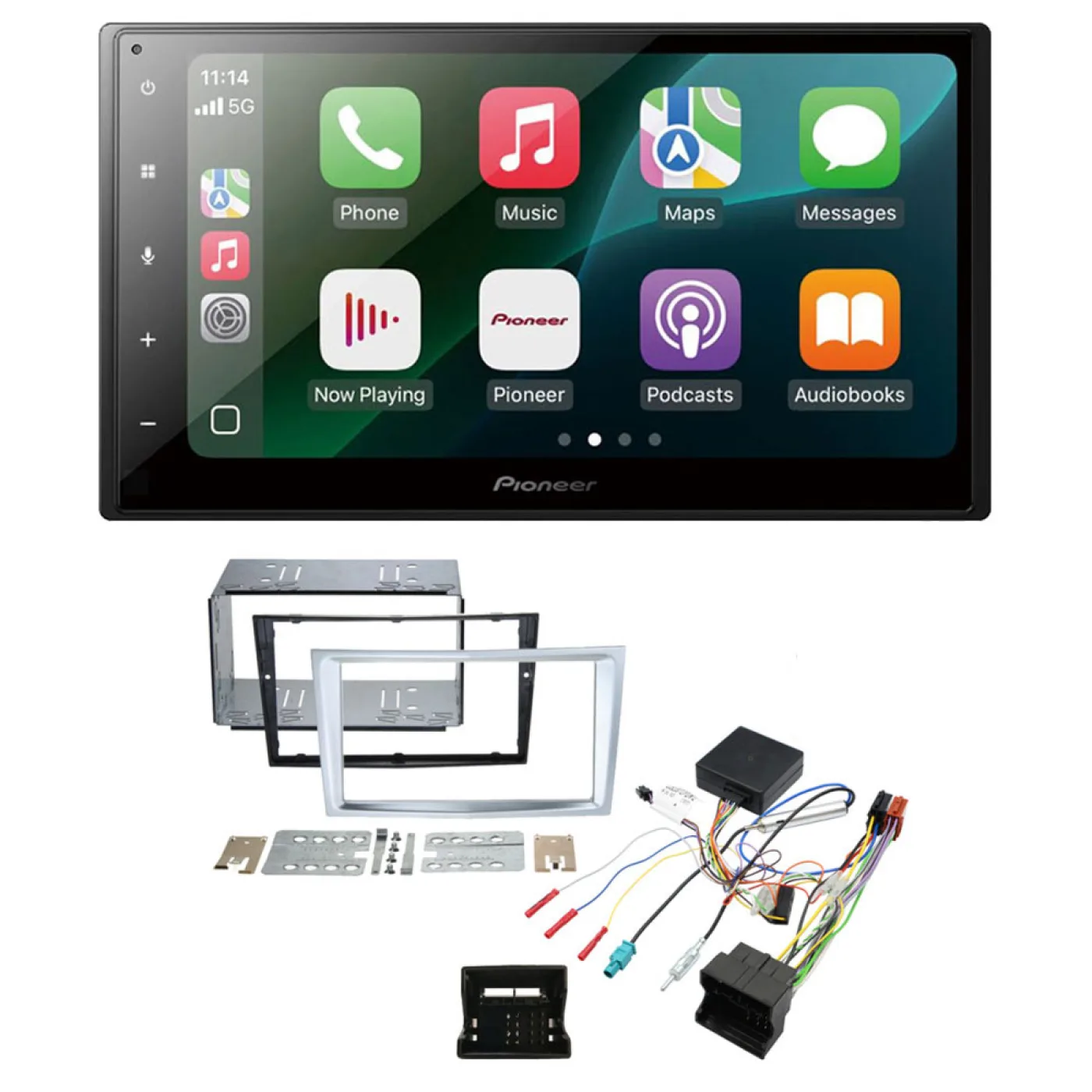

Package Includes
- Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
- Double Din Fascia (MATT CHROME/ SILVER)
- Double DIN Fitting Cage
- Steering Control Interface
- Fakra to DIN Aerial Adaptor, 12v Phantom Power
- Stereo Patch Lead
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Holden | Astra | 2004 - 2009 | (AH) |
| Holden | Captiva | 2006 - 2015 | 5 / Captiva MaXX |
To remove the original radio, you will require radio release keys, part number 52-012
Fitting kit
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Steering Control Adaptor
A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.
CANbus interface to maintain the steering wheel controls. This interface will also adapt from the quadlock connector in the car to standard after market ISO connectors. Provides a CANbus, powered antenna, ignition output, speed pulse, reverse gear signal and hand brake signal. This interface will also allow you to use the car's original steering control buttons to access the original display screen to update the time and date settings.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.
Stereo Removal Keys
Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.
SPH-DA150BT
Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.
Key Features
- Installation Type: 2-DIN
- Navigation: Via Android Auto , Via Apple CarPlay
- Screen Size: 6.8 inch
- LCD Screen Type: Capacitive Touchscreen
- Apple CarPlay® Connection: Wired
- Android Auto™ Connection: Wired
- DAB Antenna Lorem Ipsum
- Bluetooth
- Customisable Key and Display Illumination
- Multi color illumination:
Specifications
Audio Features
- Graphic Equaliser
- 13-Band
- High Pass Filter
- Low Pass Filter
- FLAC
- Subwoofer Control
Tuner Features
- RDS FM Radio
Connections
- Camera Input
- 1
- RCA AV Input
- 1
- RCA Rear AV Output:
- RCA Pre Outs
- 3. (Front, rear and subwoofer)
- Aux-in
- 1 Rear AV Aux-In
Other Specifications
- Rear View Camera
- Optional ND-BC9 (Sold Separately)
- Hand Held Remote Control
- Optional CD-R33 (Sold separately)
- Steering Wheel Control
- Supported
- Mechafree
- Short Chassis
| Technical | |
|---|---|
| Android Auto | Wired |
| Apple CarPlay | Wired |
| Navigation System | Via Android Auto , Via Apple CarPlay |
| Screen | 6.8" Capacitive Touchscreen |
| Size | Double DIN |
| Tuner | Yes |
| Button Illumination | Customisable Key and Display Illumination |
| Bluetooth | Yes |
| iPod Ready | Yes |
| Works with iPhone | Yes |
| Aux In | Rear AV Aux In |
| Pre Out | 3. (Front, rear and subwoofer) |
