Hyundai IX35 (2010 - 2015) Single / Double Din Fascia / Steering / Antenna / Reverse Camera / Amplifier Retention Kit
- Availability:In Stock
- Available:3 in stock
- Item Condition:New
- Brand:Dynamic Sounds
- Product Code:FKIT-HYUNDAI-07
- EAN / UPC:7427307014555
- Warranty:1 Year Warranty
Hyundai Replacement Kit, allows the fitment of a Single / Double DIN aftermarket headunit to the selected vehicle. This kit includes Fascia, Steering Wheel Interface, Camera Retention Lead, and aerial adaptor.

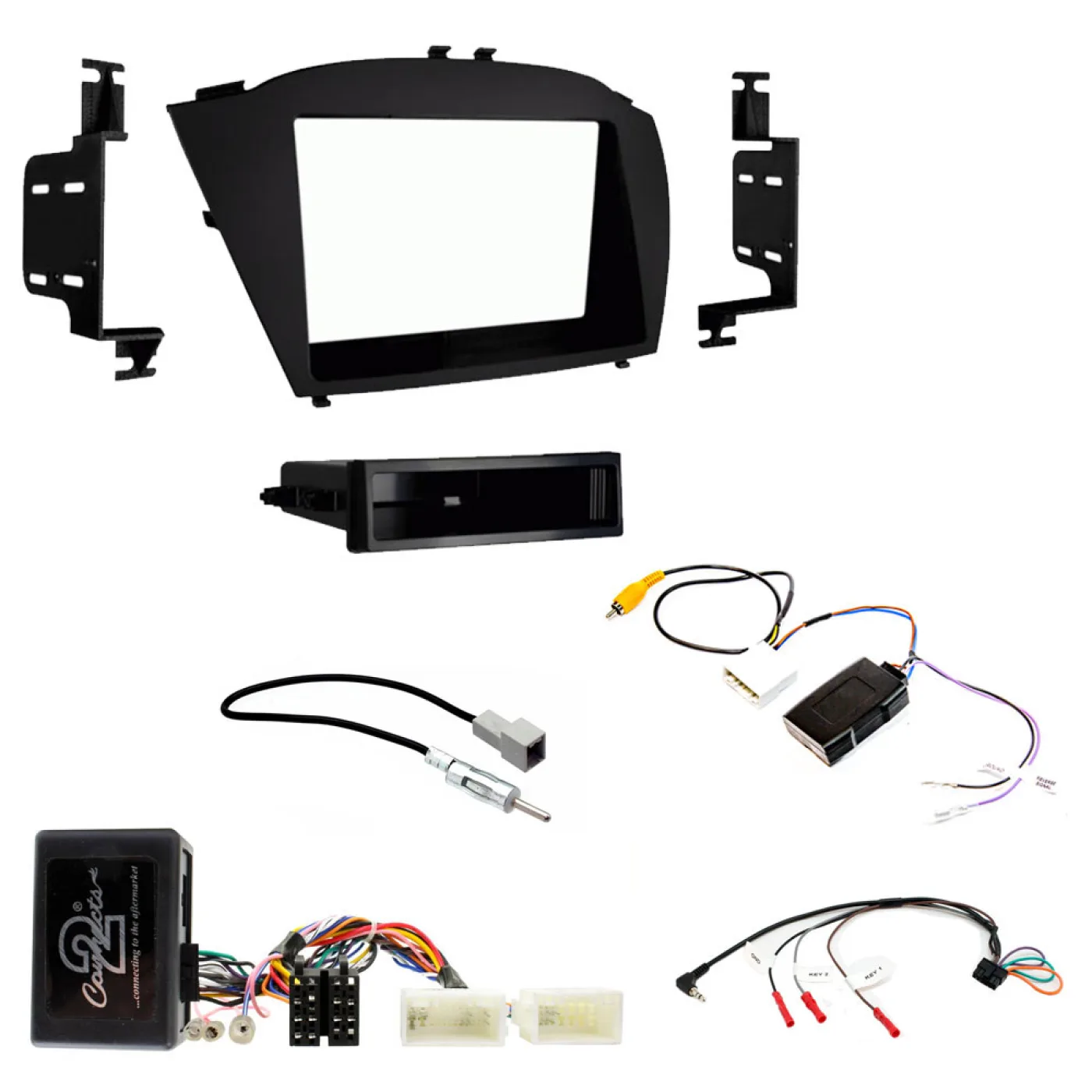

Package Includes
- Single / Double Din Fascia Adaptor (Matt Black)
- Steering Wheel Interface Adaptor
- Camera Retention Lead
- Aerial Adaptor
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Hyundai | ix35 | 2010 - 2015 | 1st Gen |
PLEASE NOTE: For Replacing Original Navigation stereo Type ( 2Y600TJN )
This kit only suits vehicles with factory White plug connections.
It retains the Steering Controls , Factory Amplifier and Reverse Camera.
SPDIF Digitally Amplified Vehicles, Hyundai Mobis, Connection: OEM Specific
The Factory Unit will need to have the following sockets on the rear for this to be suitable:
Features & Benefits
- Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
- Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
- Maintains the original features of the vehicle such as date, time and temperature display
- Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
- For interfaces where phone buttons are supported, the following brands allow pick up/hang up in Bluetooth mode: Alpine, Clarion, Kenwood, Pioneer and Zenec. Please see icon list below to see if this interface supports phone buttons.
- Please check the connections in the vehicle match the harness you are purchasing

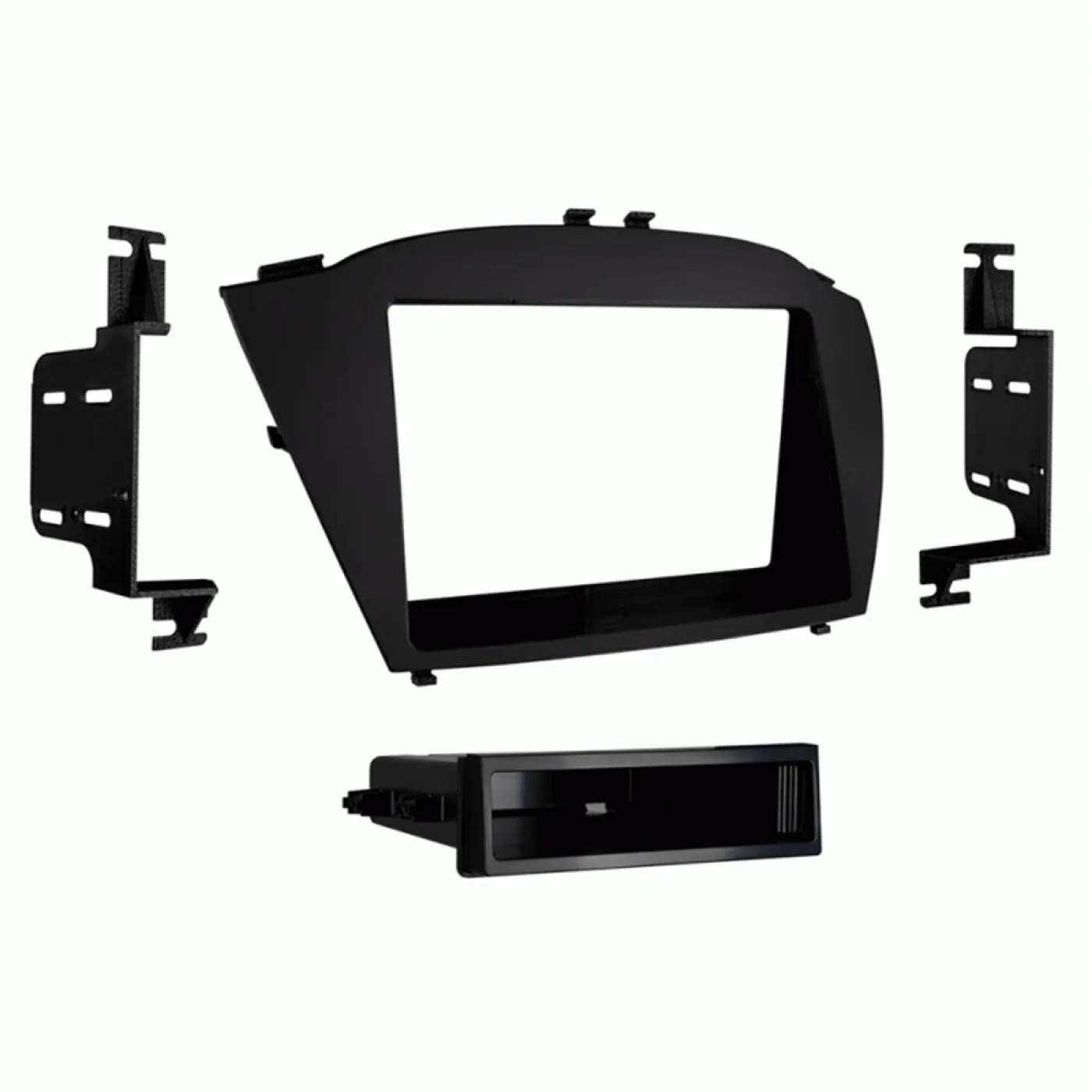

Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Complete replacement car audio fascia to enable you to change the original radio in the car to a Single DIN or Double DIN aftermarket version This fascia comes with side fixing brackets so no additional fitting cage is required. A removable pocket is supplied for Single DIN installations.
Fits Hyundai IX35 with navigation or 4.3" touch screen
Steering Wheel Interface
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

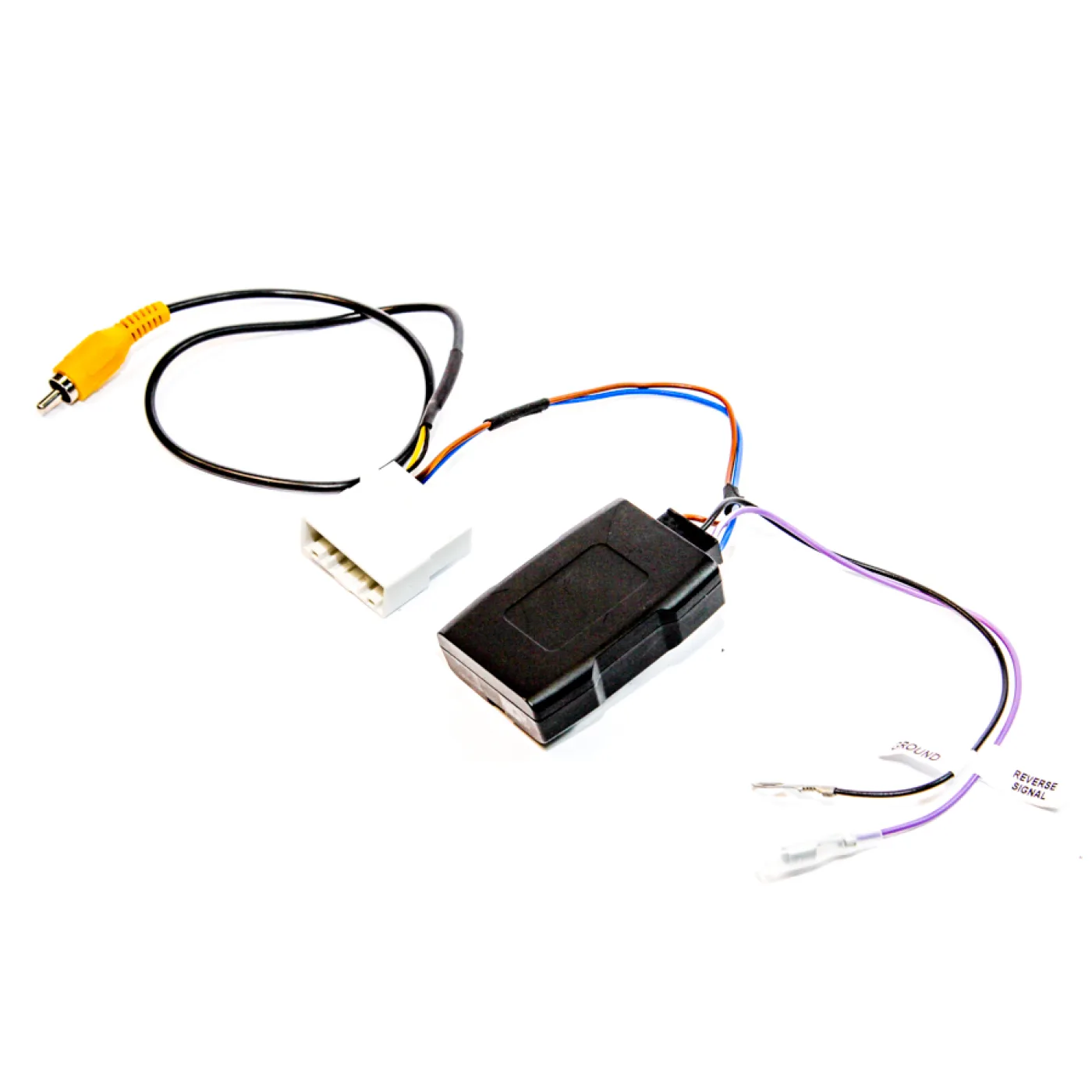

Retain Original Camera
Cable to keep the use of the original fitted reverse camera on cars with original AVN head-unit . 24pin camera connector.
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Compatible aftermarket headunits:
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- EONON
- JOYING
- XTRONS
- PUMPKIN
- Other Chinese SWC learning head units
