InCarTec 20-270 Audi Symphony or Bose ISO Radio Adapter Harness, Hard Wire Ignition
- Availability:In Stock
- Available:9 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:20-270
- EAN / UPC:7427282725910
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Audi | A2 | 1999 - 2005 | (8Z) |
| Audi | A3 | 1996 - 1999 | (8L) |
| Audi | A3 | 2003 - 2007 | (8P) |
| Audi | A4 | 1995 - 2001 | (B5) |
| Audi | A4 | 2001 - 2005 | (B6) |
| Audi | A4 | 2005 - 2008 | (B7) |
| Audi | A6 | 1997 - 2004 | 2nd Gen (C5/4B) |
| Audi | TT | 1998 - 2006 | MK1 (8N) |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

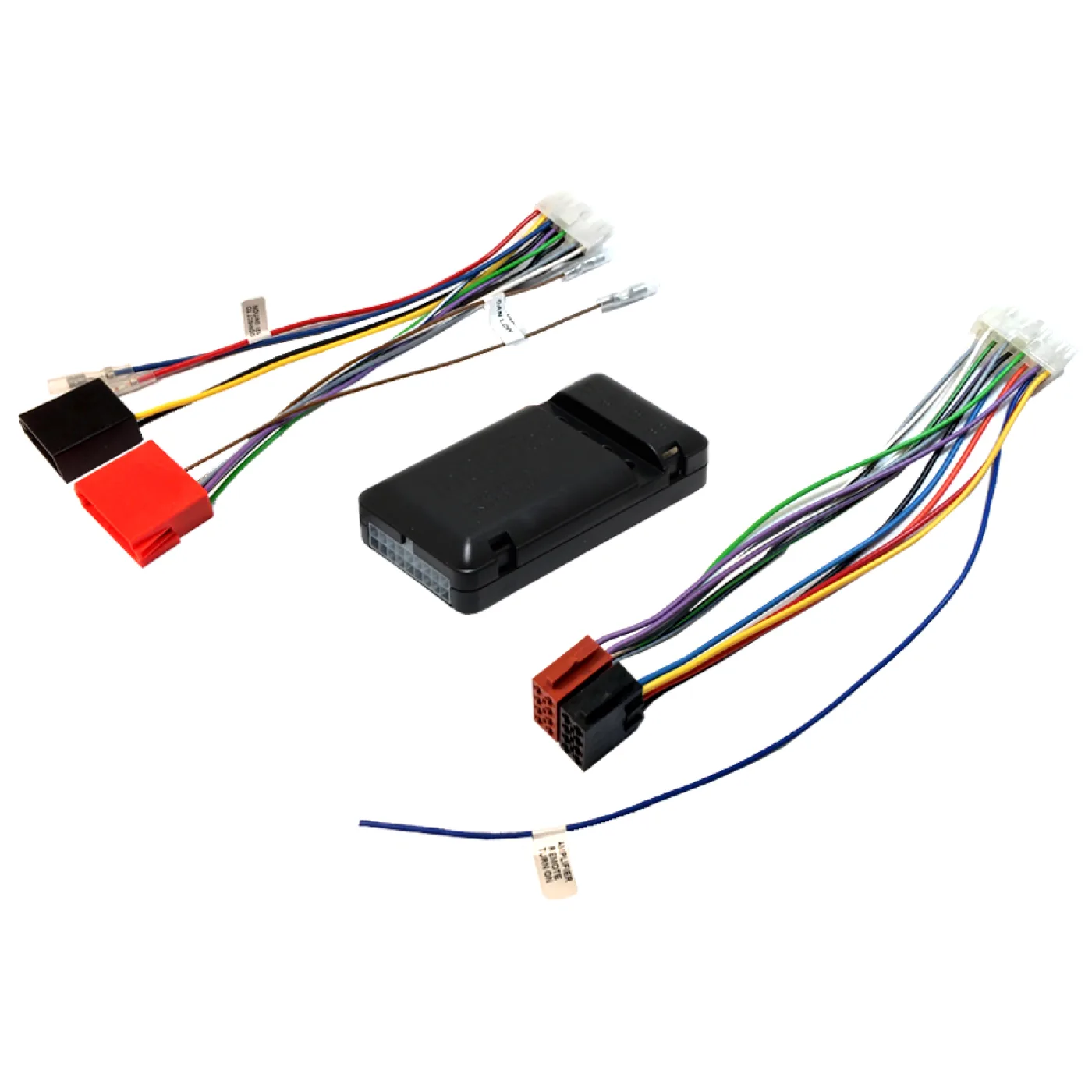

ISO adapter harness for Audi A3, A4, A6 and TT cars with original BOSE amplified audio systems.
This harness adapts from the original ISO and Mini ISO connectors at the back of the head unit to standard aftermarket ISO connectors. The harness has a built in high to low level audio adapter to drop the speaker outputs from the new head unit to a low line level signal to work with the original amplifier in the car. The high to low level adapter has 4 dials to individually set the levels of each audio channel to give perfect sound quality.
A hardwired ignition supply will need to be connected when using this adapter.
The adapter has loose wires for connecting an ignition supply, it also has loose CANbus and power wires to allow easy integration with CANbus ignition and steering control interfaces.
Fitting instructions are included. The lead has the amplifier turn on wire already wired into the vehicle connectors, the amp turn on wire needs to be connected to the new stereo.
Harness Adaptors
Connect the head unit to the original radio connector without the need to cut any of the existing wiring.
TECHNICAL NOTE
- CAR AUDIO FITTING ACCESSORIES ARE SOLD WITH LIMITED INSTRUCTIONS.
- SOME KNOWLEDGE OF CAR AUDIO INSTALLATION IS HELPFUL IN CASE A MODIFICATION IN SOME RARE CASES MAY BE NECESSARY OR NEEDED.
Please make sure that is the correct Wiring Harness for your car by firstly checking to see if your make, model and year of car is listed in the description. Secondly by checking to see if the Shape in the picture listed is the same as you have in your vehicle. We try to provide upto date information as possible. If you are unsure please contact our Customer Service and we will be happy to help you.
