InCarTec 21-118R Nissan Navara , Qashqai Grey Rectangle to Din Connector Car Antenna Adapter (Male/ Female Bullet/ T-Tap Connection)
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:21-118R
- EAN / UPC:7427306995930
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Nissan | Navara | 2005 - 2016 | (D40) |
| Nissan | Qashqai | 2007 - 2013 | 1st Gen (J10) |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

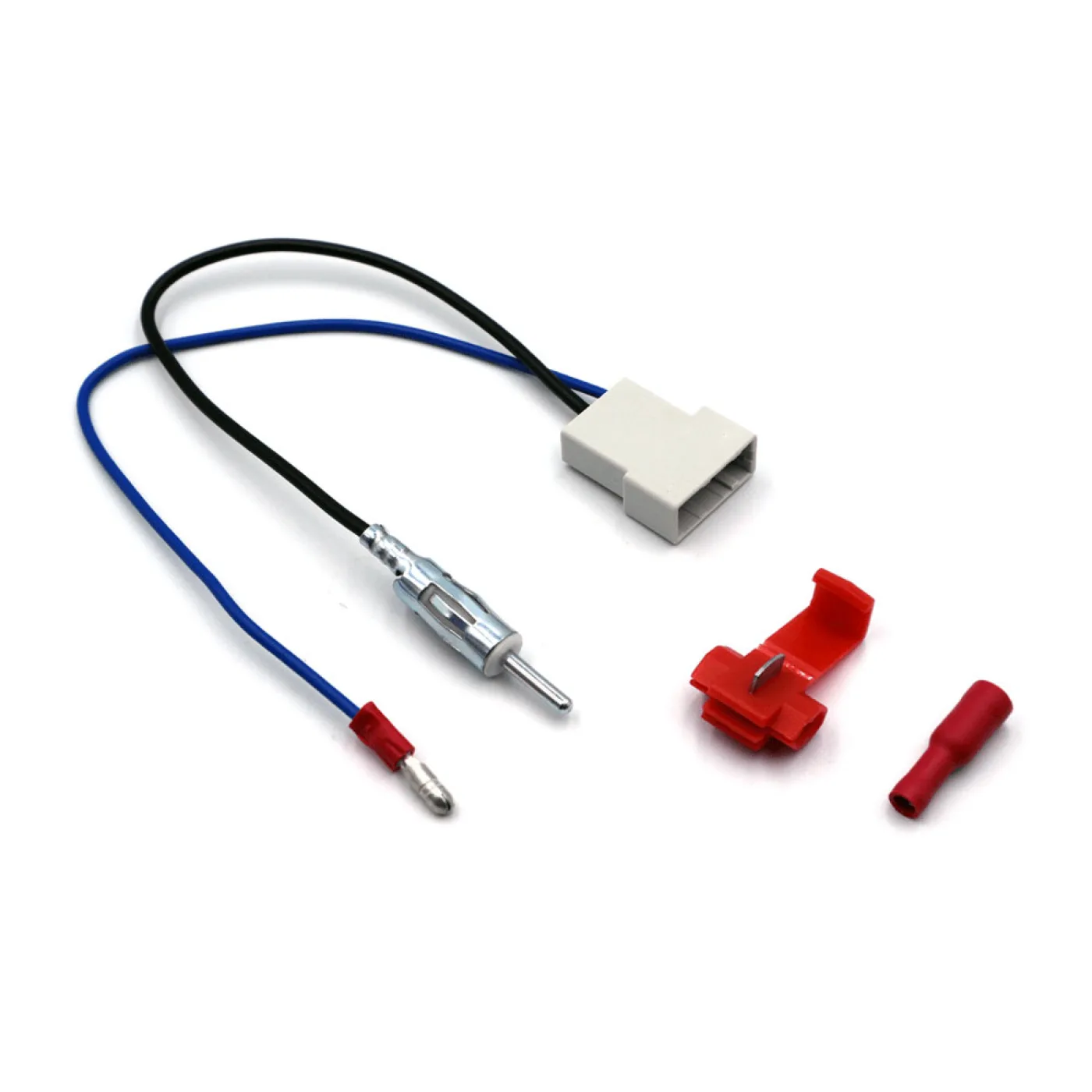

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable.
This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.
The loose blue wire (male bullet) on the adapter needs to be connected to the antenna turn on output from the new radio, this turns on the original antenna amplifier in the car.

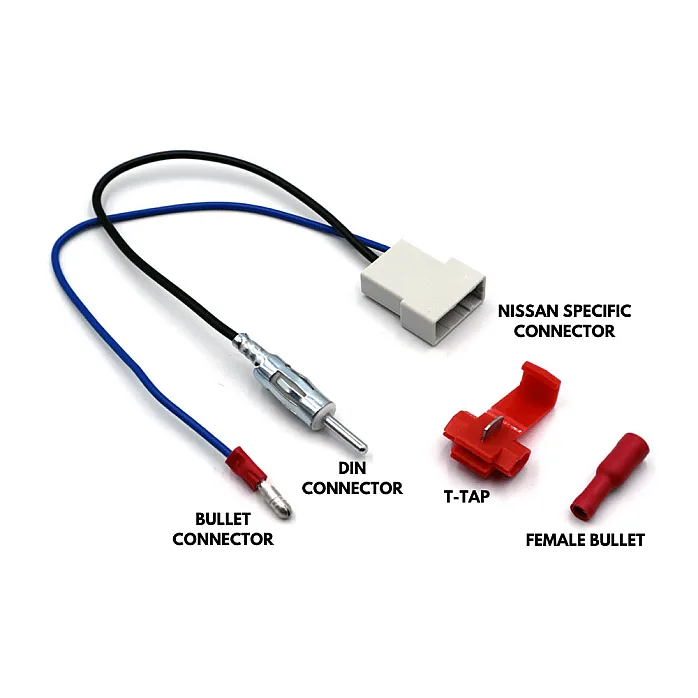

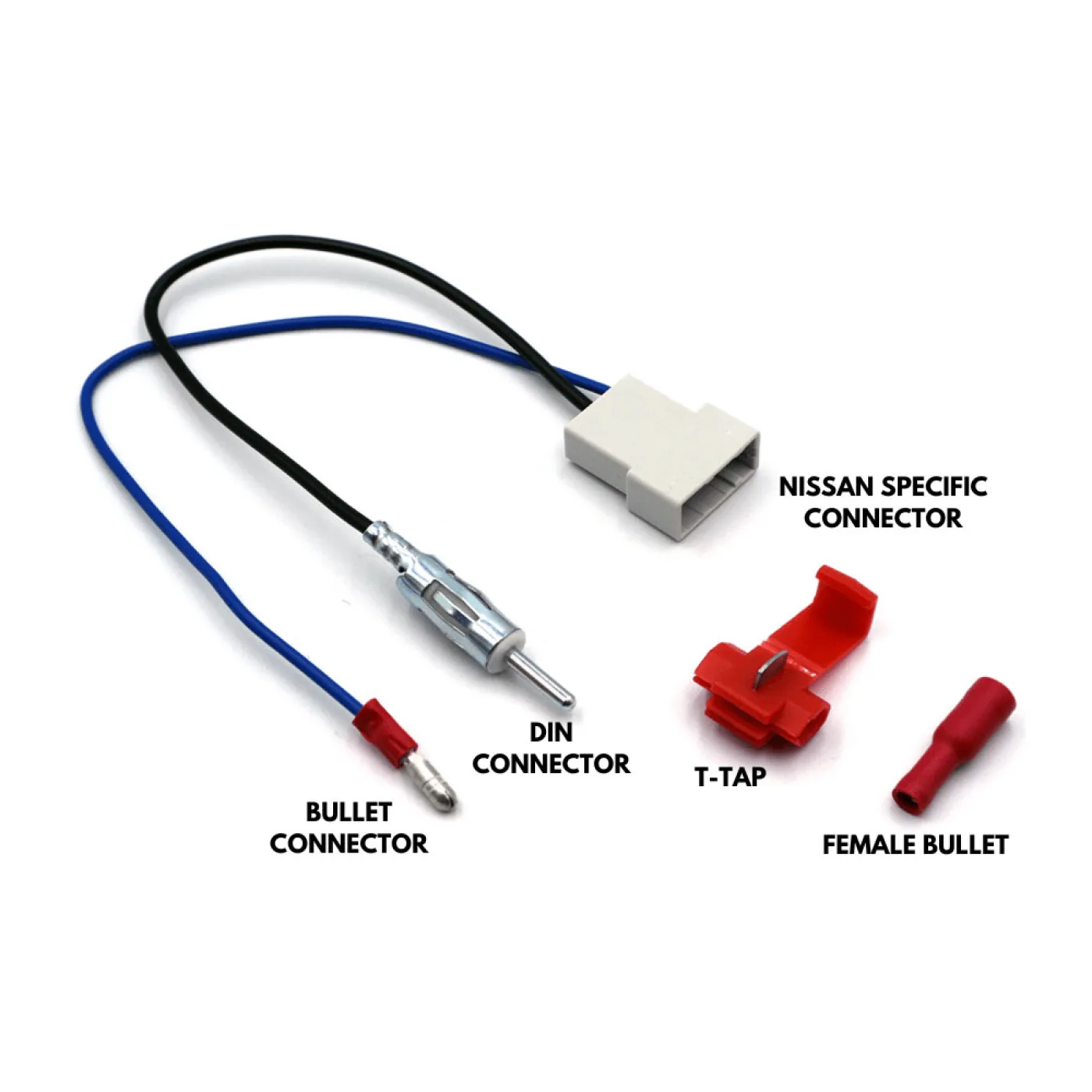

A male bullet connection, female bullet connection and a T-tap connector are all provided to help with the installation of this antenna adapter.
Connection options

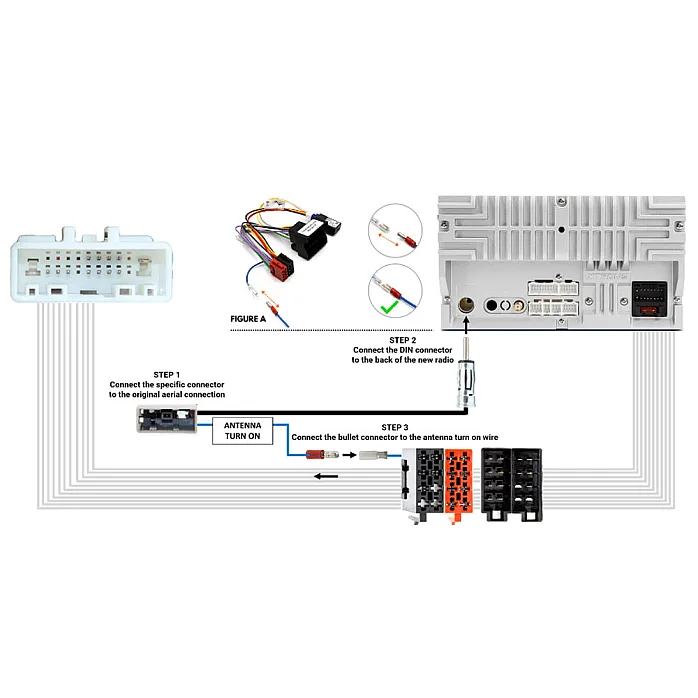

Option 1

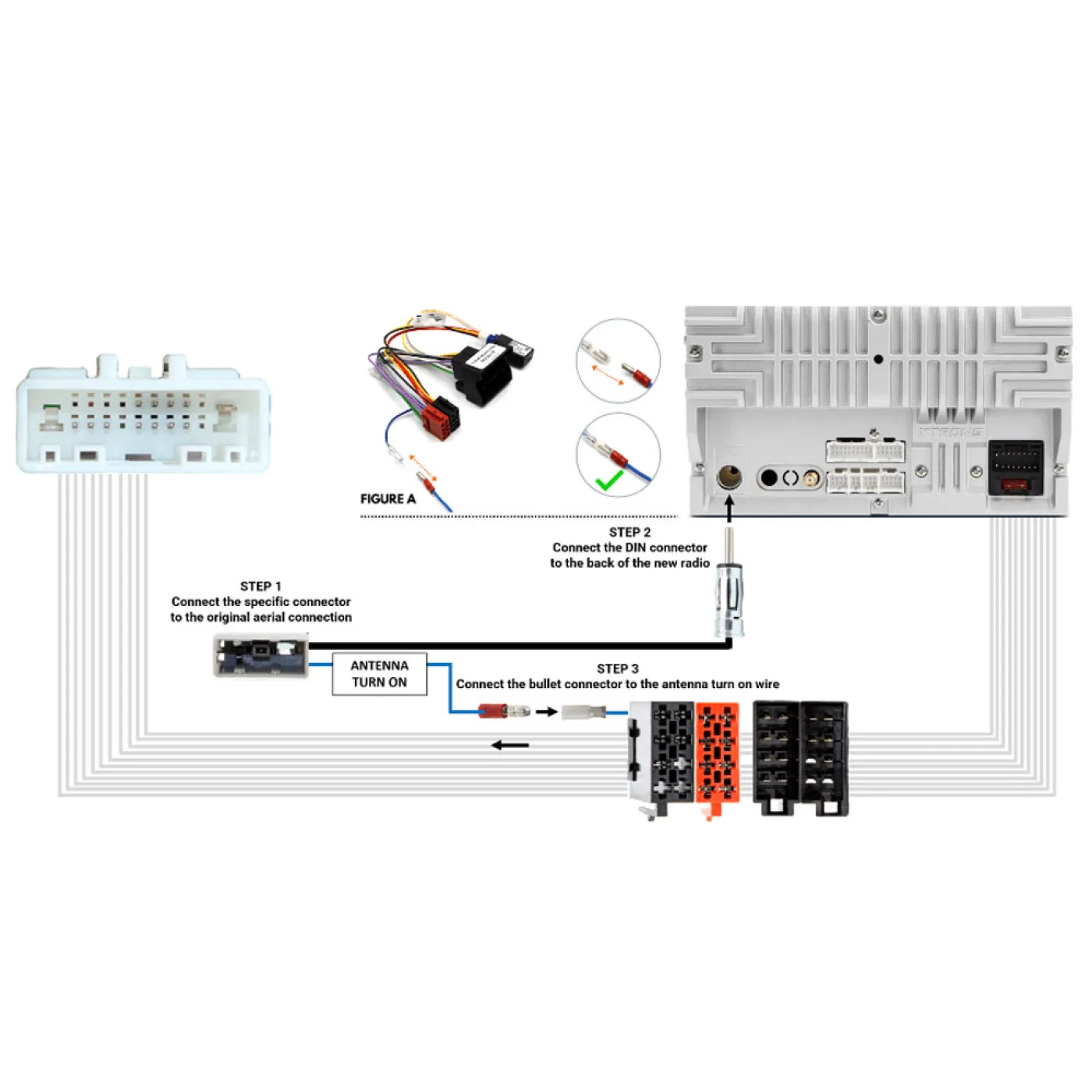

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on our 29- Series steering wheel control interface.
- Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
- Connect the DIN aerial connection to the back of the after market radio.
- Connect the bullet connector (on the blue wire) to the blue antenna turn on wire on the 29-Series interface.
Option 2

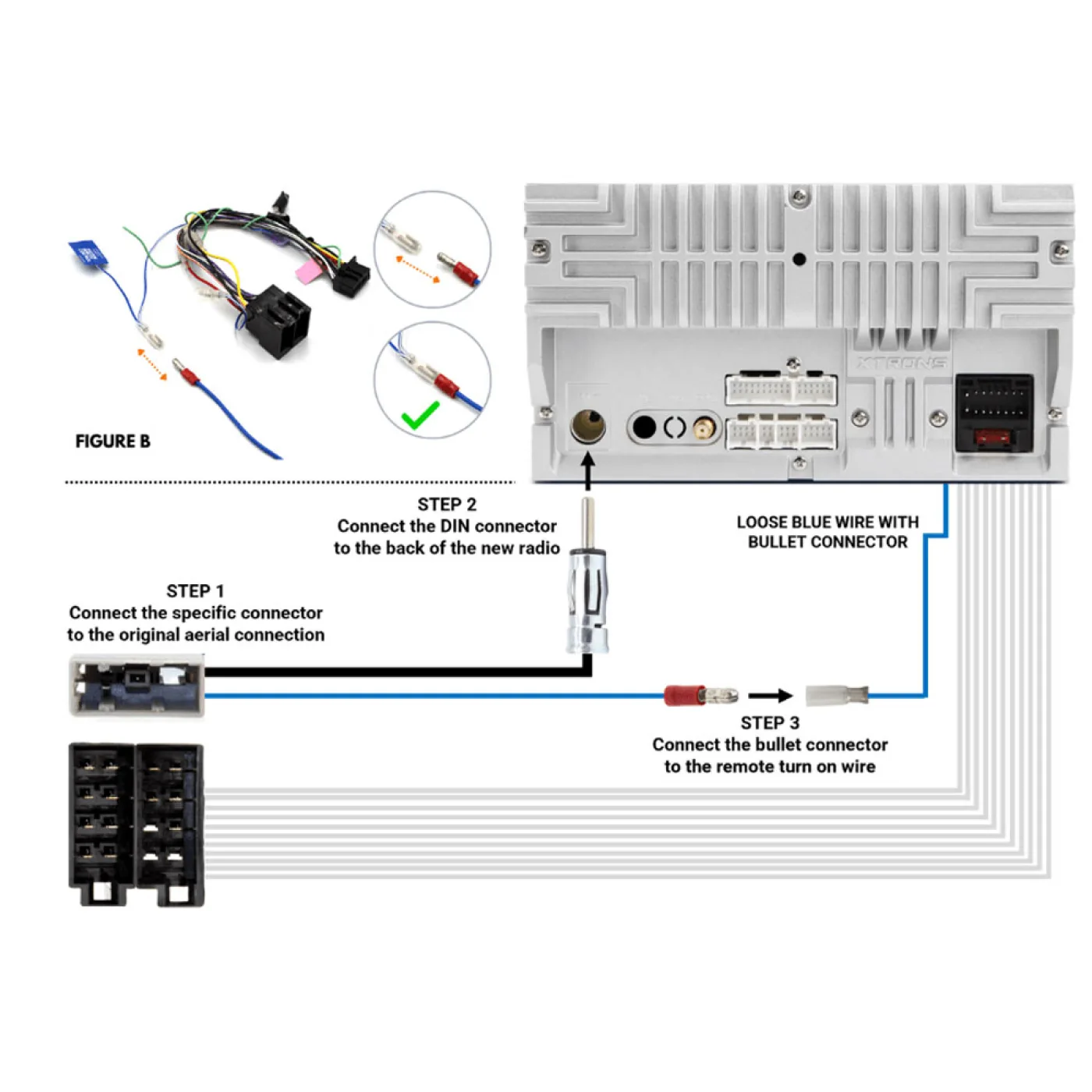

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on the new aftermarket radio harness.
- Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
- Connect the DIN aerial connection to the back of the after market radio.
- Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.

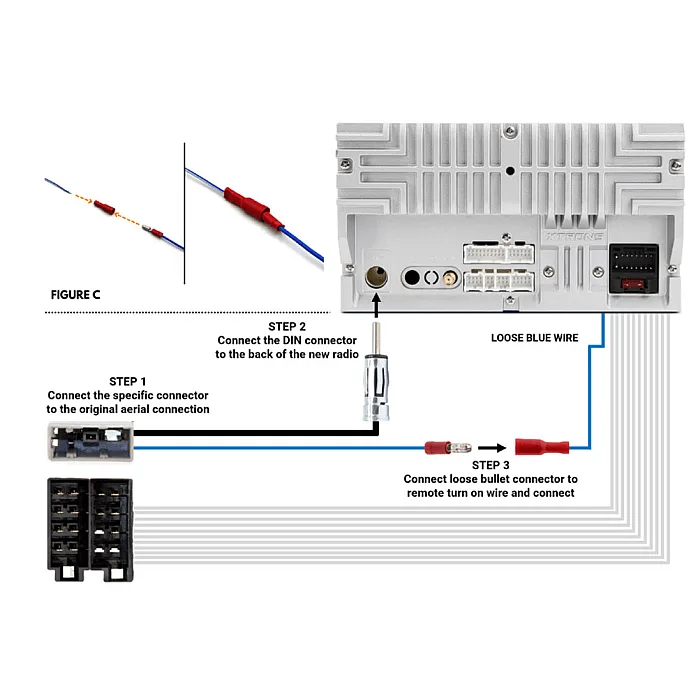

Option 3

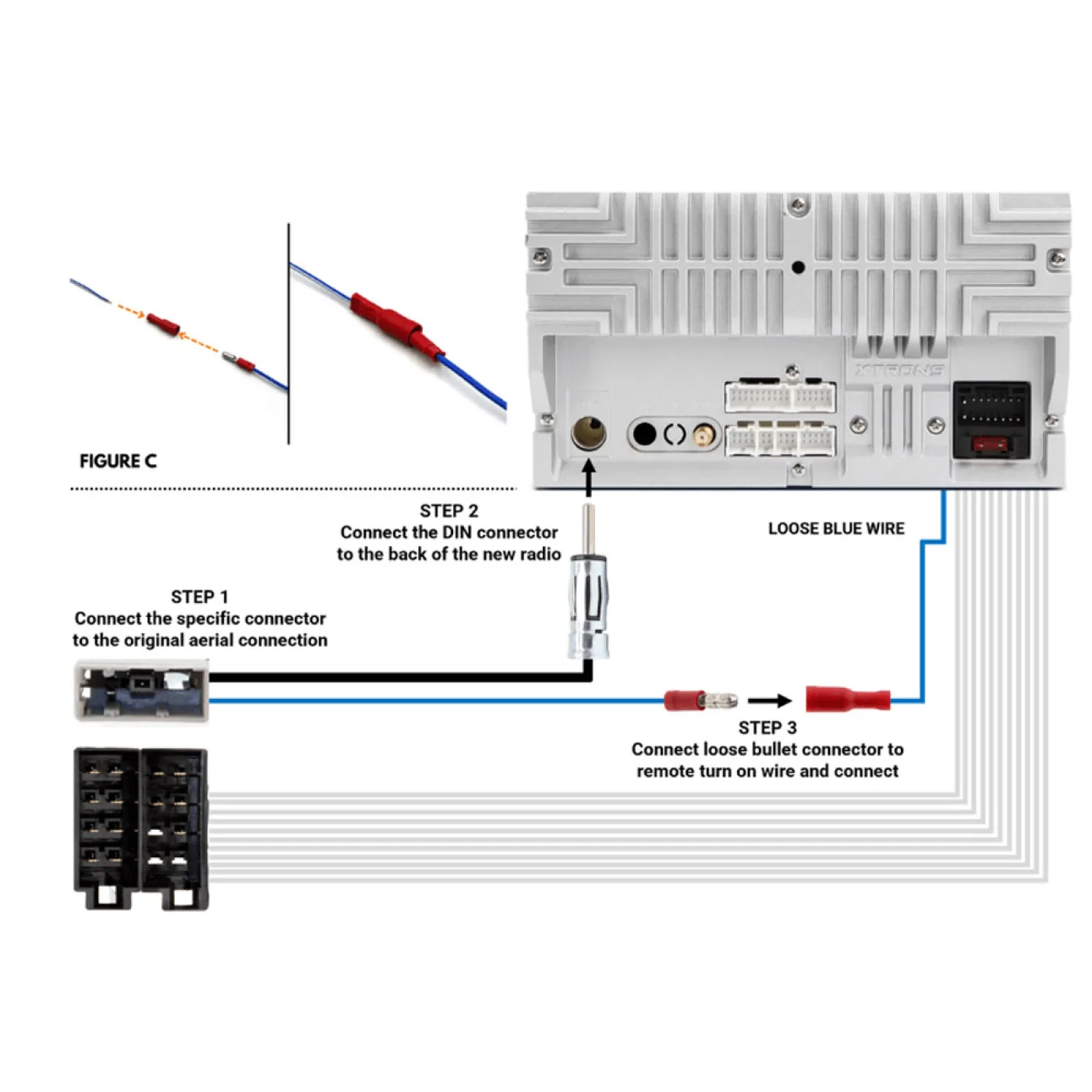

If a loose antenna turn on wire is provided with the radio then strip a small amount of insulation off the antenna turn on wire and attach the provided female bullet connector to this.
- Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
- Connect the DIN aerial connection to the back of the after market radio.
- Strip some insulation from the loose antenna turn on wire and attach a female bullet connector (Included with this product)
- Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.
Option 4

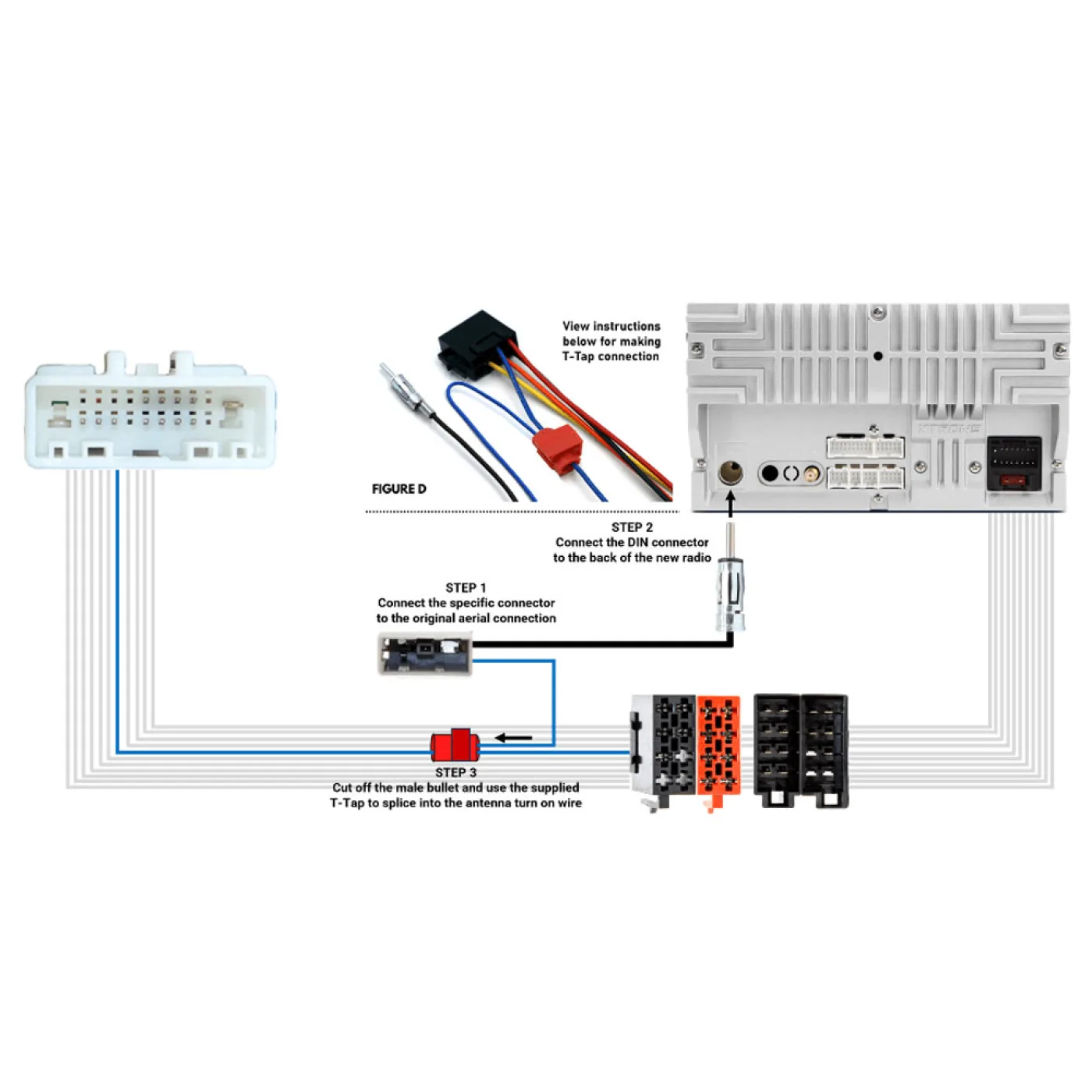

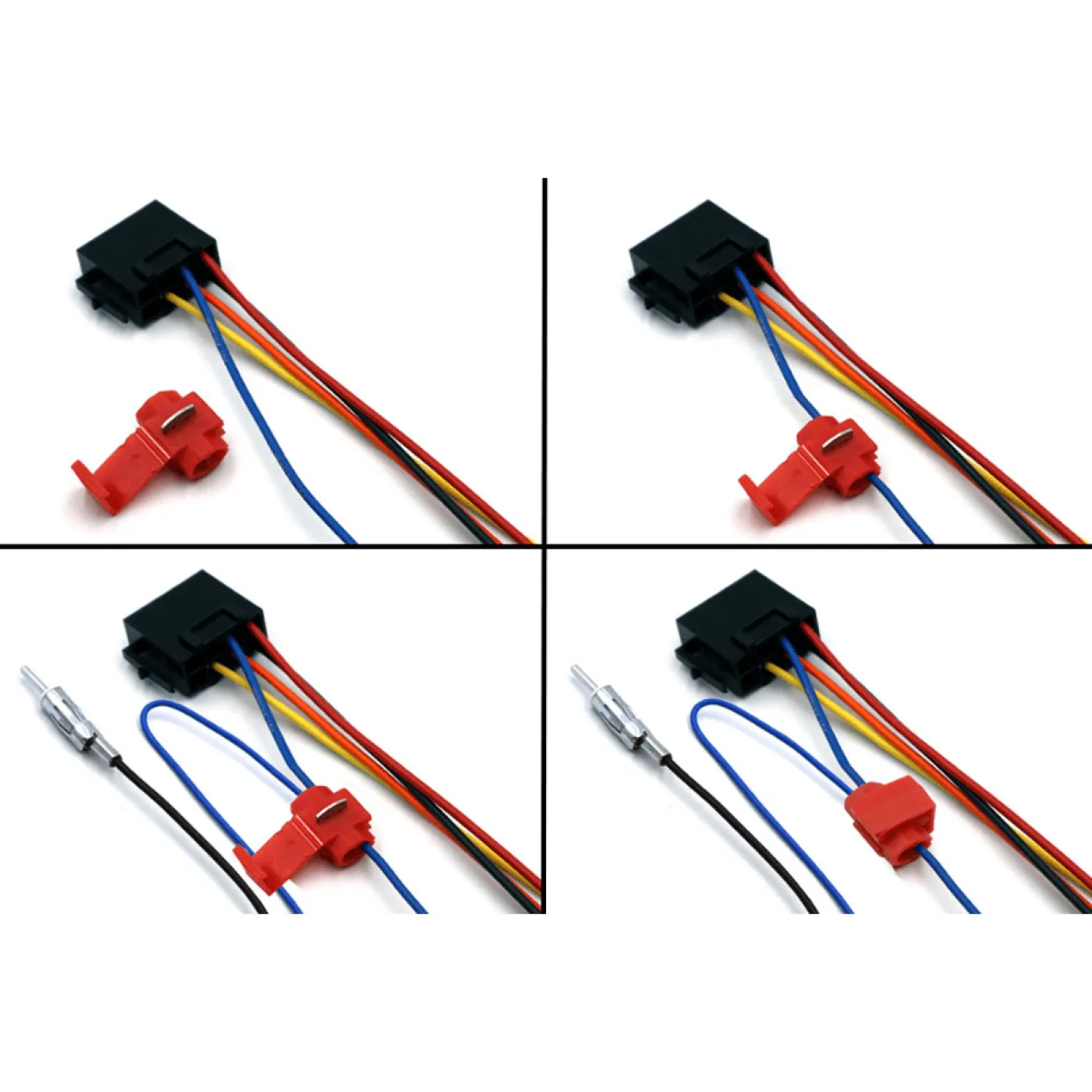

If there is no bullet or loose antenna turn on wire available then cut off the male bullet from the antenna adapter and use the supplied T-tap connector to splice into the antenna turn on wire.
- Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
- Connect the DIN aerial connection to the back of the after market radio.
- Strip some insulation from the loose antenna turn on wire and attach a female bullet connector (Included with this product)
- Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.
