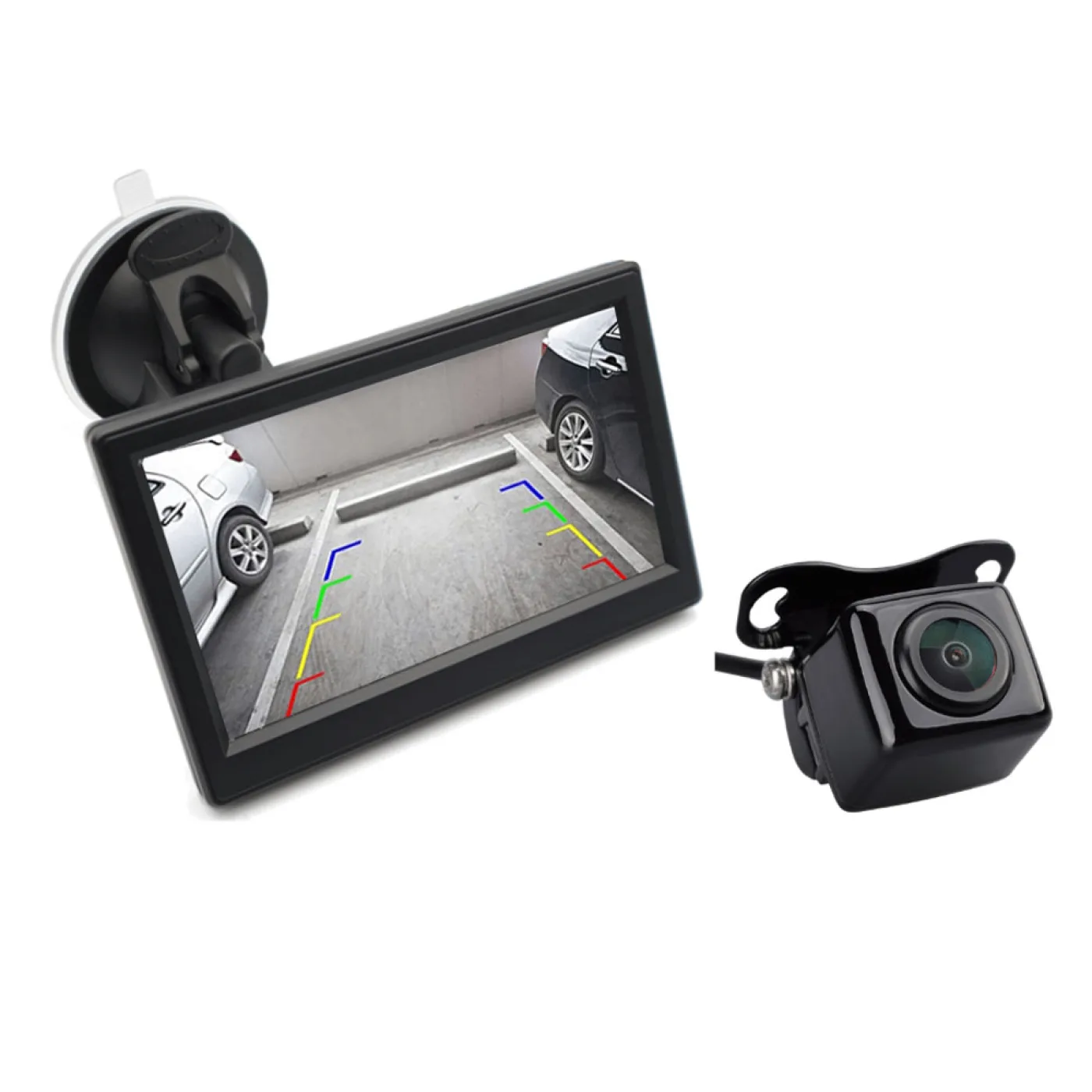

InCarTec CK-UNI-U120 Universal Adjustable Bracket Rear View Camera and 5" Standalone Monitor Kit
- Availability:In Stock
- Available:3 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:CK-UNI-U120
- EAN / UPC:7427306998320
- Warranty:1 Year Warranty
Universal adjustable bracket rear view backup camera and 5 inch standalone monitor kit universally designed to fit almost any vehicle model.
No need to modify or adapt the vehicles original system thanks to the 5 inch standalone windscreen video monitor, great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.
The universal reversing camera included with this kit is designed to be used on any 12v vehicle. it's clever adjustable bracket design allows for it to be discretely mounted at the rear of any vehicle (normally next to the rear number plate lights).
This camera is also equipped with optional dynamic parking guidelines which can be enabled or disabled.

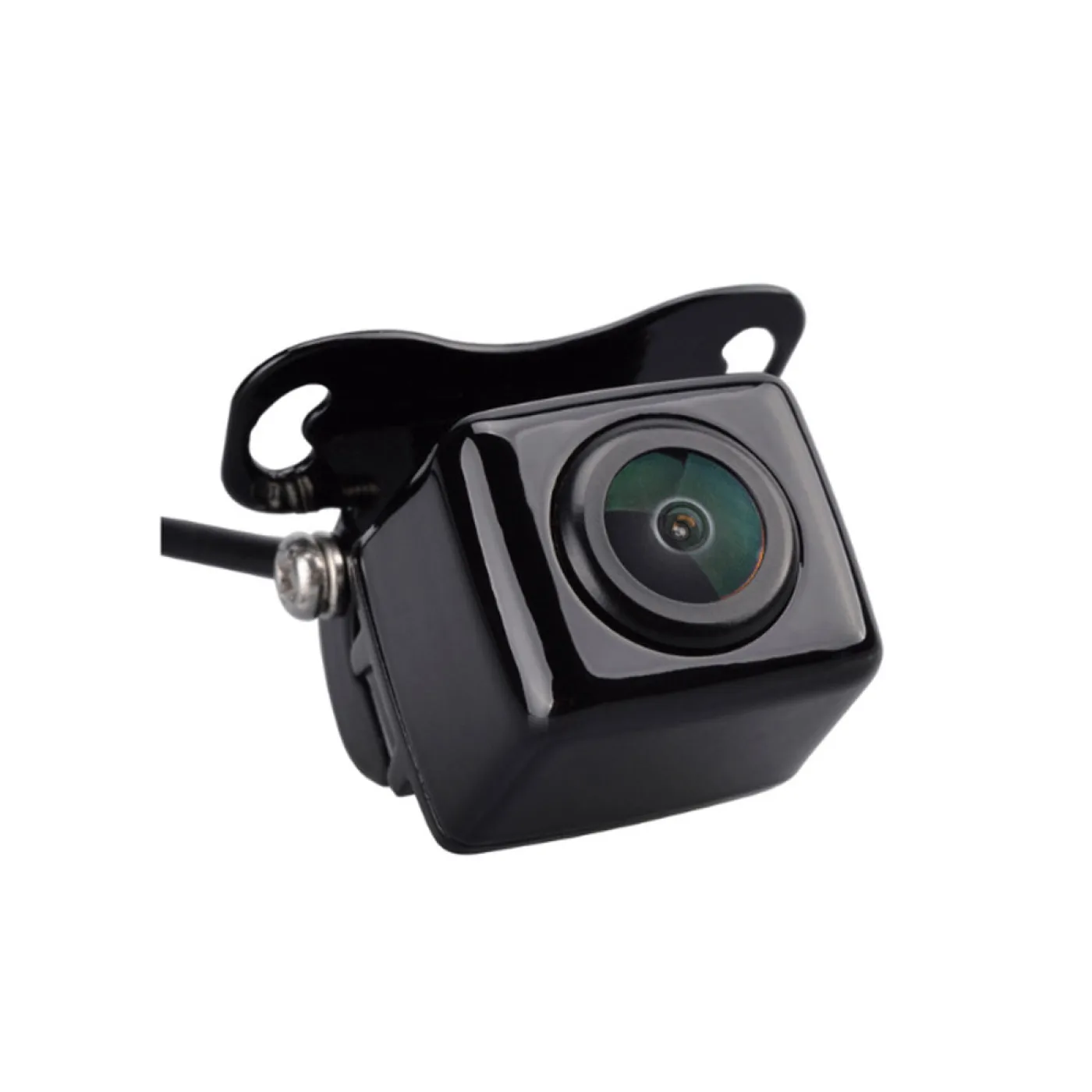

Universal Rear View Back up Camera with Adjustable Bracket GLOSS BLACK (NTSC)
This universal reversing camera is designed to be used on any 12v vehicle. it's clever adjustable bracket design allows for it to be discretely mounted at the rear of any vehicle (normally next to the rear number plate lights).
This camera is also equipped with optional dynamic parking guidelines which can be enabled or disabled.
Specifications
Product Information
- Universal fitment

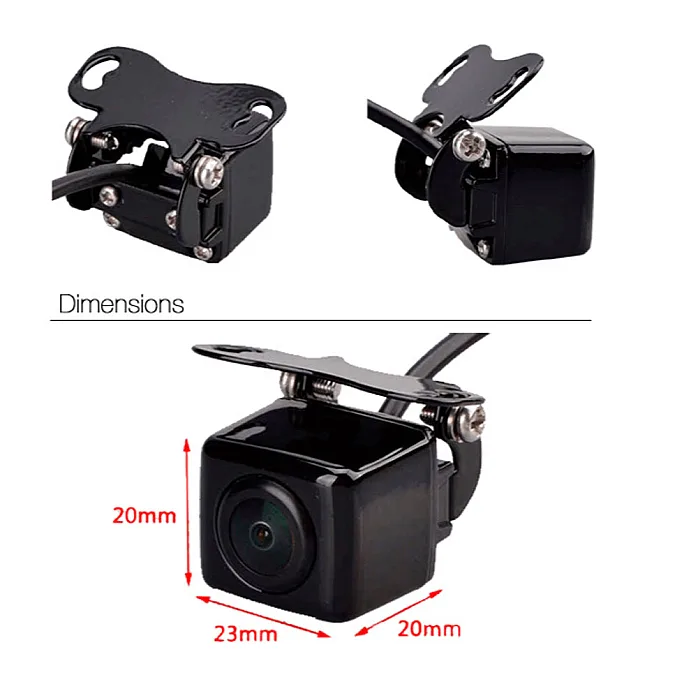

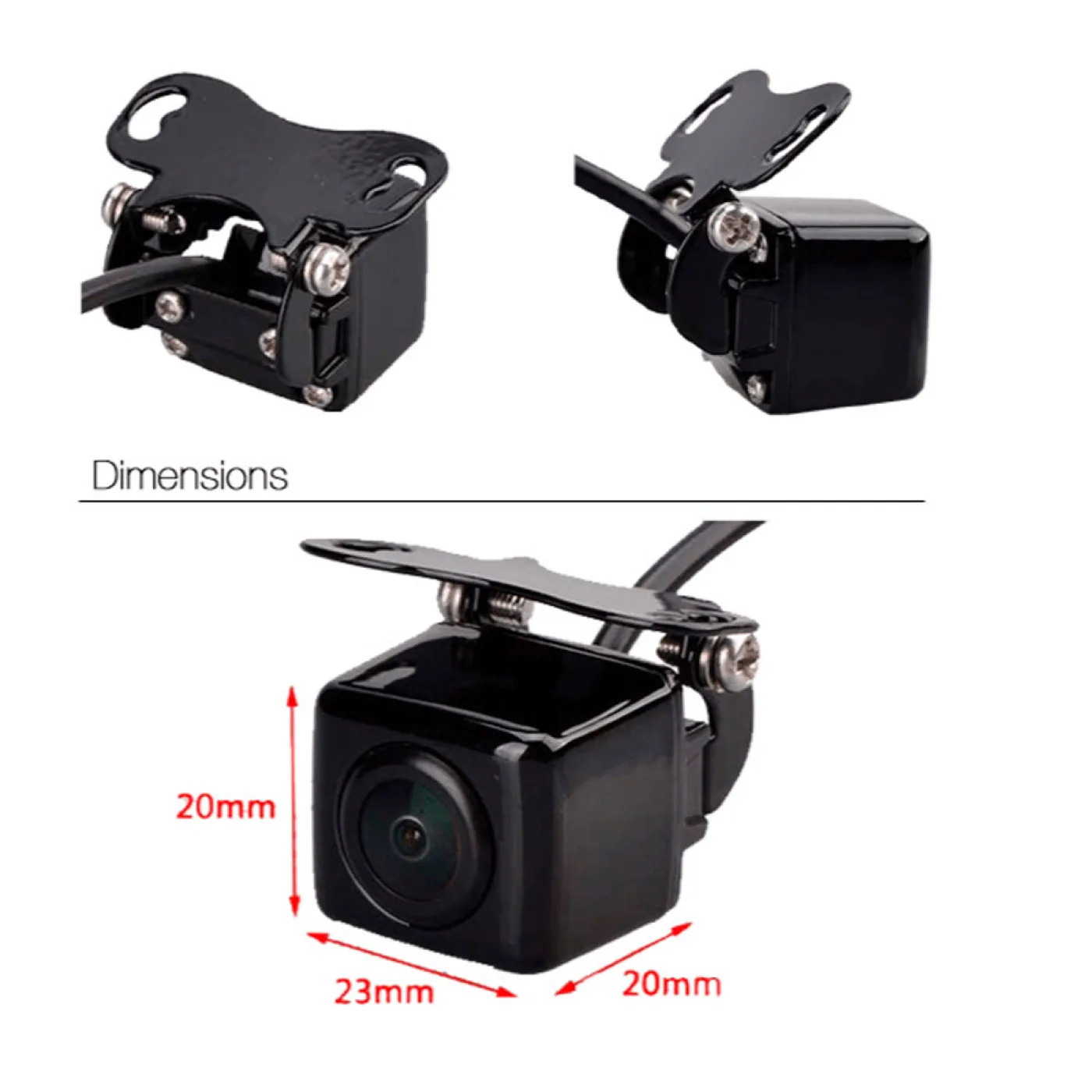

- Adjustable angled bracket design
- 170° wide viewing angle.
- NTSC video output
- All Gloss black metal body
- 12v power
- Super CMOS sensor for high quality night video.
- Parking guidelines
- Optional
- IP68 Waterproof

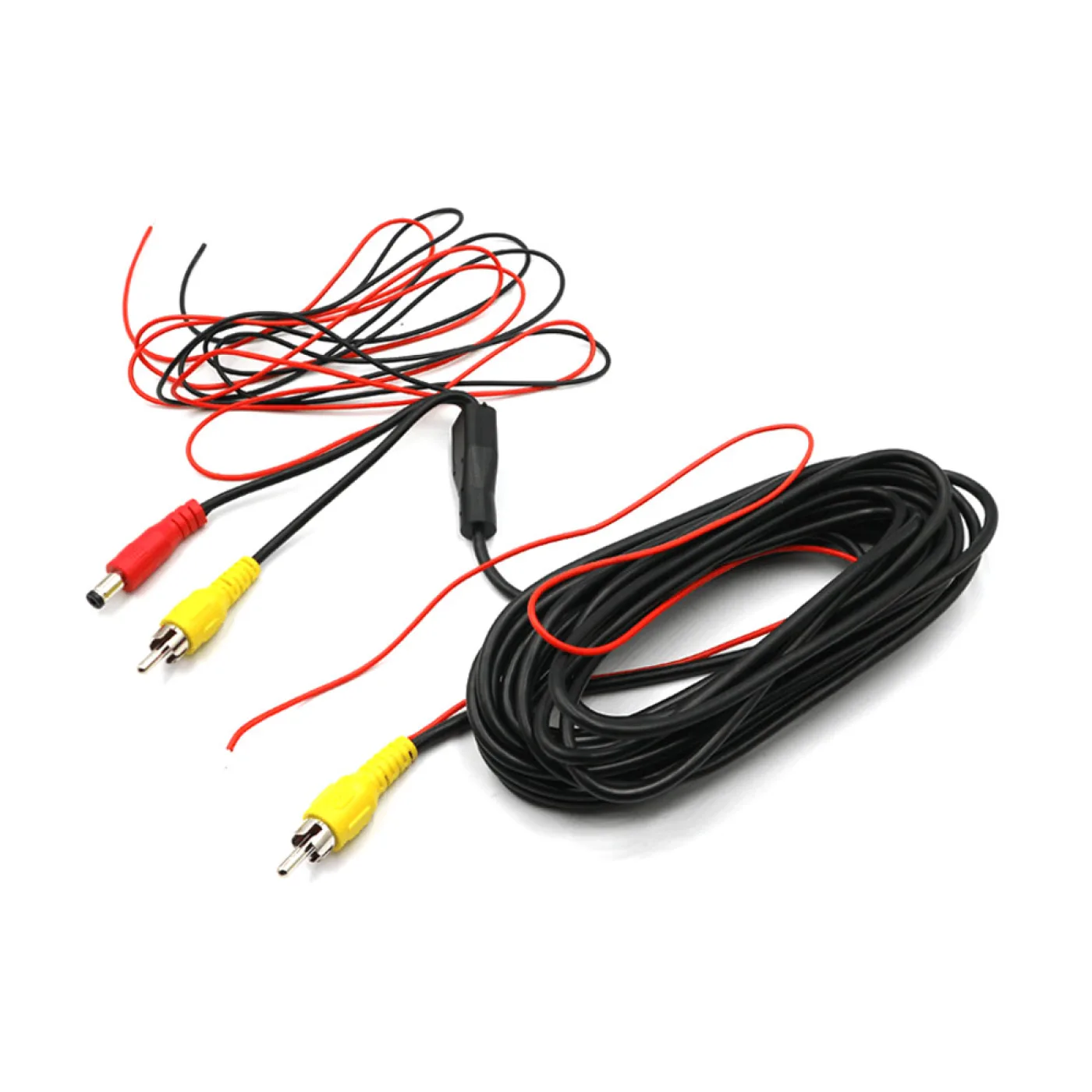

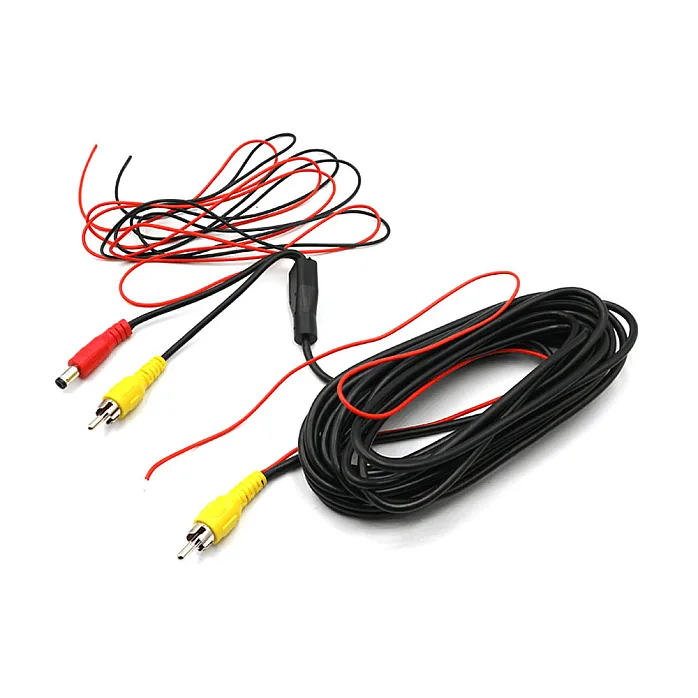

- Includes power and video extension cables
Notes for Installation Fitting

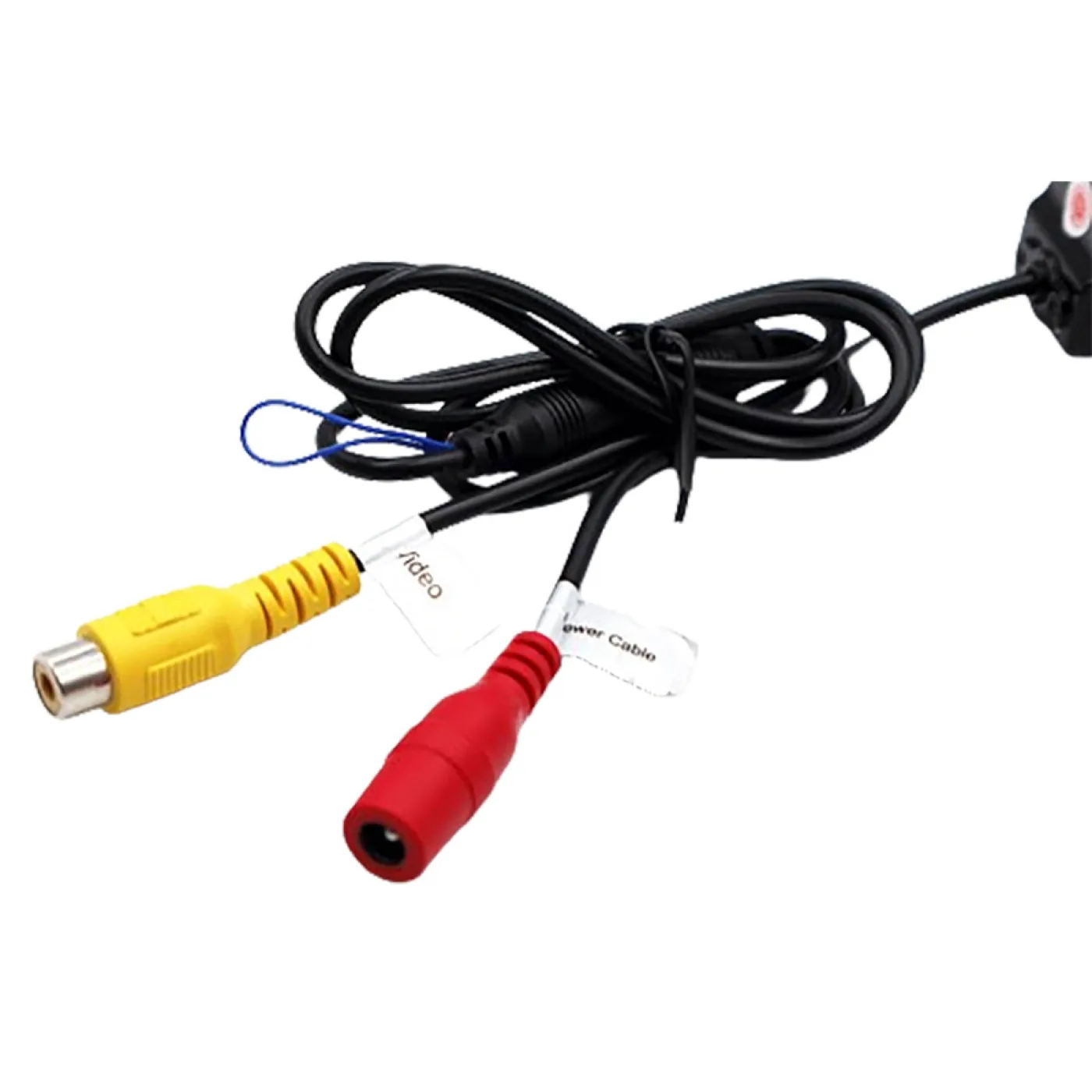

- Cut the blue wire to disable the parking guidelines

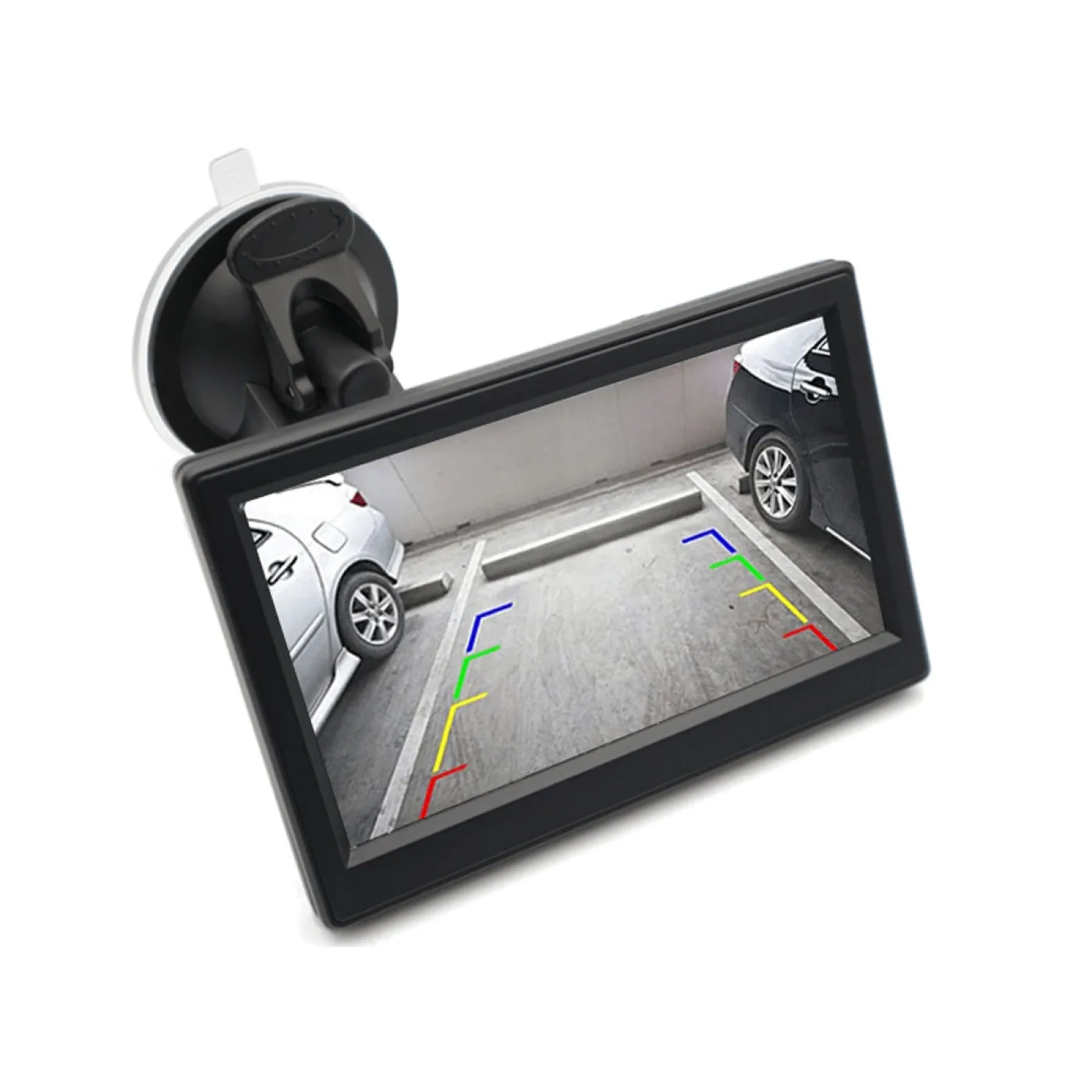

5 inch Standalone Windscreen Video Monitor with Suction Mount Bracket
These monitors are great to use when installing an aftermarket reverse camera without having to affect the original factory fitted system.
Comes with a 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets.
Main Features
- High brightness/resolution digital 5" wide-screen LCD panel applied.
- Super slim design, easy to mount on top of dashboard or window glass.
- Dual video input, standard RCA connectors. Shielding cables used to avoid signal interference when both channels are connected to cameras or video.
- Adjustable suction mount bracket.
- Adjustable brightness and colour intensity.
- Rear 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets. (see below picture)
- Guidelines only available when used with a camera with guidelines.
Specifications
Specifications
- Screen type
- TFT LCD
- Screen size
- 5" colour
- Resolution
- 480*RGB*272
- Brightness
- 400cd/m2
- Display format
- 16:9
- Video input
- 2-channel
- Voltage
- 12V
Installation

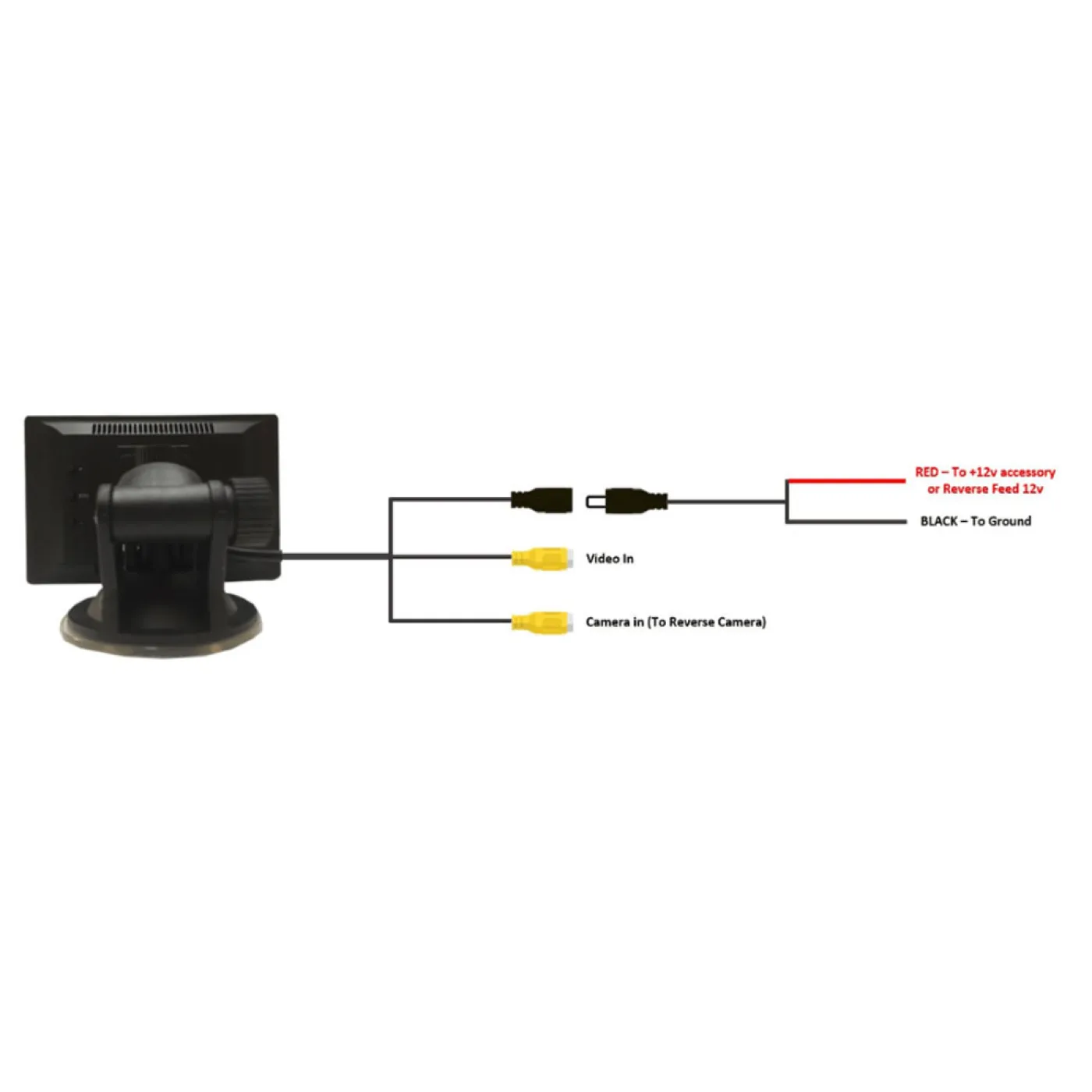

- Can be powered from a 12v ignition or reverse feed.
- Sometimes the reverse power feed from the reversing lights may not be strong enough to power the monitor. A separate power feed relay (10-641) may be required to give a better 12v power feed.
