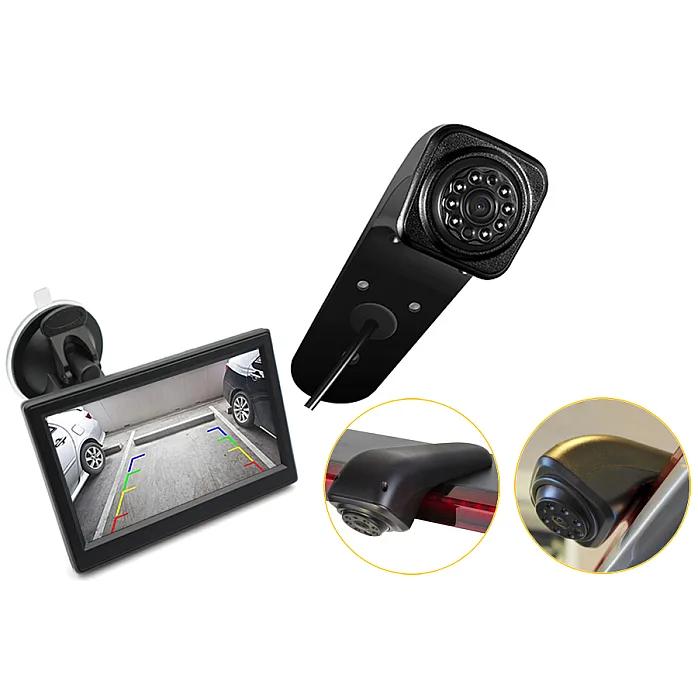

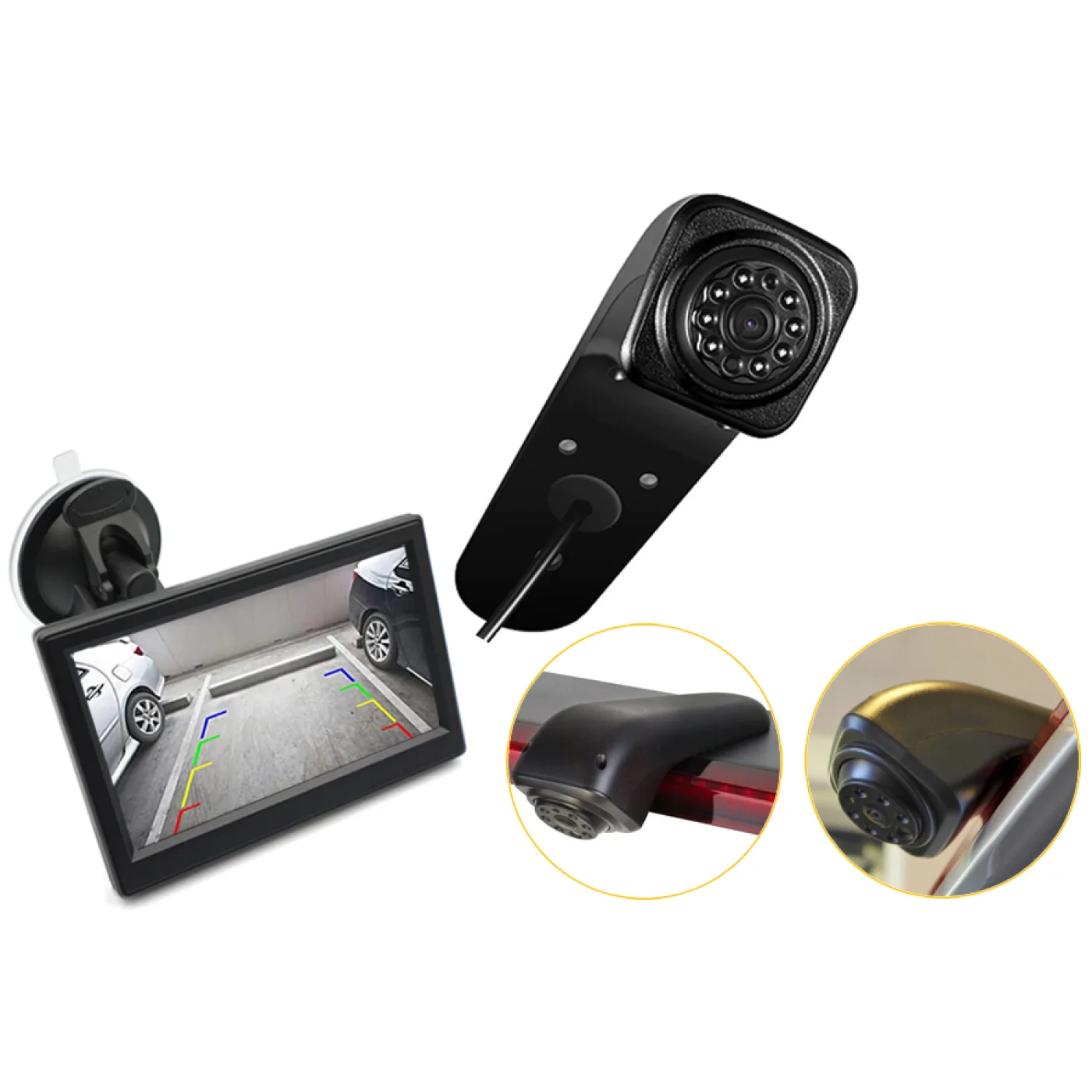

InCarTec CK-VW-002 MAN TGE High Level Brake Light Camera and Monitor Kit

Reverse view high level brake light camera and video monitor kit specially designed for MAN TGE vehicle models.

The camera included in this kit secures on top of the third (high level) brake light housing on the back of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.

This kit comes complete with a 5 inch standalone windscreen video monitor, great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.

High level brake light camera (CVC-VW-002)

Special rear view camera specially designed for MAN TGE vehicle models.

This camera secures on top of the third (high level) brake light housing on the back of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.

This camera fits on top of the existing high level brake light housing, please see picture below

Below is an image of the supplied cables and cutting tools needed for installation (Also included with camera)

5 inch video monitor (M-S5.0)

• 5 inch standalone windscreen video monitor with suction mount bracket.
• These monitors are great to use when installing an aftermarket reverse camera without having to modify the original factory fitted system.
• Comes with a 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets.

Main Features

• High brightness/resolution digital 5" wide-screen LCD panel applied.
• Super slim design, easy to mount on top of dashboard or window glass.
• Dual video input, standard RCA connectors. Shielding cables used to avoid signal interference when both channels are connected to cameras or video.
• Adjustable suction mount bracket.
• Adjustable brightness and colour intensity.
• Rear 4 ratchet (4R) style mounting point for use with other 4R series mounts and brackets. (see below picture)
• Guidelines only available when used with a camera with guidelines.

Installation

• Can be powered from a 12v ignition or reverse feed.
• Sometimes the reverse power feed from the reversing lights may not be strong enough to power the monitor. A separate power feed relay (10-641) may be required to give a better 12v power feed.
