InCarTec CVC-FOR-01-DUAL Ford Transit Dual Lens High Level Brake Light Rear View Camera (NTSC)
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:CVC-FOR-01-DUAL
- EAN / UPC:7427282719193
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Transit | 2013 - 2018 | MK8 |
| Ford | Transit | 2018 onward | MK8 Facelift |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

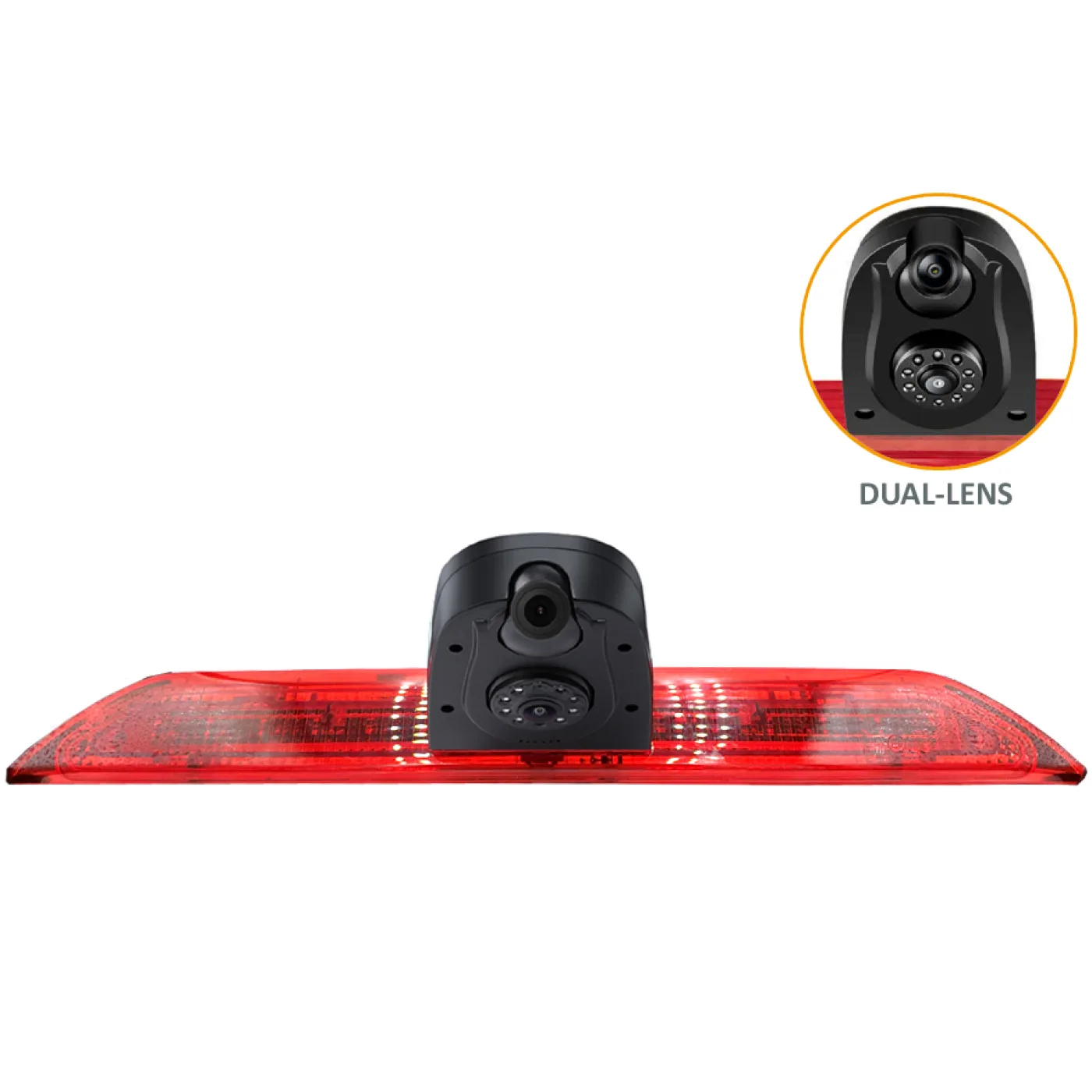

Dual-Lens rear view camera specially designed for Ford Transit MK8 (2013-2018) and Ford Transit MK8 Facelift (2018 Onwards) vehicles.
If you are fitting to the cars original screen and are unsure of which version of SYNC you have then please see our guide to identifying SYNC and which camera interface to use.
This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.
The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.
This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image censor, 756 x 504 resolution and are waterproof rated at IP68 as standard.
Specifications
Specifications
- Image sensors
- 1/3 color HD CMOS/CCD
- System
- NTSC/PAL (TV system)
- Min illumination
- 0Lux (LED ON)
- Perfect IR night vision, 8 pcs IR LED
- Lens Angle
- 170°
- Night Vision distance
- 30ft
- Minimum illumination. <0.5 BLC
- Auto
- White Balance
- Auto,Video Color: Colorful
- Waterproof Class
- IP68
- Effective Pixels
- 756(H)*504(V)
- Pixel Resolution
- 600TV lines
- Video Output
- 1.0Vp-p,75
- Electronic Shutter
- 1/60(NTSC)-1/10000S
- S/N ratio
- Better Than 48db
- Operation Temperature
- -20°C+70°C RH95%
- Storage Temperature
- -40°C+100°C RH95%
- Working Power (DC)
- 12V/1,5
- Watt Current consumption
- 90mA Max
- Video cable is RCA connector/4Pin aviation
