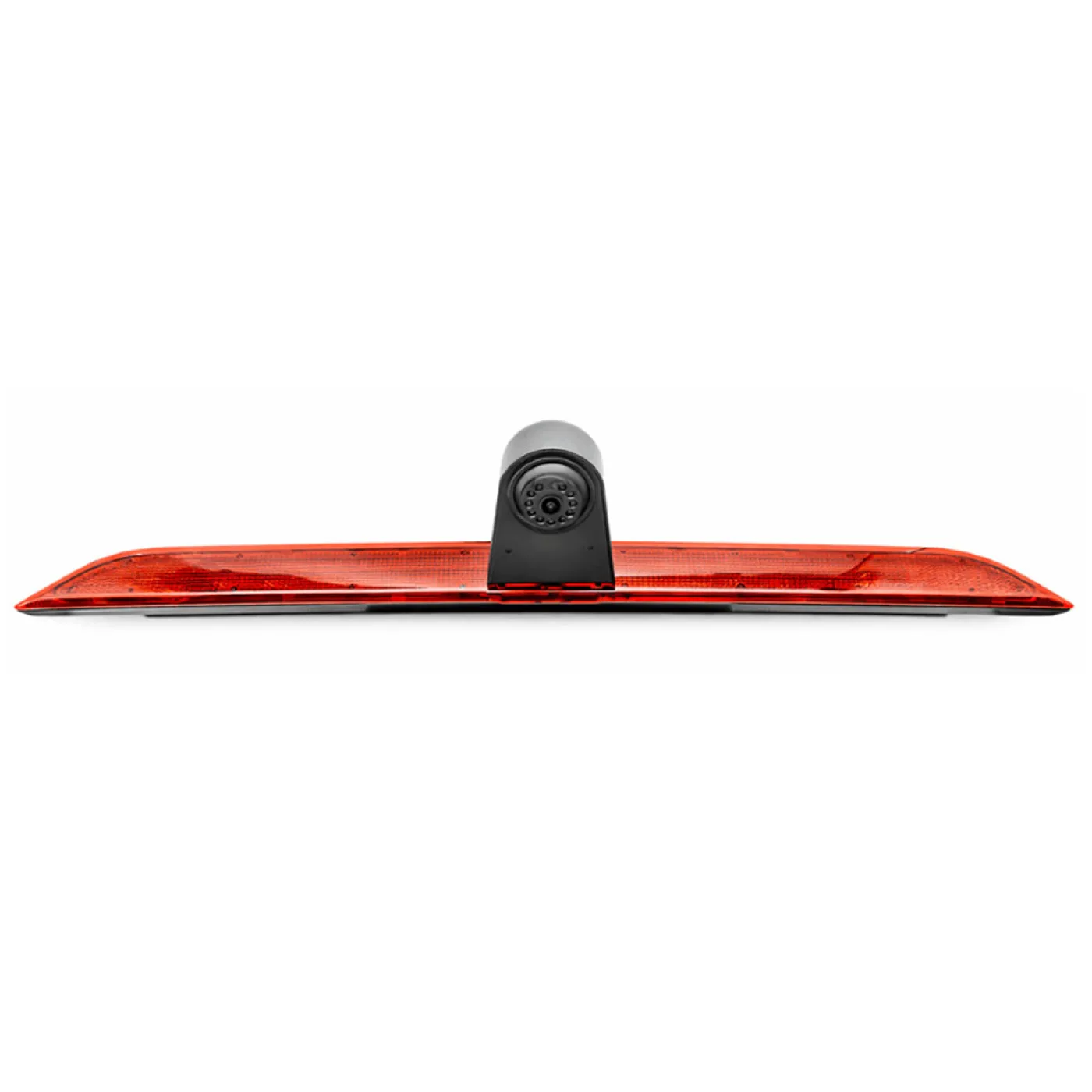

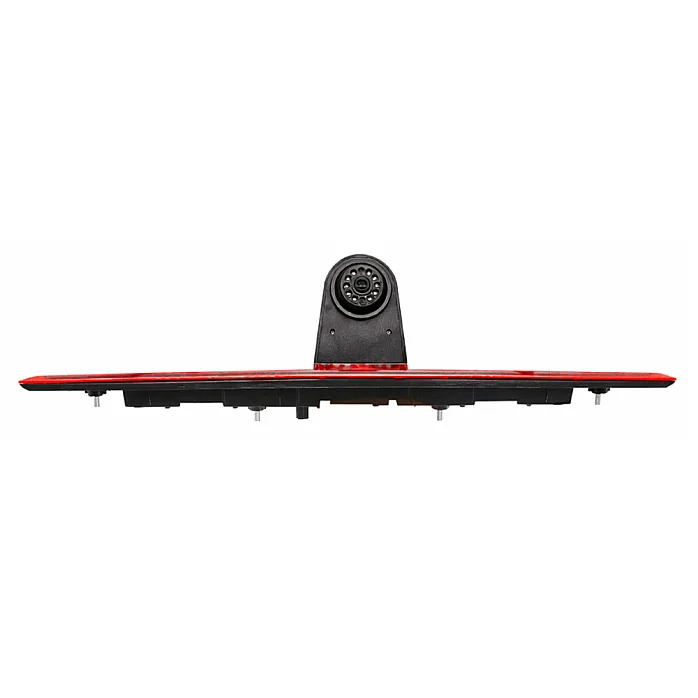

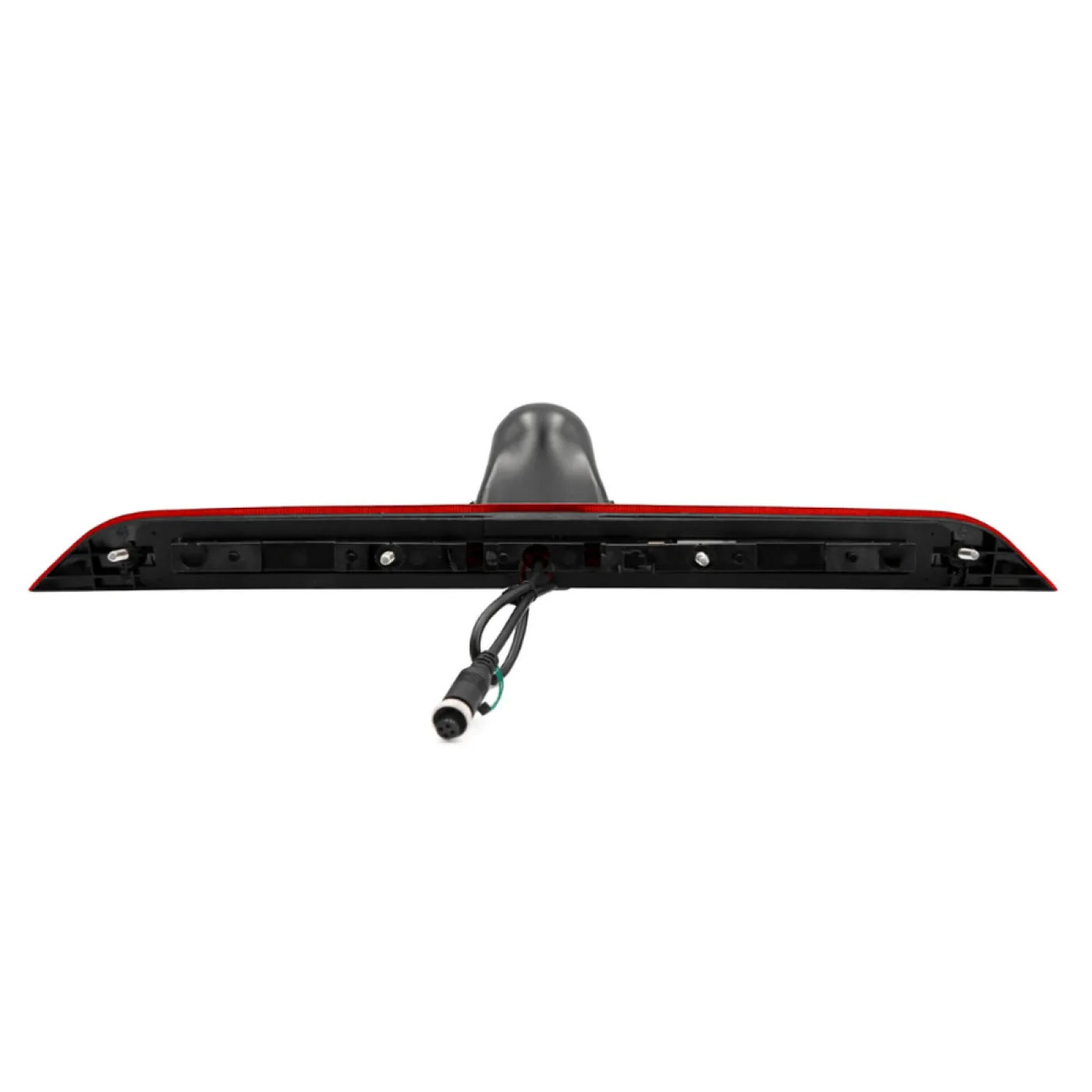

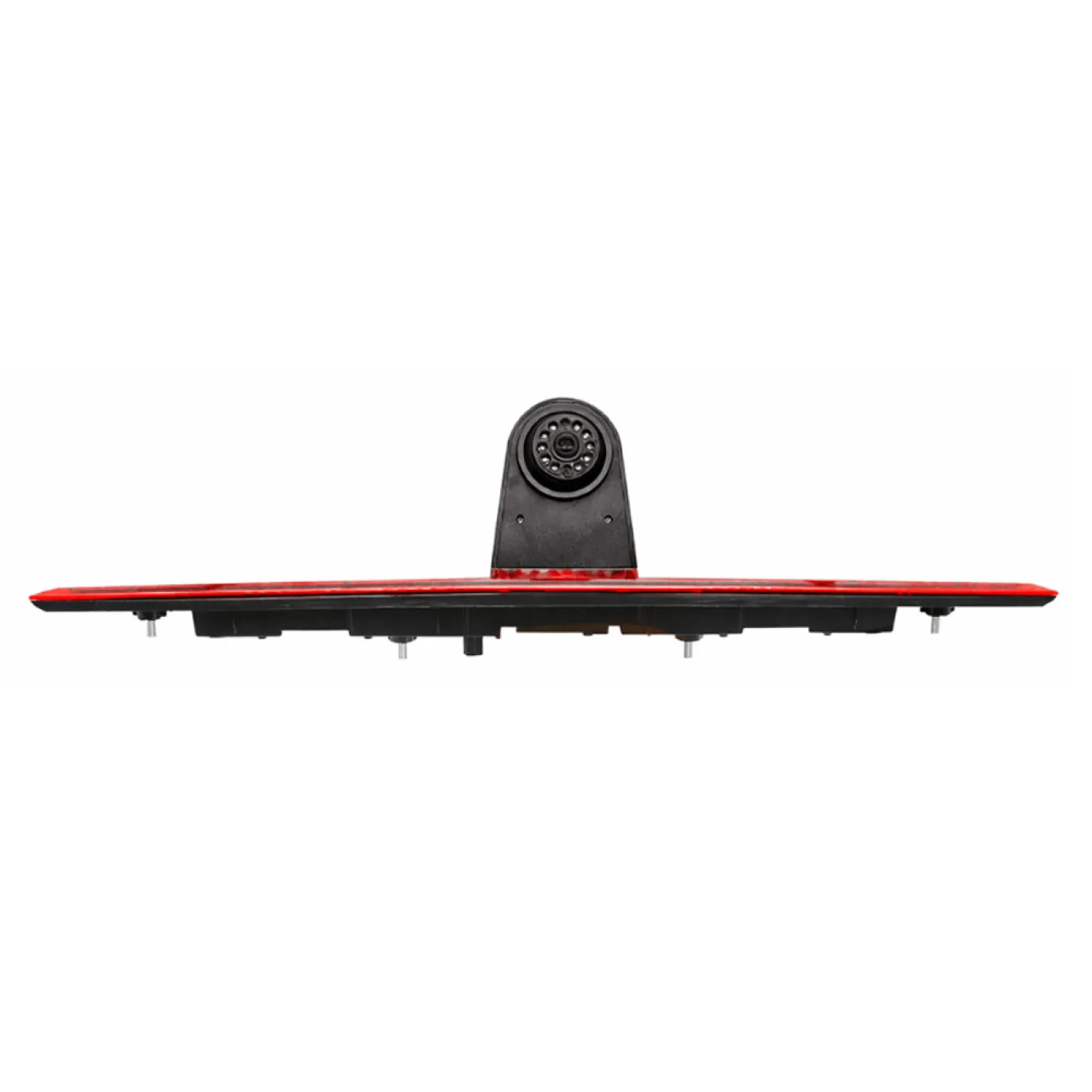

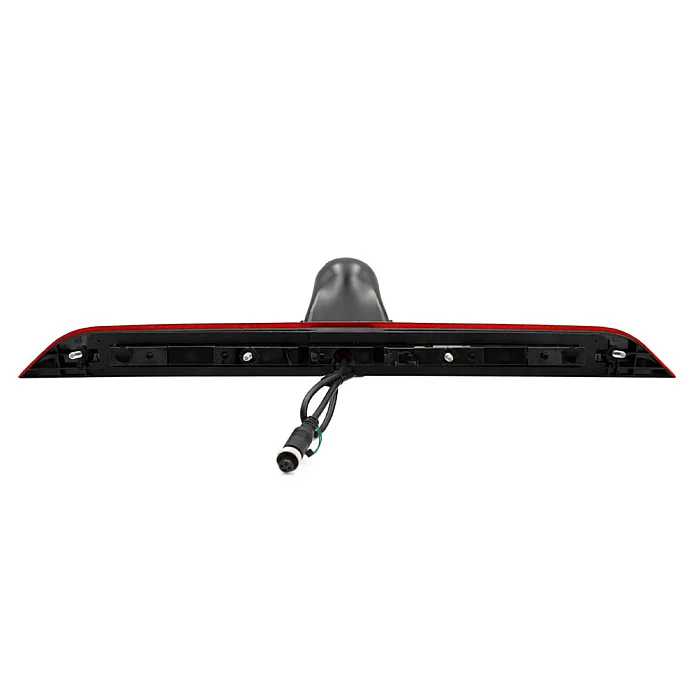

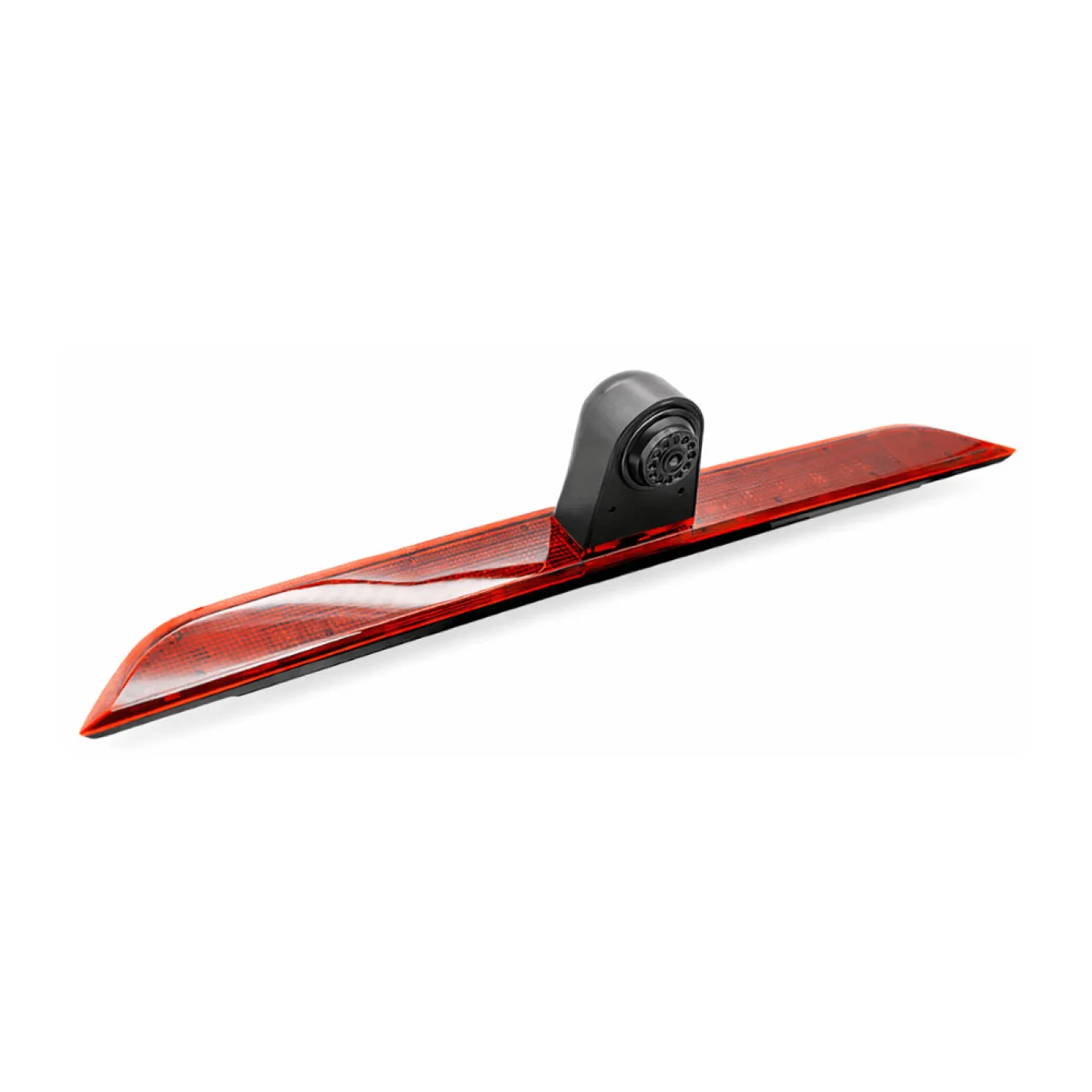

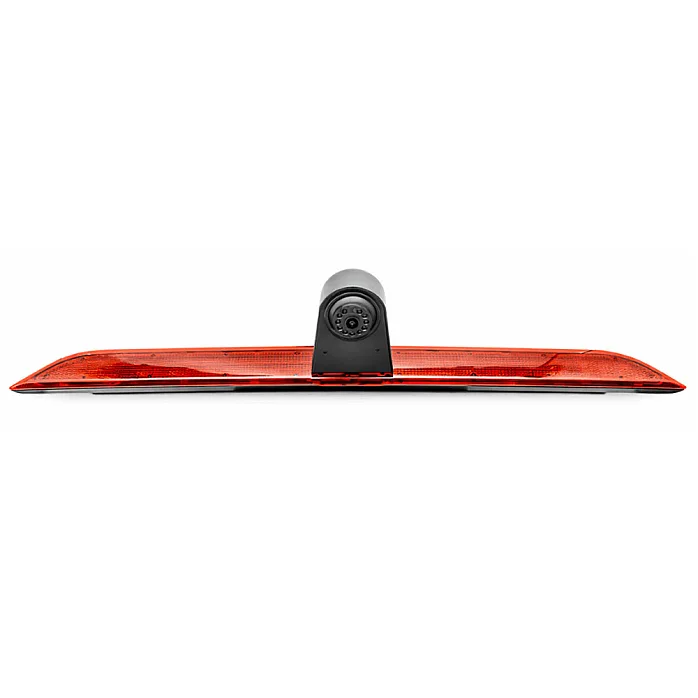

InCarTec CVC-MAX-01 Maxus Deliver 9 (2020>) High Level Brake Light Reverse Camera (OEM Style Replacement)
- Availability:Out Of Stock
- Item Condition:New
- Brand:InCarTec
- Product Code:CVC-MAX-01
- EAN / UPC:7427288173616
- Warranty:1 Year Warranty

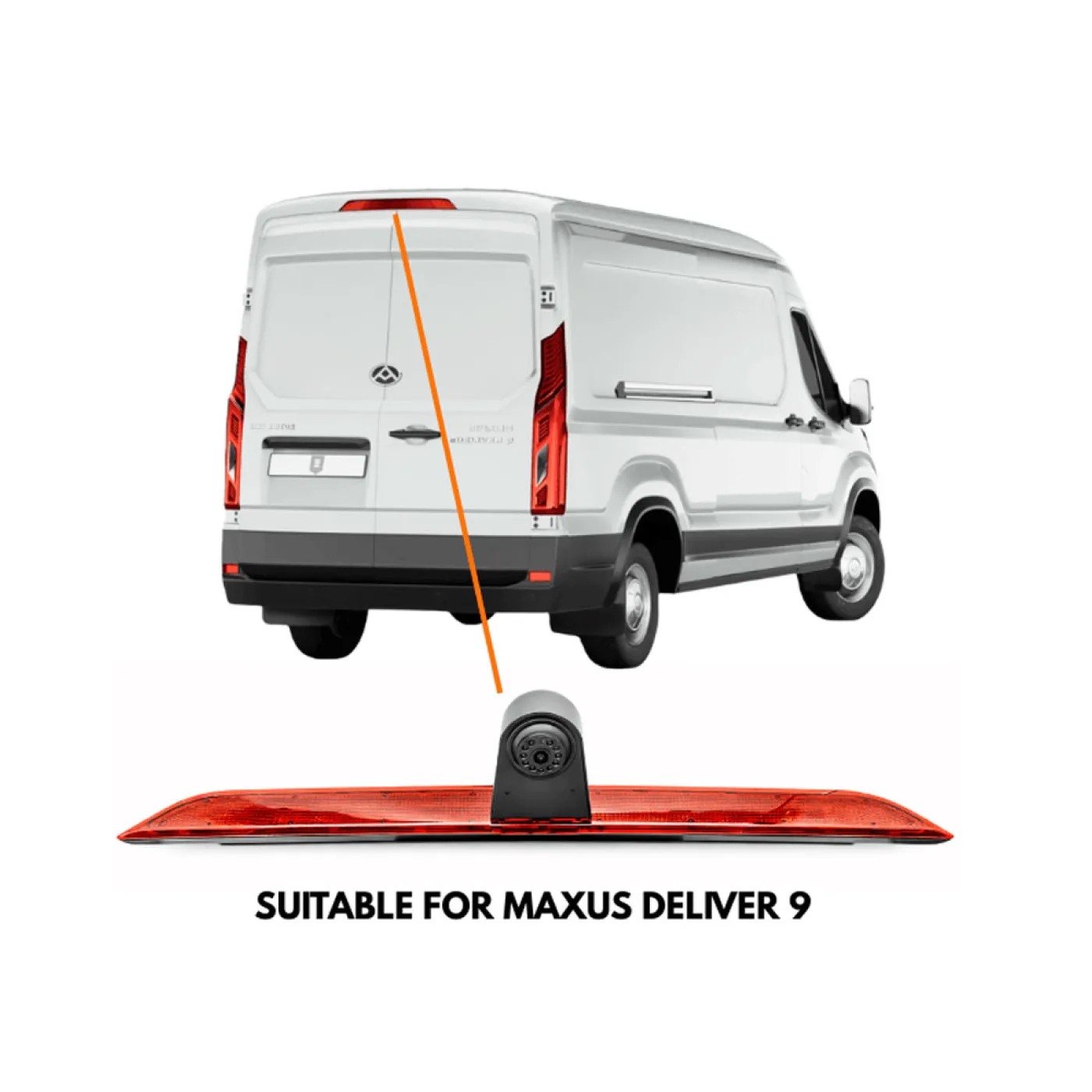

This high level brake light reverse camera is specifically designed for the Maxus Deliver 9 (2020 onwards), providing a clean OEM-style replacement for the original factory brake light assembly. The integrated wide-angle camera enhances rear visibility while maintaining full brake light functionality, ensuring safety and compliance are not compromised.
Commercial vans such as the Deliver 9 can have limited rear visibility, especially in long wheelbase and high roof variants. This camera provides a clear rear image to assist with reversing, manoeuvring, and tight parking situations, helping to prevent collisions and reduce blind spots. It is particularly useful for fleet operators, delivery drivers, and trade vehicles operating in busy environments.
Designed for easy installation, this unit replaces the original brake light housing to maintain a neat, factory-style finish. The camera is compatible with most aftermarket double DIN head units, AHD monitors, and CVBS monitor systems. If fitting to a vehicle equipped with a factory screen-based infotainment system, an additional camera interface is usually required to enable video input.
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Maxus | Deliver 9 | 2020 onward |
Specifications
Aftermarket Stereo & Monitor Compatibility
- Upgrading the factory entertainment system to an aftermarket double DIN stereo upgrade
- Installing an aftermarket AHD monitor
- Installing a CVBS monitor system
Product Specifications
- Sensor
- 1/2.7 FH8536H+C2399
- Effective Pixels
- CVBS: 1920(H) * 530(V)；AHD-1080P: 1920(H) * 1080(V); AHD-720P: 1280(H) * 720(V)
- Resolution
- 1000-2000 TVL
- TV System
- NTSC/PAL
- Video Signal
- CVBS/AHD
- Wide Angle
- Vertical 85 Degrees, Horizontal 160 Degrees
- Min illumination
- 0Lux (LED ON)
- IR led
- High brightness LED
- Night Vision distance
- 30ft
- Function Options
- Mirror/Non-Mirror, Guide Line ON /Guide Line OFF, Flip/No Flip
- Waterproof Rating
- IP68
- Current Consumption
- 150 mA
- Power Supply
- 12V standard, compatible with 5V-18V
- Connector
- 4P Aviation Female
- Operating Temperature
- -30℃ to +75℃, Rh95% MAX
- Storage Temperature
- -40℃ to +85℃, Rh95% MAX
- Material
- PC plastic, high and low temperature resistance, flame retardant

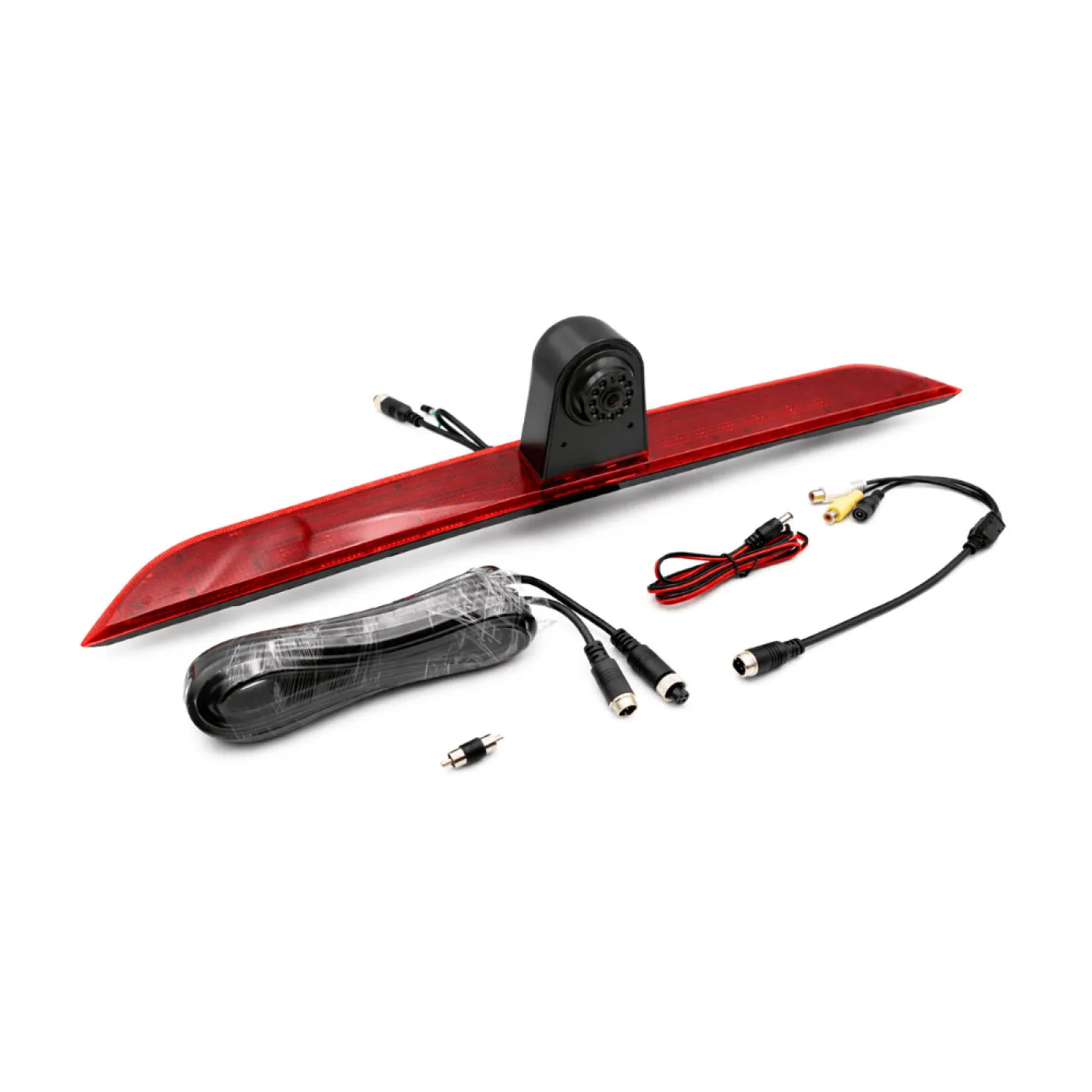

Product Contents
Product Dimensions
Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes may require different cameras. Please check that the image of the camera matches the existing brake light on the vehicle.
