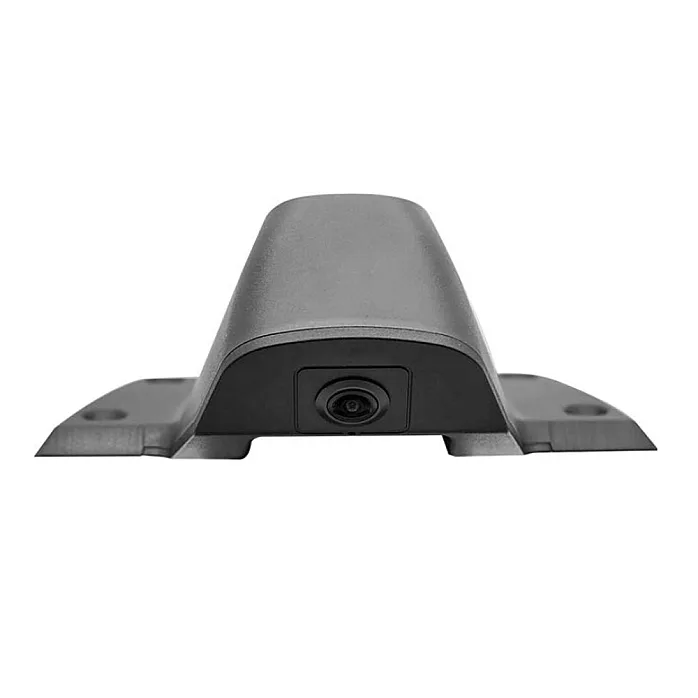

InCarTec CVC-MBZ-05 Mercedes Sprinter 2019-2024 Reverse View High Level Brake Llight Camera (OEM-Style Replacement)
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:CVC-MBZ-05
- EAN / UPC:7427288179755
- Warranty:1 Year Warranty

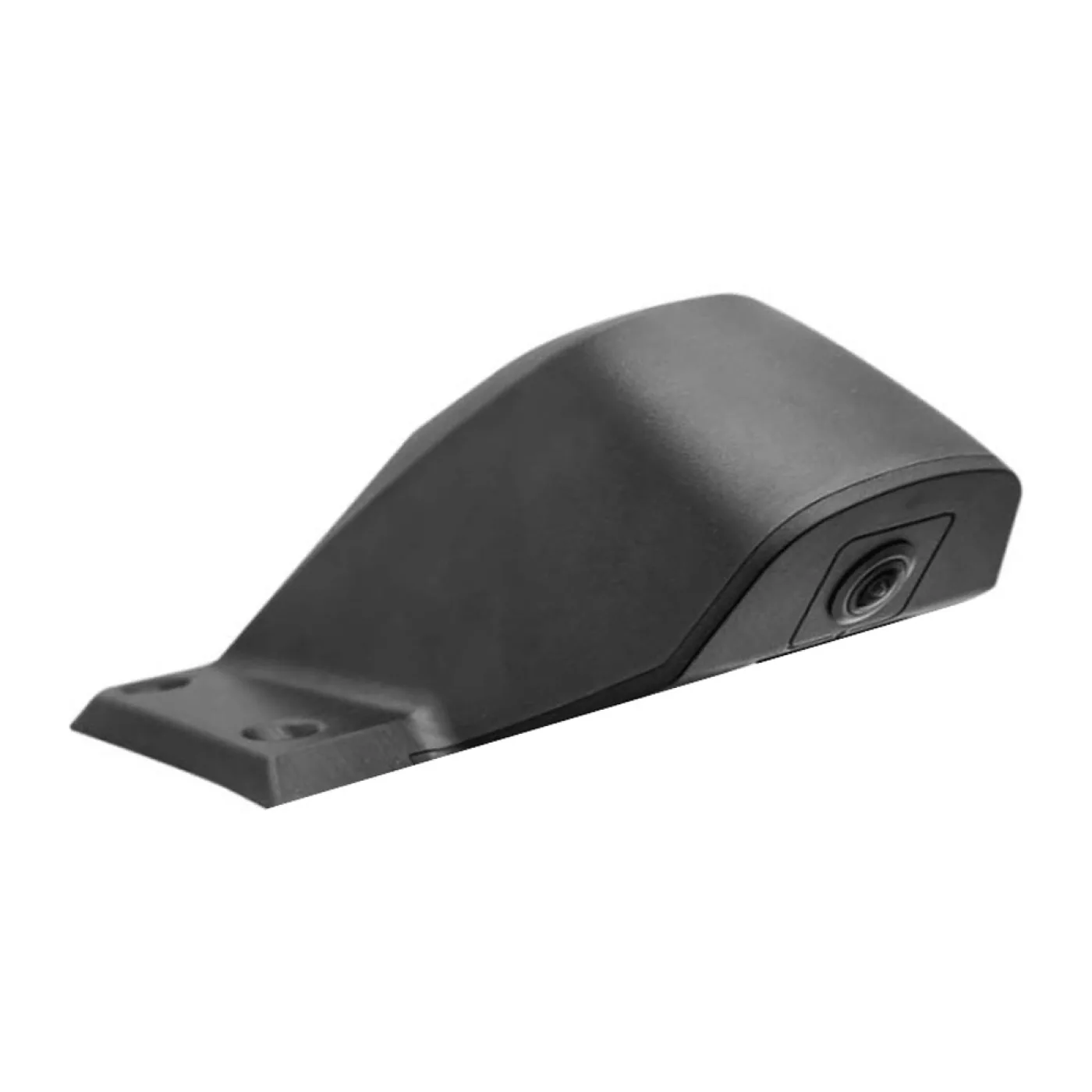

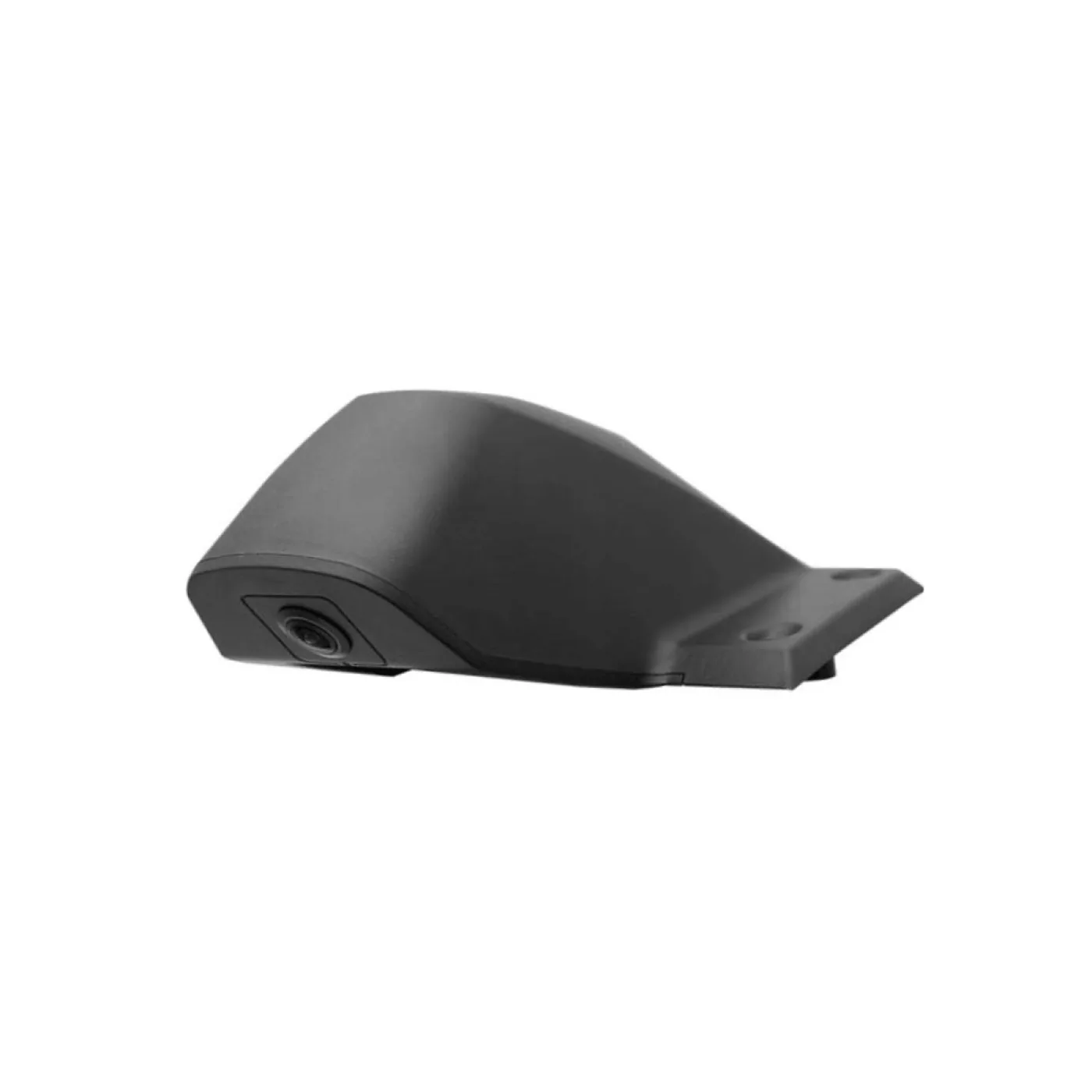

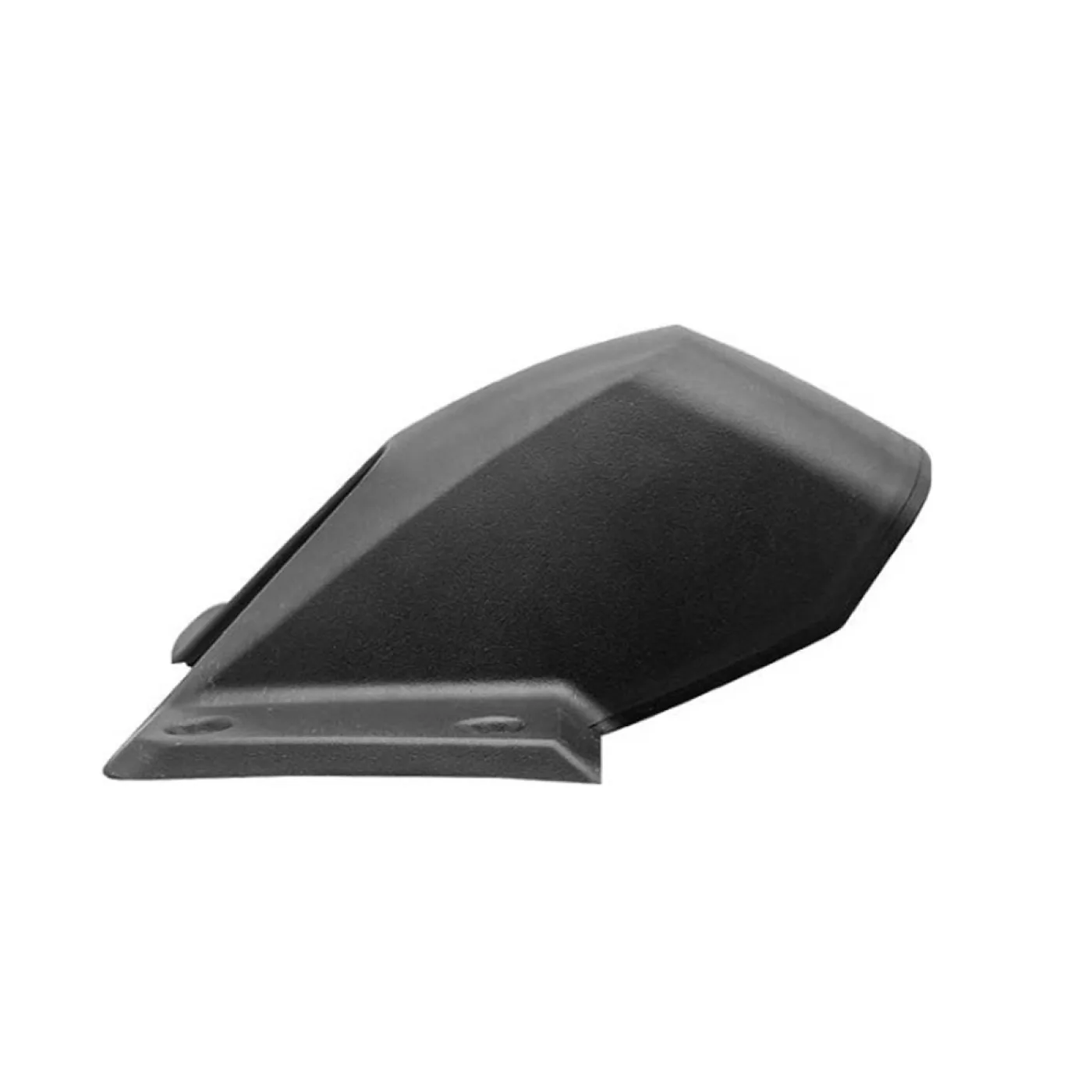

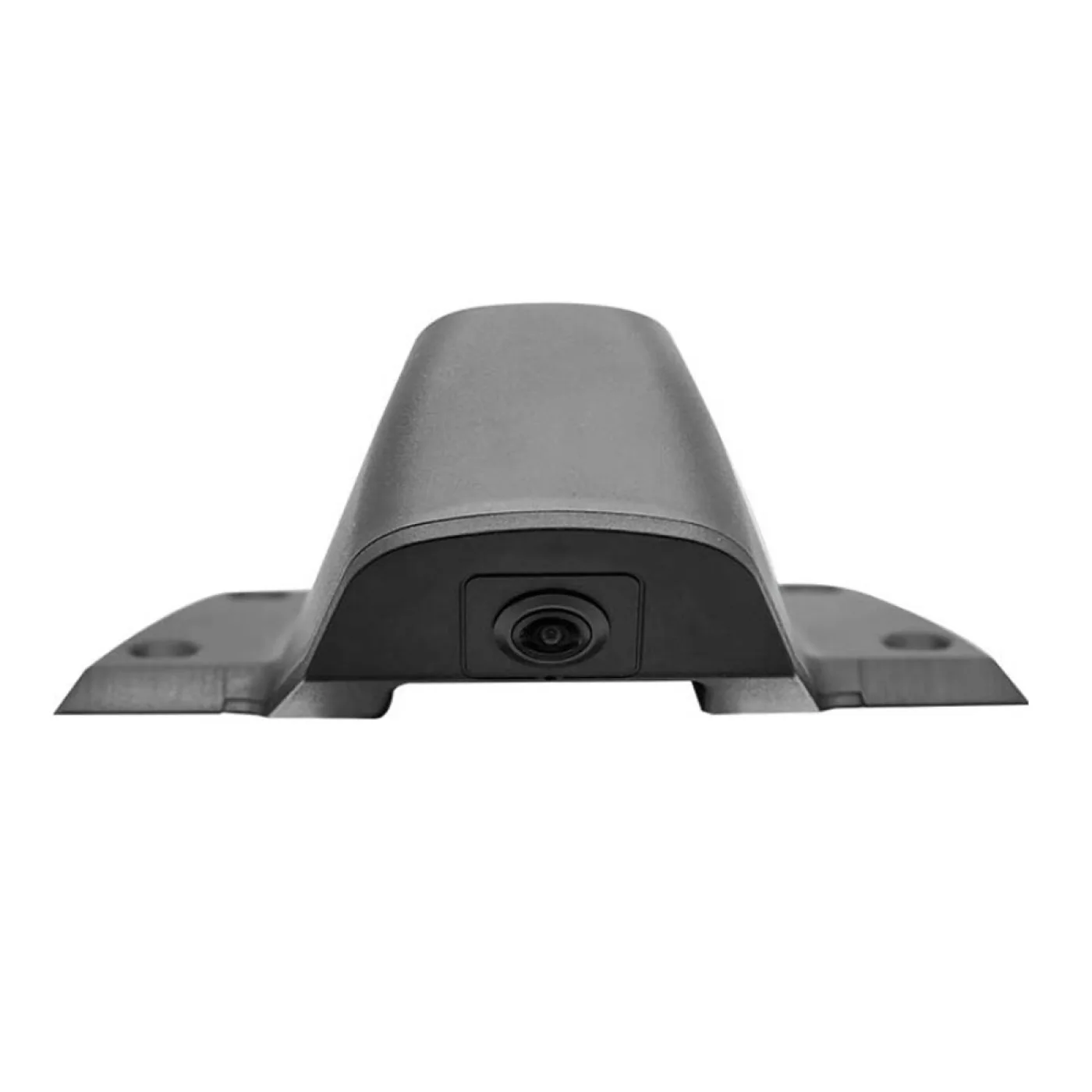

This high level brake light reverse camera is designed specifically for the Mercedes-Benz Sprinter 2019–2024 (VS30 shape). It replaces the original Mercedes camera housing and offers a precise OEM-style fit. Engineered as a direct replacement for genuine Mercedes part number A9079055107, this unit securely houses the camera components while maintaining correct positioning, sealing, and field of view within the high-level brake light assembly. It preserves the factory appearance while restoring dependable rear visibility.

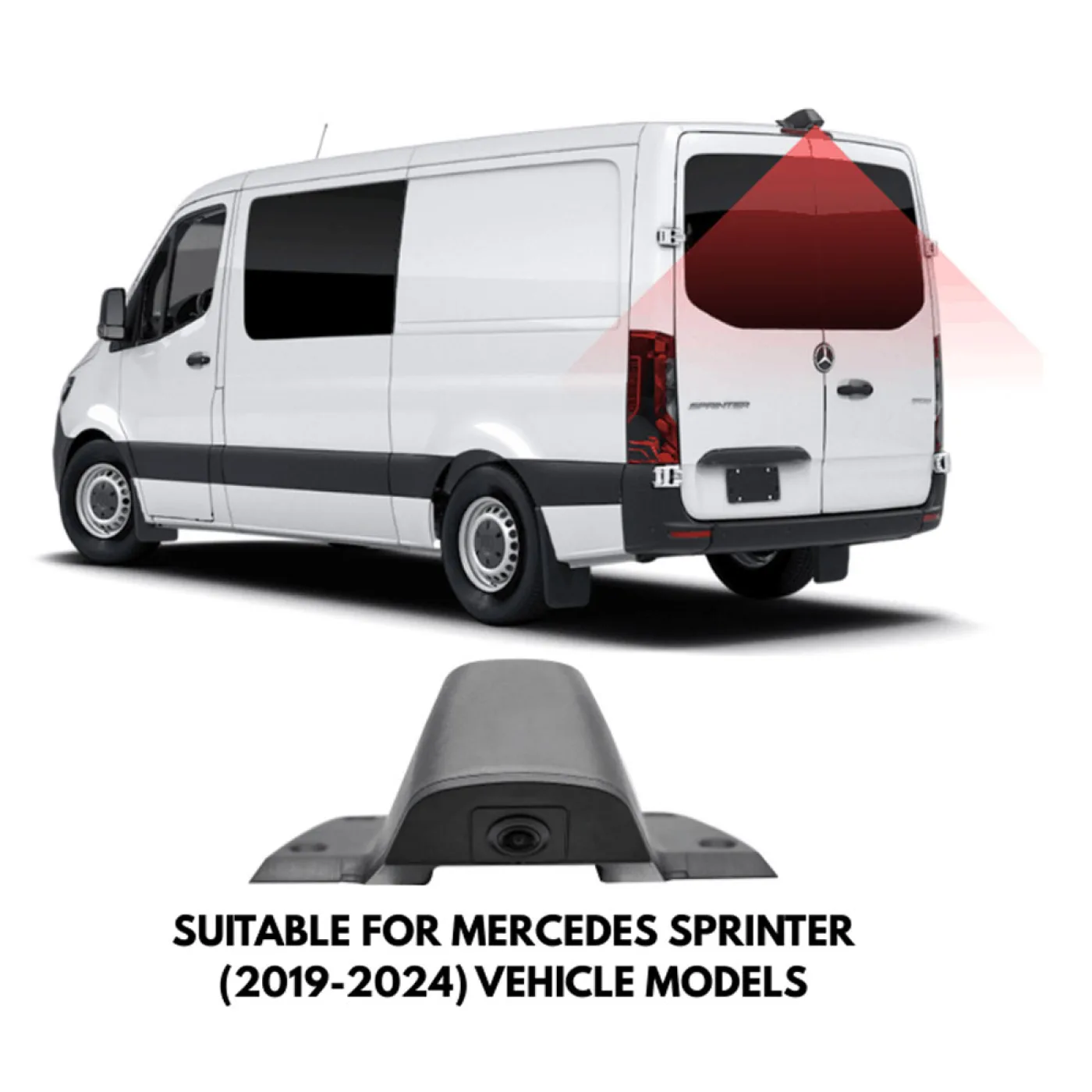

Product Compatibility Chart
| Make | Model | Variations | Years | Notes |
|---|---|---|---|---|
| Mercedes-Benz | Sprinter | W907/W910 | 2019 - 2024 | VS30 |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Specifications
Aftermarket Stereo & Monitor Compatibility
- Upgrading the factory entertainment system to an aftermarket double DIN stereo upgrade
- Installing an aftermarket AHD monitor
- Installing a CVBS monitor system
Product Specifications
- Sensor
- 1/2.7 FH8536H+C2399
- Effective Pixels
- CVBS: 1920(H) * 530(V)；AHD-1080P: 1920(H) * 1080(V); AHD-720P: 1280(H) * 720(V)
- Resolution
- 1000-2000 TVL
- TV System
- NTSC/PAL
- Video Signal
- CVBS/AHD
- Wide Angle
- Vertical 85 Degrees, Horizontal 160 Degrees
- Min illumination
- 0Lux (LED ON)
- IR led
- High brightness LED
- Night Vision distance
- 30ft
- Function Options
- Mirror/Non-Mirror, Guide Line ON /Guide Line OFF, Flip/No Flip
- Waterproof Rating
- IP68
- Current Consumption
- 150 mA
- Power Supply
- 12V standard, compatible with 5V-18V
- Connector
- 4P Aviation Female
- Operating Temperature
- -30℃ to +75℃, Rh95% MAX
- Storage Temperature
- -40℃ to +85℃, Rh95% MAX
- Material
- PC plastic, high and low temperature resistance, flame retardant

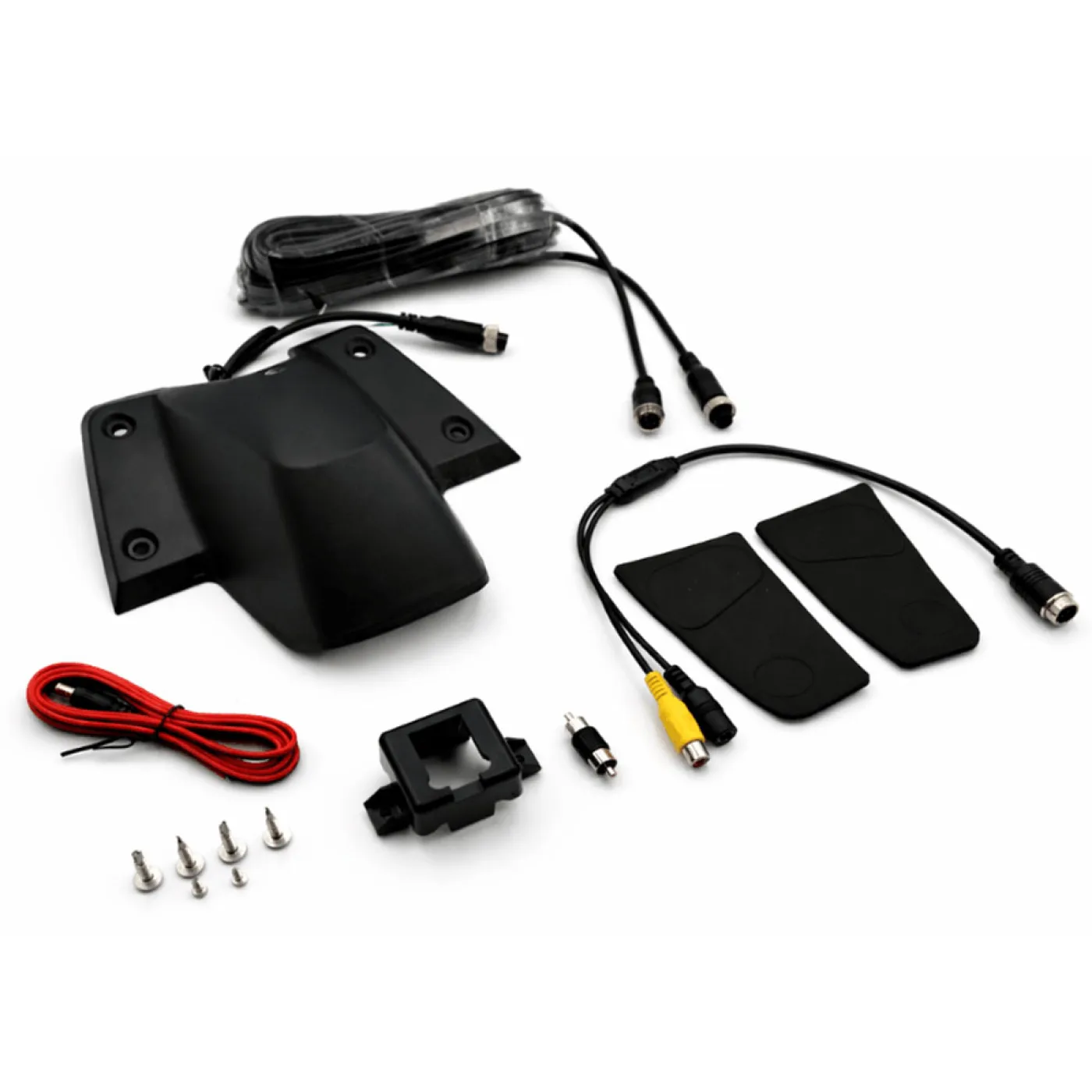

Product Contents
Product Dimensions
Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes may require different cameras. Please check that the image of the camera matches the existing brake light on the vehicle.
