InCarTec Fiat Ducato Dual Lens High Level Brake Light Rear View Camera (NTSC)
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:CVC-DUC-01-DUAL
- Other Part #:UP-DCAM-FT1
- EAN / UPC:7427282702683
- Warranty:1 Year Warranty
Next Day Delivery Available
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Fiat | Ducato | 2006 - 2014 | 3rd Gen |
| Fiat | Ducato | 2021 onward | 3rd Generation Series III (X290) |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

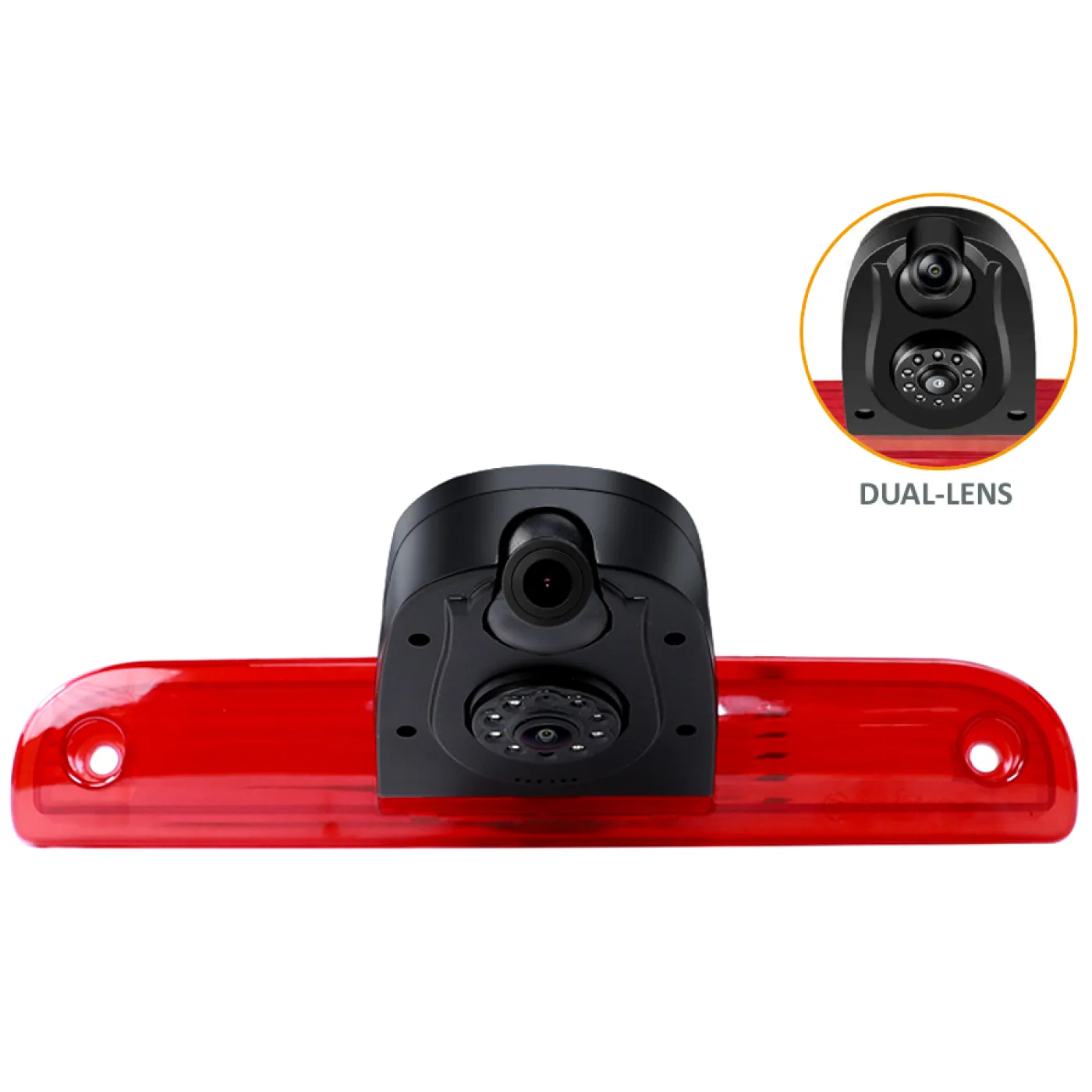

Dual-Lens rear view camera specially designed for Fiat Ducato (2006-2014) vehicles.
This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.
The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.
This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image censor, 756 x 504 resolution and are waterproof rated at IP68 as standard.
This camera kit Includes a 10m 7-pin extension cable and 4-pin to 7-pin cable splitter
Specifications
Specifications
- Image sensors
- 1/3? color HD CMOS/CCD
- System
- NTSC/PAL (TV system)
- Min illumination
- 0Lux (LED ON)
- Perfect IR night vision, 8 pcs IR LED
- Lens Angle
- 170°
- Night Vision distance
- 30ft
- Minimum illumination. <0.5 BLC
- Auto
- White Balance
- Auto,Video Color: Colorful
- Waterproof Class
- IP68
- Effective Pixels
- 756(H)*504(V)
- Pixel Resolution
- 600TV lines
- Video Output
- 1.0Vp-p,75
- Electronic Shutter
- 1/60(NTSC)-1/10000S
- S/N ratio
- Better Than 48db
- Operation Temperature
- -20°C+70°C RH95%
- Storage Temperature
- -40°C+100°C RH95%
- Working Power (DC)
- 12V/1,5
- Watt Current consumption
- 90mA Max
- Video cable is RCA connector/4Pin aviation
