InCarTec FK-716 VW Touareg , Transporter Complete Double DIN Stereo Fascia Wiring Fitting Kit
- Availability:In Stock
- Available:9 in stock
- Item Condition:New
- Brand:InCarTec
- Product Code:FK-716
- EAN / UPC:7426871616134
- Warranty:1 Year Warranty
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Touareg | 2003 - 2009 | I |
| Volkswagen | Transporter | 2003 - 2009 | T5 |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

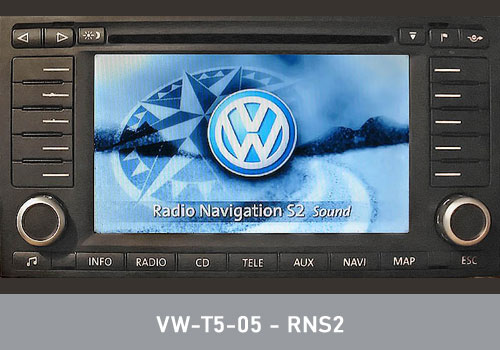

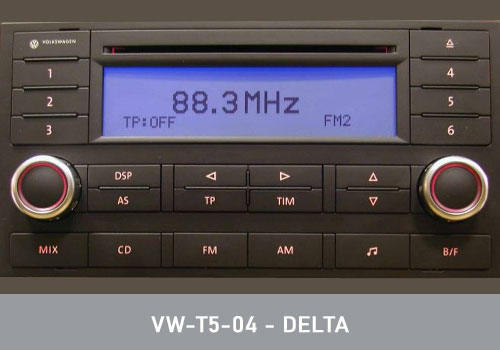

Original Stereo Should Be Look Like This
Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio and generate a key present ignition supply in Volkswagen Touareg I (2003-2009) and Transporter T5/Multivan vehicles (Delta/ RNS2 radios)

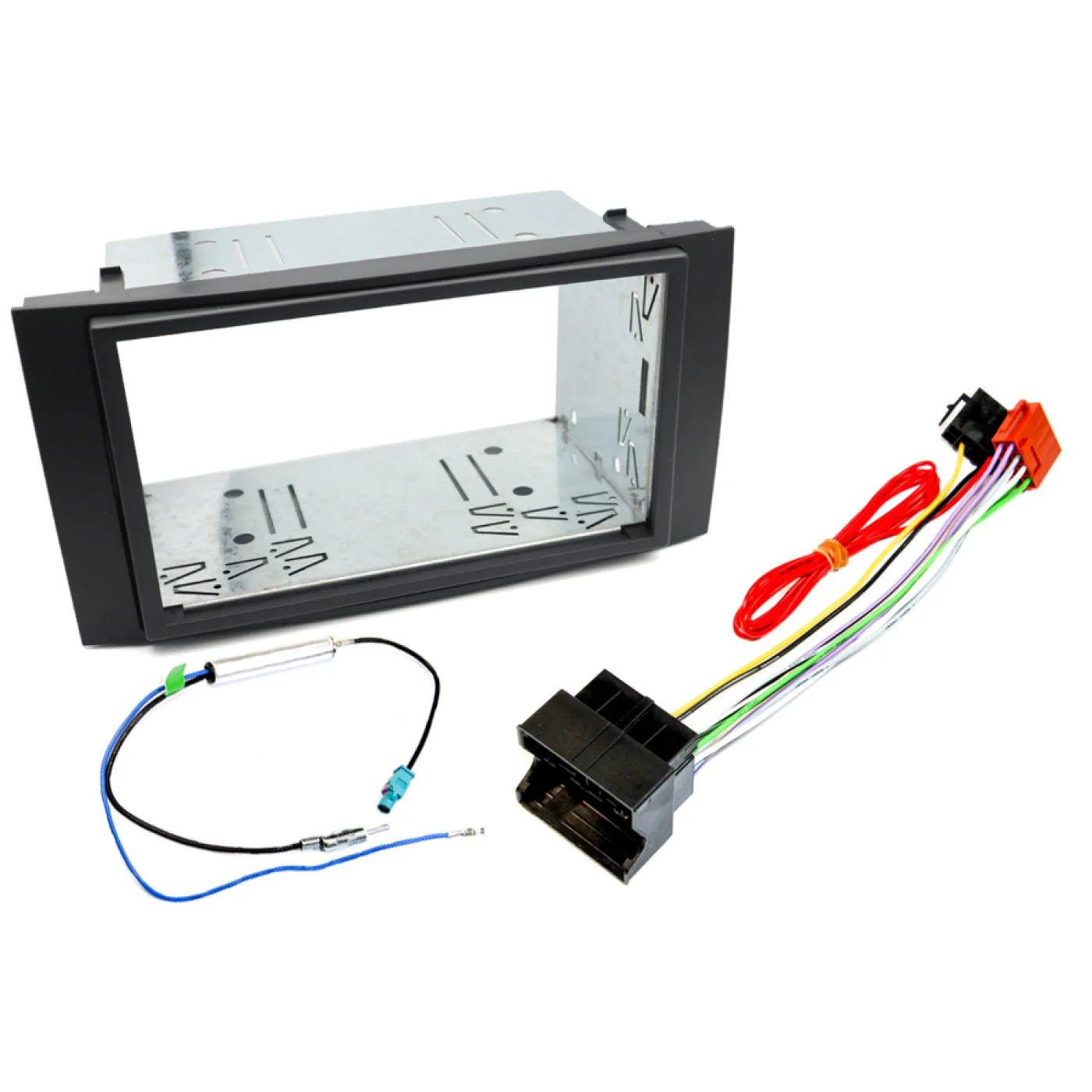

Package Includes
- Double Din Fascia Adaptor
- 103mm Double Din Fitting Cage
- ISO harness
- AM/FM Antenna Adaptor
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
This fascia is designed to replace the wider rectangular OEM radios.
Wiring Harness
The wiring harness will allow to install the stereo.
ISO adapter harness for Volkswagen group vehicles with quadlock connectors at the back of the radio.
This adapter harness is designed to adapt from the original quadlock style connector in the dashboard to a standard aftermarket ISO connector to allow the fitting of a new radio.
This lead has a loose fly wire, this needs to be connected to an ignition power supply. The original radio in the car is turned on via a CANbus data signal so there is no ignition power supply in the vehicle's original connector.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.
Double DIN Metal Cage Kit
This kit is designed to replace the metal cage kit that is usually supplied with your new aftermarket double din head-unit or navigation system. It is used along with fascia's that have 103mm high hole sizes. This cage kit comes complete with fixings to attach to the new car radio body.
