JL Audio 6.5" 2 Way Coaxial Front or Rear Door Speaker Upgrade Pack With Sound Deadening Sheet For Volkswagen
- Availability:In Stock
- Available:5 in stock
- Item Condition:New
- Brand:JL Audio
- Product Code:C1-650x + SAVW30 + RKXSK
- EAN / UPC:7427288193195
- Warranty:1 Year Warranty

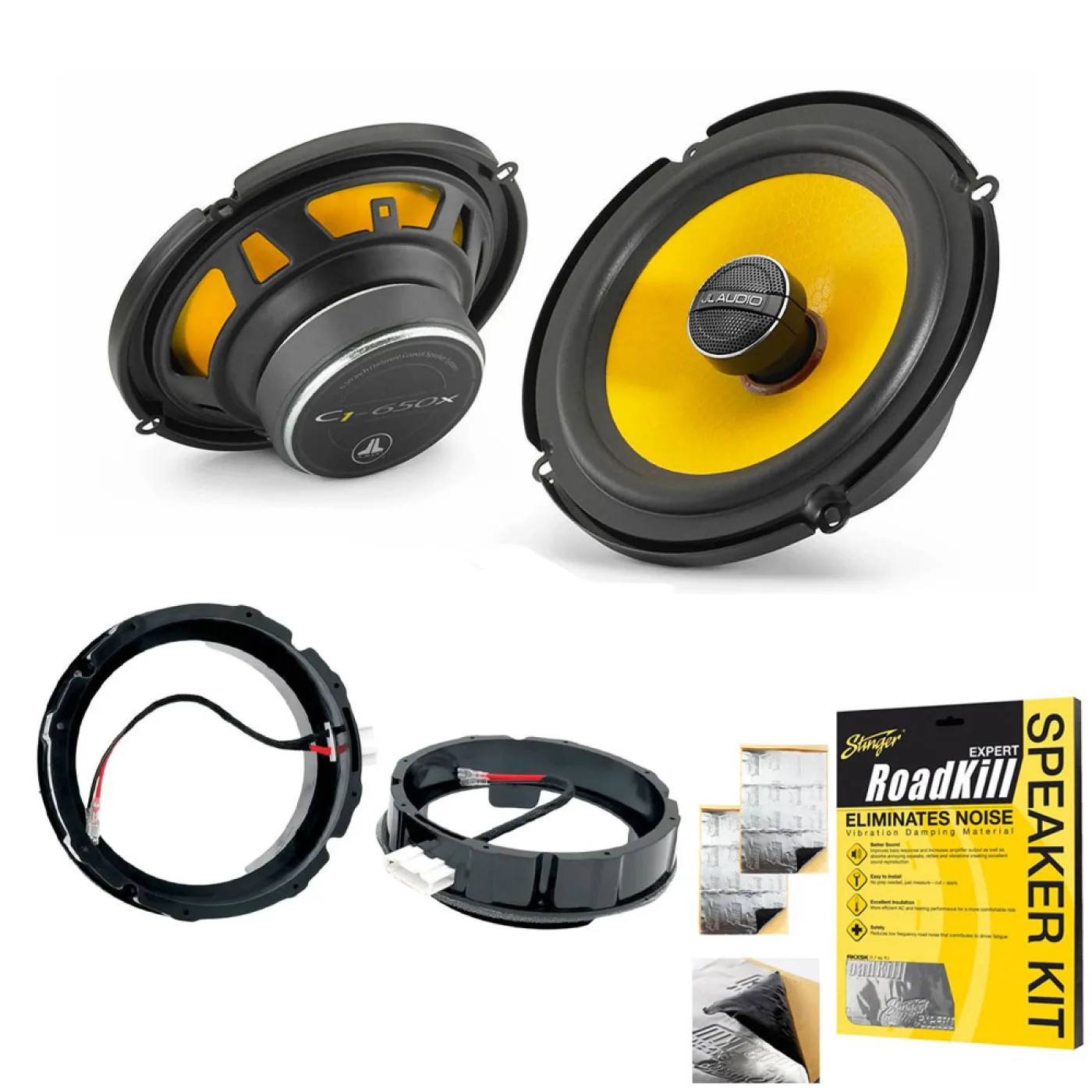

Package Includes
- JL Audio C1-650x 6.5" 16.5cm 2 Way Yellow Cone Car Speakers
- 165mm Speaker Adaptor Panels With Cables
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
Product Compatibility Chart
| Make | Model | Years | Notes |
|---|---|---|---|
| Volkswagen | Amarok | 2009 - 2016 | Front Door 165mm |
| Volkswagen | Beetle | 1997 - 2010 | Front Door 165mm |
| Volkswagen | Eos | 2006 - 2016 | Front Door 165mm |
| Volkswagen | Golf | 2009 - 2017 | Front or Rear Installation 165mm. VI/VII Models |
| Volkswagen | Lupo | 1998 - 2005 | Front Door 165mm |
| Volkswagen | Polo | 2001 - 2006 | Front or Rear Door 165mm.9N/9N3/6R/6C Models |
| Volkswagen | Scirocco | 2008 - 2014 | Front Door 165mm |
| Volkswagen | Tiguan | 2007 - 2015 | Rear Door 165mm |
| Volkswagen | Touran | 2006 - 2010 | Rear Door 165mm |
| Volkswagen | UP! | 2011 - 2017 | Front Door 165mm |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Upgrade your factory speakers with these 6.5” direct-fit speaker adapter brackets designed. These adapters allow installation of aftermarket speakers into the factory speaker locations while maintaining a secure OEM-style fitment.
- Strong and durable construction
- OEM-style mounting solution
- Helps provide secure speaker installation
- Ideal for aftermarket speaker upgrades
- Simple installation design
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
C1-650x
Coaxial Speaker System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included with the C1-650x allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the speaker will fit into many "6-inch" speaker locations as well.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Specifications
General Specifications
- Continuous Power Handling (RMS) 50 W
- Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
- System Efficiency 90.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 48 Hz - 24 KHz ± 3 dB
Coaxial Physical Specifications
- Frame Outer Diameter* (A) 6.25 in / 159 mm
- Grille Tray Outer Diameter (B) N/A
- Motor Outer Diameter (C) 3.15 in / 80 mm
- Frontal Coaxial Tweeter Protrusion** (D) 0.72 in / 18 mm
- Frontal Grille Protrusion (E) N/A
- Mounting Hole Diameter (F) 5.02 in / 128 mm
- Mounting Depth (G) 2.07 in / 53 mm
*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
