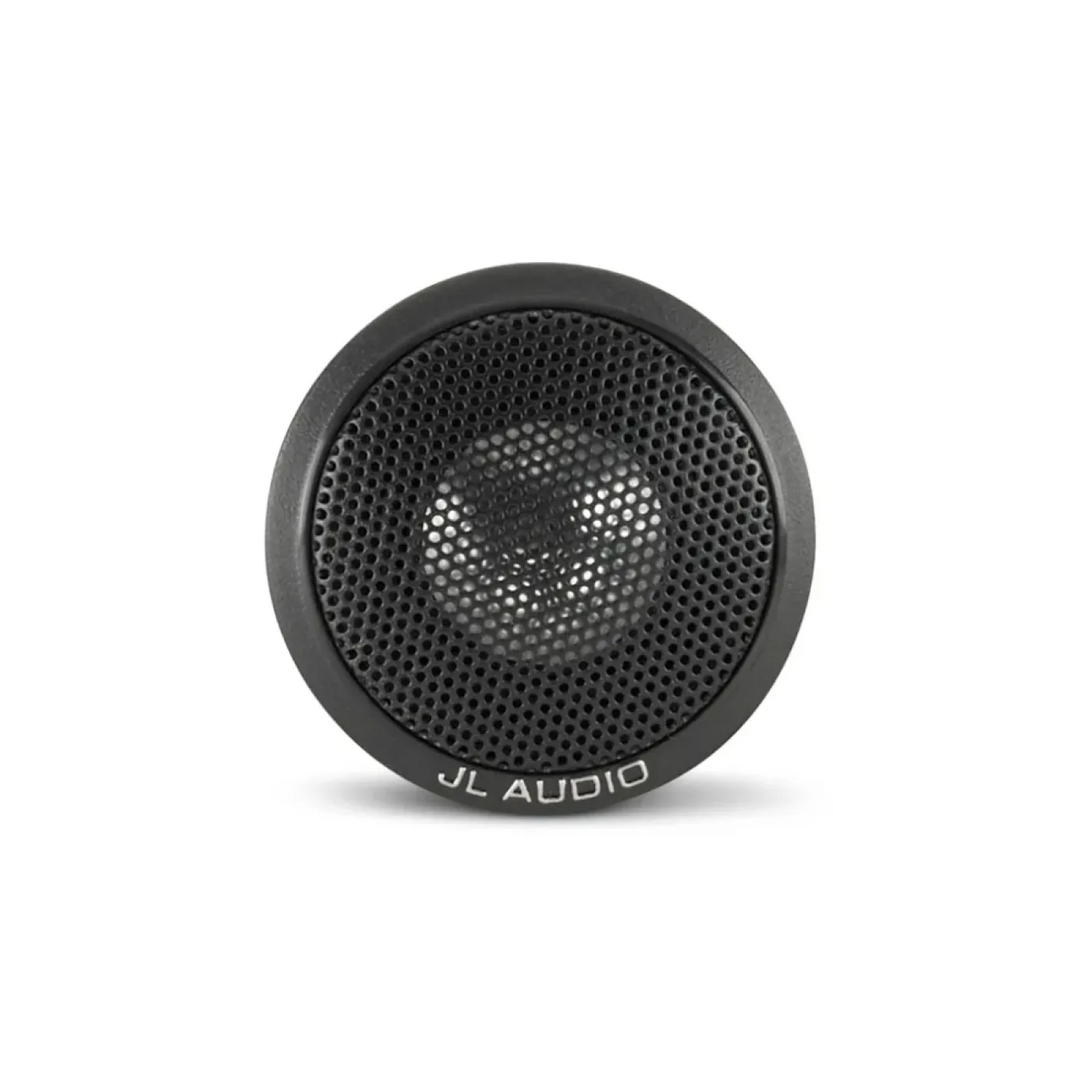

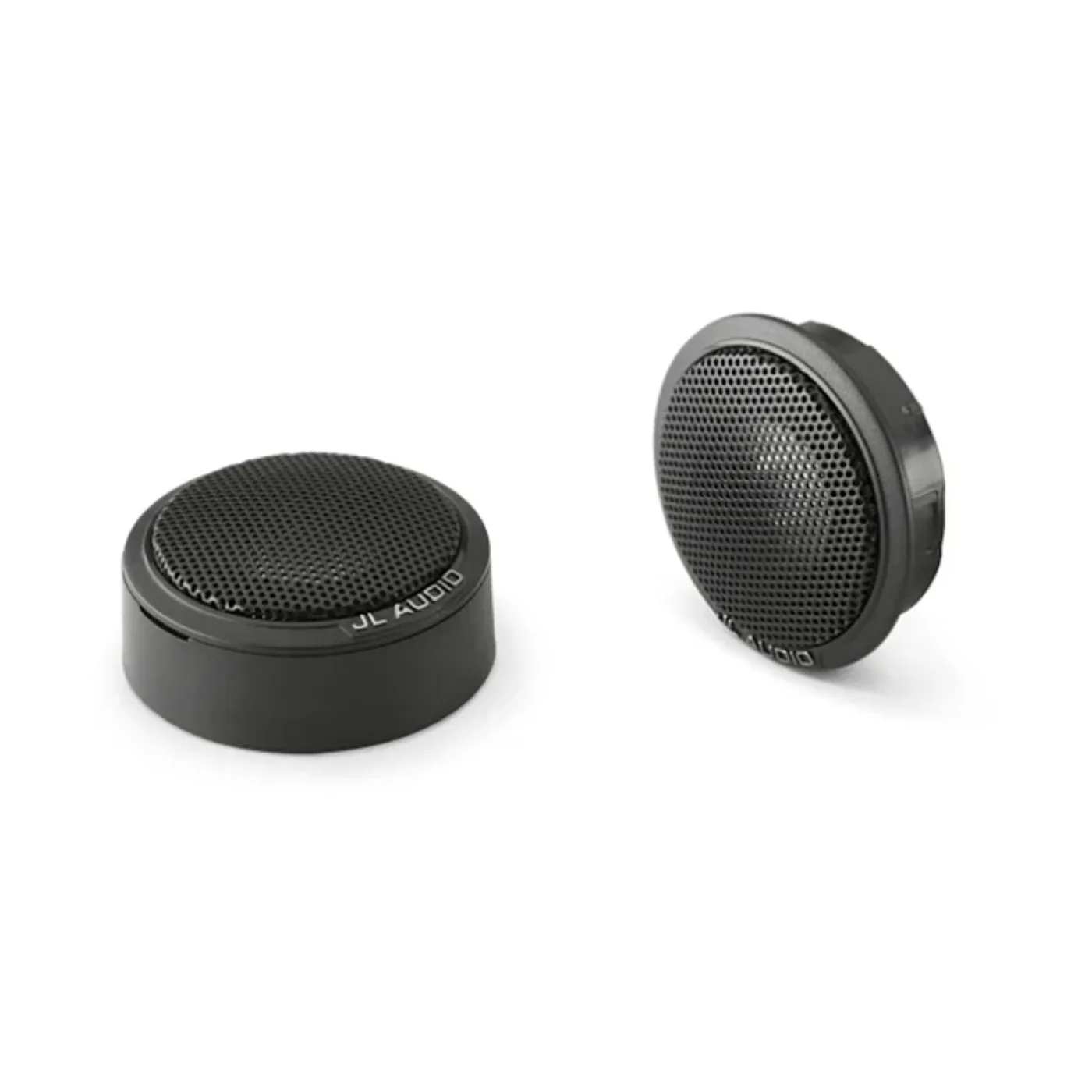

JL Audio C1-075CT C1 Series 0.75" (19mm) Component Car Tweeter Pair
- Availability:In Stock
- Available:10 in stock
- Item Condition:New
- Brand:JL Audio
- Product Code:C1-075CT
- EAN / UPC:7427307023038
- Warranty:1 Year Warranty
£49.99
£79.99
Order within for same-day dispatch
C1-075CT Component Tweeter Pair
Experience superior performance with the JL Audio C1 component tweeters. These tweeters offer outstanding off-axis response and extended high-frequency reproduction. Featuring true, edge-driven aluminum domes with silk suspensions, they deliver detailed treble frequencies. Whether flush-mounted or surface-mounted using the included fixtures, the C1 tweeters are versatile for various installation needs.
Specifications
General Specifications
- Sizes 0.75"/1"
- Continuous power handling (RMS) 0.75"
- 50 W
- Sensitivity (SPL @ 1 W/1 m) 0.75"
- 91 dB
- Frequency response (+/- 3 dB) 0.75"
- 4 kHz-24 KHz
- Nominal impedance 0.75"
- 6 Ω
- Recommended amplifier power (RMS) 0.75"
- 20-50 W/Channel
- Cone material Mineral-filled polypropylene
- Tweeter type Aluminum Dome
- Tweeter size 0.75"
- 0.75" (19 mm)
Connections
- Speaker connections Spade connectors
Tweeter Specifications
- Flush mount fixture diameter 0.75"
- 1.67" (42 mm)
- Surface mount fixture diameter 0.75"
- 1.71" (43 mm)
- Flush mount mounting hole diameter 0.75"
- 1.46" (37 mm)
- Flush mount mounting depth 0.40" (10 mm)
- Flush mount tweeter frontal protrusion 0.75"
- 0.23" (6 mm)
- Surface mount tweeter frontal protrusion 0.75"
- 0.76" (19 mm)
Crossover Specifications
- Width 1.96" (50 mm)
- Height 0.90" (23 mm)
- Depth 1.34" (34 mm)
What's In The Box
- Two tweeters
- Two crossovers
- Two flush mount housings
- Two surface mount housings
- Two metal spring clips (for flush mounting)
- Four 5/8" flat head screws (for surface mounting)
- Two 25 mm stud bolts
- Two 10 mm stud bolts
- Two M5 nuts
