JL Audio C2-650C 6.5" (165 mm) 2-Way Car Component Speaker System With Sound Deadening Sheet
- Availability:In Stock
- Available:2 in stock
- Item Condition:New
- Brand:JL Audio
- Product Code:C2-650C + RKXSK
- EAN / UPC:7427307021416
- Warranty:1 Year Warranty

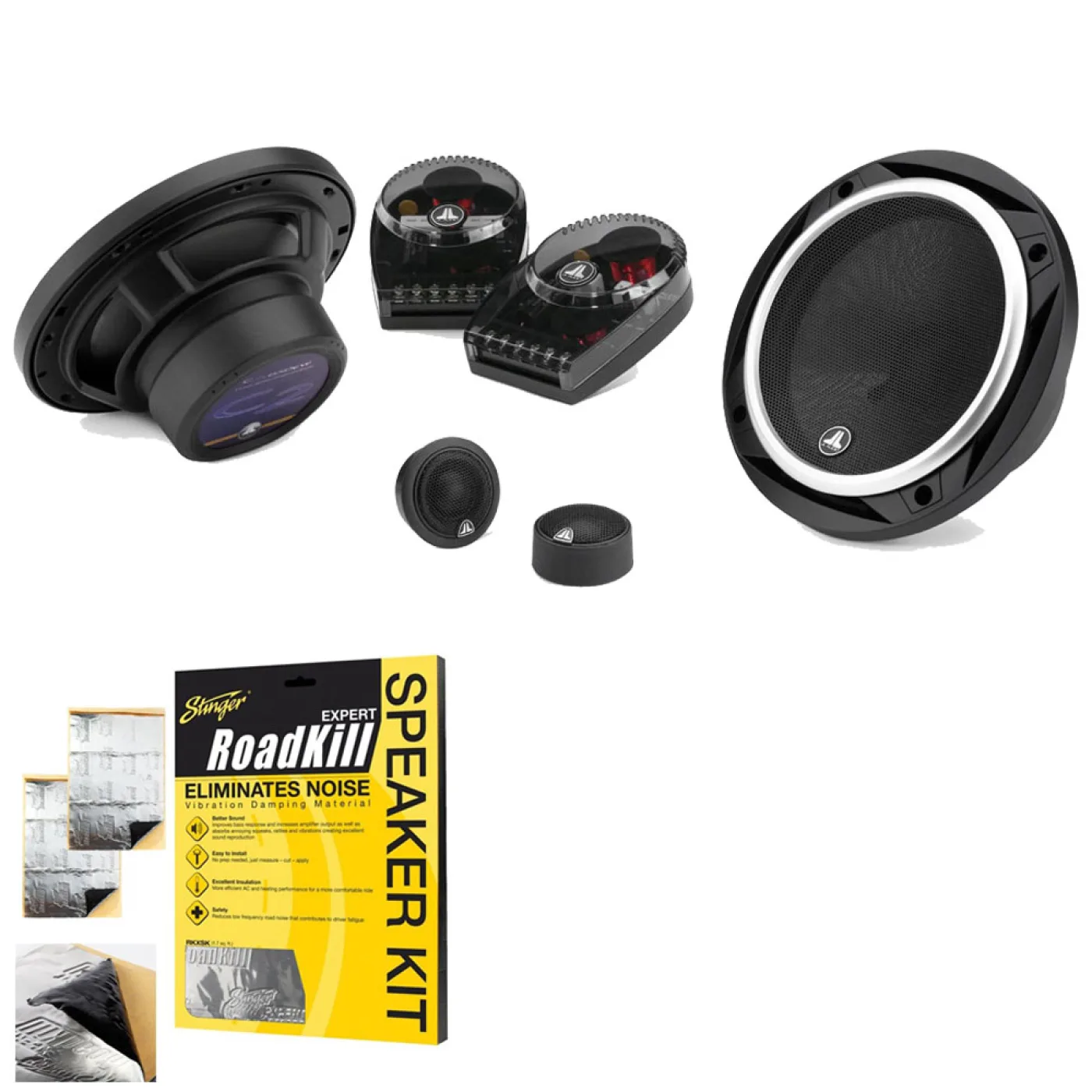

Package Includes
- JL Audio C2-650C 6.5" (165 mm) 2-Way Car Component Speaker System
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

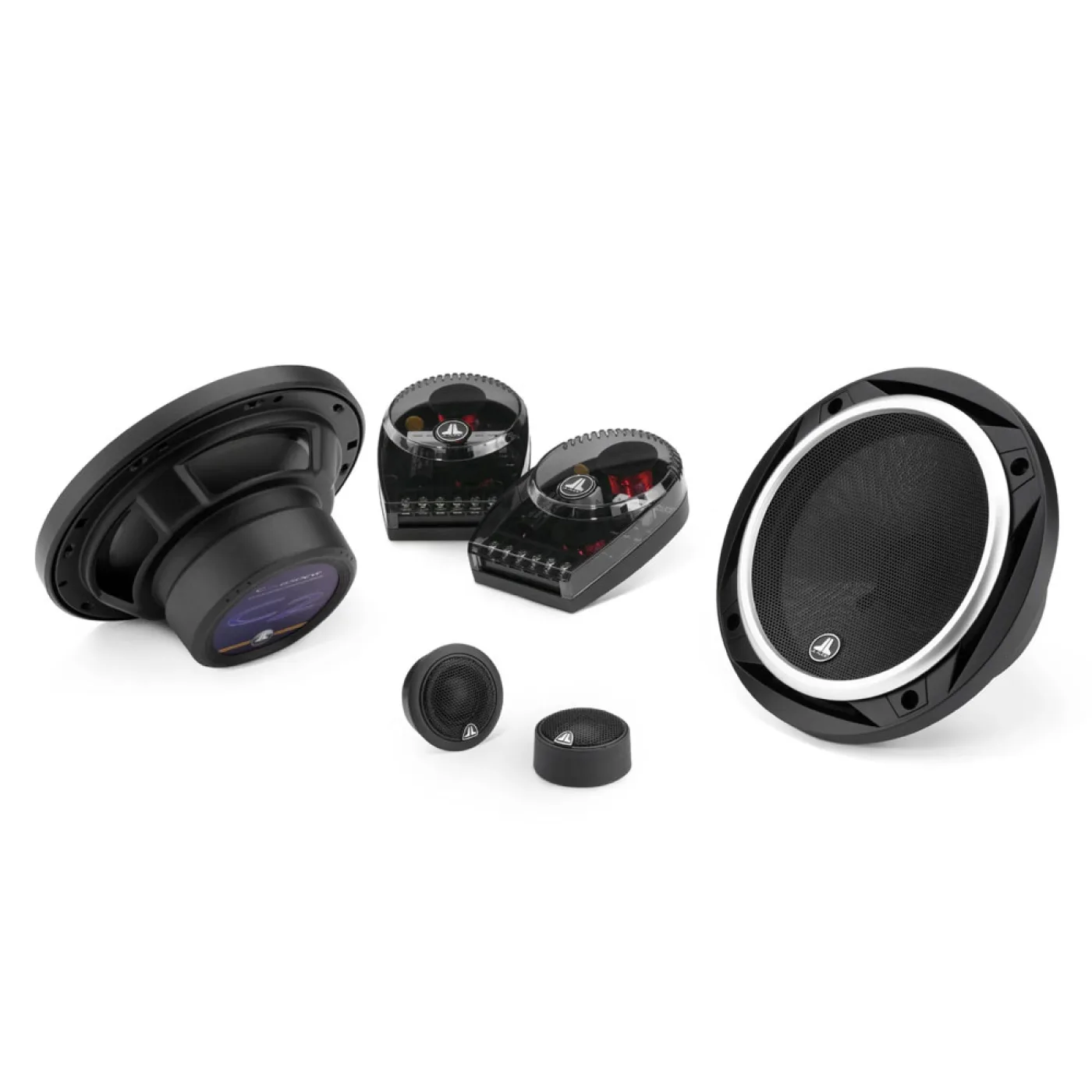

C2-650C Component Speaker
2-Way Component System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

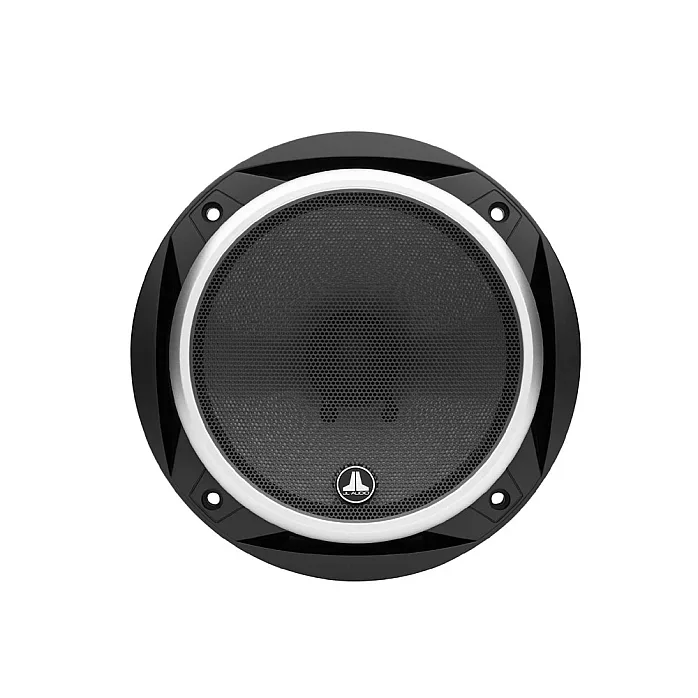

The C2-650C system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

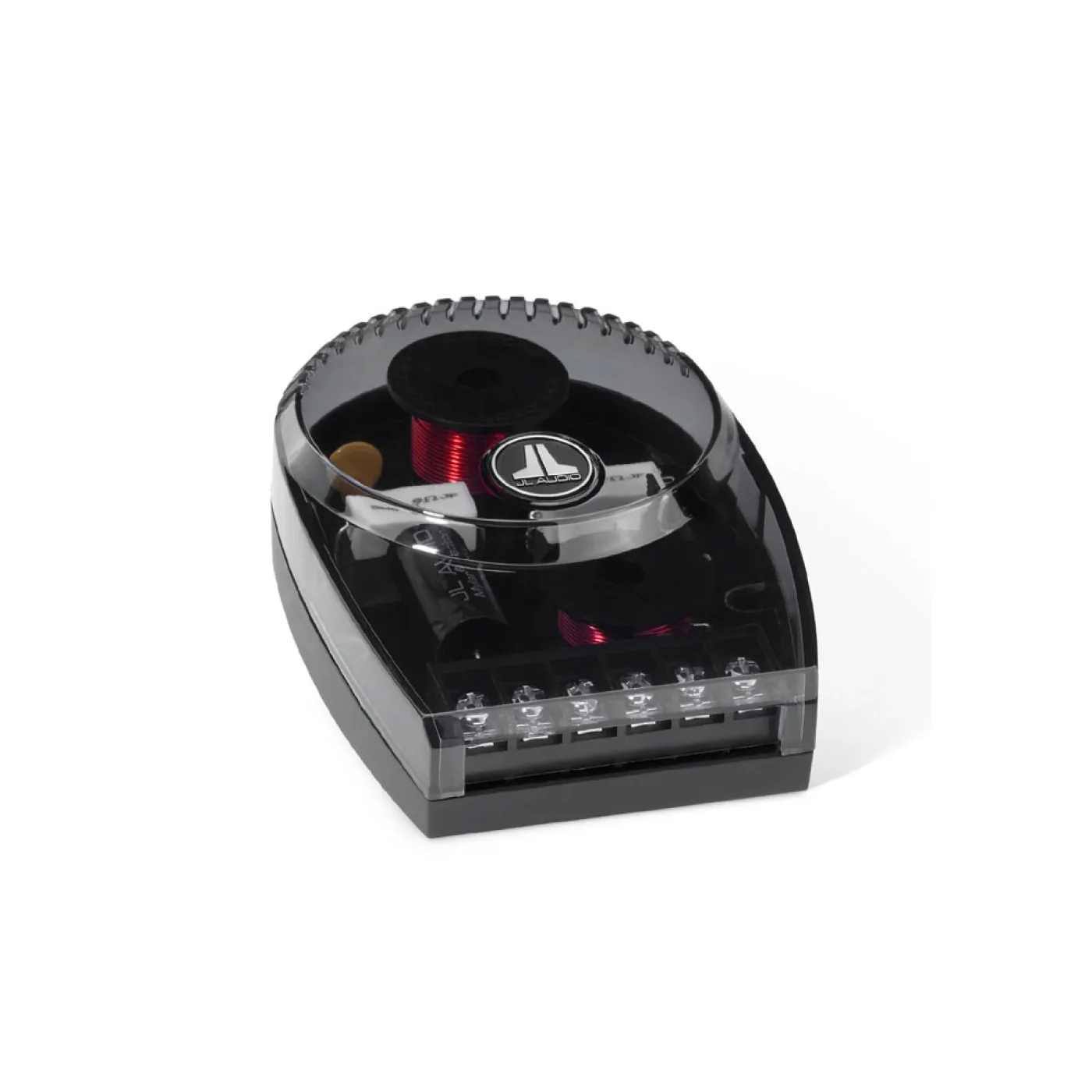

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.

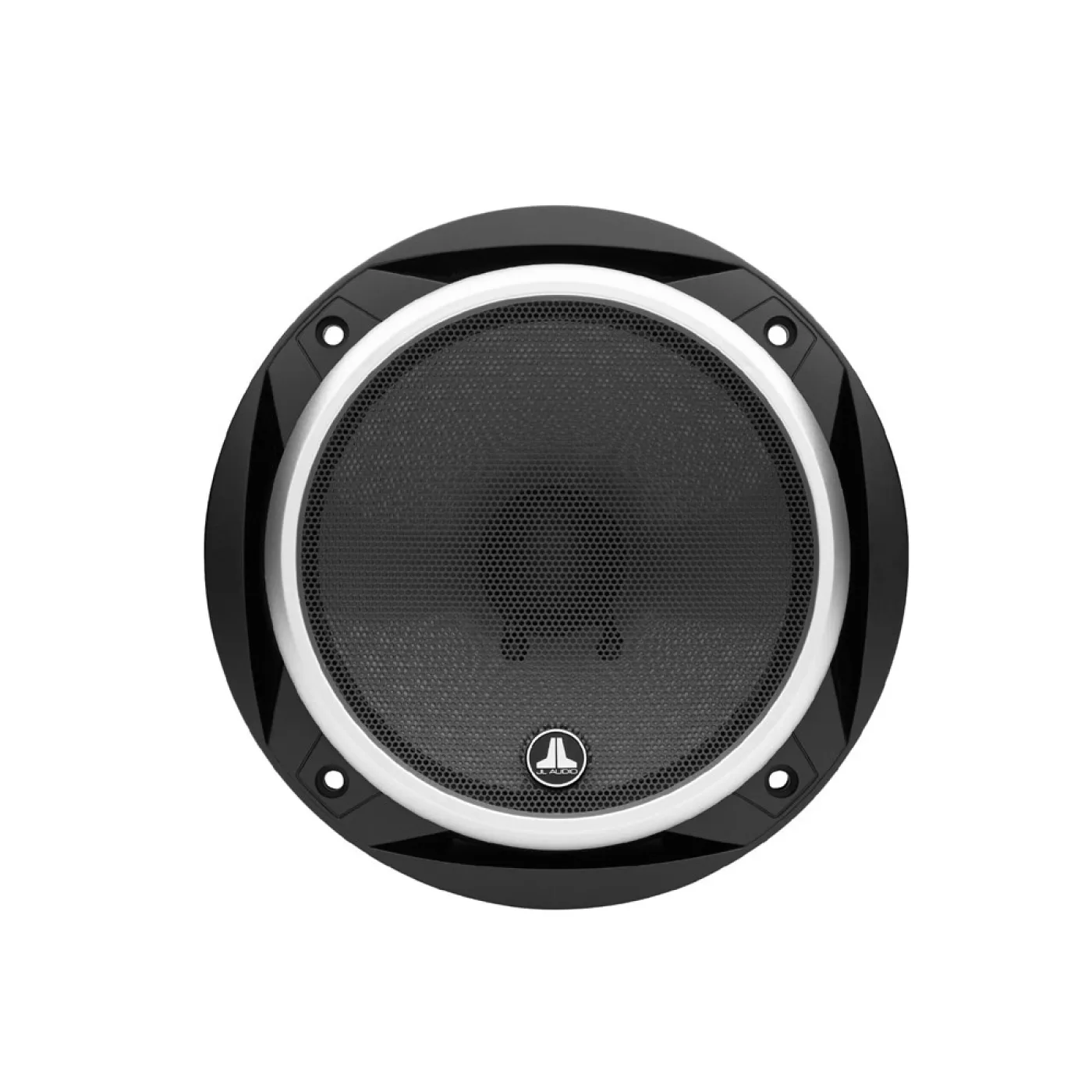

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Specifications
General Specifications
- Continuous Power Handling (RMS) 60 W
- Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
- System Efficiency 91.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 59 Hz - 22 KHz ± 3 dB
Woofer Physical Specifications
- Frame Outer Diameter* (A) 6.5 in / 165 mm
- Grille Tray Outer Diameter (B) 6.84 in / 174 mm
- Motor Outer Diameter (C) 3.15 in / 80 mm
- Frontal Coaxial Tweeter Protrusion (D) N/A
- Frontal Grille Protrusion** (E) 0.85 in / 22 mm
- Mounting Hole Diameter (F) 5.56 in / 141 mm
- Mounting Depth (G) 2.44 in / 62 mm
Tweeter Physical Specifications
- Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
- Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
- Flush Mount Mounting Hole Diameter (B)1.625 in / 41 mm
- Flush Mount Mounting Depth (C) 0.76 in / 19 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm
Crossover Physical Specifications
- Width (W) 3.36 in / 85 mm
- Height (H) 1.44 in / 37 mm
- Depth (D) 4.72 in / 120 mm
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
