JL Audio C3-650 Evolution C3 Series 6.5" (16.5cm) 2 Way Convertible Component/Coaxial Speaker System With Sound Deadening Sheet
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:JL Audio
- Product Code:C3-650 + RKXSK
- EAN / UPC:7427307002859
- Warranty:1 Year Warranty

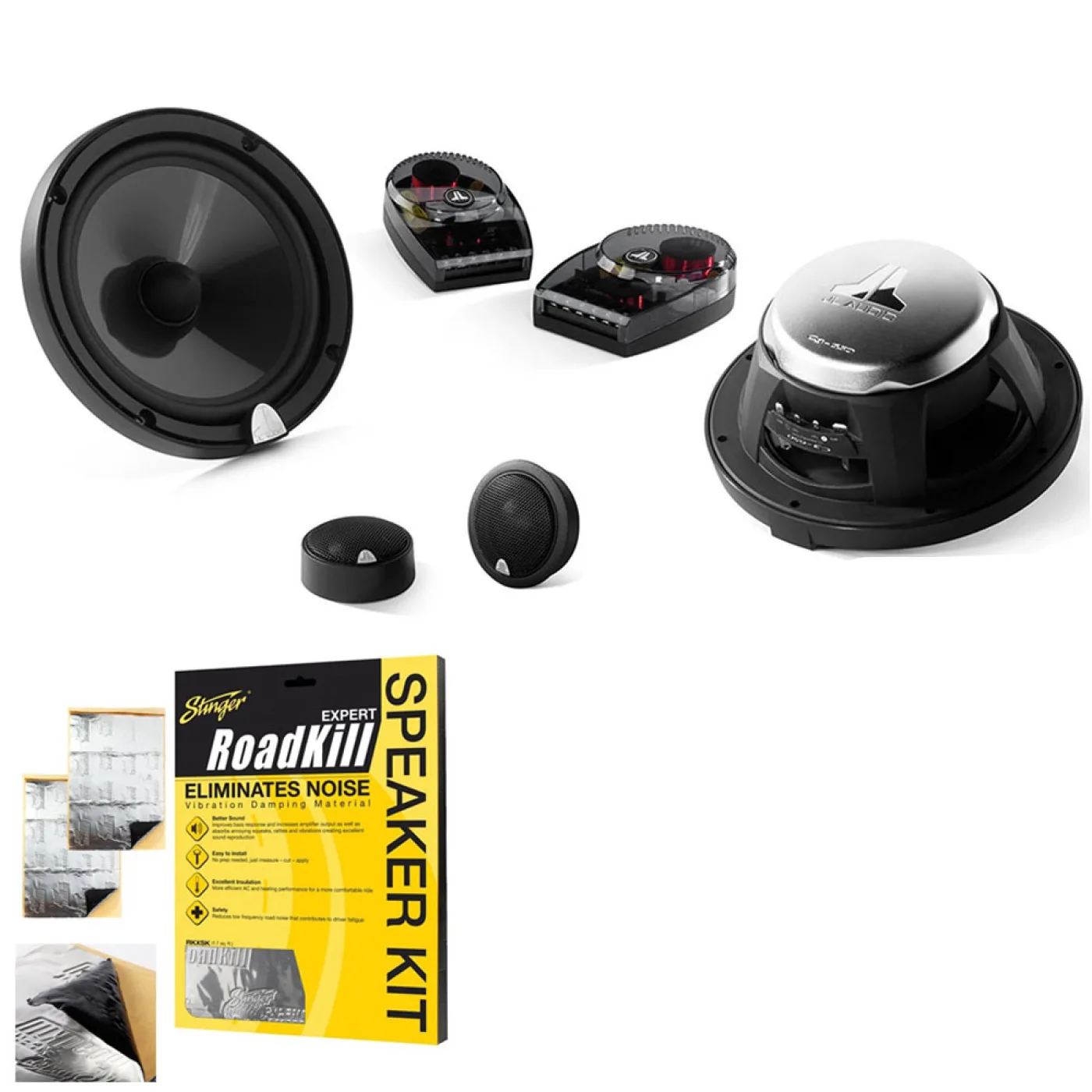

Package Includes
- JL Audio C3-650 Evolution C3 Series 6.5" (16.5cm) 2 Way Convertible Component/Coaxial Speaker
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
C3-650 2-Way Convertible Component / Coaxial System
2-Way Convertible Component / Coaxial System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

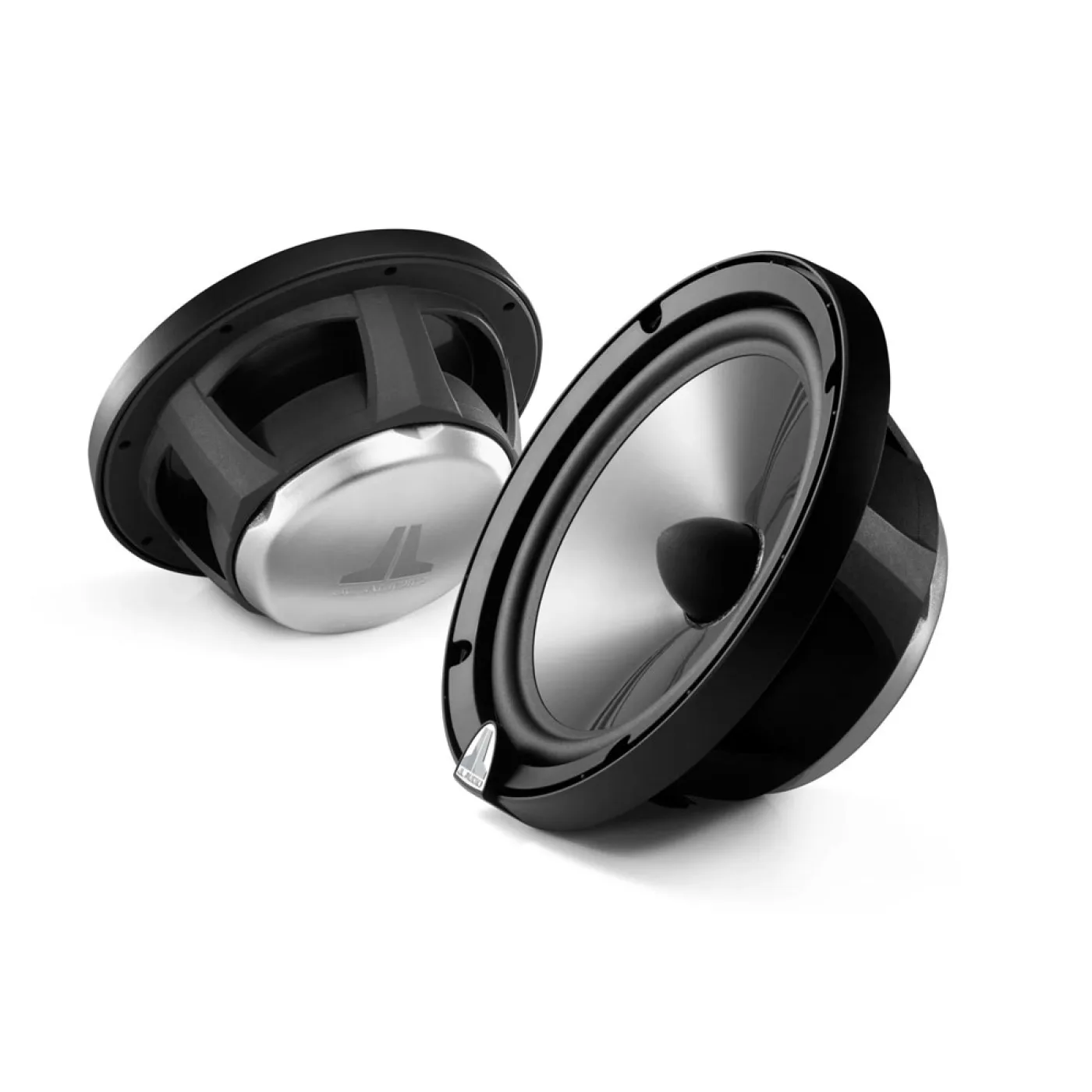

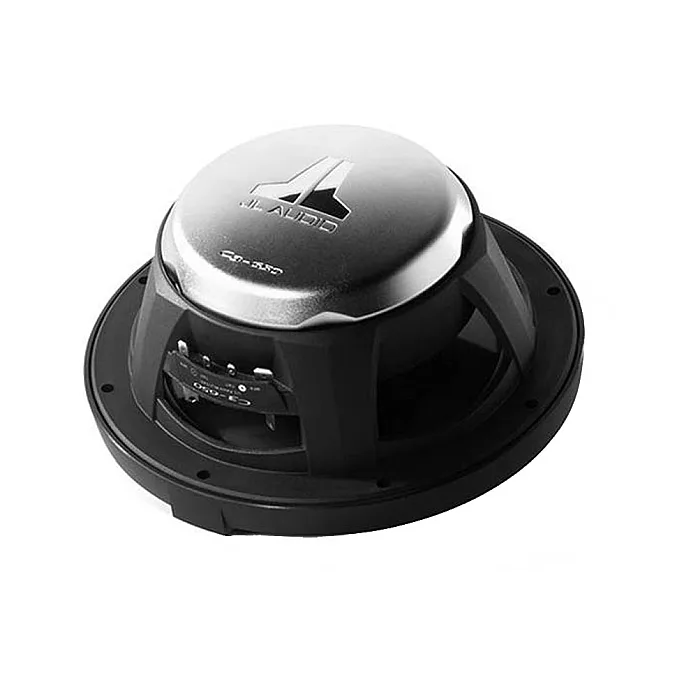

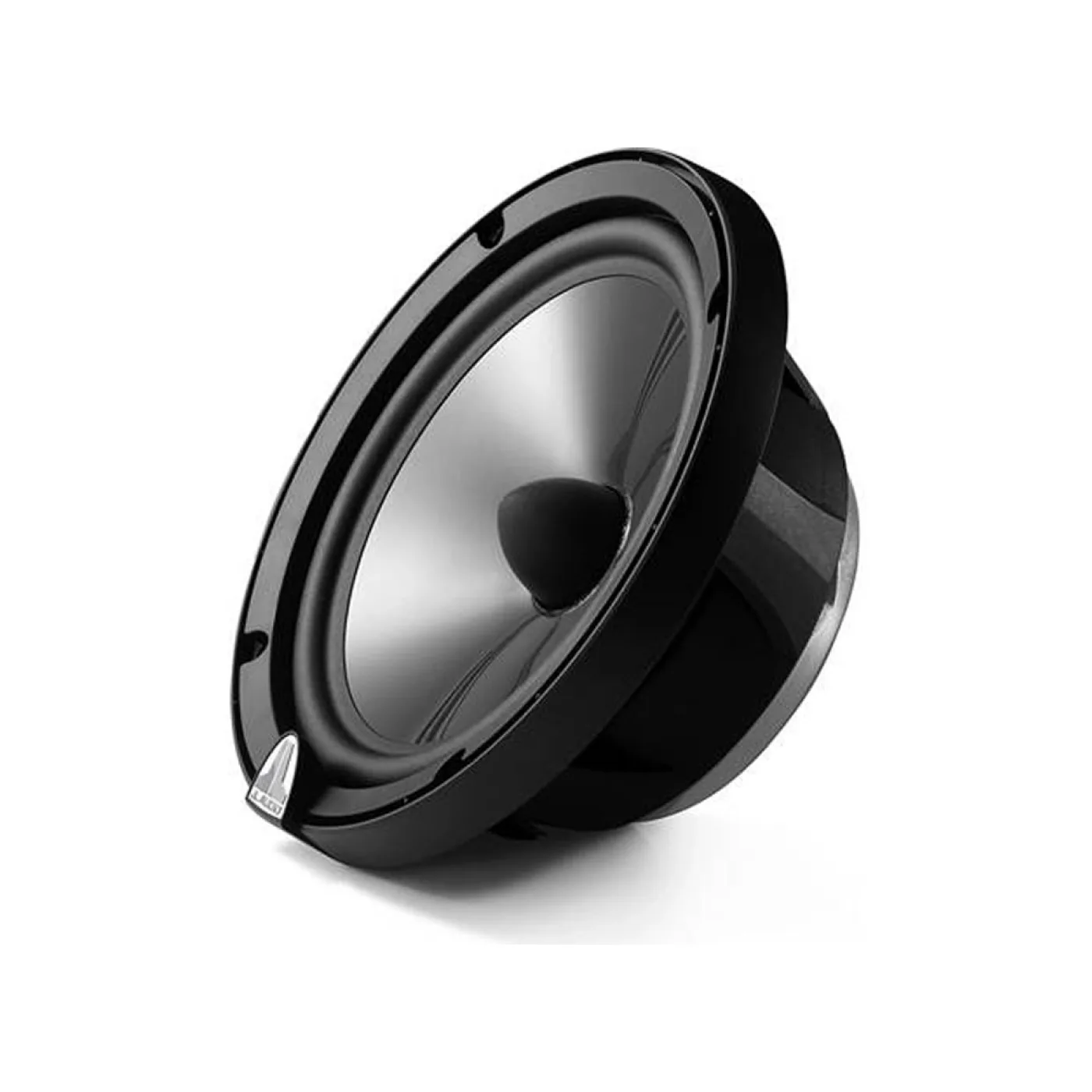

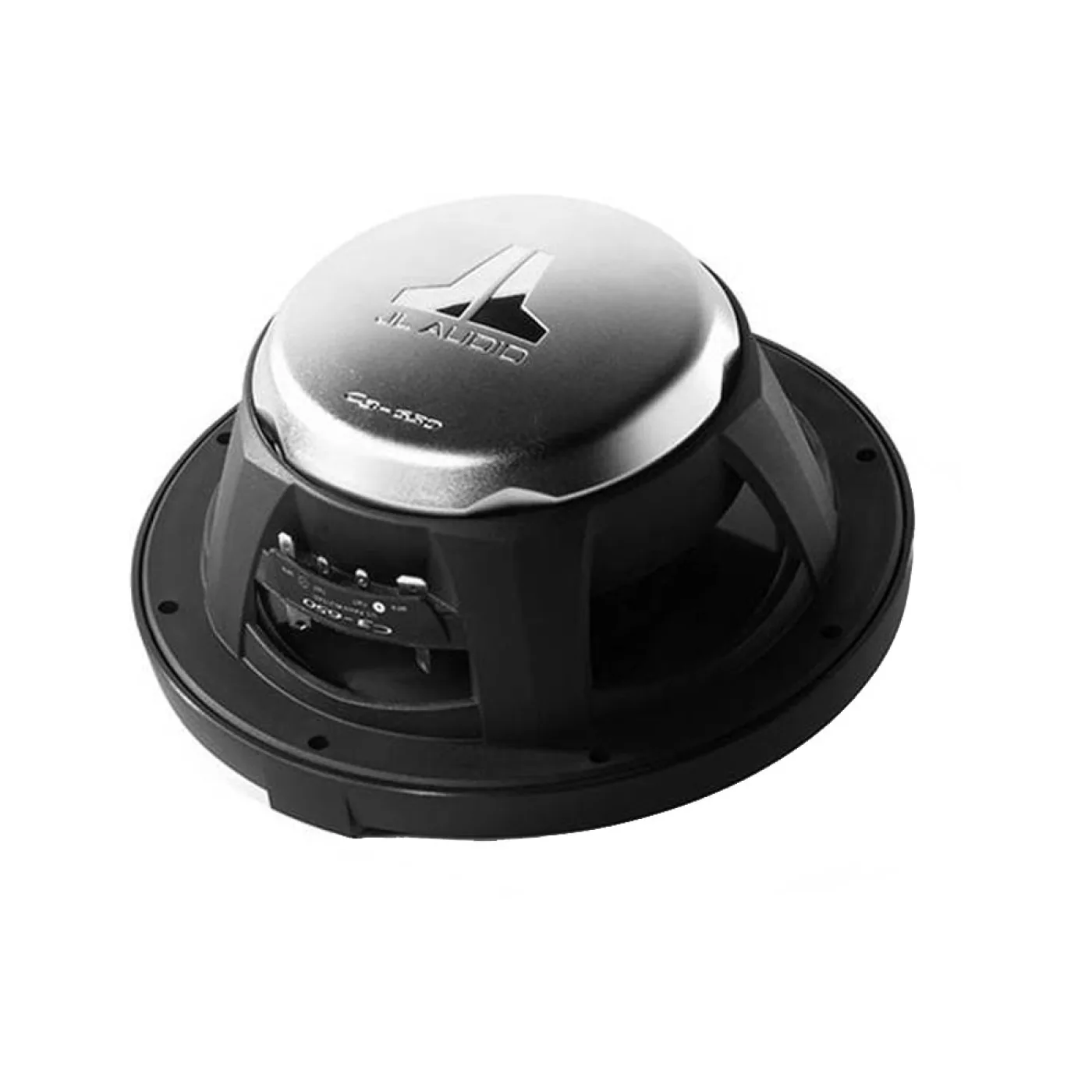

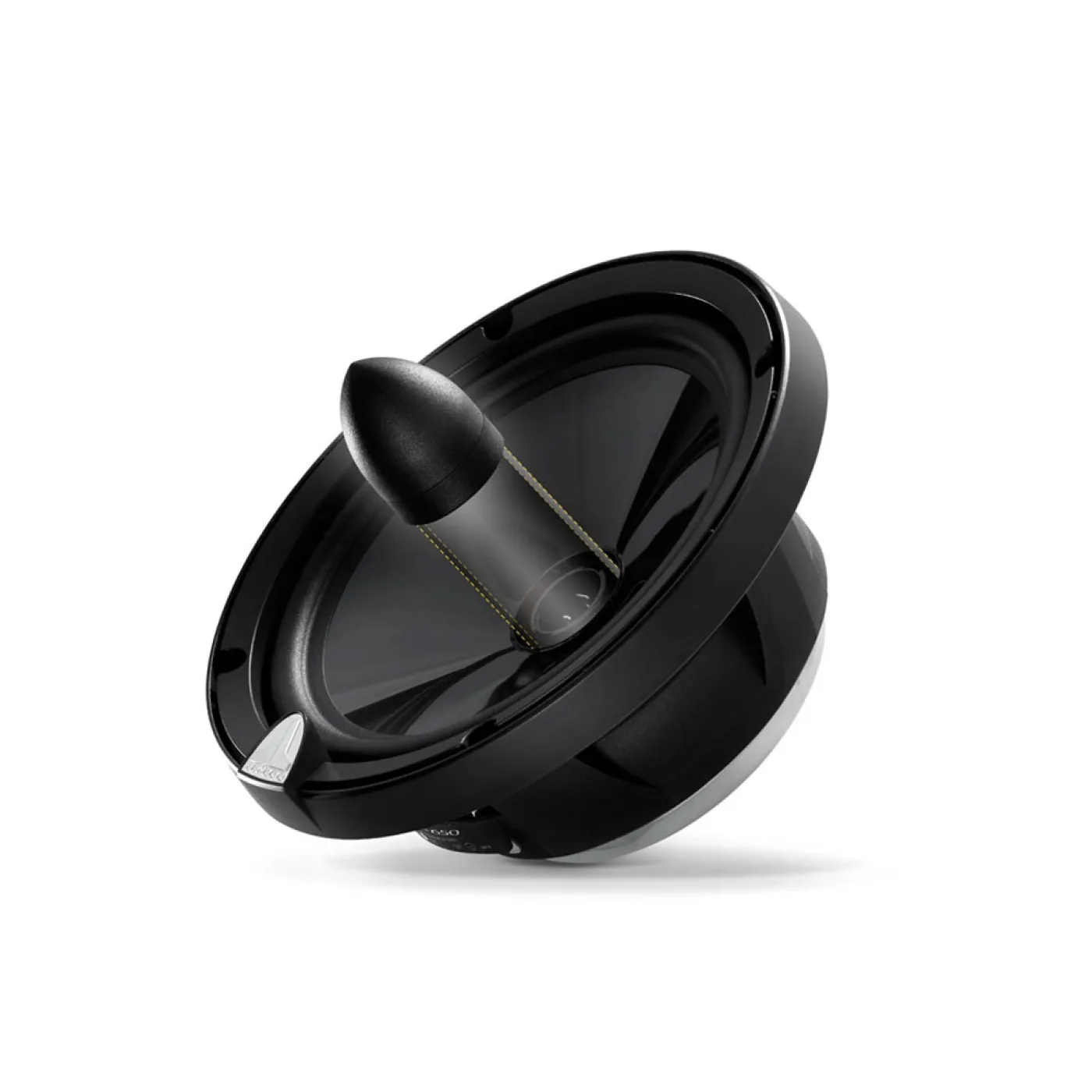

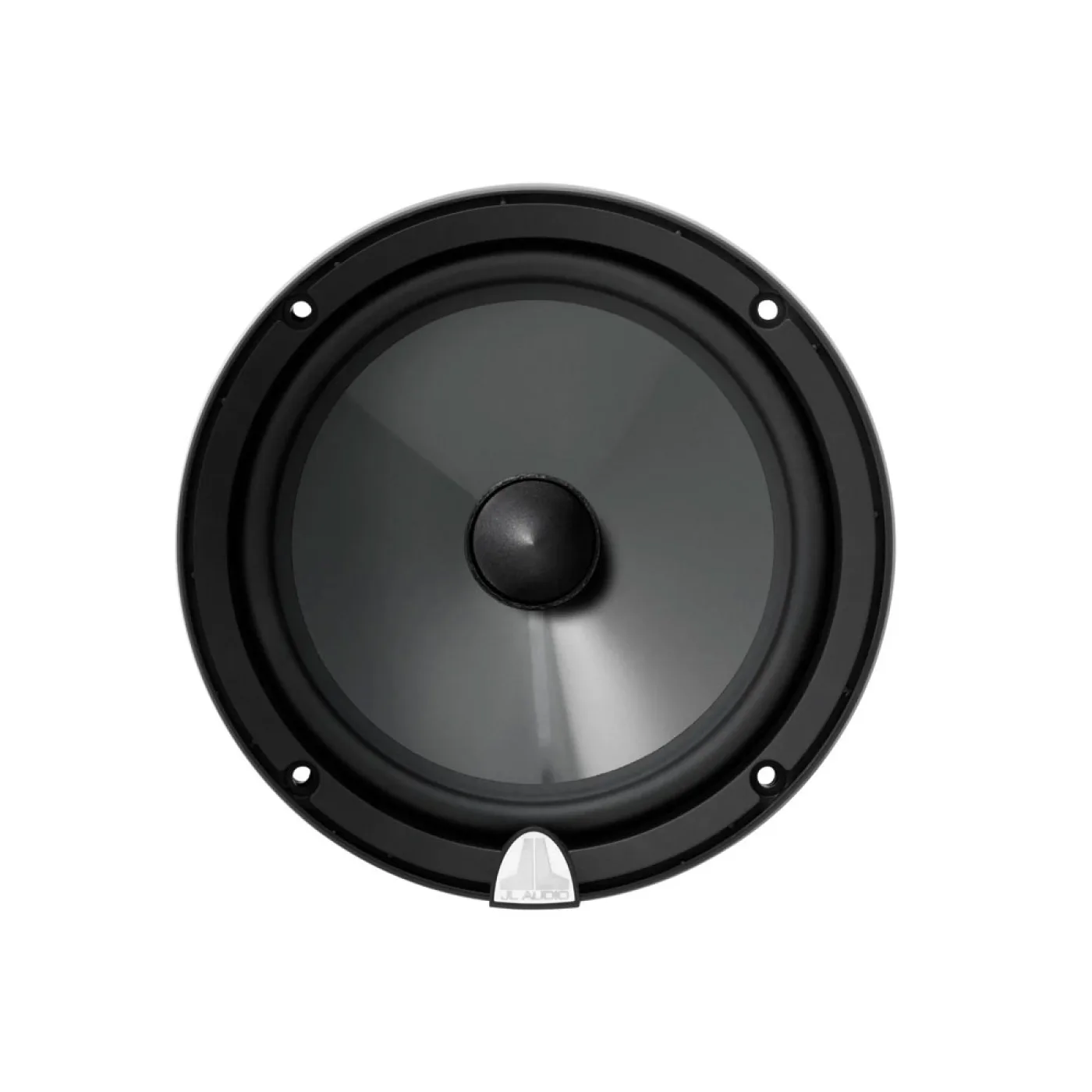

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

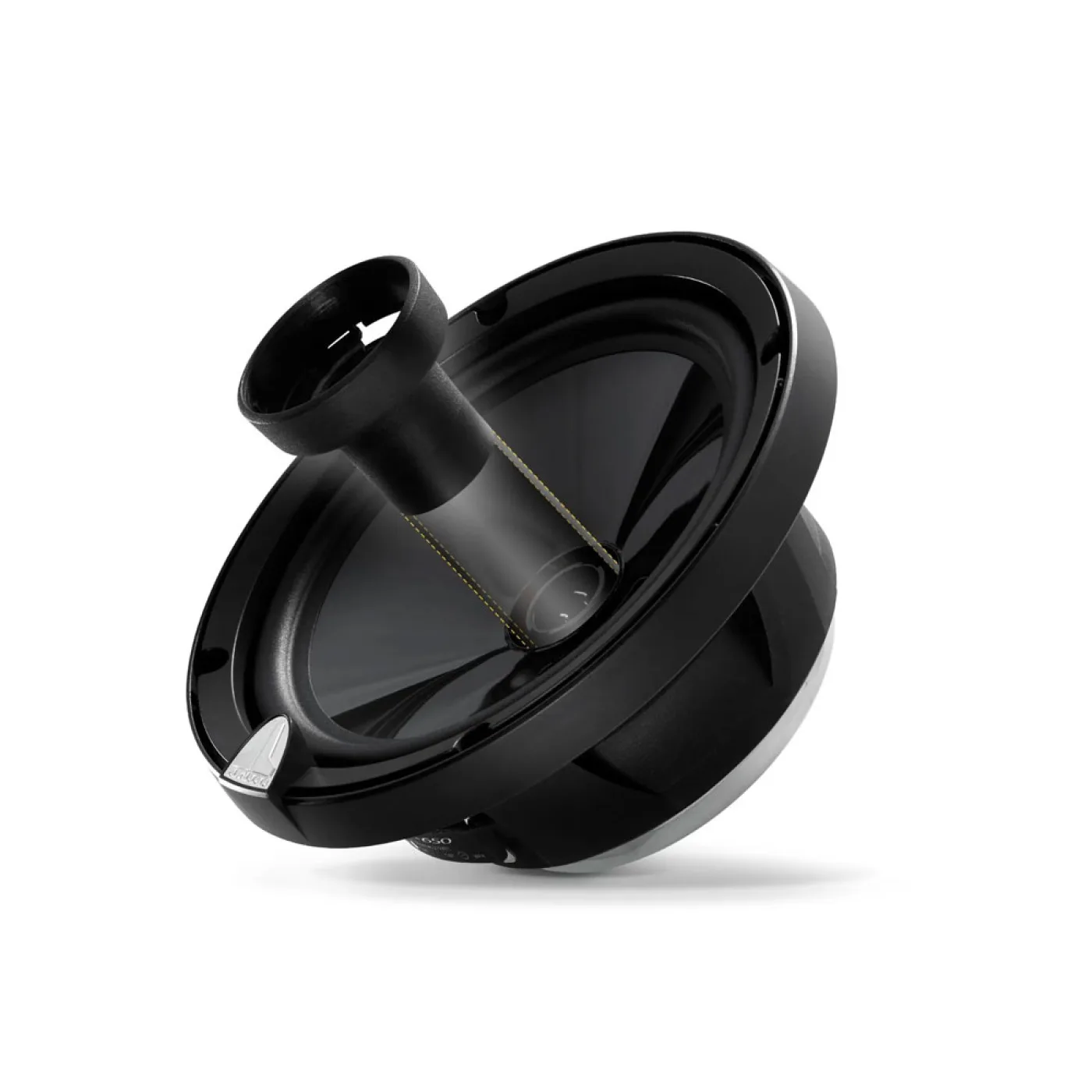

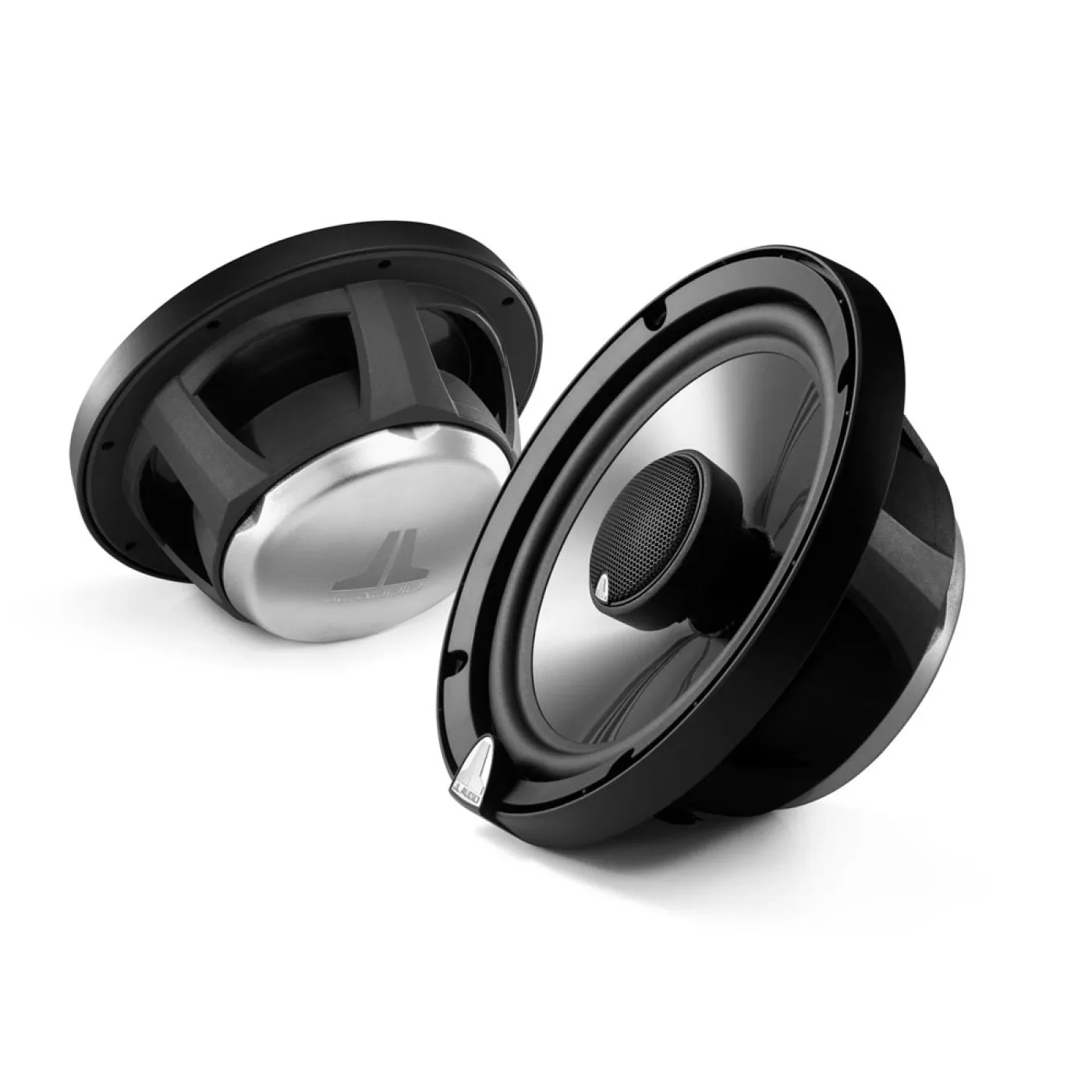

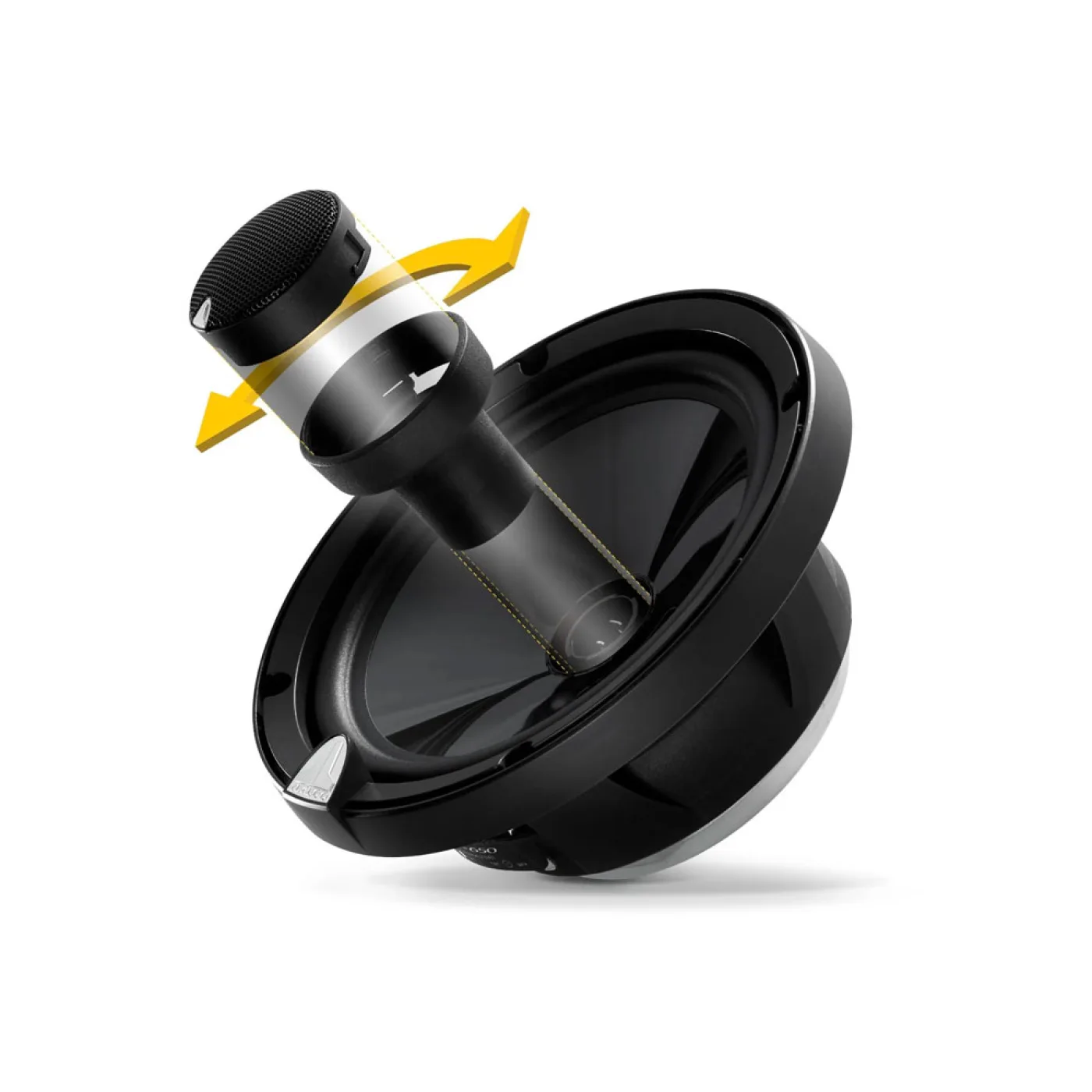

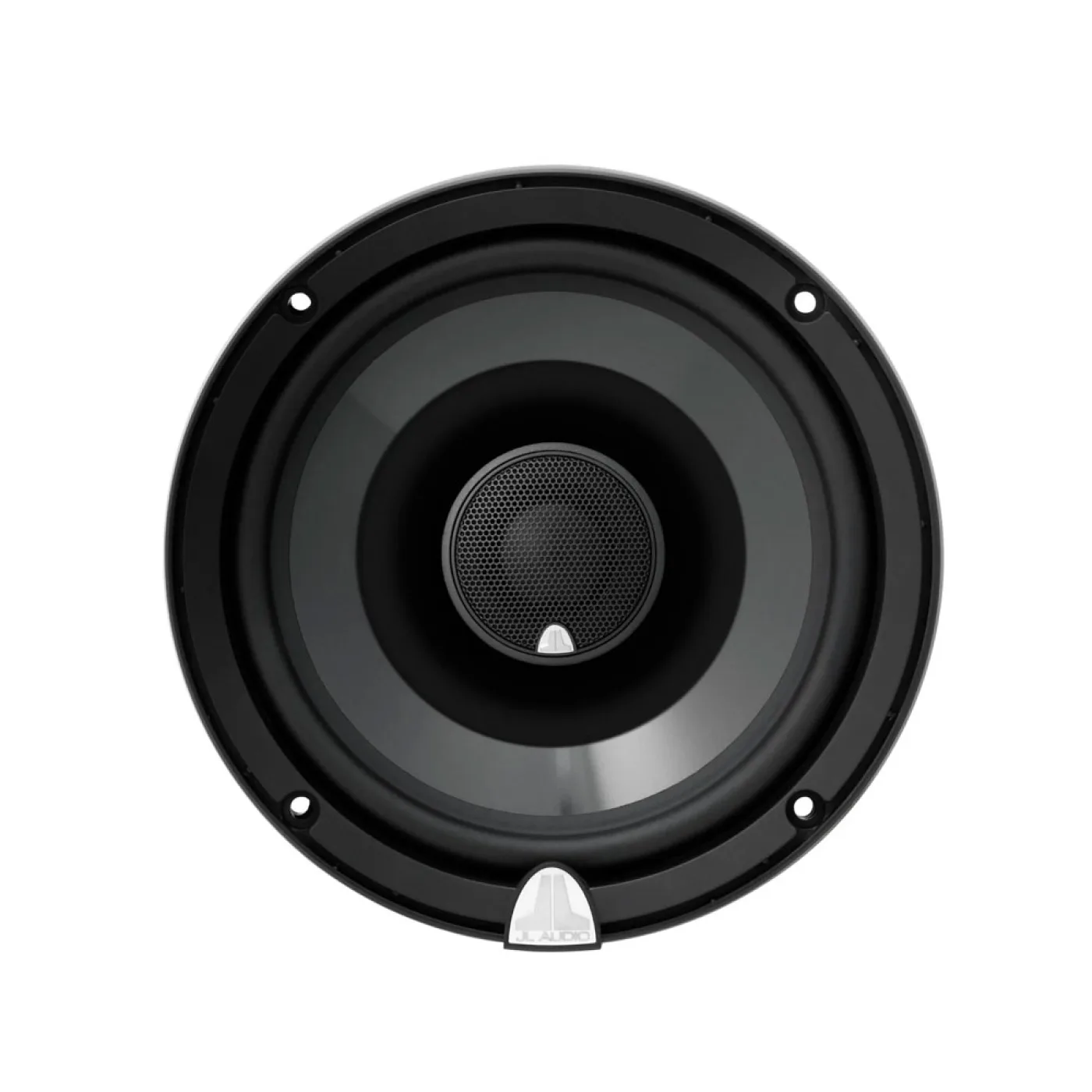

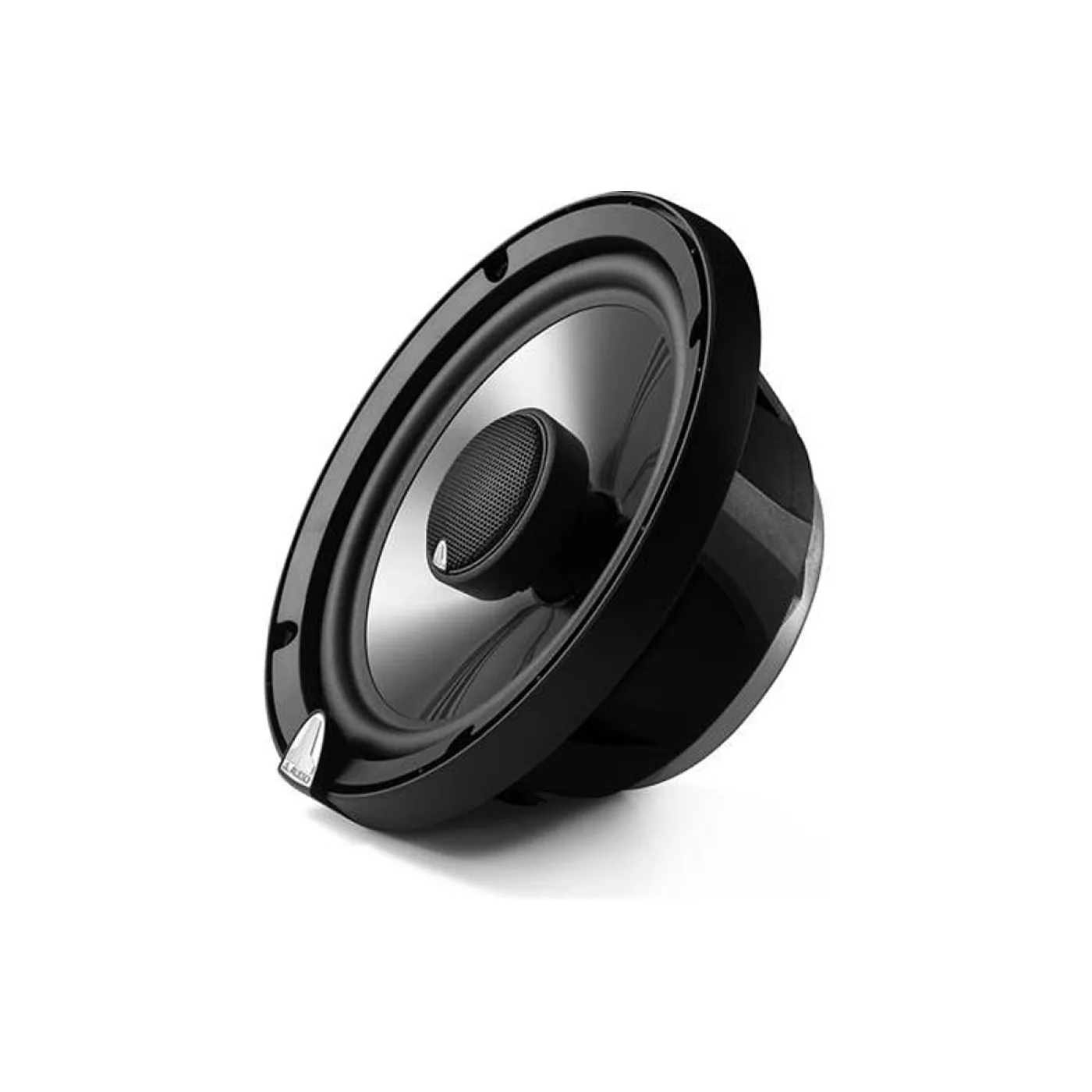

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Specifications
General Specifications
- Continuous Power Handling (RMS) 75 W
- Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
- System Efficiency 90.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 48 Hz - 25 KHz ± 3 dB
Coaxial Physical Specifications
Tweeter Physical Specifications
Crossover Physical Specifications

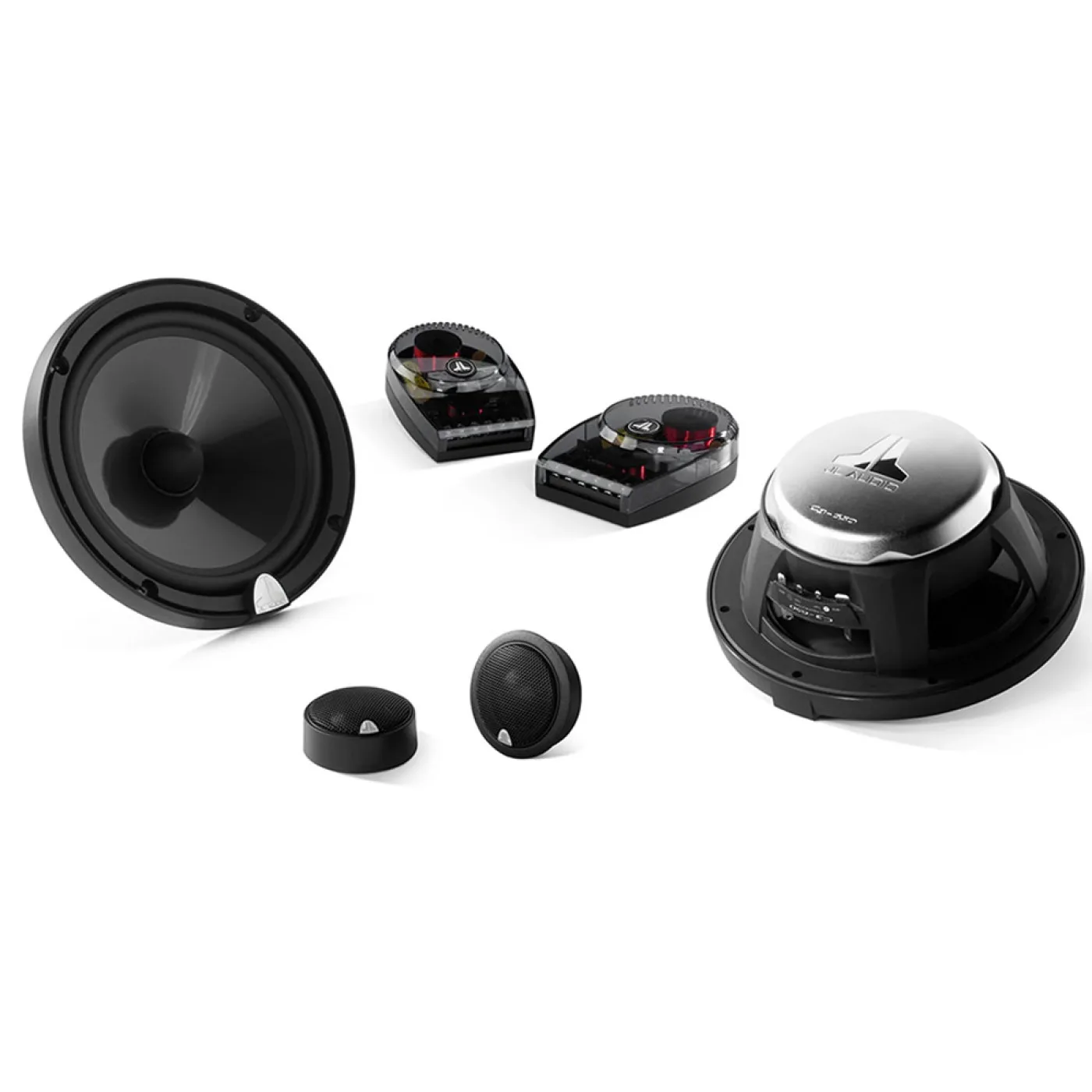

What's in the box
- 2 x C3-650cw Woofers
- 2 x C3-100ct Tweeters
- 2 x C3-650-XO Crossovers

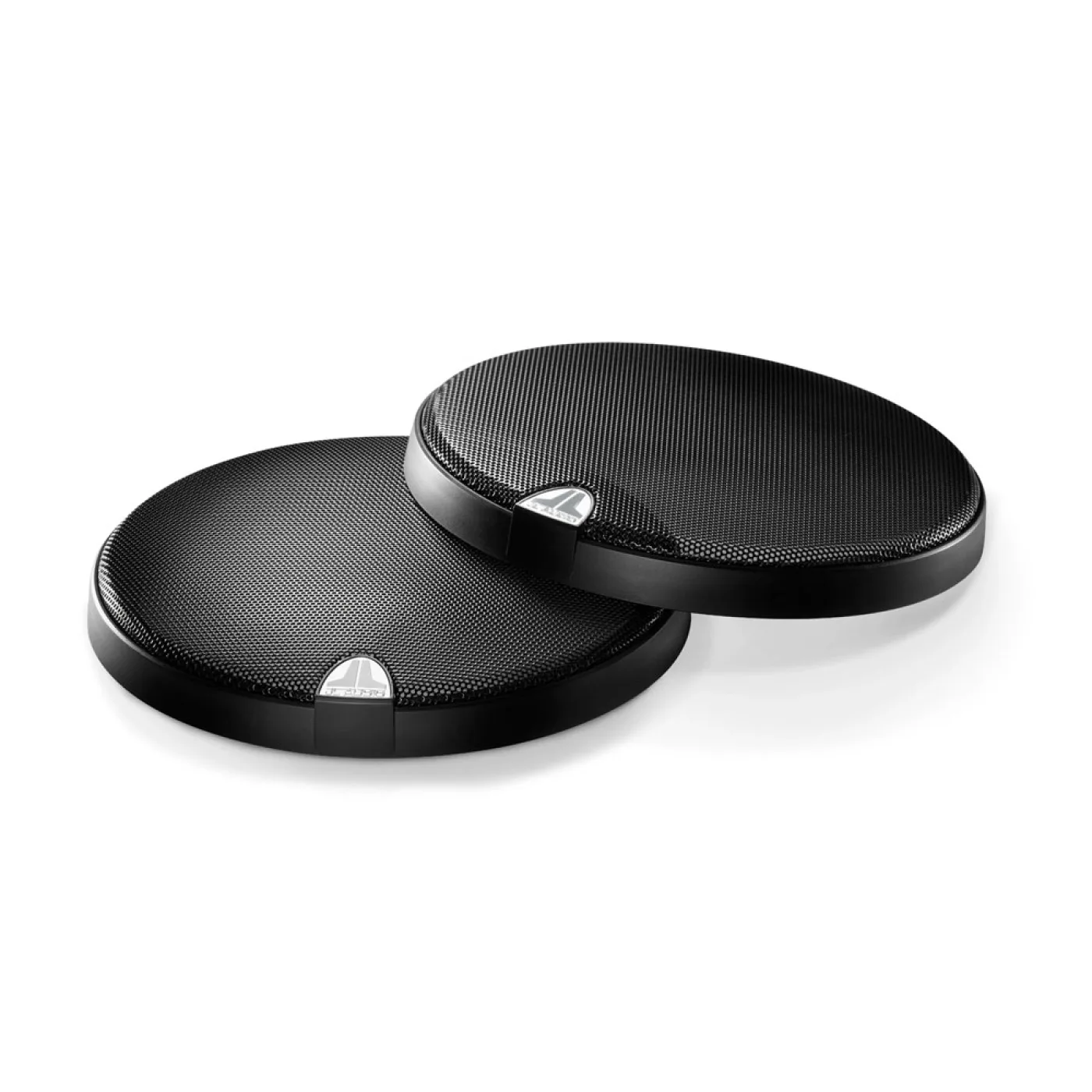

- 2 x Woofer grilles
- 2 x Flush mount tweeter housings
- 2 x Surface mount tweeter housings
- 2 x Coaxial mount tweeter fixtures
- 2 x Metal spring clips for tweeter fixtures
- 2 x M4x30mm Pan-head machine screws
- 2 x Crimp-on 0.187" Male quick slides
- 2 x Crimp-on 0.110" Male quick slides
- 2 x Crimp-on 0.25" Female quick slides
- 2 x Crimp-on 0.187" Female quick slides
- 4 x Crimp-on 0.110" Female quick slides
- 12 x Crimp-on spade connectors
- 4 x 1" Flat head self-tapping screws
- 12 x 1-1/8" Pan head self-tapping screws
- 8 x Speed clips
- Owner's manual
- Woofer cutout template
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Fitting kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
