JL Audio CP108LG-W3V3 8" MicroSub Ported Subwoofer Enclosure 250W RMS
- Availability:In Stock
- Available:1 in stock
- Item Condition:New
- Brand:JL Audio
- Product Code:CP108LG-W3V3
- EAN / UPC:7427288116934
- Warranty:1 Year Warranty
CP108LG-W3V3 Single 8W3v3 MicroSub, Ported, 4 Ω
Enclosed Subwoofer System with Single 8W3v3-4 Subwoofer Driver, Black Carpet (250 W, 4 Ω) - Ported Enclosure
CP108LG Product Spotlight
This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 8W3v3 subwoofer driver into an efficient slot-ported design.

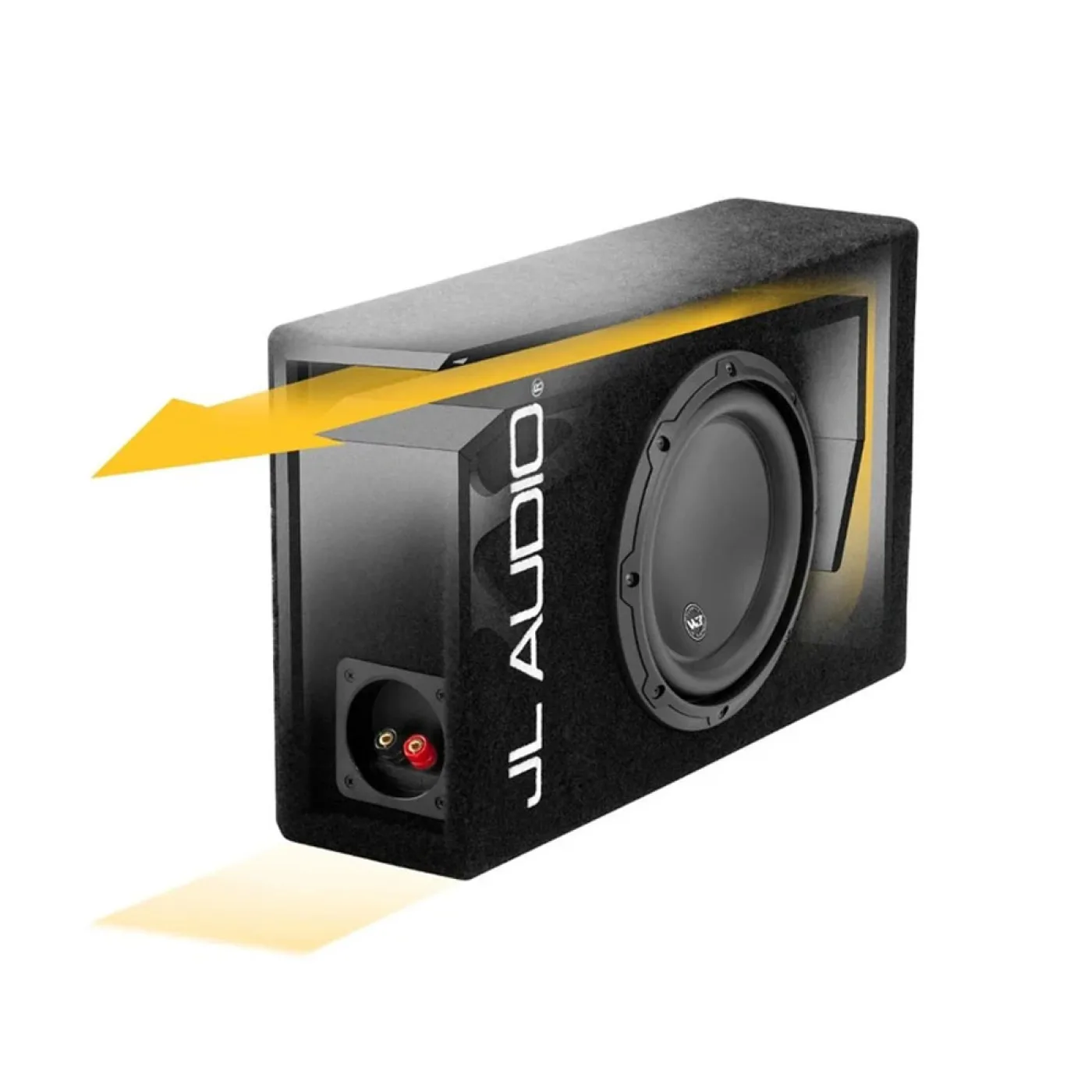

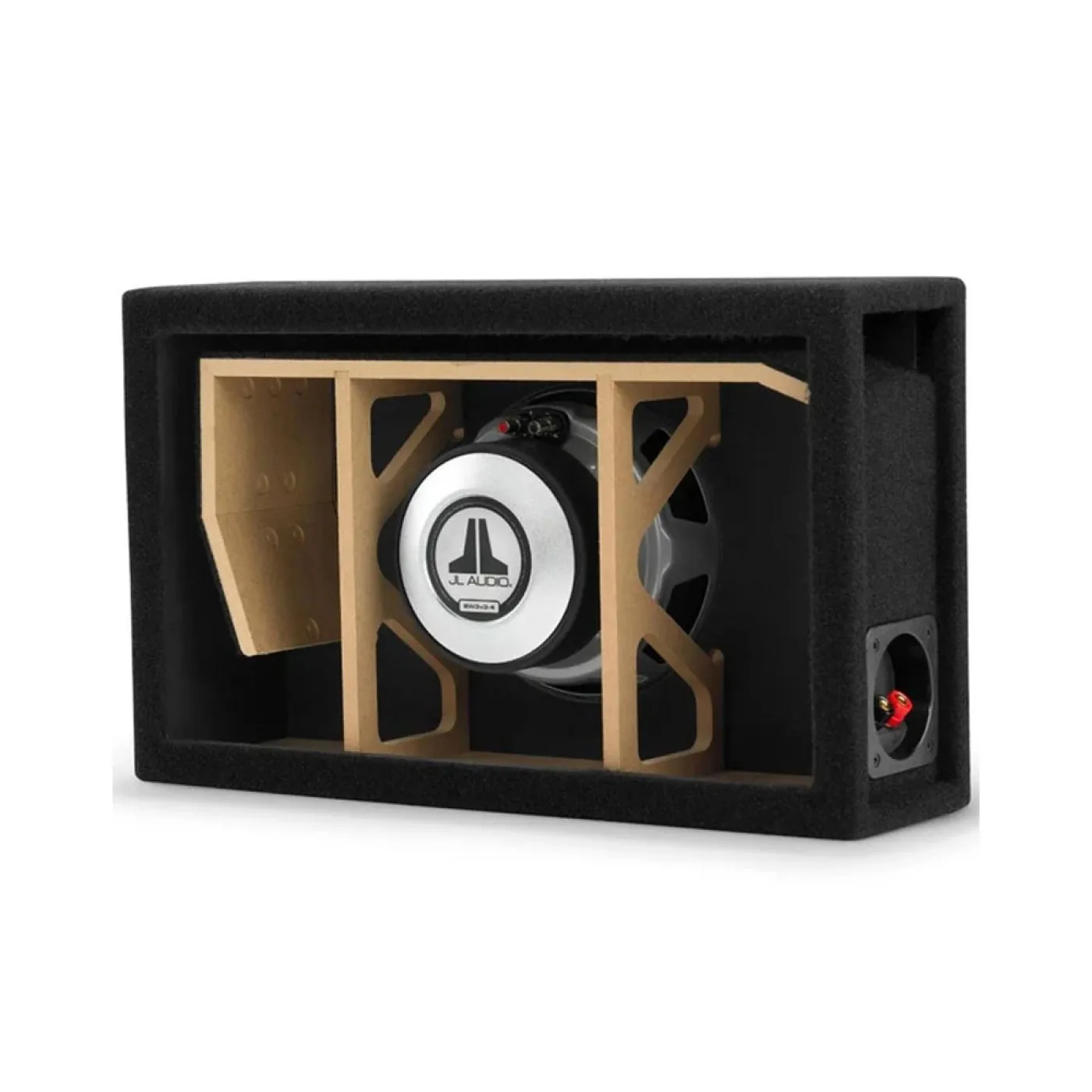

Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
- Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
- Construction: CNC-Cut High-Grade MDF
- Recommended amplifier power: 100 - 250W
- Nominal Impedance: 4 Ω
Specifications
Specification
- Size 8 Inch
- RMS Power 250w
- Shape Square
- Voice Coil Single
- Type Passive Enclosure
- Series MicroSub
- Article Number CP108LG-W3V3
- Continuous Power Handling (RMS) 250 W
- System Nominal Impedance 4 Ω
- Enclosure Type Slot-ported, Low-profile
- Finish Black carpet
- Grille Included Black Steel Mesh
- External Width (W) 18.625 in / 473 mm
- External Height (H) 11.0 in / 279 mm
- External Depth (D1) 5.125 in / 130 mm
- Net Weight 17.40 lb / 7.89 kg
What's Included
- CP108LG-W3v3 Slot-ported subwoofer enclosure (loaded with one 8W3v3-4 woofer)
- Black metal grille (installed)
